17" Waterproof All-in-One PC

TS-2945-17

Available


Description

The TS-2945-17 Touchscreen Waterproof Computer is an ideal 17" HMI replacement for manufacturing environments where water, dust, or harsh chemicals are present. The fully sealed SUS304 stainless steel housing makes it ideal for food and beverage processing where corrosion resistance is needed. The fully fanless cooling system and IP66 rated housing ensure that you can confidently place this PC into the most demanding workplaces. Optional PoE (Power Over Ethernet) simplifies cable design, and makes instilation of the units a breeze, as the system can be directly powered from a PoE source without the need for an external power supply.  Built with industrial-grade components, this All-in-One PC supports a wide temperature range to allow for placement in a variety of environments.

This product is now considered “Previous Generation” meaning it may or may not still be available for purchase. Call +1 800 870 7715 for details on this product or check out our full list of currently available Waterproof Computers.

Key Highlights

  • 17" Full Flush LCD Touchscreen
  • Intel Celeron N2930 CPU with SoC
  • IP66 Rated, Fully Sealed, Fanless Design
  • Resistive or Projected Capacitive Touchscreen
  • Easy to Clean with Touchscreen On/Off Button
  • Optional PoE LAN Port for System Power

Use Cases

Food and Beverage Processing: The TS-2945 Touchscreen Waterproof Computer Series, with its fully sealed stainless steel housing and IP66 waterproof rating, is well-suited for use in food and beverage processing environments, providing reliable computing solutions that can withstand water, harsh chemicals, and contaminants.

Manufacturing Environments: With their rugged construction and resistance to water, dust, and harsh chemicals, the TS-2945 Touchscreen Waterproof Computers are suitable for various manufacturing environments, such as automotive, electronics, and pharmaceutical, where durability and protection against environmental factors are essential.

Saltwater Environments: The TS-2945 series, with the option for SUS316 stainless steel housing, is specifically designed to withstand saltwater environments, making them suitable for industries such as marine, offshore, and coastal applications.

Industrial Automation: The TS-2945 series computers, with their Intel Celeron N2930 CPU and robust construction, are suitable for industrial automation applications, providing reliable touch-based interfaces for controlling and monitoring manufacturing processes, machinery, and equipment.

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

TP-2945-17_IOS

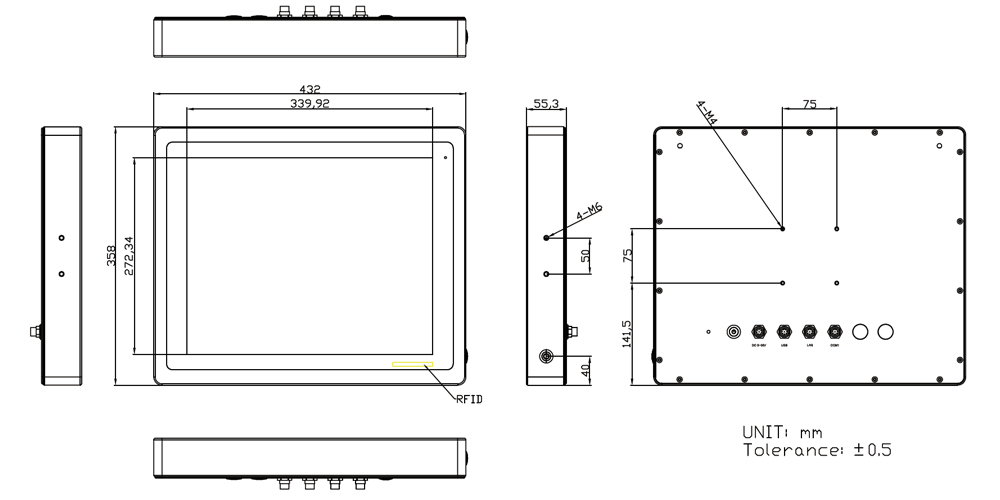

Technical Drawings

TP-2945-17 Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 17" Full Flush LCD Touchscreen
  • Intel Celeron N2930 CPU with SoC
  • IP66 Rated, Fully Sealed, Fanless Design
  • Resistive or Projected Capacitive Touchscreen
  • Easy to Clean with Touchscreen On/Off Button
  • Optional PoE LAN Port for System Power

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model N2930
Processor Speed 1.83 GHz
Memory Type Onboard DDR3
Memory Support 4GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 17"
Resolution 1280 x 1024 (SXGA)
Screen Ratio 4:3
Brightness 350 nits, Optional 1000 nit High Brightness
Contrast Ratio 1000:1
Viewing Angle 170º (H), 170º (V)
Number of Colors Supported 16.7M

Touch Screen

Touch Screen Projected Capacitive, Resistive
Light Transmission Over 80% (Resistive), Over 90% (P-Cap)

External I/O ports

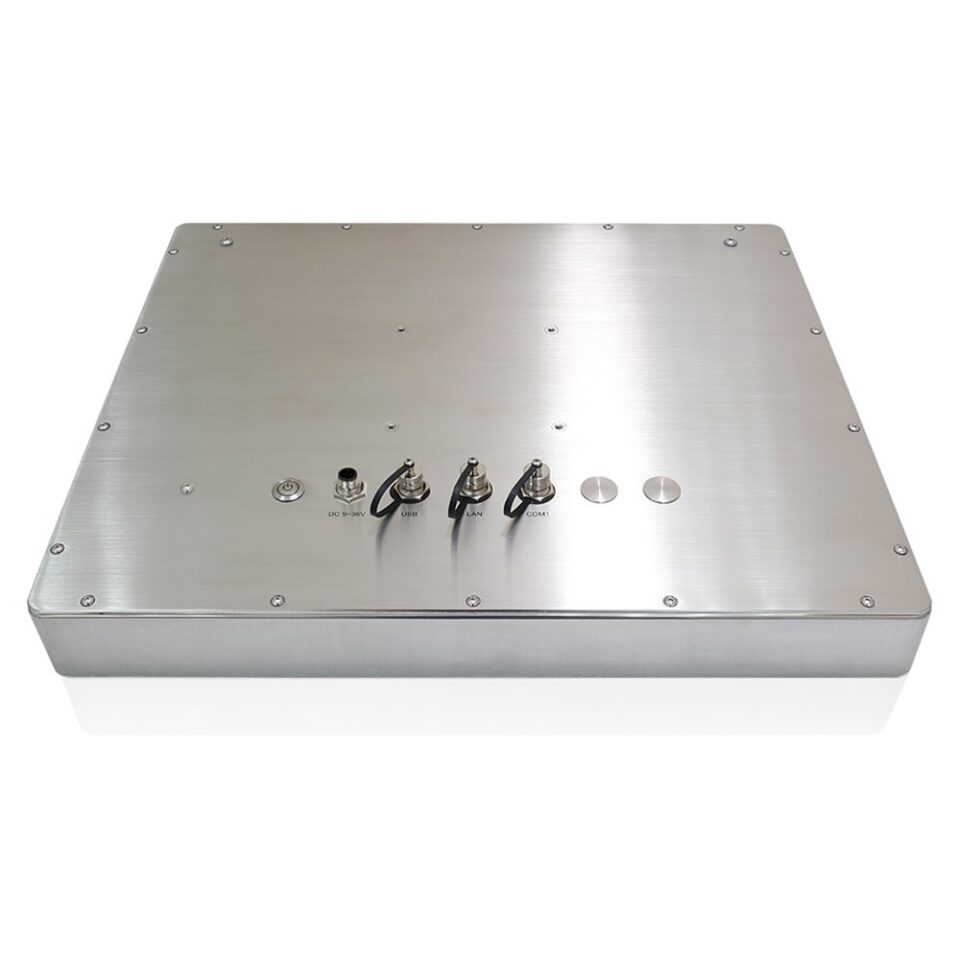

USB 2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com 1x COM
Serial Protocol Detail 1x M12 8Pin for RS-232/422/485 COM Port
Ethernet / LAN 1x M12 8pin RJ45 Gbe LAN
Power Input Port M12 type 3-PIN DC-in

Power

Input Voltage Range 9-36V DC

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 8.1 Pro

Expansion Slots

Internal Mini PCIe 1x Mini-PCIe

Thermal and Environmental

Operating Temperature 0°C – 50°C, Optional -20°C – 60°C
(32°F – 122°F; Optional -4°F – 140°F)
Storage Temperature -30°C – 70°C
(-22°F – 158°F)
Humidity Range 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel, Optional SUS316 Stainless Steel
Ip Rating IP66
Color Stainless Steel
Control Buttons Power Button, Power Switch
Mounting Options Side Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

RFID Optional RFID Module

Dimensions / Weight

Weight 7.1 KG (15.7 lbs)
Dimensions 432 x 358 x 55.3 mm (17.0 x 14.1 x 2.2 in)

Certification

Certifications CE, FCC Class A

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
