15" Waterproof Computer

TS-4010-15

Available


Description

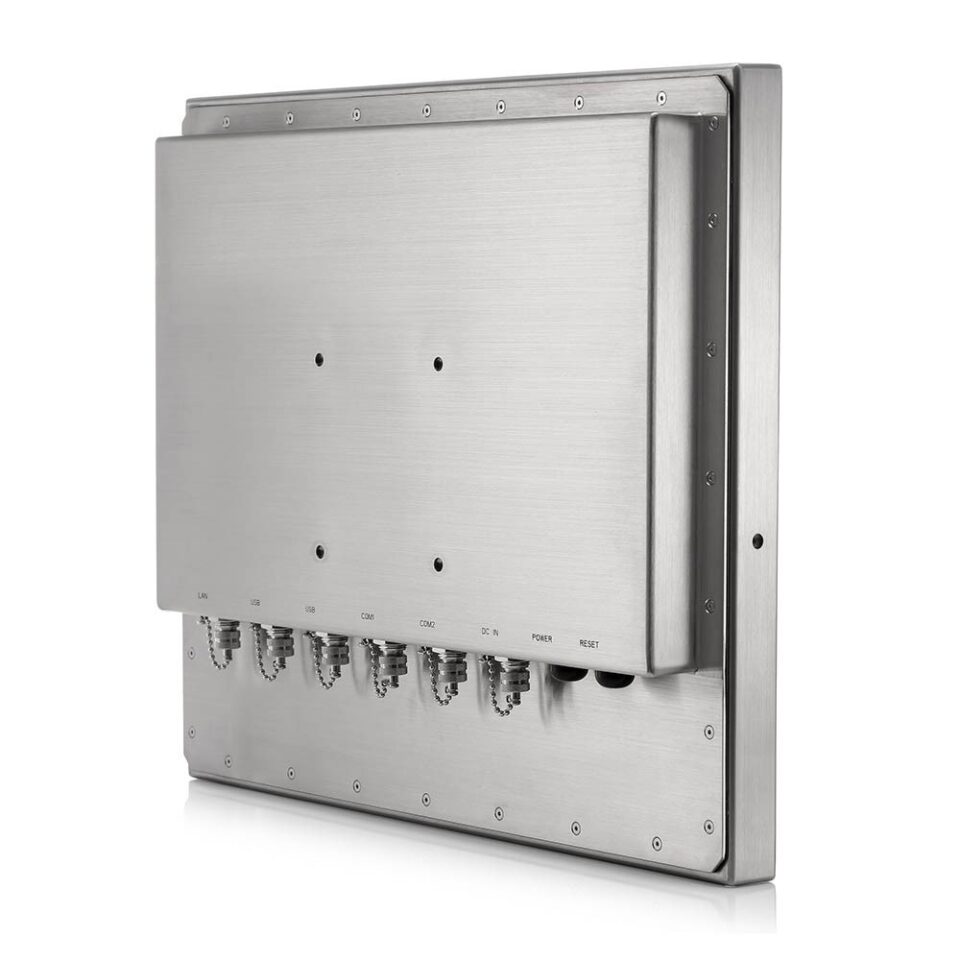

The TS-4010-15 is a fully waterproof stainless steel PC designed for food and beverage manufacturing plants and similar types of settings. This IP69K rated PC can withstand airborne particles, hot water, and cleaning chemicals that are frequently used in sterile environments. This PC is made with industrial grade components and includes M12 anti-corrosive metal connectors and an optional IP68 power supply with IP67 cable set.  The Intel quad core processor in the TS-4010-15 is designed to work with ERP software or similarly demanding programs where consistent live tracking of data is needed.  The seamless full flat screen with the slim stainless steel enclosure provides a refined, clean and bright look to your work setting.

Key Highlights

  • 15" 4:3 Ratio Touchscreen
  • Intel Celeron Quad Core Processor
  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • M12 Metal Input Output Connectors
  • Fully Sealed with Fanless Design

Use Cases

Food and Beverage Manufacturing: The TS-4010 Series computers, with their IP69K and NEMA 4X ratings and M12 waterproof connectors, are specifically designed for the demanding environment of food and beverage manufacturing, providing a reliable computing solution for process monitoring, recipe management, and quality control.

Pharmaceutical Manufacturing: With their IP69K and NEMA 4X ratings, the TS-4010 Series computers are well-suited for pharmaceutical manufacturing environments, offering a robust computing solution for data monitoring, compliance tracking, and process automation in a controlled and hygienic setting.

Industrial Automation: The TS-4010 Series computers, designed for harsh environments, including food and beverage manufacturing, are suitable for industrial automation applications, providing a rugged platform for controlling and monitoring industrial processes and equipment.

Dimensional Drawings & I/Os

See the data sheet

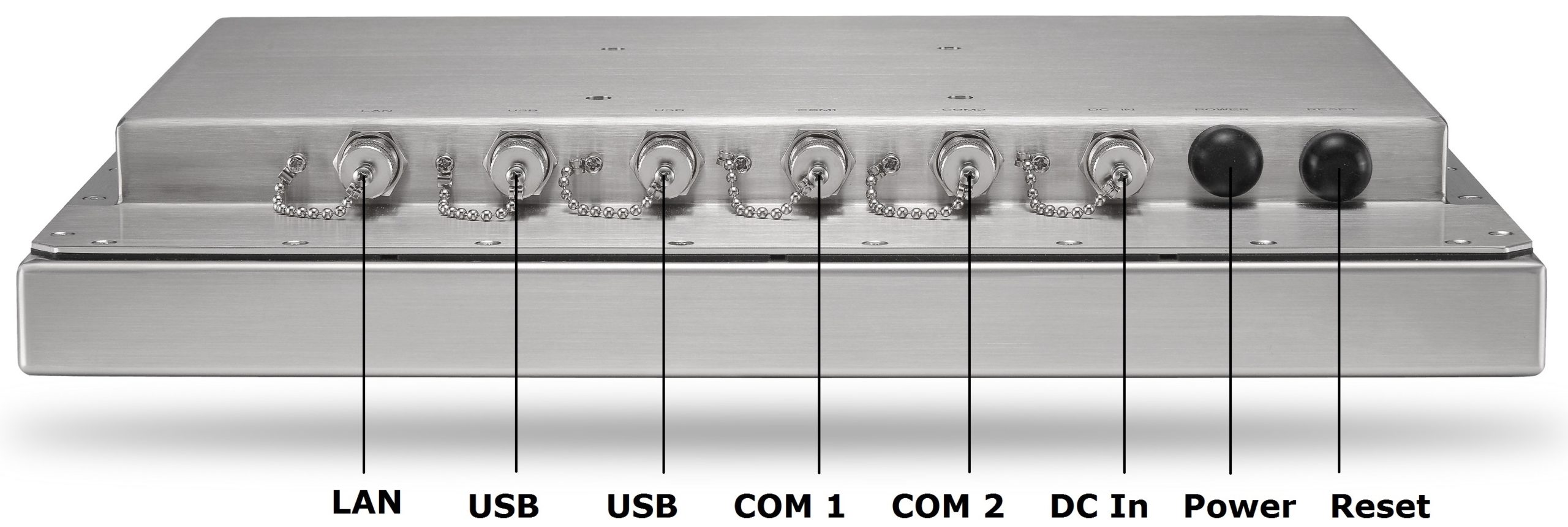

Inputs / Outputs

Stainless Steel Computer Inputs Outputs TS-4010-15

Technical Drawings

Stainless Steel Computer Technical Drawing TS-4010-15

TECH SPECS

See the data sheet

Key Highlights

  • 15" 4:3 Ratio Touchscreen
  • Intel Celeron Quad Core Processor
  • IP66 / IP69K / NEMA 4X Stainless Steel Enclosure
  • M12 Metal Input Output Connectors
  • Fully Sealed with Fanless Design

General

Main Category Industrial Computer

Primary Components

Processor Family Intel Celeron Bay Trail
Processor Model J1900 Quad Core
Processor Speed 2.0 GHz
Memory Type 2x DDR3L SO-DIMM
Memory Support 2GB, 4GB, 8GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support 32GB-1TB

Display

Screen Size 15"
Resolution 1024 x 768 (XGA)
Screen Ratio 4:3
Brightness 400 nits
Contrast Ratio 600:1
Viewing Angle 160º (H), 160º (V)

Touch Screen

Touch Screen 5 Wire Resistive
Light Transmission 80±5%
Hardness Resistive: 4H, P-cap: 7H
Glass Thickness 2.4mm

External I/O ports

USB 2x M12 8Pin for USB 1/2 and USB 3/4
Serial Protocol Detail RS-232
Ethernet / LAN 1x RJ45 GbE LAN
Power Input Port M12 type 5-PIN DC-in

Power

Input Voltage Range 7-32V DC
Max Power consumption 32W
Standard Power Adapter AC 100~240V / 47 ~ 63Hz, IP68, 60W

Operating Systems

Windows Windows 10 IoT, Windows 10 Pro, Windows 7 Pro

Compatibility

Security Hardware Optional TPM 2.0

Expansion Slots

Internal Mini PCIe 2x Mini-PCIe
video card support Intel HD Graphics

Thermal and Environmental

Operating Temperature 0°C – 40°C
(32°F – 104°F)
Storage Temperature -20°C – 60°C
(-4°F – 140°F)
Humidity Range 10% – 90% Non-condensing
Storage Humidity 10% – 90% Non-condensing
Cooling Solution Passive – Fanless

Enclosure

Material SUS304 Stainless Steel
Ip Rating IP66, IP69K, NEMA 4X, Optional IP67
Color Stainless Steel
Control Buttons Power Button, Power Reset
Mounting Options Table Mount, VESA 100 Mount, Wall Mount
Approved Cleaning Solutions Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol
Cleaning Instructions View instructions here

Peripherals & Wireless Connectivity

WiFi Optional Bluetooth kit and WLAN with External Antenna

Dimensions / Weight

Weight 7.6 KG (16.8 lbs)
Dimensions 395 x 58 x 309.5 mm (15.6 x 2.3 x 12.2 in)

Certification

Certifications CE, FCC Class A, VCCI

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
