15.6" Medical Grade Display

TMD-25-15

Available


Description

The TMD-25-15 is a medically certified touchscreen display with a projected-capacitive multi-touch screen. The 1920 x 1080 resolution display provides high quality image reproduction for viewing patient images or electronic medical records. This healthcare monitor has both VGA and HDMI inputs for video, USB for touch, and audio for the built in speakers. This display has various VESA mounting hole patterns, for mounting on a desktop stand, ergonomic arm, medical cart, or medical machine. The TMD-25-15 is a stylish and elegant display that will deliver reliable performance in your healthcare setting.

Key Highlights

  • 15.6" Projected Capacitive Touchscreen
  • IEC 60601-1 Medically Certified
  • VGA and HDMI Inputs
  • High Resolution 1920 x 1080 Display
  • Slim and Light Weight Design

Use Cases

Electronic Medical Records (EMR): The TMD-25-15 medical monitor is ideal for accessing and viewing electronic medical records, allowing healthcare professionals to easily navigate and review patient information with its intuitive touch screen interface.

Patient Data Visualization: This medical monitor enables the visualization of patient data, including vital signs, test results, and medical imaging, providing a clear and detailed view of important information for accurate diagnosis and treatment planning.

Point-of-Care Applications: With its compact and lightweight design, the TMD-25-15 can be conveniently mounted on a medical cart or machine, allowing for point-of-care applications such as medication administration, bedside documentation, and real-time data entry.

What’s in the Box

    • 1x USB Type B to A, 2.0 cable, 6ft for touchscreen

    • 1x HDMI cable, 6ft for display

    • 3x Cable clamps with 3x screws

    • 1x Medical Power Supply, US AC Power Cord, 12V DC, 3.33A, 40W
See the data sheet Warranty

Dimensional Drawings & I/Os

See the data sheet

Inputs / Outputs

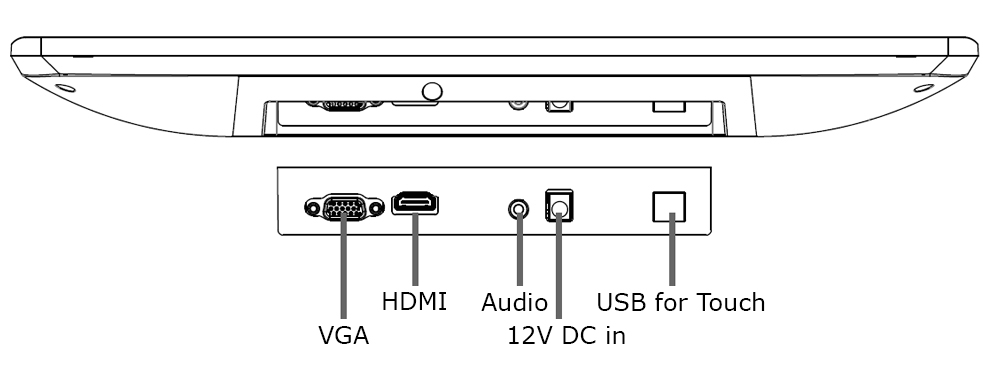

Medical Display Inputs and Outputs Labeled

Technical Drawings

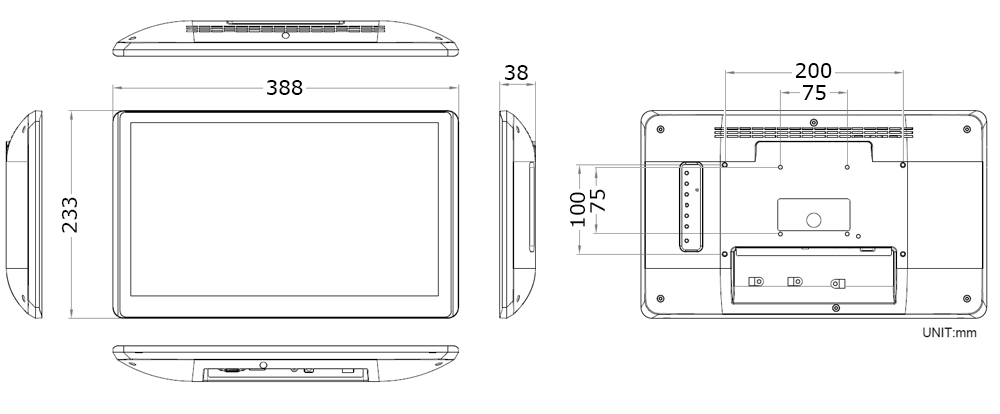

TMD-10-15 Technical Drawing

TECH SPECS

See the data sheet

Key Highlights

  • 15.6" Projected Capacitive Touchscreen
  • IEC 60601-1 Medically Certified
  • VGA and HDMI Inputs
  • High Resolution 1920 x 1080 Display
  • Slim and Light Weight Design

General

Main Category Medical Computer

Display

Screen Size 15.6"
Resolution 1920 x 1080 (Full HD)
Brightness 300 nits
Contrast Ratio 700:1

Touch Screen

Touch Screen Projected Capacitive (Multi-touch)

External I/O ports

USB 1x USB 2.0
Video Inputs 1x HDMI, 1x VGA
Audio 1x 3.5mm Audio Line-In

Power

Standard Power Adapter External AC to DC Adapter (complies with Level VI efficiency standard)

Enclosure

Color White
Control Buttons Down, Input, Left, Menu, Right, Up
Mounting Options VESA 75 Mount

Dimensions / Weight

Weight 1.6 KG (3.5 lbs)
Dimensions 387.8 x 232.9 x 38.4 mm (15.3 x 9.2 x 1.5 in)

Certification

Certifications 60601-1 4th Edition

Warranty

Warranty Up to 5 Years

Accessories

See the data sheet
