TP-5645-22

22" Panel Mount Computer

Available – Contact Us for Quick Quote

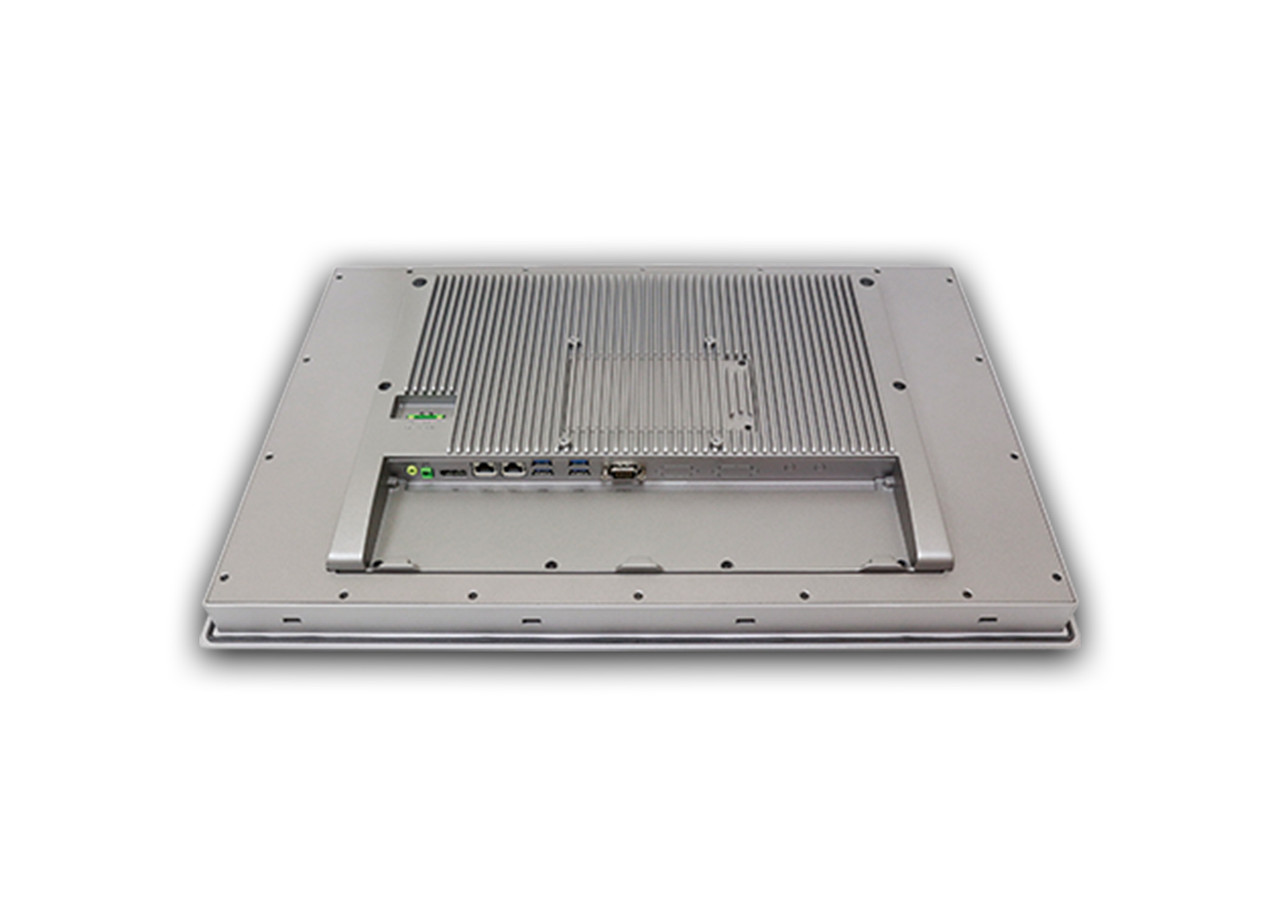

22" panel mount computer-tp-5645-22 back

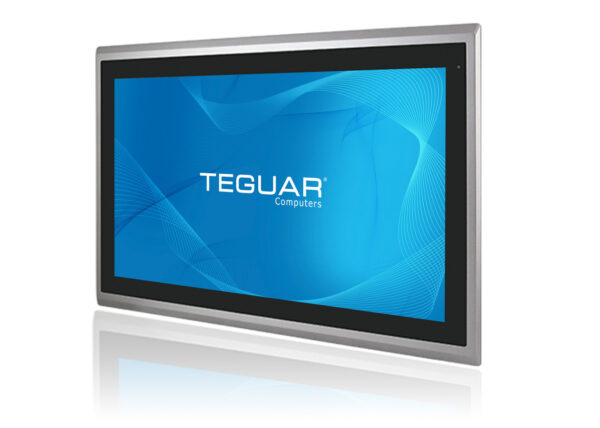

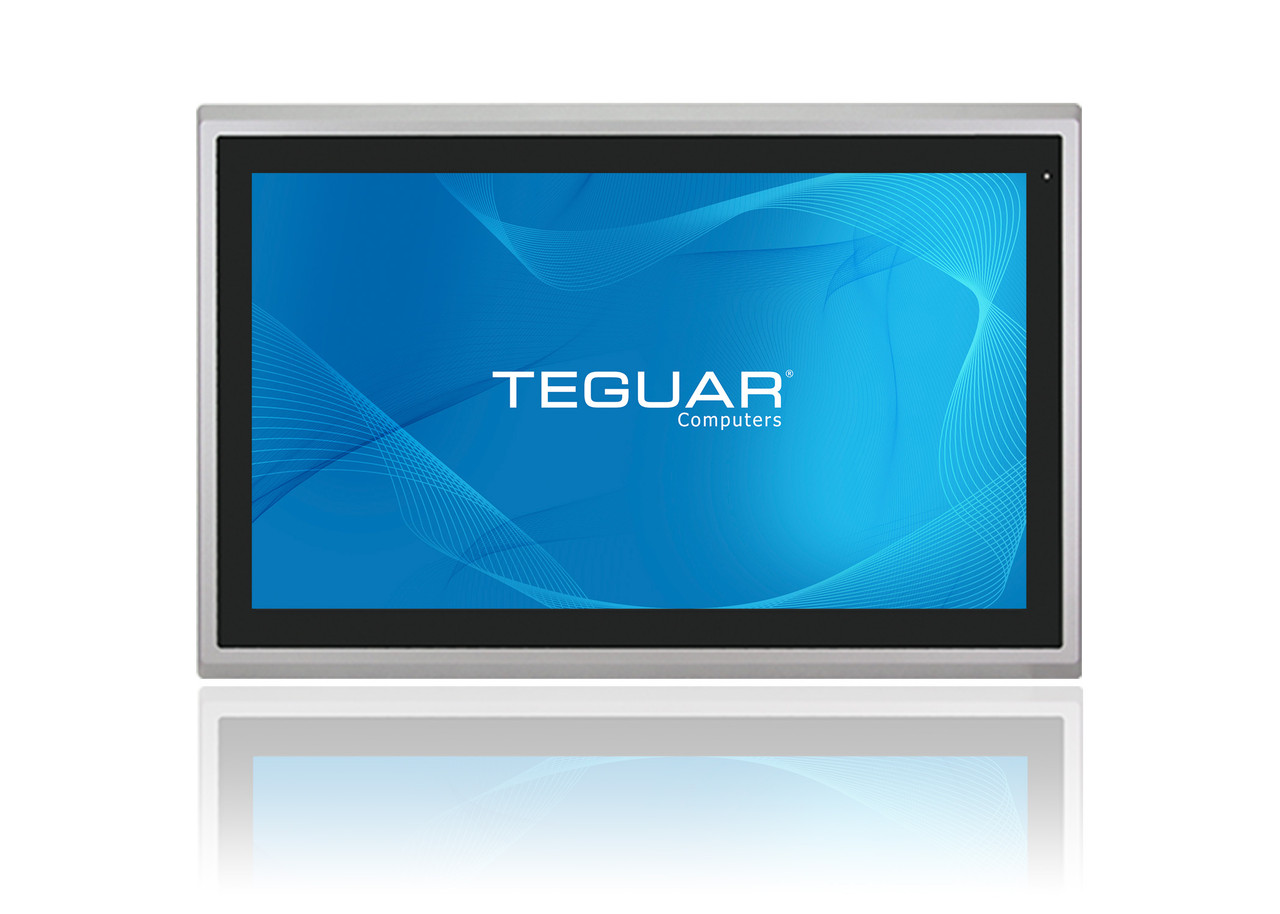

22" panel mount computer-tp-5645-22 front

Beschreibung

The TP-5645-22 Panel Mount Computer offers strong processing power with an Intel 8th generation Core i3 or i5 CPU with long life cycle support. With up to 16GB of DDR4 memory and an M.2 key capable of up to 512GB of SSD storage, the TP-5645-22 Panel Mount Computer is a great solution for most Linux or Windows based applications. The unique compact thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates. A high-brightness touchscreen option can be chosen for environments with low screen visibility. This panel PC is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

Key Highlights

21.5″ P-Cap or Resistive Touchscreen
Fanless Cooling System
Easily accessible M.2 storage, up to 1TB
IP66 Protected Front with Aluminum Housing
Wide Range 9~36VDC Power Input
Intel 8th Gen. Core i3/i5 CPUIP66 Protected Front with Aluminum Housing

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model	Core i3 8145UE, Core i5-8365UE
Processor Speed	2.2 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage Support	M.2: 128GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 250 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	4x USB 3.0
Serial / Com	1x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	2-Pin Power Switch

Power

Input Voltage Range	9-36V DC
Max Power Consumption	74W

Operating Systems

Windows	Windows 10 IoT, Windows 11
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information), Yocto Linux

Compatibility

Security Hardware

TPM 2.0

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Gray
Mounting Options	Panel Mount, VESA Mount

Weight / Dimensions

Weight	7.5
Dimensions	557.3x362.3x64.8

Certification

Certifications

CE, FCC Class A, UL 62368

Warranty

Up to 5 Years

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.

See the data sheet Warranty Download Drivers

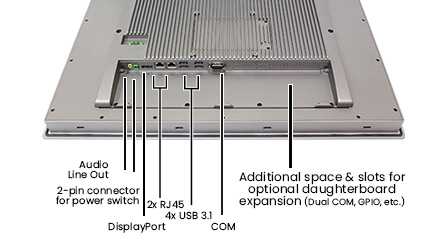

I/O Diagram Images

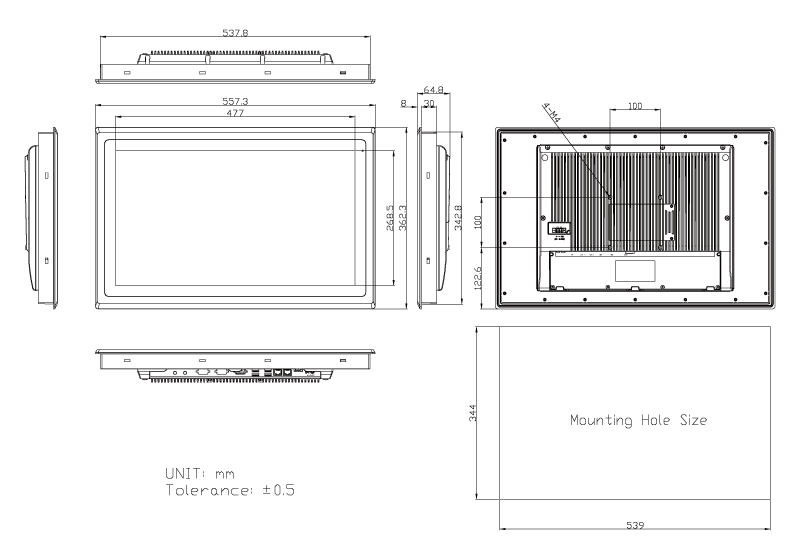

Tech Diagram Images

TP-5645-22

22" Panel Mount Computer

Available – Contact Us for Quick Quote

Beschreibung

Der TP-5645-22 Panel Mount Computer bietet starke Rechenleistung mit einer Intel Core i3 oder i5 CPU der 8. Generation mit Unterstützung für lange Lebensdauer. Mit bis zu 16 GB DDR4-Speicher und einem M.2-Schlüssel, der bis zu 512 GB SSD-Speicher aufnehmen kann, ist der TP-5645-22 Panel Mount Computer eine hervorragende Lösung für die meisten Linux- oder Windows-basierten Anwendungen. Das einzigartige kompakte thermische Design umfasst ein robustes Aluminium-Druckgussgehäuse für lüfterlosen Betrieb und Haltbarkeit bei starken Stößen und Vibrationen. Die Frontblende entspricht der Schutzklasse IP66 zum Schutz vor Wasser und Staub und verwendet ein vollständig flaches Design, um die Ansammlung von Partikeln zu verhindern. Für Umgebungen mit geringer Sichtbarkeit des Bildschirms kann ein Touchscreen mit hoher Helligkeit gewählt werden. Dieser Panel PC ist eine großartige Lösung für Anwendungen wie z.B. eine Datendrehscheibe für Ihre IoT / IIoT-Sensoren und zur Ausführung Ihrer ERP-Software (Enterprise Resource Planning).
