TP-4810-15

15" Fanless Panel PC

Available – Contact Us for Quick Quote

15" Fanless Panel PC | TP-4810-15 Right Angle

15" Fanless Panel PC | TP-4810-15 Rear Side

Description

The TP-4810-15 fanless panel PC has a 15” resistive or P-capacitive touchscreen that is IP66 rated to protect against water and dust. This unit features an Intel Celeron J6412 processor and is capable of running Windows 11 operating system smoothly. Abundant inputs and outputs include 3x COM, 2x USB 2.0, 2x USB 3.2, 1x Gigabit LAN, 1x 2.5 Gigabit LAN, and more, allowing you to connect your unit to multiple devices. Additionally, there are options for a motherboard expansion, so you are able to easily customize your I/Os. Panel mounting hardware is included to make for quick and easy installation in your operations.

Key Highlights

15” Resistive or P-Capacitive Touchscreen Display
Fanless Cooling System
Intel Celeron J6412 Processor
Multiple Inputs and Outputs including 4x USB, 1 Gb LAN, 2.5 Gb LAN, 3x COM and more
Windows 11 Capabilities

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	2.0 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	32GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 SATA3 2280 Slot
Storage Support	M.2 and 2.5": 128GB - 1TB

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	350 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2
Serial / Com	3x COM
Serial Protocol Detail	1x RS-232, 2x RS-232/422/485
Ethernet / LAN	1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs	1x HDMI, 1x VGA
Audio Ports	2x 3.5mm Audio Line-Out/Mic-In
Power Input Port	4-Pole DIN (latching)

Power

Input Voltage Range	12-28V DC
Max Power Consumption	56.3W
Standard Power Adapter	60 watts, 100 ~240V AC in, 19V DC out

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 Pro

Compatibility

Security Hardware

Optional TPM 2.0

Expansion Slots

Internal M.2	1x M.2 Type B
Other	1x SIM socket connected to M.2 B-Key

Thermal & Environmental

Operating Temperature	0°C - 45°C (32°F – 113°F)
Storage Temperature	-20°C - 65°C (-4°F – 149°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum front bezel and SECC Steel Chassis
IP Rating	IP66 Front Bezel
Color	Black
Control Buttons	Power Reset

Weight / Dimensions

Weight	6.4 kg (14.1 lbs)
Dimensions	398 x 330 x 72 mm (15.7 x 13.0 x 2.8 in)

Certification

Certifications

CE, FCC

Warranty

1 Year

Industrial Automation Control Panel: The TP-4810 panel PC is perfect for industrial automation. Its fanless design and powerful Intel Celeron J6412 processor ensure reliable operation in harsh environments. With multiple connectivity options and an IP66 waterproof-rated front bezel, it’s ideal for controlling manufacturing equipment. The touchscreen interface and easy installation make it efficient for operators.

Retail Point-of-Sale (POS) System: The TP-4810 is an excellent choice for retail POS systems. Its compact design, powerful processor, and various connectivity options make it perfect for managing retail operations. The waterproof front bezel and touchscreen interface enhance durability and usability in busy retail environments.

Manufacturing Computer: The TP-4810 serves as a reliable computing solution for manufacturing environments. Its fanless design and Intel Celeron J6412 processor ensure stable performance on the manufacturing floor. With multiple connectivity options and an IP66 waterproof-rated front bezel, it seamlessly integrates into production processes. The touchscreen interface facilitates user interaction, while easy installation streamlines deployment in manufacturing facilities.

See the data sheet Warranty Download Drivers

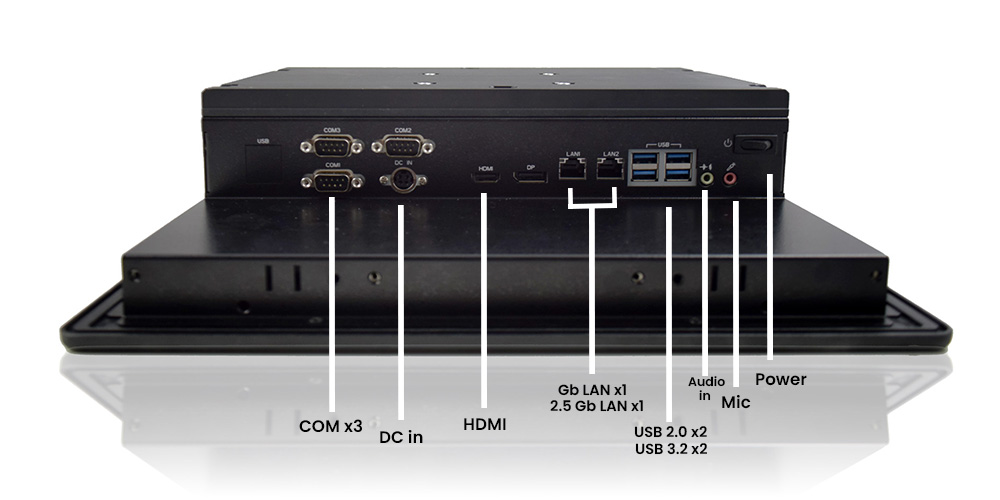

I/O Diagram Images

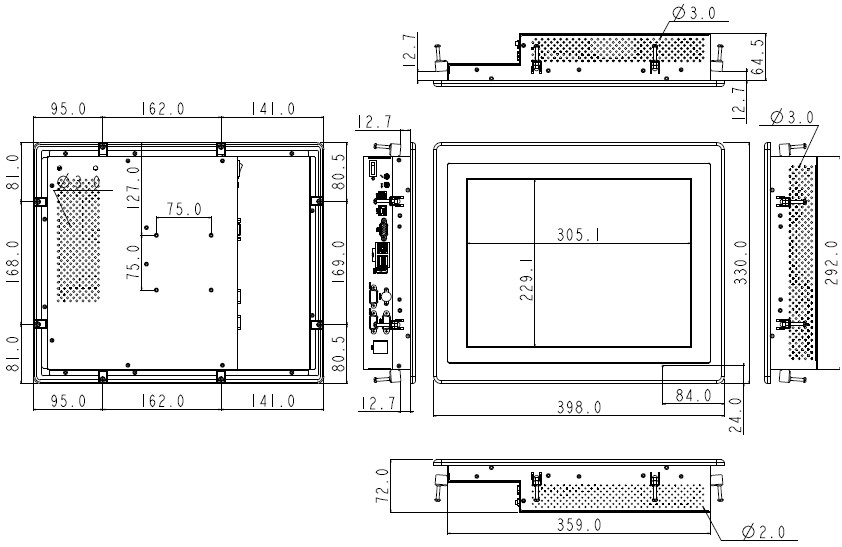

Tech Diagram Images
