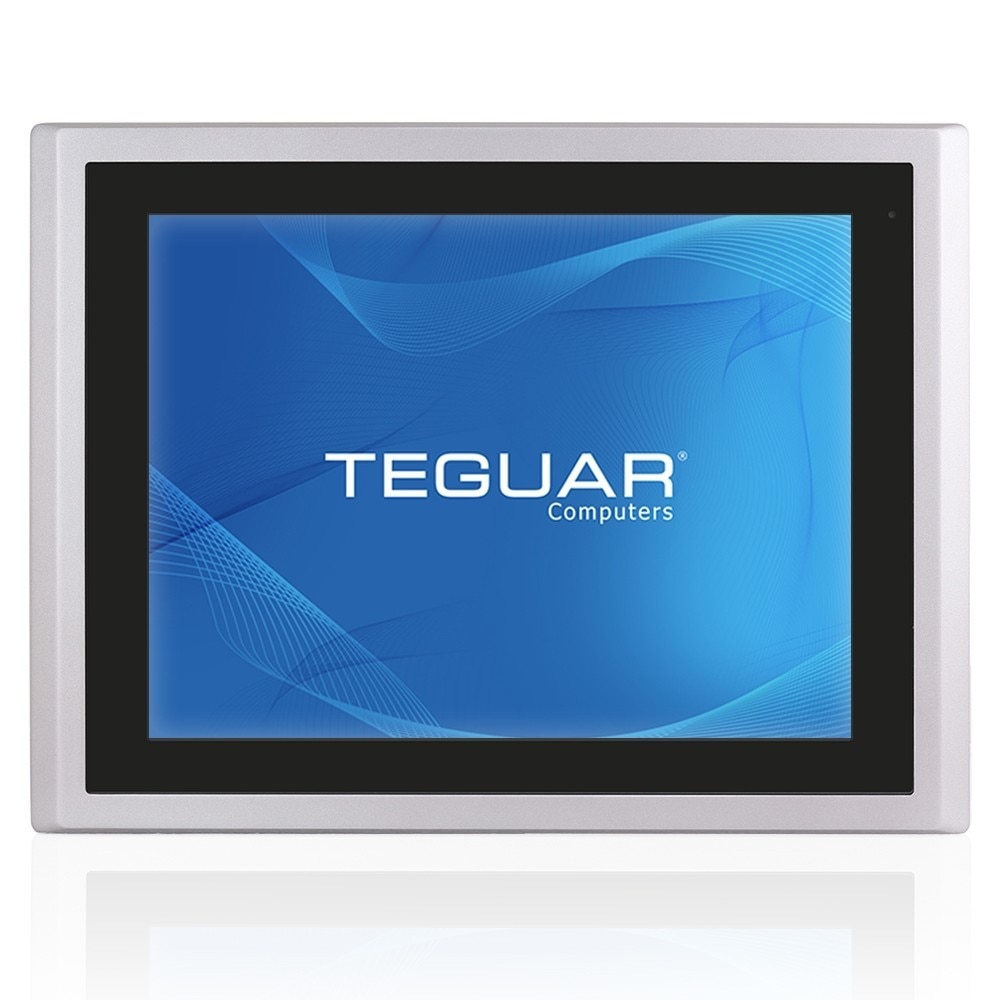

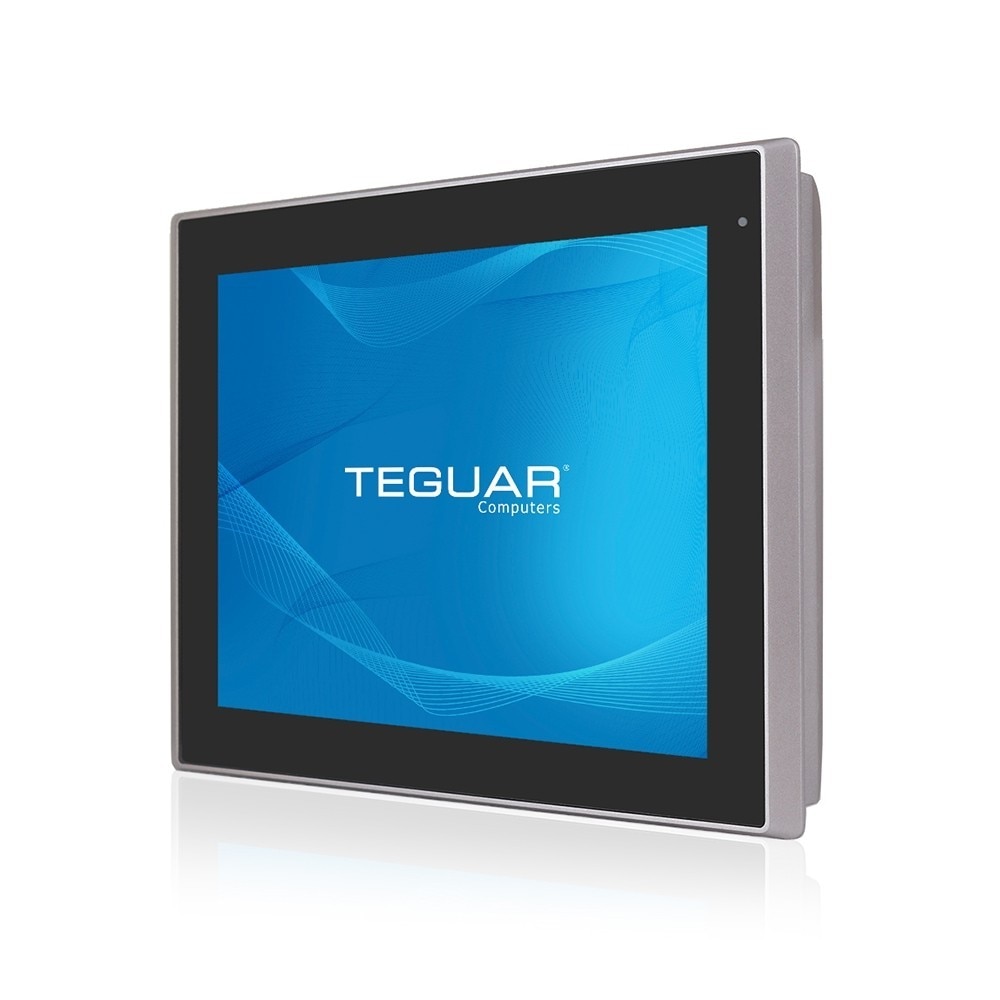

TP-5045-15

15" Industrial Panel Computer

Available – Contact Us for Quick Quote

Beschreibung

The TP-5045-15 fanless panel PC offers the latest Intel 6th generation core i3/i5 CPUs superior processing power with long life cycle support. The unique compact thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates on the front surface. With up to 16GB of DDR4 memory, the TP-5045-15 fanless panel PC is an ideal solution for most Windows or Linux based applications. A high-brightness touchscreen option can be chosen for environments with low screen visibility. Also, an optional PoE (Power over Ethernet) GbE LAN port can be added to simplify cabling. The TP-5045-15 is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

Key Highlights

15″ Resistive or P-Cap Touchscreen
Intel 6th Generation Core i3/i5 CPU
Optional Sunlight Readable LCD
DDR4 2133MHz memory, up to 16GB
Aluminum Housing, Fanless Sedign, IP66 Protected Front
Wide Range 9~36VDC Power Input & Optional PoE

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 6th Generation Skylake
Processor Model	Core i3-6100U
Processor Speed	2.3 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 420 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	Optional POE++, 45W with 2x USB 2.0, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Standard Power Adapter	Optional 12V AC/DC Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 7 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

SD card

1x Full Size SD Slot

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Mounting Options	Panel Mount, VESA Mount

Weight / Dimensions

Weight	4.42
Dimensions	410 x 310 x 55

Certification

Certifications

CE, FCC Class A

Warranty

1 Year

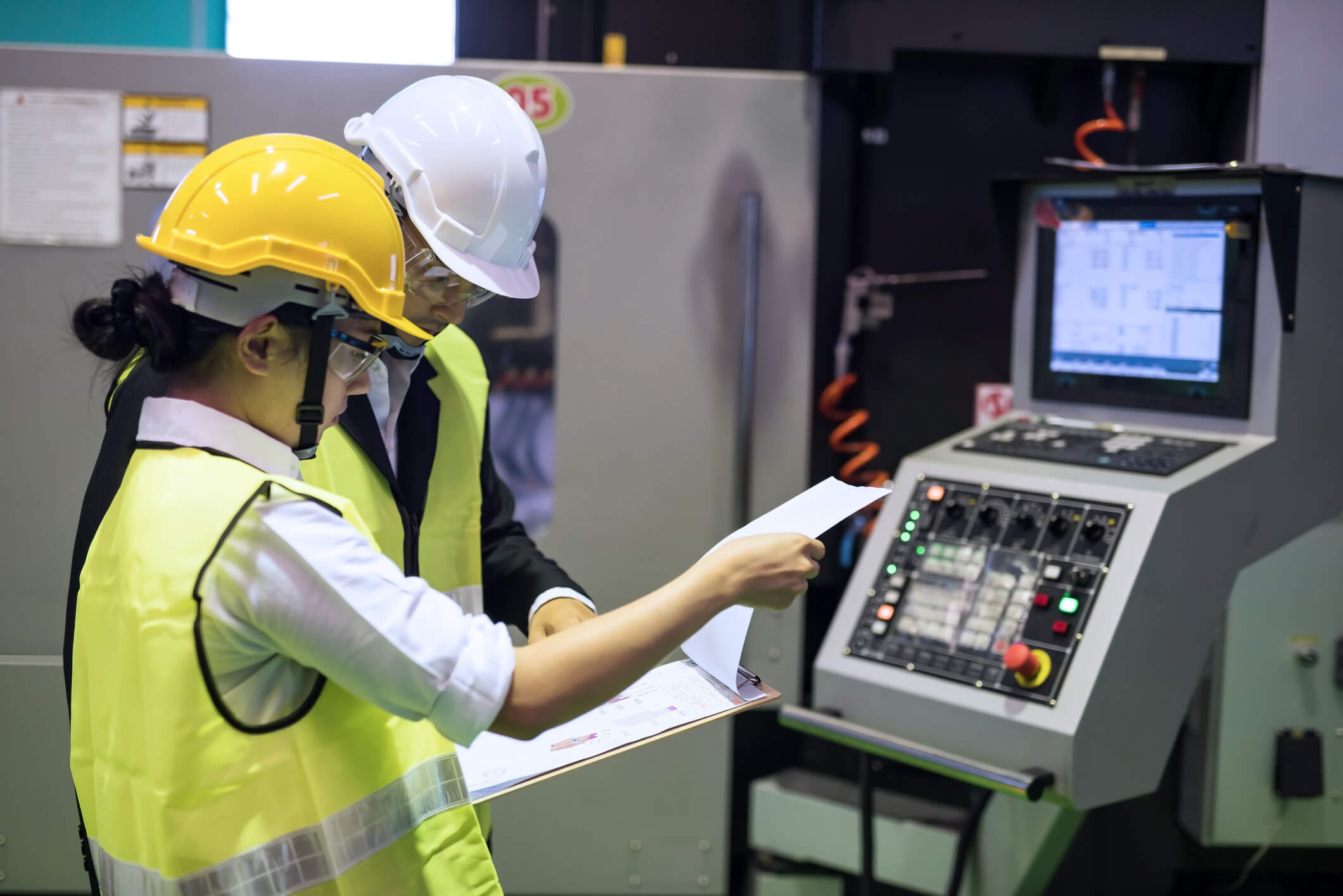

Factory Automation:The TP-5045 Series can be used as a control interface for factory automation systems, allowing operators to monitor and manage production processes, machinery, and equipment.

Process Control: These industrial panel PCs are suitable for process control applications in industries such as oil and gas, chemical, and pharmaceutical, providing real-time monitoring and control of critical variables and parameters.

Logistics and Warehouse Management: The TP-5045 Series can be deployed in logistics and warehouse environments for inventory management, order tracking, and warehouse optimization, streamlining operations and improving efficiency.

Building Automation: These panel PCs can serve as a central control system for building automation, enabling facility managers to monitor and control various systems such as lighting, HVAC, security, and access control.

Transportation and Fleet Management: The TP-5045 Series can be utilized in transportation and fleet management applications, providing real-time tracking, route optimization, and communication capabilities for improved logistics and fleet efficiency.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Tech Diagram Images

TP-5045-15

15" Industrie-Panel-Computer

Available – Contact Us for Quick Quote

Beschreibung

Der lüfterlose Panel-PC TP-5045-15 bietet mit den neuesten Intel Core i3/i5-CPUs der 6. Generation eine überragende Rechenleistung mit Unterstützung für eine lange Lebensdauer. Das einzigartige kompakte thermische Design umfasst ein robustes Aluminium-Druckgussgehäuse für lüfterlosen Betrieb und Haltbarkeit bei starken Stößen und Vibrationen. Die Frontblende entspricht der Schutzklasse IP66 für den Schutz vor Wasser und Staub und verwendet ein vollständig flaches Design, um die Ansammlung von Partikeln auf der Vorderseite zu verhindern. Mit bis zu 16 GB DDR4-Speicher ist der lüfterlose Panel-PC TP-5045-15 eine ideale Lösung für die meisten Windows- oder Linux-basierten Anwendungen. Für Umgebungen mit geringer Sichtbarkeit des Bildschirms kann ein Touchscreen mit hoher Helligkeit gewählt werden. Außerdem kann ein optionaler PoE (Power over Ethernet) GbE LAN-Anschluss hinzugefügt werden, um die Verkabelung zu vereinfachen. Der TP-5045-15 ist eine großartige Lösung für Anwendungen wie z.B. einen Daten-Hub für Ihre IoT- / IIoT-Sensoren und zur Ausführung Ihrer ERP-Software (Enterprise Resource Planning).
