TP-5645-19

19" Panel Mount Computer

Available – Contact Us for Quick Quote

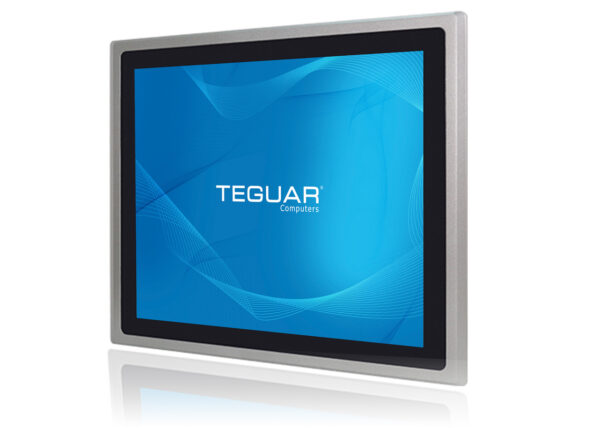

panel mount computer tp-5645-19 front angled

Beschreibung

The TP-5645-19 Panel Mount Computer offers the advanced processing power from the latest Intel 8^th generation Core i3/i5 CPU. The unique compact thermal design includes a rugged die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. The front bezel is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates. A high-brightness touchscreen option can be chosen for environments with low screen visibility. With up to 16GB of DDR4 memory, the panel PC is a great solution for most Windows or Linux based applications. Easily accessible M.2 storage can be configured as high as 512GB. The TP-5645-19 is great solution for applications such as a data hub for your IoT / IIoT sensors and to run your ERP (Enterprise Resource Planning) software.

Key Highlights

Intel 8th Gen. Core i3/i5 CPU
Fanless Cooling System
Easily accessible M.2 storage, up to 1TB
IP66 Protected Front with Aluminum Housing
19″ P-Cap or Resistive Touchscreen
Wide Range 9~36VDC Power Input

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model	Core i3 8145UE, Core i5-8365UE
Processor Speed	2.2 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage Support	M.2: 128GB-1TB

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	4x USB 3.0
Serial / Com	1x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	3x RJ45 GbE LAN
Video Outputs	1x DisplayPort
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	2-Pin Power Switch

Power

Input Voltage Range	9-36V DC
Max Power Consumption	82W

Operating Systems

Windows	Windows 10 IoT, Windows 11
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information), Yocto Linux

Compatibility

Security Hardware

TPM 2.0

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Mounting Options	Panel Mount, VESA Mount

Weight / Dimensions

Weight	7.2
Dimensions	468x380x64.8

Certification

Certifications

CE, FCC Class A, UL 62368

Warranty

1 Year

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.

See the data sheet Warranty Download Drivers

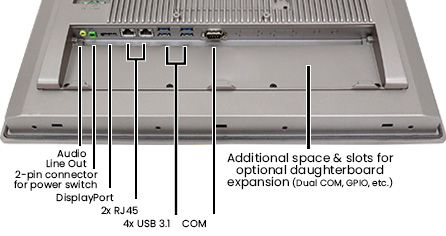

I/O Diagram Images

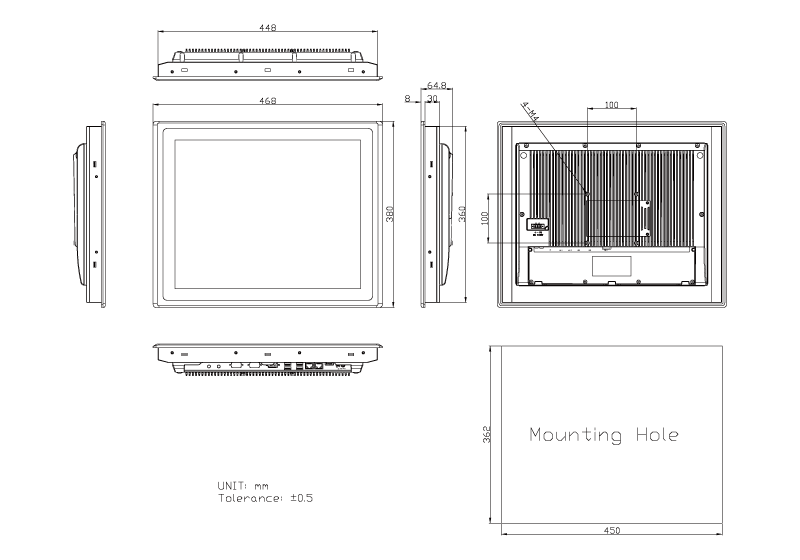

Tech Diagram Images
