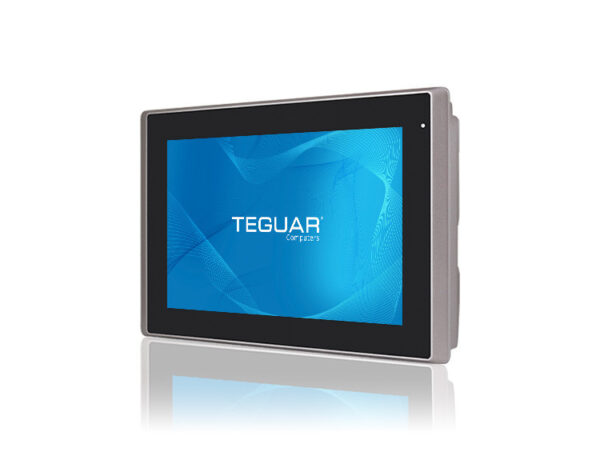

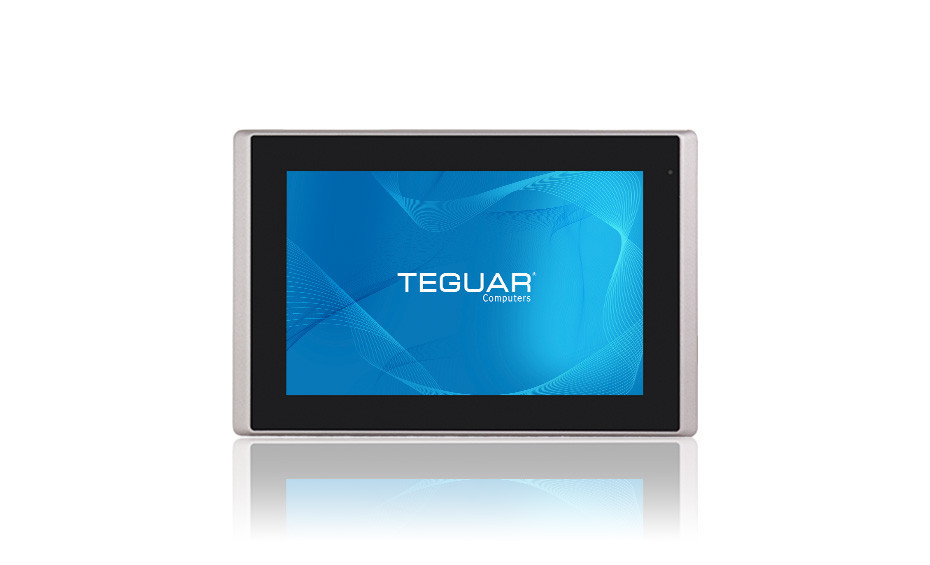

TP-4845-10

10" Panel PC

Available – Contact Us for Quick Quote

Beschreibung

The TP-4845-10 stands as a pinnacle of performance and longevity. Driven by the Intel J6412 Quad Core processor, it runs Windows 11 smoothly. Integrated WiFi 6 capability adapts seamlessly to industrial connectivity needs. The IP66 rated die-cast aluminum housing ensures resilience in challenging environments. Offering both projected capacitive and resistive touchscreen options, the 10” Panel PC is an optimal solution for industrial applications that demand rugged and reliable computing.

Key Highlights

10.1” Resistive or PCAP Touchscreen
Intel Celeron J6412 Quad Core Processor
Designed for flexible IO expansion
Windows 11 Capabilities
Die Cast Aluminum Housing and IP66 Rated Front Bezel

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	Up to 2.6 GHz, 2.0 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 SATA3 2242 Slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	16:10
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

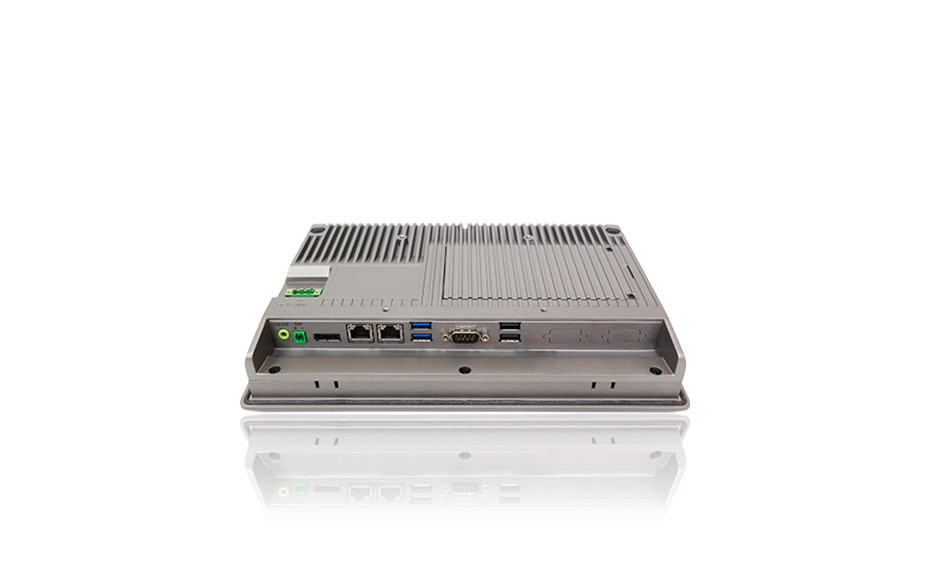

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	RS-232/422/485 (Default RS-232; select via BIOS)
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x DisplayPort, supports DP++
Audio Ports	1x Audio Line-Out
Power Input Port	Optional POE+, 30W with 2x USB 2.0, 2-Pin Power Switch, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V AC/DC Adapter, 5A, 60W

Battery

Battery Type

Optional Internal Battery

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Gray
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	1.9
Dimensions	285 x 49 x 189

Certification

Certifications

CE, FCC, UL 62368

Warranty

Up to 5 Years

Industrial Automation Control Systems: The TP-4845 is powered by the Intel J6412 Quad Core processor, ensuring seamless Windows 11 operation for precise control in industrial automation. With a full flush IP66 rated front bezel and integrated WiFi 6 capability, it’s ideal for standard industrial applications.

Manufacturing Process Monitoring: The TP-4845 Flush Mount Panel PC series excels in rugged manufacturing applications for process monitoring. Featuring a full flush IP66 rated front bezel, it ensures reliable performance in environments with dust and dirt. With integrated WiFi 6, it offers connectivity support.

Machine Vision and Quality Inspection: The TP-4845, powered by the Intel J6412 Quad Core processor, is a reliable choice for machine vision and quality inspection. Offering seamless Windows 11 operation and integrated WiFi 6, it suits rugged manufacturing environments with its full flush IP66 rated front bezel. Available in various screen sizes with both capacitive and resistive touch options, providing flexibility for user interaction.

See the data sheet Warranty Download Drivers

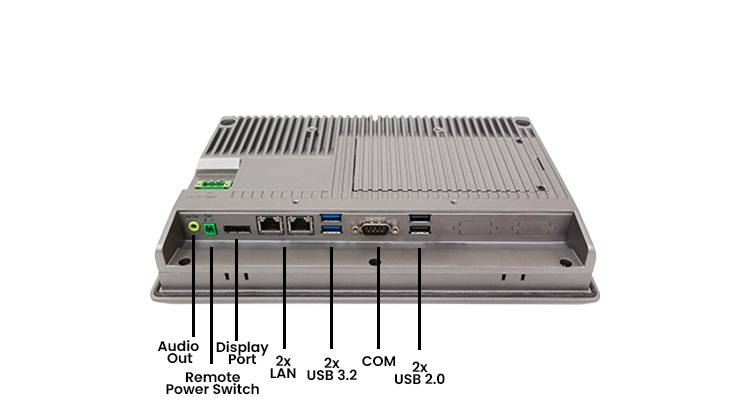

I/O Diagram Images

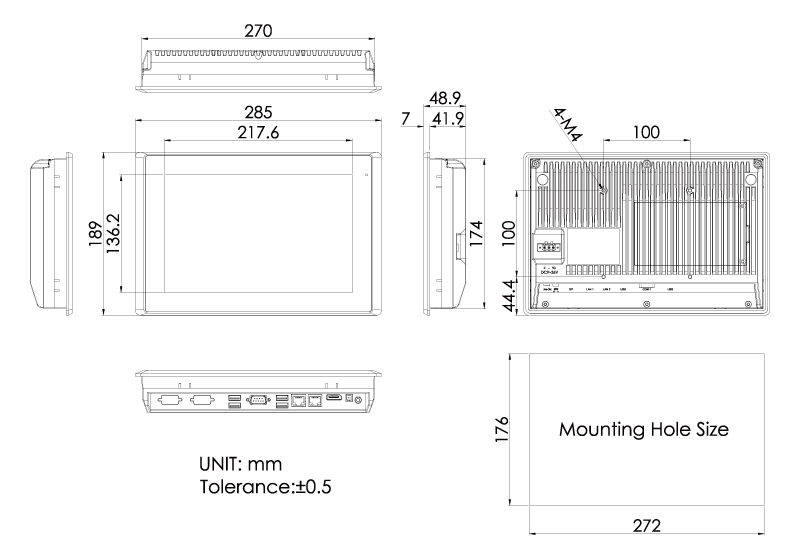

Tech Diagram Images
