TP-3445-08

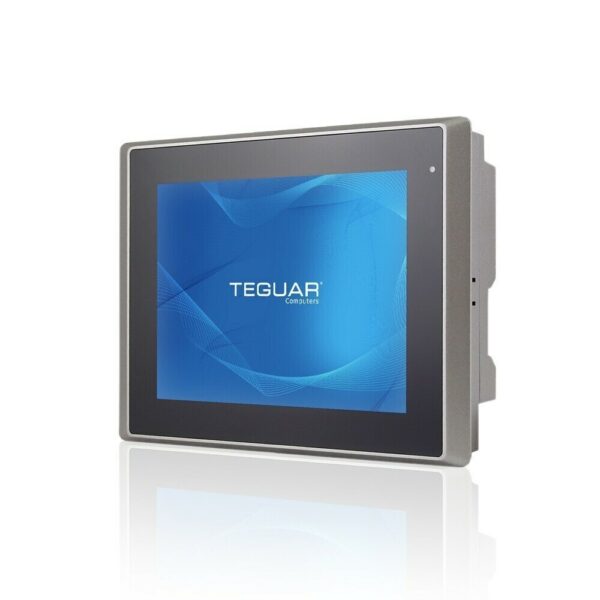

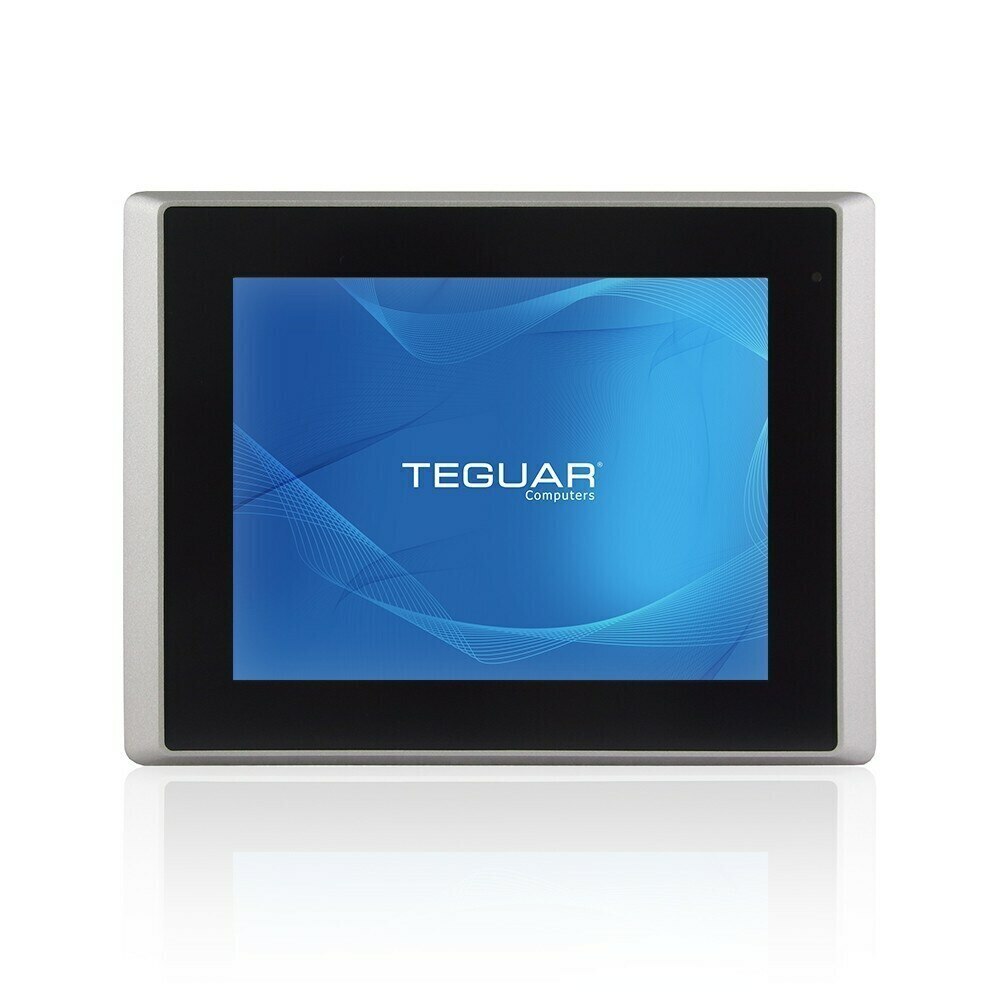

8” Panel Mount Computer

Available – Contact Us for Quick Quote

Beschreibung

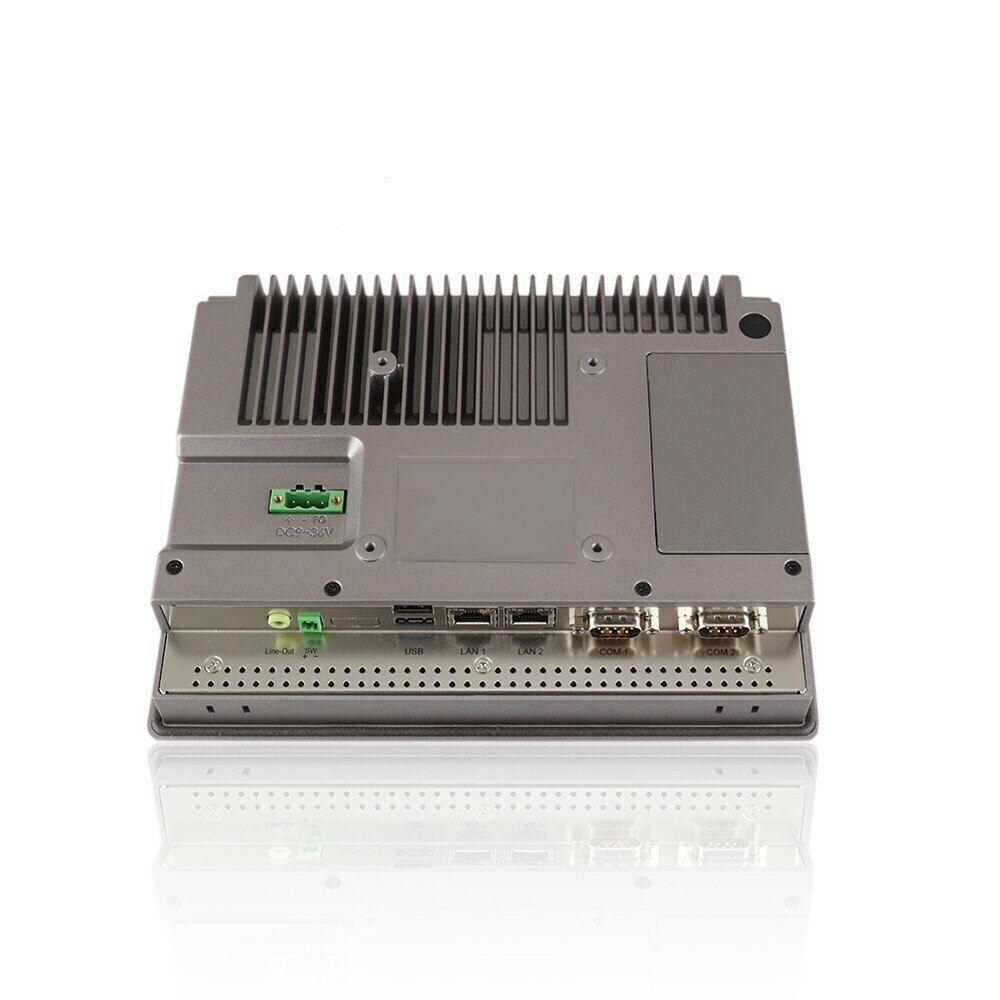

The TP-3445-08 Industrial Panel PC is slim and compact. Fit this computer into a cut out on your machine, on your production line, or into a control cabinet. This PC is built with die-cast aluminum housing and has fanless heatsink cooling. It also has an IP66 rated front bezel and accessable storage via 3 screws on the back of the unit. The TP-3445-08 runs on an Intel Apollo Lake CPU and has DC 9~36V wide range power input. This industrial grade computer is built to last, even in tough manufacturing environments.

Key Highlights

8” Pcap or Resistive Touchscreen
Intel Apollo Lake N4200 Quad Core CPU
Fanless Design and Aluminum Housing
IP66 Rated Full-Flat Front Bezel
Wide Range DC 9~36V Power Input

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Pentium Apollo Lake
Processor Model	N4200
Processor Speed	1.10 GHz
Memory Type	Onboard DDR3
Memory Support	4GB, 8GB
Storage Type	1.8" Half Size MO297 SATA Drive Bay
Storage Support	32GB-256GB

Display

Screen Size	8"
Resolution	800 x 600 (SVGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V AC/DC Adapter

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro
Linux	Linux (Contact your sales rep for more information)

Expansion Slots

SD card

1x Micro SD Slot

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Mounting Options	Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi
Bluetooth	Optional Bluetooth 4.0
Mobile Network 4G LTE	Optional 4G

Weight / Dimensions

Weight	1.9
Dimensions	231 x 176 x 50

Certification

Certifications

CE, FCC Class A, UL 60950, UL 62368

Warranty

Up to 5 Years

Industrial Automation: The TP-3445 Series is well-suited for industrial automation applications such as machine control, data acquisition, and process monitoring. The durable construction and wide range of expansion options make it reliable and flexible in various industrial environments.

Outdoor Digital Signage: With its optional high-bright, sunlight-readable LCD, the TP-3445 Series is ideal for outdoor digital signage. It can withstand different weather conditions and deliver clear and visible content to engage customers or provide information in outdoor settings.

Transportation and Logistics: These panel PCs are suitable for transportation and logistics applications such as fleet management, vehicle tracking, and warehouse management. The wide range DC power input and optional internal backup battery ensure uninterrupted operation in mobile and remote environments.

See the data sheet Warranty Download Drivers

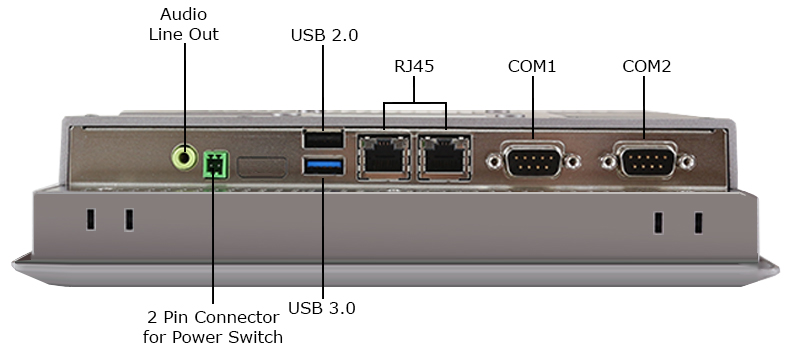

I/O Diagram Images

Tech Diagram Images

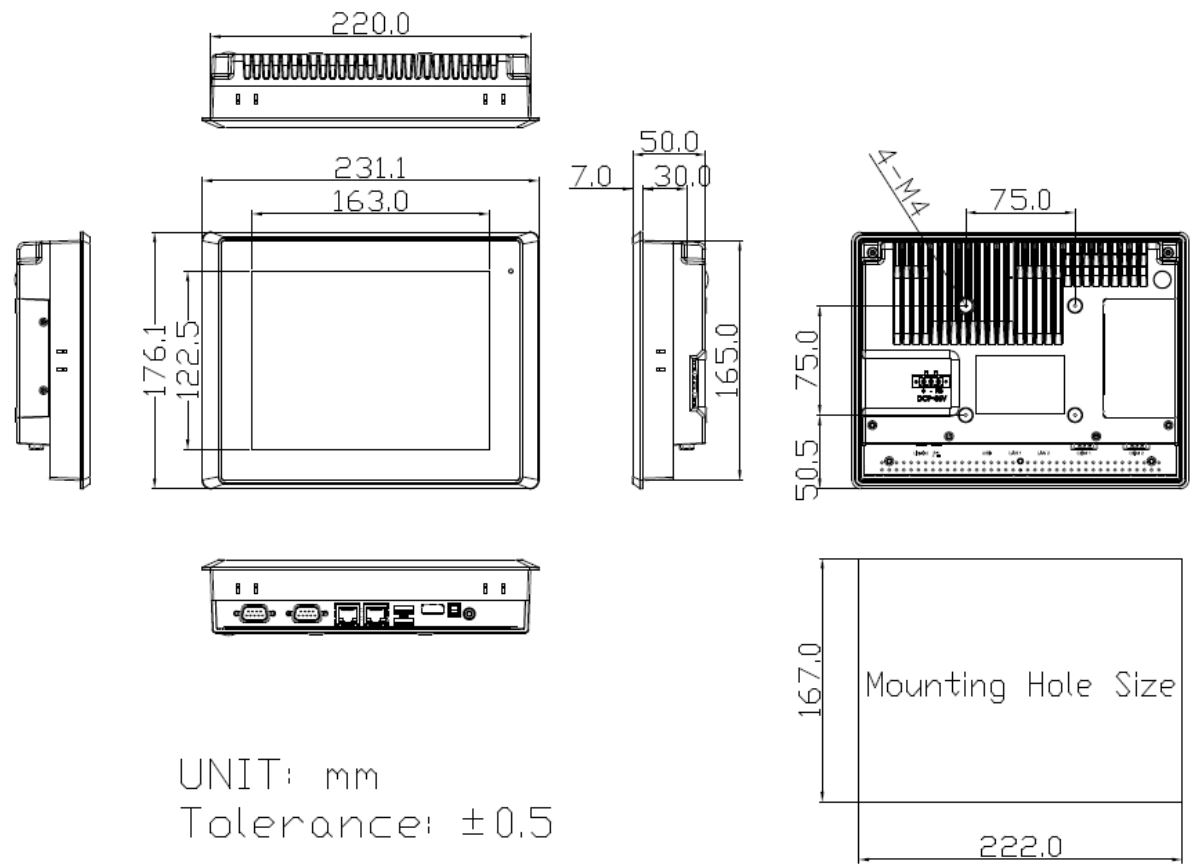

8" Fanless Industrial Technical Drawings

TP-3445-08

8" Panel Mount Computer

Available – Contact Us for Quick Quote

Beschreibung

Der TP-3445-08 Industrie-Panel-PC ist schlank und kompakt. Dieser Computer passt in eine Aussparung an Ihrer Maschine, an Ihrer Produktionslinie oder in einen Schaltschrank. Dieser PC besteht aus einem Aluminiumdruckgussgehäuse und verfügt über eine lüfterlose Kühlung mit Kühlkörper. Er verfügt außerdem über eine IP66-geschützte Frontblende und einen über 3 Schrauben zugänglichen Stauraum auf der Rückseite des Geräts. Der TP-3445-08 läuft mit einer Intel Apollo Lake CPU und hat einen DC 9~36V Weitbereichseingang. Dieser industrietaugliche Computer ist so gebaut, dass er auch in rauen Produktionsumgebungen eingesetzt werden kann.
