TP-5710-24

24" Industrial HMI

Available – Contact Us for Quick Quote

Description

The TP-5710-24 is an industrial panel PC that is ideal for environments where strong computing is needed. The 23.8” screen size could be used for unique cases where visual representation needs to be large and clear, such as 3D modeling or controlling processes that need to be seen from a distance. The high TDP processor allows for more computing power and better processing performance. An Intel 6-Core i5 CPU with Windows 11 capabilities also contribute to these computers powerful processing. This unit also comes equipped with an easy accessible PCle expansion slot, making it a breeze when swapping in and out. The modular front monitor and panel mount option makes it so the computer can be implemented in a diverse range of applications.

Key Highlights

23.8” Fully Flat Touchscreen
Intel 9th Generation 6-Core i5 CPU
Fanless Cooling System
IP66 Front Rated Bezel
Multiple inputs and outputs including 4x USB 3.1, 3x COM, 2x Lan, and 3x Display port 1.2
High TDP Processor

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core-I Series 9th Generation Coffee Lake
Processor Model	Core i5-9500TE
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 2280 NVME SSD slot
Storage Support	M.2 and 2.5": 128GB - 1TB

Display

Screen Size	23.8"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch)
Hardness	7H

External I/O Ports

USB	4x USB 3.1
Serial / Com	3x COM
Serial Protocol Detail	2x RS-232, 1x RS-232/422/485
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	3x DisplayPort 1.2
Audio Ports	1x Audio Line-Out, 1x Mic-In
Power Input Port	4-Pin DC-In (Phoenix Type Terminal Block)

Power

Input Voltage Range	19-28V DC
Standard Power Adapter	Optional 150 watt, universal 100 ~240V AC in, 19V DC out, 7.8A

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink

Enclosure

Material	Aluminum front bezel and SECC Steel Chassis
IP Rating	IP66 Front Bezel
Color	Black
Mounting Options	Panel Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 ac + Bluetooth with External Antennas
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	12.8 kg (28.2 lbs)
Dimensions	654 x 412 x 121 mm (25.7 x 16.2 x 4.8 in)

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Industrial Manufacturing: Efficient monitoring and control of machinery and equipment on assembly lines or production floors in industries like automotive manufacturing and electronics.

Oil and Gas: Reliable data collection, monitoring, and control in rugged environments of the oil and gas industry, such as offshore platforms and drilling sites.

Transportation and Logistics: Fleet management, vehicle monitoring, and control systems in transportation and logistics sectors, optimizing operations in logistics, shipping, and public transportation.

Energy and Utilities: Monitoring and control of power generation, distribution, and management systems in the energy and utilities sector, including renewable energy and power plants.

See the data sheet Warranty Download Drivers

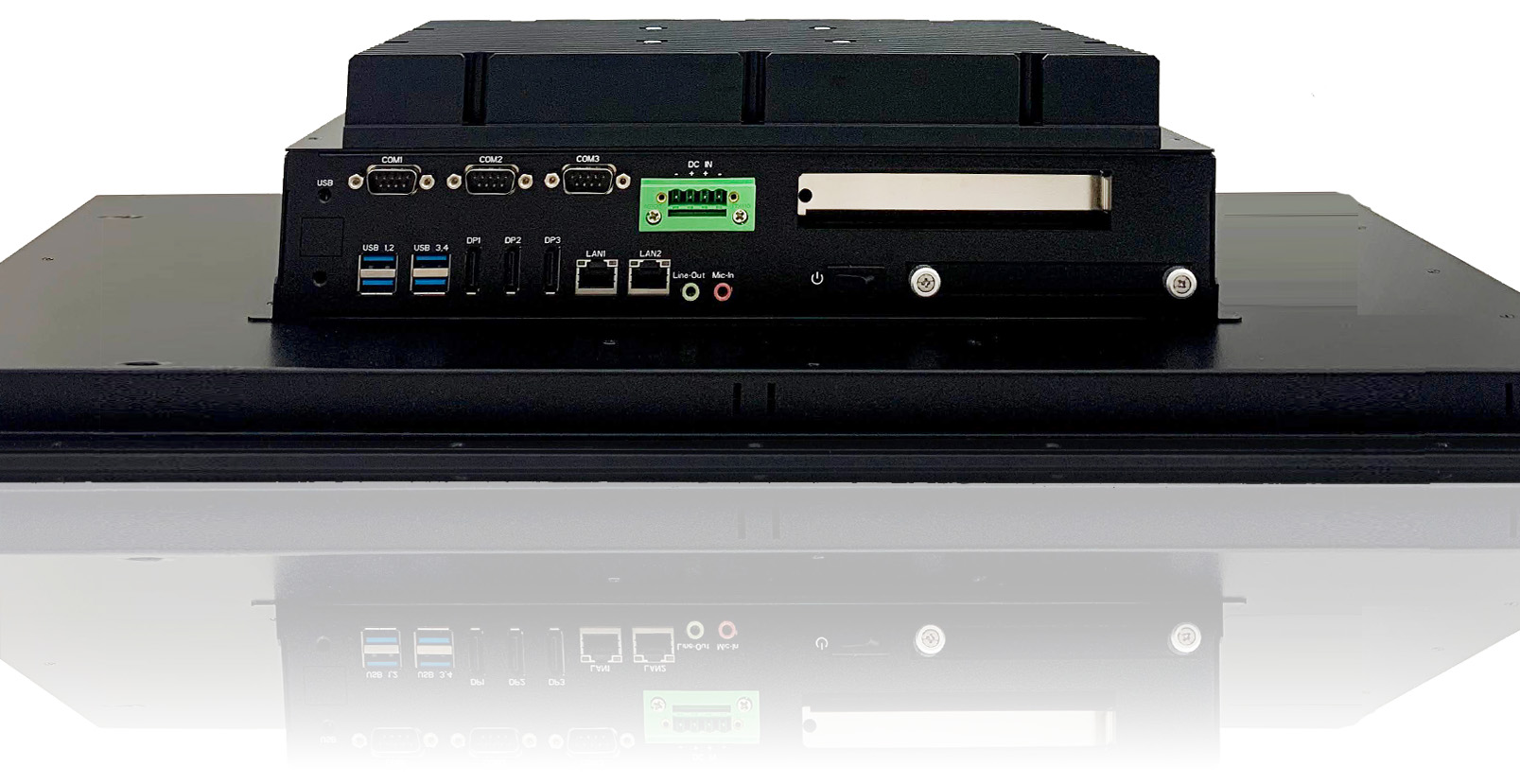

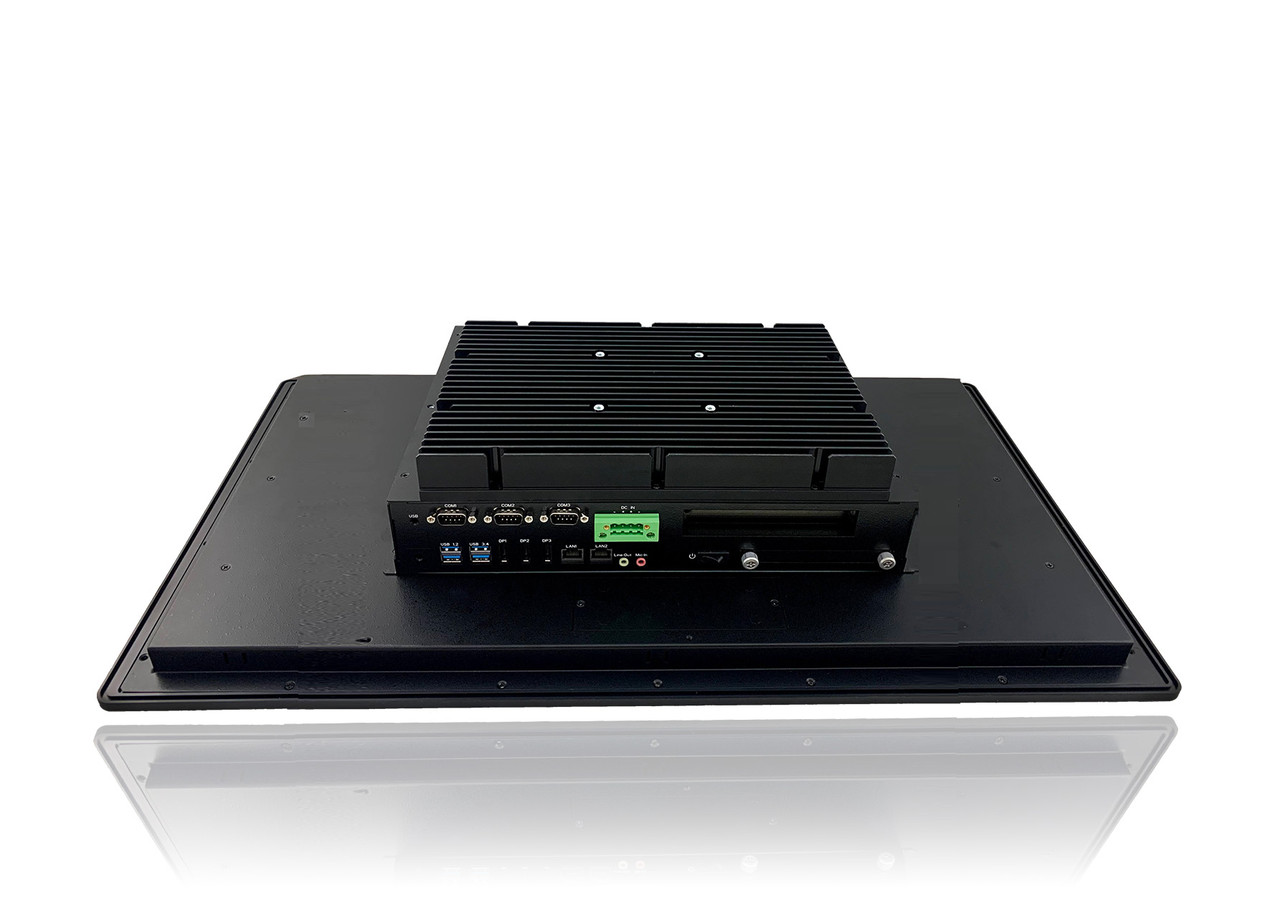

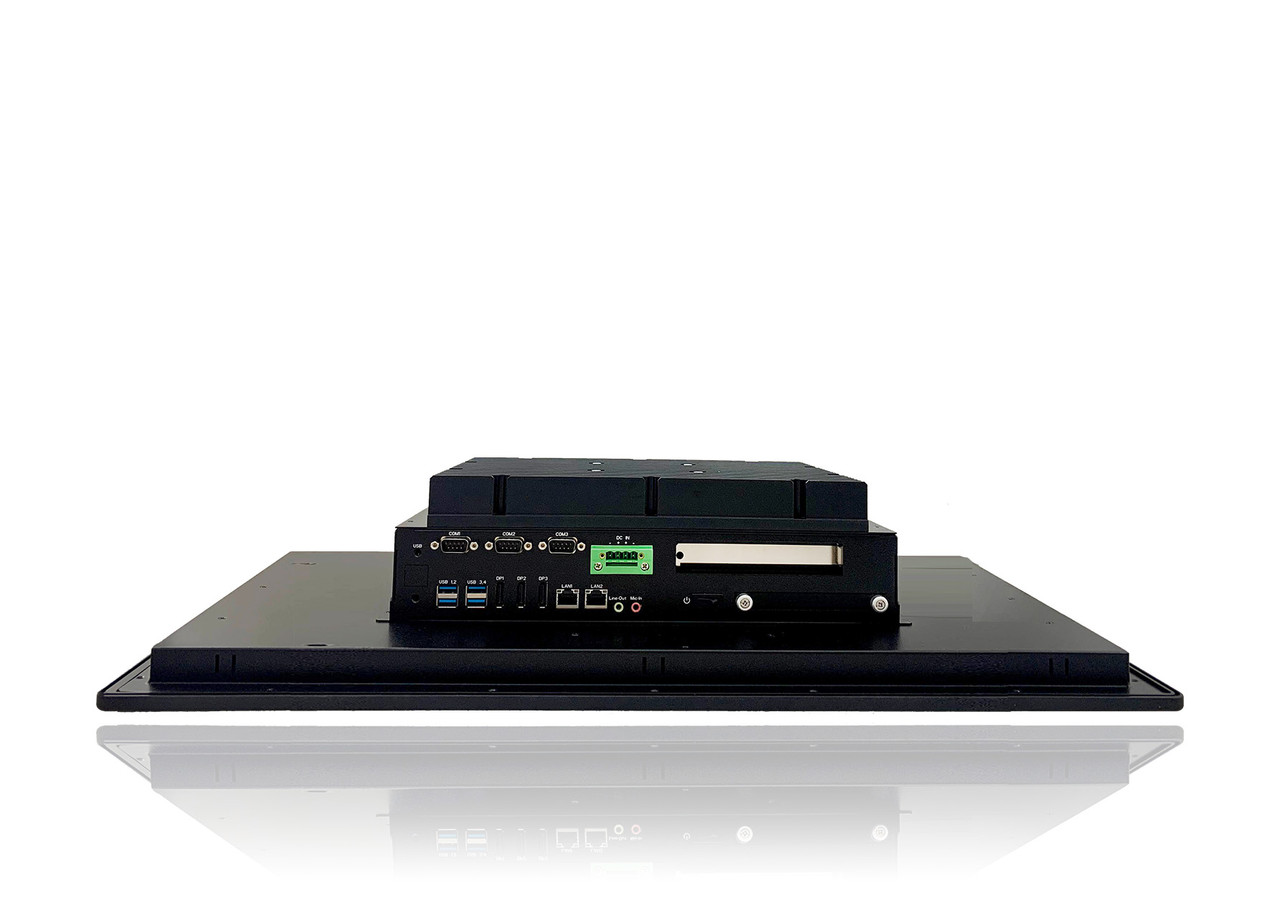

I/O Diagram Images

Tech Diagram Images

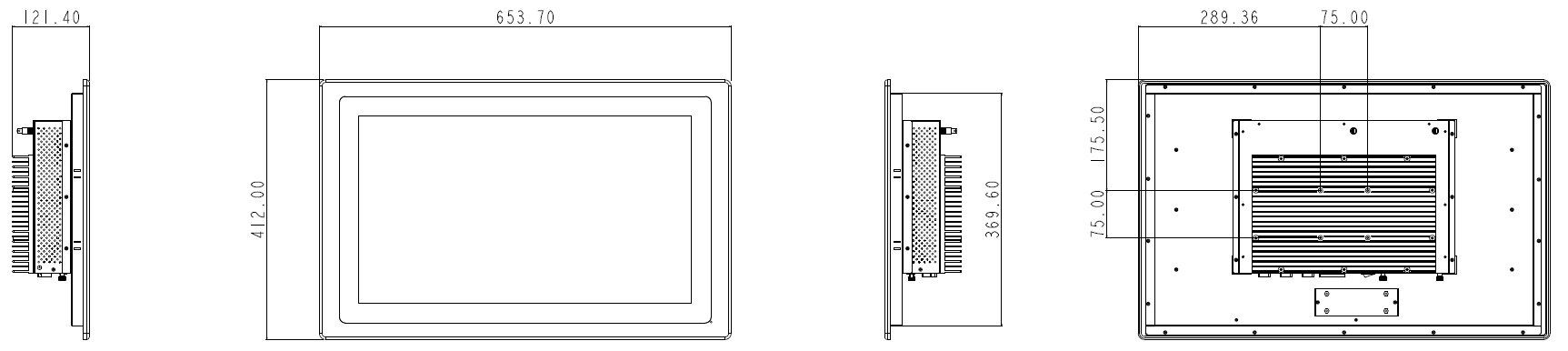

24 inch Industrial HMI two-dimensional drawing

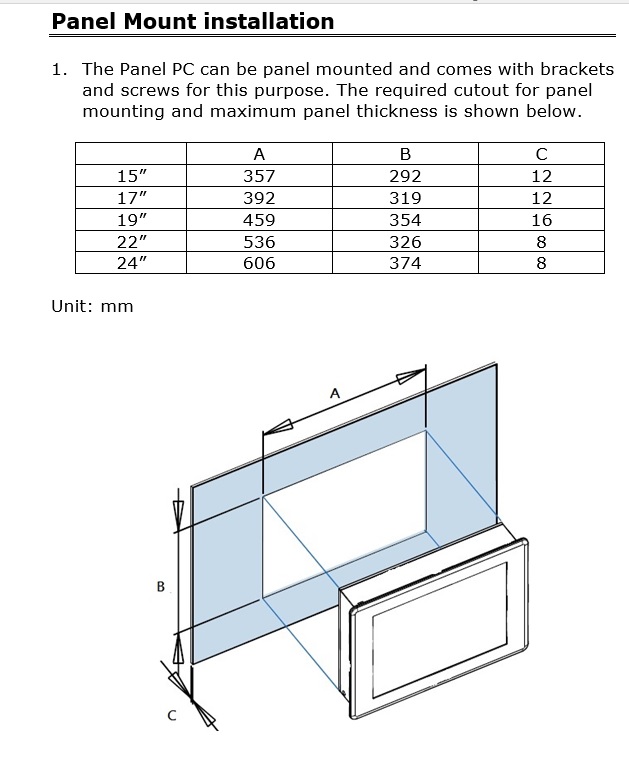

Industrial HMI Cutout Dimensions. For the 24 inch, the dimensions are 606 by 374 by 8 millimeters.
