Technische Daten
Primary Components
| Processor Family | Intel Core I series 6th Generation Skylake |
| Processor Model | Core i3-6100U |
| Processor Speed | 2,3 GHz |
| Memory Type | 1x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB |
| Storage Type | 1x 2,5" SATA Laufwerksschacht für SSD/HDD |
| Storage Support | 32GB-1TB |
Display
| Screen Size | 18.5" |
| Resolution | Optional 1920 x 1080, 1366 x 768 |
| Screen Ratio | 16:9 |
| Brightness | Optional 1000 nit hohe Helligkeit, 300 nits |
Touch Screen
| Touch Screen | Projiziert kapazitiv, Widerstandsfähig |

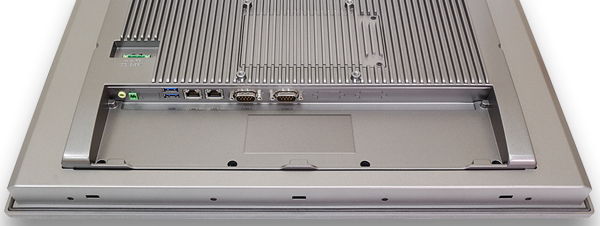

External I/O Ports
| USB | 2x USB 3.0 |
| Serial / Com | 2x COM |
| Serial Protocol Detail | 1x RS-232/422/485 DB-9, Standard RS-232(COM1), 1x RS-232 DB-9(COM2) |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x HDMI |
| Other Ports | 1x 2-Pin DC Power Switch Anschluss |
| Audio Ports | 1x Audio-Line-Ausgang |
| Power Input Port | 3-poliger DC-Eingang (Phoenix-Typ) |
Power
| Input Voltage Range | 9-32V Gleichstrom |
| Standard Power Adapter | Optionaler 12V AC/DC Adapter |
Operating Systems
| Windows | Windows 10 IoT, Windows 7 Pro |
Compatibility
| Security Hardware | TPM 2.0 |
Expansion Slots
| SD card | 1x SD-Steckplatz in voller Größe |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F - 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F - 140°F) |
| Cooling Solution | Passiv – Lüfterlos mit Kühlkörper |
| Humidity Range | 10 % – 90 % nicht kondensierend |
Enclosure
| Material | Aluminium |
| IP Rating | IP66 Frontblende |
| Mounting Options | Schalttafelmontage, VESA-Halterung |
Weight / Dimensions
| Weight | 6.7 kg (14.8 lbs) |
| Dimensions | 500 x 315 x 65 mm (19.7 x 12.4 x 2.6 in) |
Certification
| Certifications | CE, FCC Klasse A |
Warranty
| Warranty | 1 Jahr |
