TSP-5045-22

22" Industrial Touch Screen PC

Available – Contact Us for Quick Quote

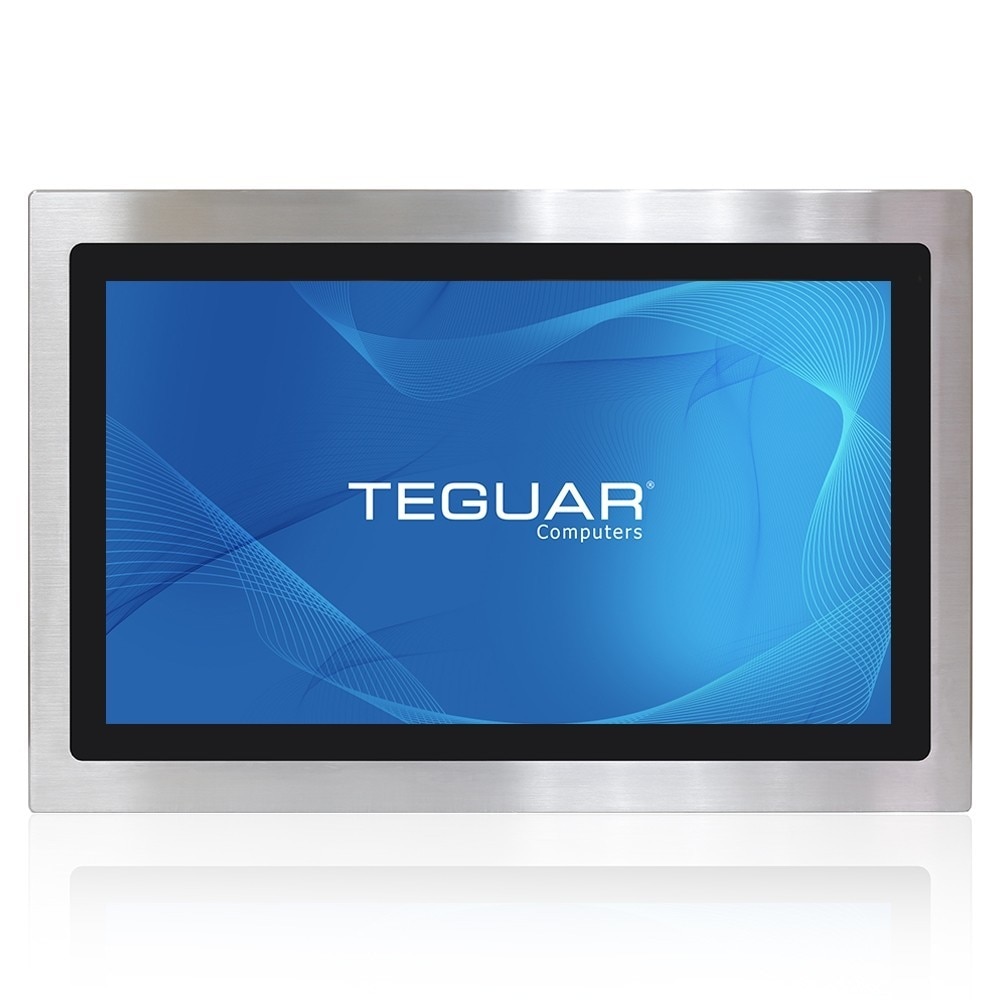

22" Industrial Touch Screen PC Front View

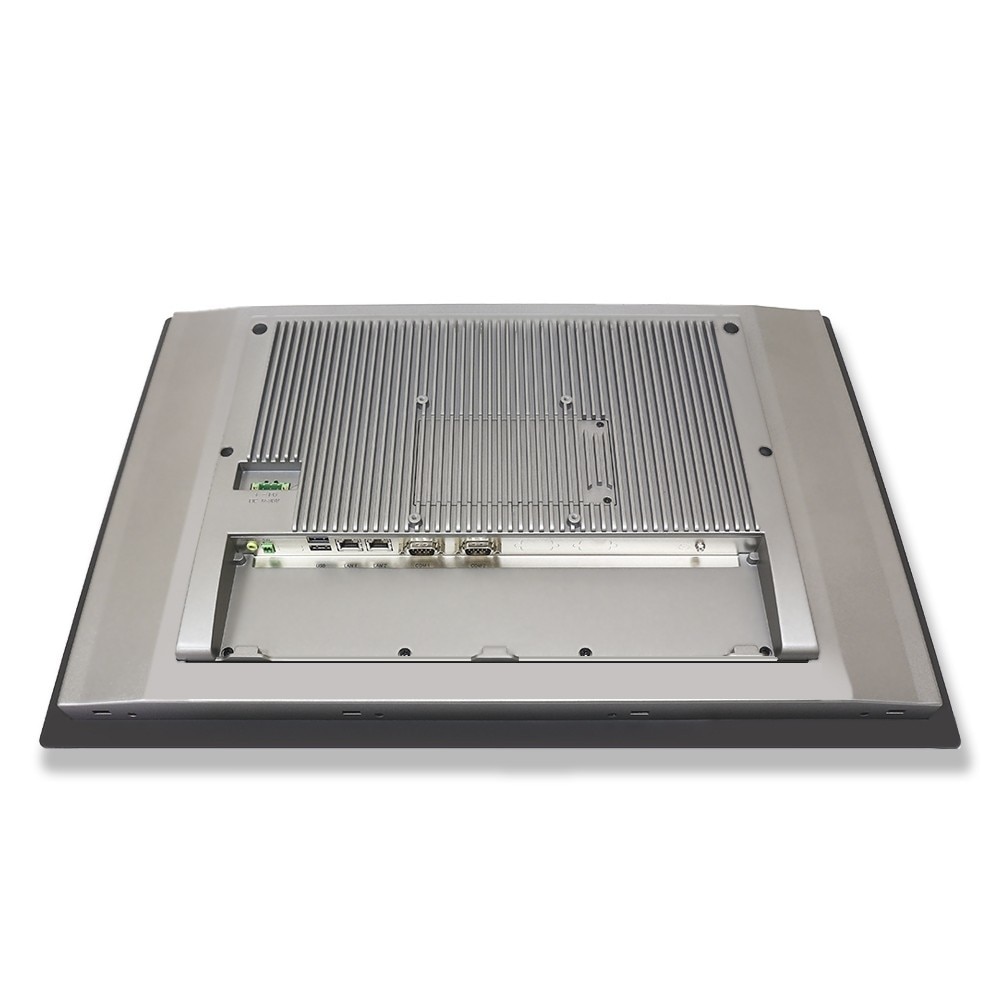

22" Industrial Touch Screen PC Back View

Beschreibung

The TSP-5045-22 is ideal for tracking metrics or acting as an HMI on your food and beverage manufacturing line or in a production area exposed to liquids, sprays or humidity. The grade 304 stainless steel front bezel will never rust, and an optional upgrade to 316 stainless steel adds further protect from salt water. The front panel of this unit is IP66/IP69K compliant, so when panel mounted, this PC is an ideal waterproof solution. This panel PC has an Intel Skylake Core i3/i5 processor and supports Windows 10 IoT. The TSP-5045 series is available in screen sizes down to 12”.

Key Highlights

21.5″ Flat Front Waterproof Touchscreen
Intel 6th Gen. Core i3/i5 CPU
Wide Range DC 9~36V Power Input
IP66/IP69K Compliant Front Bezel
Aluminum Back Cover and Fanless Design

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 6th Generation Skylake
Processor Model	Core i3-6100U
Processor Speed	2.3 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible)
Storage Support	32GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 250 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x Optional HDMI
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	53W
Standard Power Adapter	Optional 12V AC/DC Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

SD card

1x Full Size SD Slot

Thermal & Environmental

Operating Temperature	0°C - 50°C - 0°C - 40°C (32°F – 122°F (Standard), 32°F – 104°F (With High Bright LCD))
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66 Front Bezel, IP69K Front Bezel
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol

Peripherals & Wireless Connectivity

WiFi

Weight / Dimensions

Weight	7.8
Dimensions	573.8 x 378.8 x 59.8

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Food and Beverage Manufacturing: The TSP-5045 Series computers, with their stainless steel front and waterproof design, are well-suited for food and beverage manufacturing environments, providing reliable computing solutions that can withstand exposure to liquids, sprays, and humidity.

Industrial Automation: With their support for Windows 10 IoT and rugged construction, the TSP-5045 Series computers are suitable for industrial automation applications, enabling operators to monitor and control processes in harsh industrial environments.

Cleanroom Environments: The TSP-5045 Series computers, with their fully waterproof and washdown-rated front bezel, are ideal for cleanroom environments that require regular cleaning and sterilization, providing a reliable computing solution that can withstand high-pressure, high-temperature water jets.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Tech Diagram Images

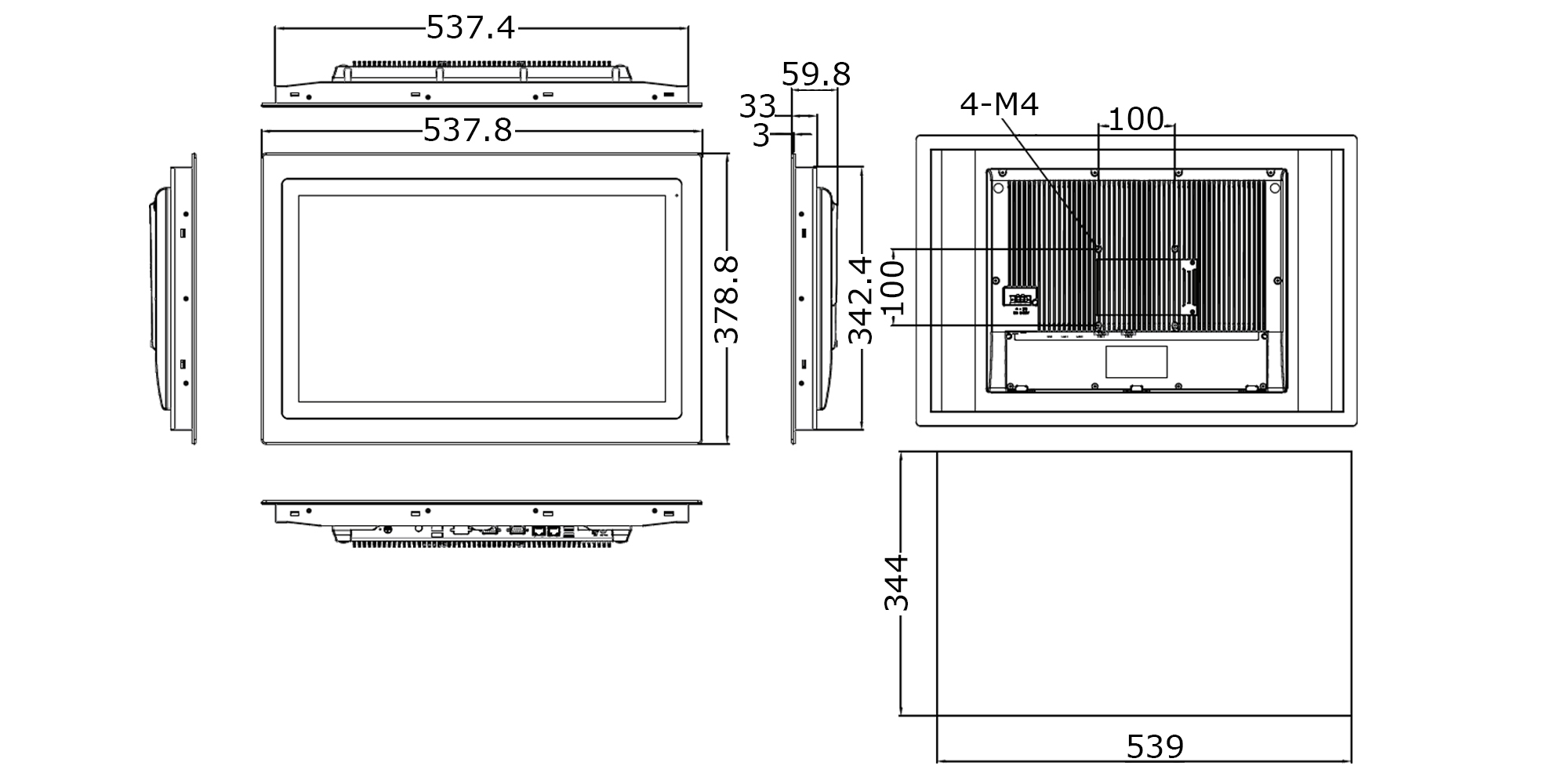

22" Industrial Panel PC Technical Drawing
