TSD-45-16

15.6" Waterproof Monitor

Available – Contact Us for Quick Quote

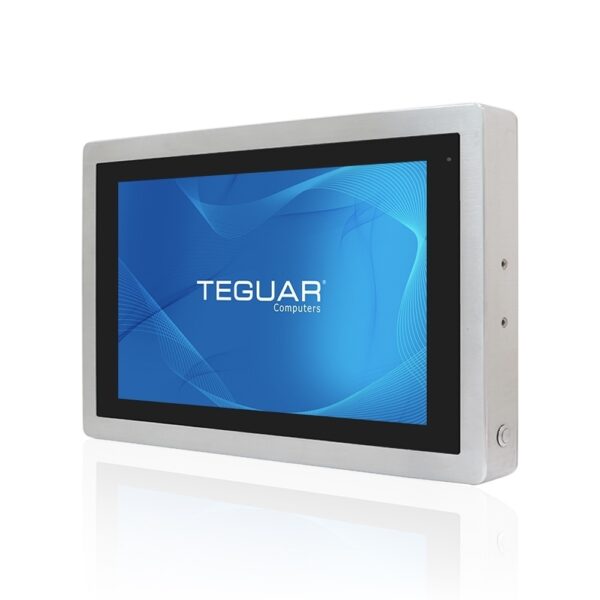

15.6" Waterproof Touch Monitor | TSD-45-16

Waterproof Touchscreen Monitor | TSD-45-16

15.6" Waterproof Touchscreen Display | TSD-45-16

Beschreibung

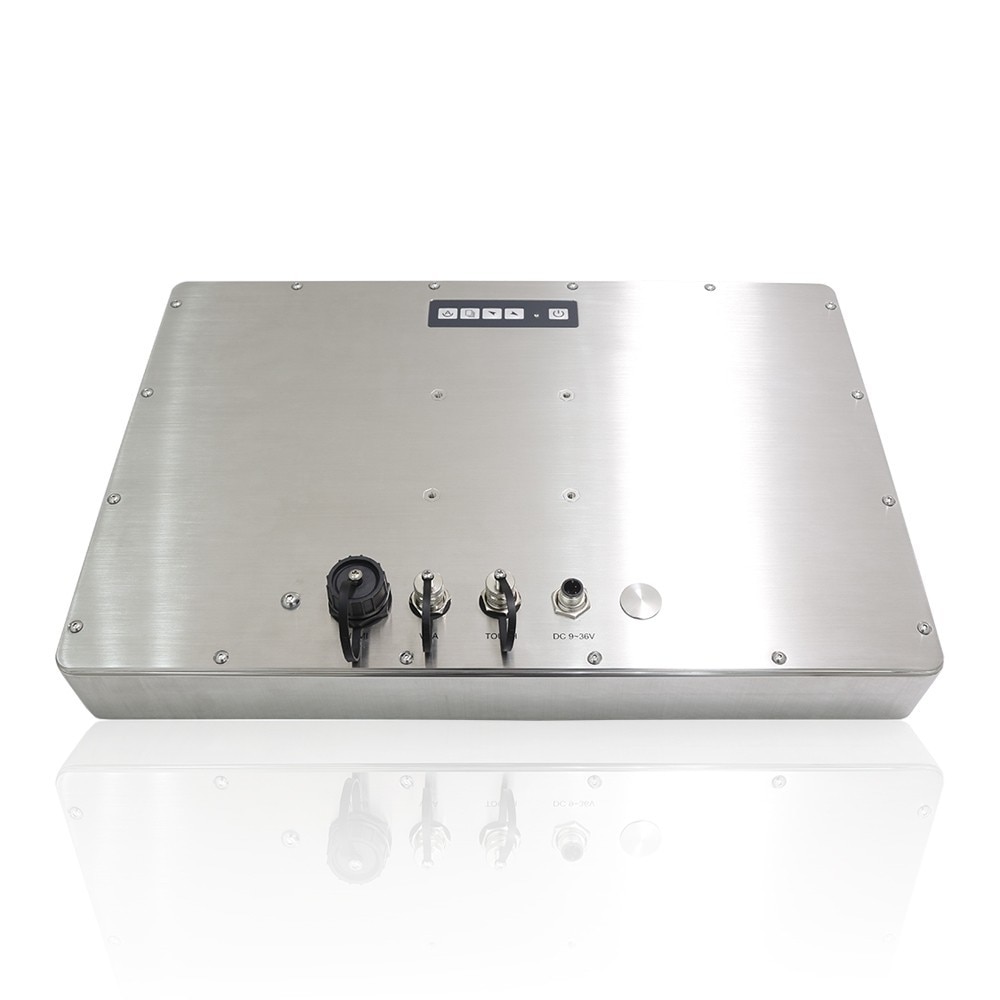

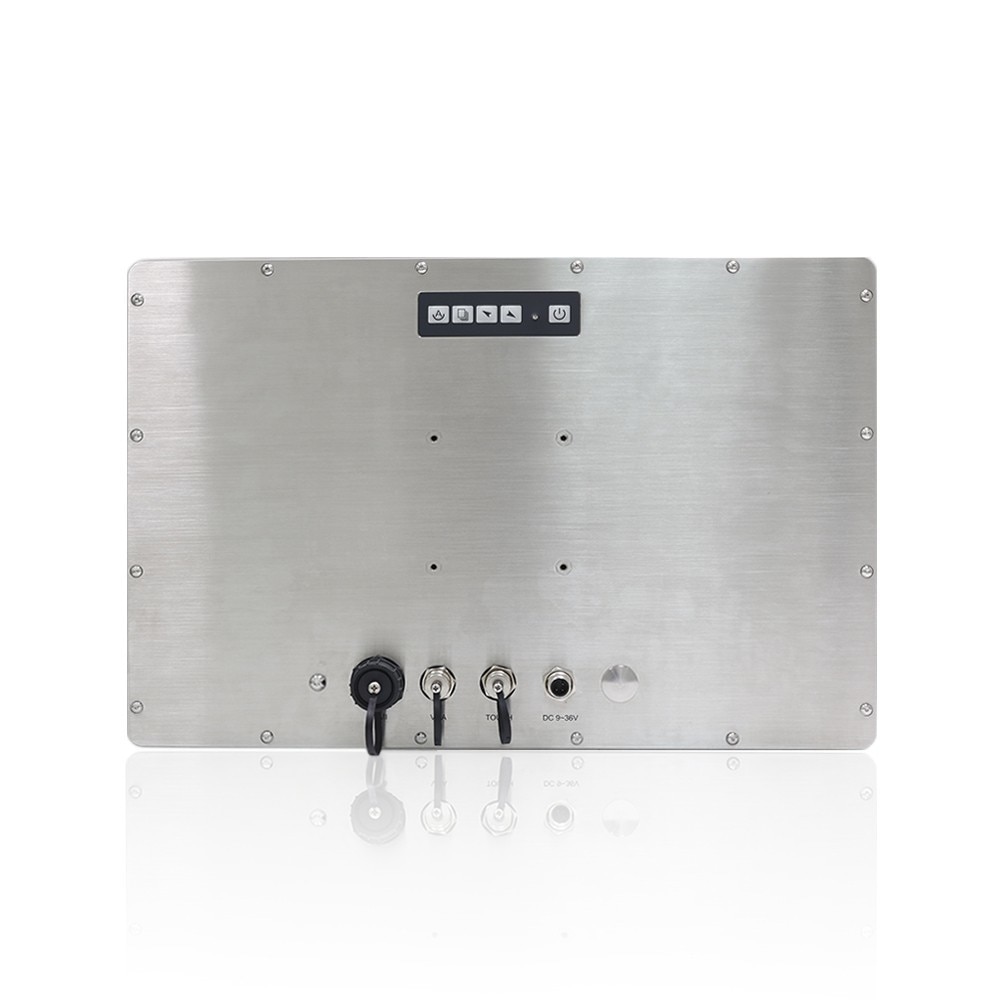

The TSD-45-16 widescreen monitor is the ideal solution for manufacturing environments exposed to water, moisture and even high-pressure wash downs. This unit is IP66/IP69K rated and NEMA 4x compliant. The stainless steel housing is grade 304, ensuring it will not rust, and comes with the option to upgrade to grade 316L stainless steel, needed in environments exposed to salt water. The thin profile and curved design are both aesthetically pleasing and easy to clean. The on-screen display (OSD) controls placed on the rear of the monitor allow for quick adjustments of display settings and the IOs are protected by M12 metal connectors, included with the unit. The TSD-45 series comes in screen sizes from 10” up to 24” and in various screen ratios, so you can choose the best configuration for your application.

Key Highlights

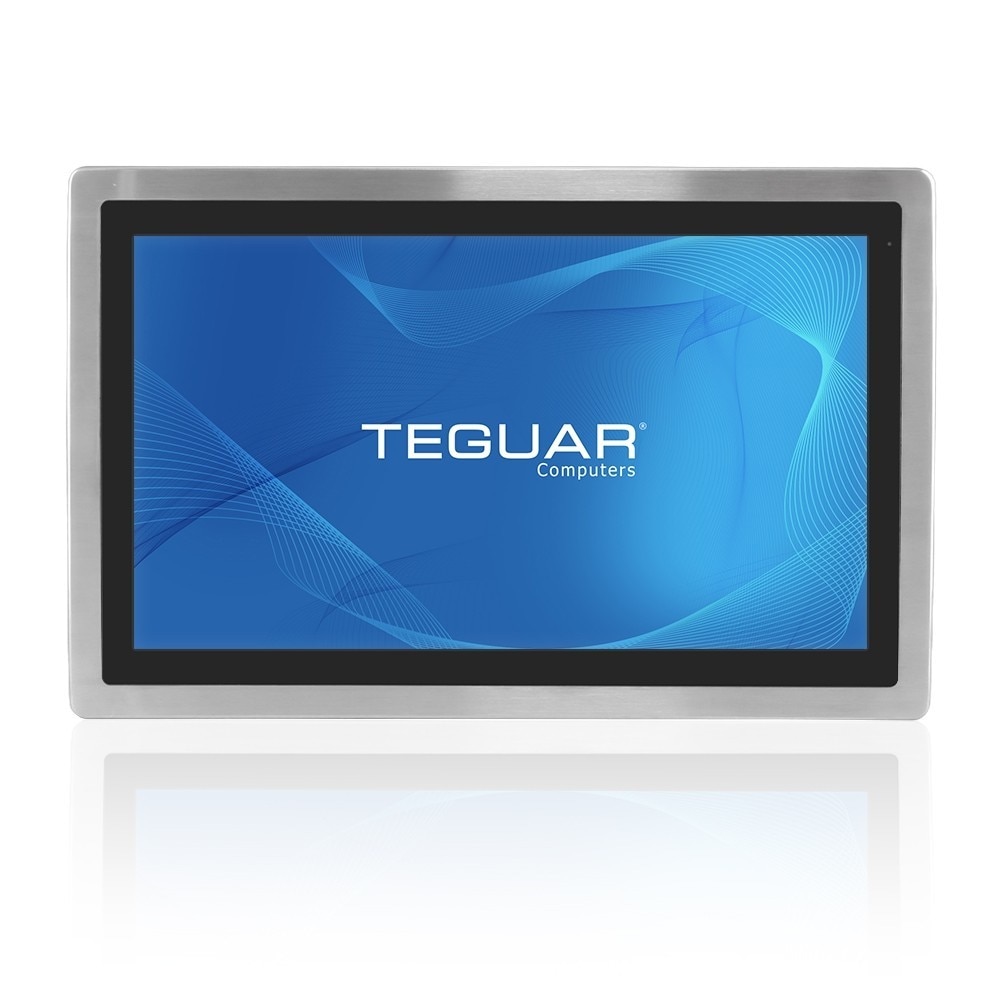

15.6″ Flush LCD Touchscreen
IP66/IP69K Fully Enclosed Fanless Design
Resistive or Projected Capacitive Touchscreen
HDMI and VGA Inputs
Optional 1000 nit High Brightness and Optical Bonding
Grade 304 Stainless Steel Enclosure

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Display

Screen Size	15.6"
Resolution	Optional 1920 x 1080, 1366 x 768
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	1x M12 USB
Power Input Port	M12 type 3-PIN DC-in

Power

Input Voltage Range	9-36V DC
Max Power Consumption	12.3W

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K
Control Buttons	On-Screen Display (OSD), Touchscreen Lock for Cleaning
Mounting Options	VESA 75 Mount, Yoke Mount
Approved Cleaning Solutions	Alcohol, Chlorine and Compounds, Glutaraldehyde, Hydrogen Peroxide, Ortho-phthalaldehyde (OPA), Quaternary Ammonium Compounds

Weight / Dimensions

Weight	6.4
Dimensions	440 x 290 x 55

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Applications: With optional features like high brightness, optical bonding, and ambient light sensors, the TSD-45 Series is well-suited for outdoor applications where sunlight readability and visibility are crucial. It can be used in industries such as outdoor signage, transportation, and agriculture, providing reliable and visible monitors in various weather conditions.

Industrial Automation: The TSD-45 Series, with its robust construction and M12 connectors, is suitable for industrial automation environments that require waterproof and durable monitors. It can be used for tasks such as machine control, process visualization, and data monitoring, providing reliable and rugged monitors in demanding industrial settings.

Production Line Monitoring: The TSD-45 Series, with its optional integrated IP65-rated speakers, can be used for production line monitoring and signaling. It provides visual and audio feedback for alarms, notifications, and process control in industries such as manufacturing, assembly, and packaging.

See the data sheet Warranty Download Drivers

I/O Diagram Images

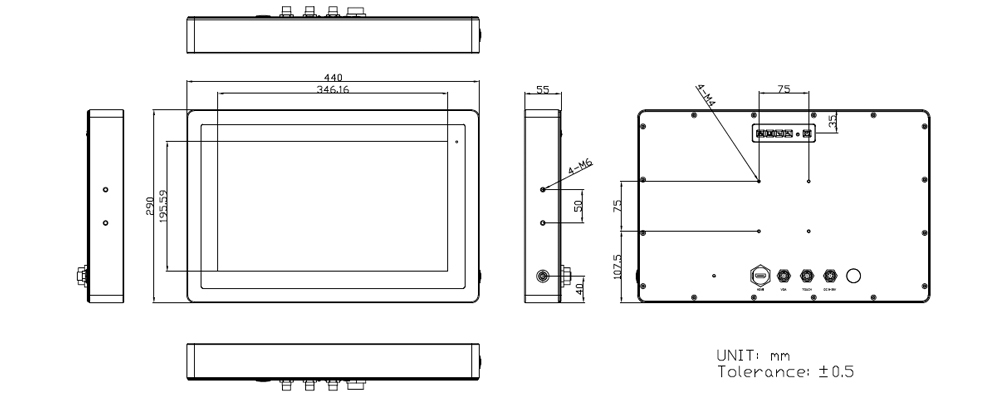

Tech Diagram Images

TSD-45-16

15,6" Wasserdichter Monitor

Available – Contact Us for Quick Quote

Beschreibung

Der TSD-45-16 Widescreen-Monitor ist die ideale Lösung für Produktionsumgebungen, die Wasser, Feuchtigkeit und sogar Hochdruckreinigern ausgesetzt sind. Dieses Gerät entspricht der Schutzklasse IP66/IP69K und ist NEMA 4x-konform. Das Gehäuse ist aus Edelstahl der Güteklasse 304 und rostet daher nicht. Es besteht die Möglichkeit, es auf Edelstahl der Güteklasse 316L aufzurüsten, der in Umgebungen mit Salzwasser benötigt wird. Das schlanke Profil und das geschwungene Design sind sowohl ästhetisch ansprechend als auch leicht zu reinigen. Die OSD-Bedienelemente auf der Rückseite des Monitors ermöglichen eine schnelle Anpassung der Anzeigeeinstellungen und die IOs sind durch M12-Metallstecker geschützt, die im Lieferumfang enthalten sind. Die TSD-45-Serie ist in Bildschirmgrößen von 10″ bis 24″ und in verschiedenen Bildschirmverhältnissen erhältlich, so dass Sie die beste Konfiguration für Ihre Anwendung wählen können.
