TS-4845-10

10" Waterproof Touch Screen Computer

Available – Contact Us for Quick Quote

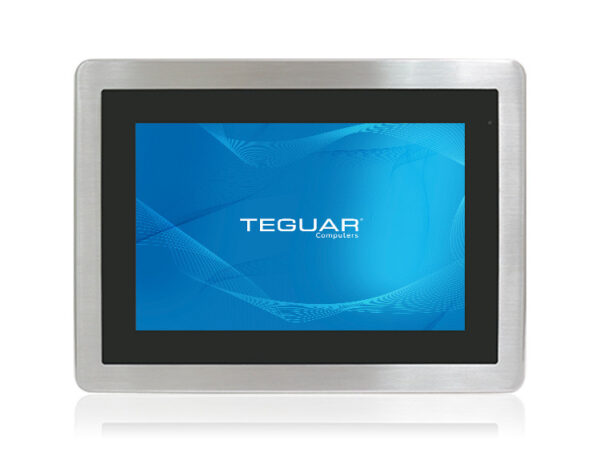

10" Waterproof Touch Screen Computer TS-4845-10 Front Angle

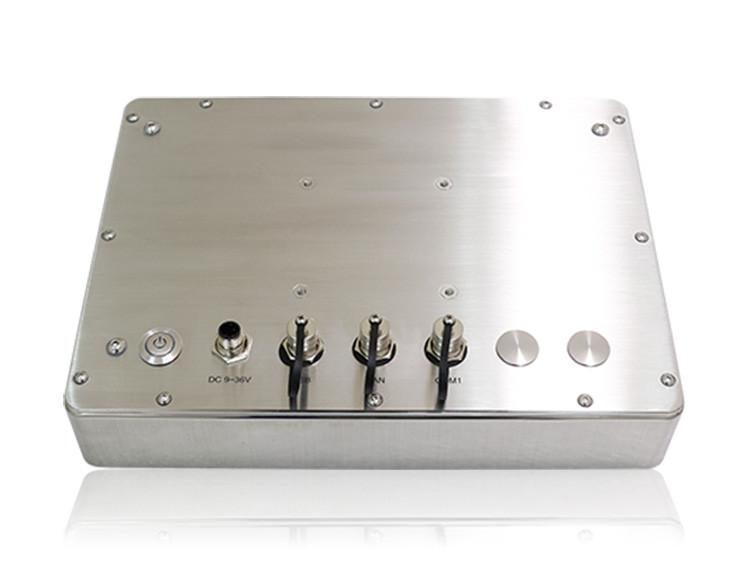

10" Waterproof Touch Screen Computer TS-4845-10 Back

10" Waterproof Touch Screen Computer TS-4845-10 Back IOs

Beschreibung

Introducing our 10″ Waterproof Touch Screen Computer, a compact powerhouse designed for optimal performance in wet or damp environments. Running on Windows 11 and equipped with a Celeron Quad-Core Processor, this device seamlessly combines efficiency with innovation. The Touch On/Off button not only enhances user experience but also facilitates hygienic cleaning, ensuring a pristine display. Its 10″ screen size strikes the perfect balance between portability and functionality, making it an ideal choice for diverse applications. Embrace the future of computing with this series, where cutting-edge features meet the demands of challenging environments.

Key Highlights

10.1” Touchscreen in Both Resistive and PCap Options
Celeron J6412 Processor Passmark Rating 3839
Windows 11 Compatibility
IP66 Stainless Steel Housing
Waterproof M12 I/O Connectors

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	Up to 2.6 GHz, 2.0 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 SATA3 2242 Slot
Storage Support	128GB-1TB

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	16:10
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive (Multi-touch), Resistive

External I/O Ports

USB	1x M12 8Pin for USB 1/2, 1x Optional M12 8Pin for USB 3/4
Serial / Com	1x M12 8-pin for COM, 1x Optional M12 8-pin for COM 2
Serial Protocol Detail	RS-232/422/485, RS-232 Defualt
Ethernet / LAN	1x M12 8pin RJ45 Gbe LAN, 1x Optional M12 8pin RJ45 Gbe LAN
Power Input Port	M12 type 3-PIN DC-in

Power

Input Voltage Range

9-36V DC

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2	1x M.2 Type E
Other	Optional RFID module, front side

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K Front Bezel
Color	Stainless Steel
Led Indicator Light	Power
Control Buttons	Power Button, Touchscreen Lock for Cleaning
Mounting Options	Desktop Stand, VESA 75 Mount, Wall Mount, Yoke Mount

Peripherals & Wireless Connectivity

WiFi	Optional Wi-Fi 6, 802.11 a/b/g/n/ac/ax
Bluetooth	Optional Bluetooth 5.3
Sim Card	1x Nano SIM Card Slot
RFID	Optional 125KHz OR 13.56 MHz
Sensors	Light Sensor

Weight / Dimensions

Dimensions

300x53x220

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Manufacturing Floors: The TS-4845 series, featuring a 10″ Waterproof Touch Screen Computer, is purpose-built for manufacturing floors where wet or damp conditions are prevalent. With its Windows 11 compatibility and Celeron Quad-Core Processor, this device ensures optimal performance and seamless operation in industrial manufacturing settings.

Semi-Outdoor Workstations: Designed for versatility, the TS-4845 series is an excellent choice for semi-outdoor workstations. Its waterproof touch screen and compact form factor, combined with a Celeron Quad-Core Processor, make it suitable for tasks requiring efficiency and innovation in partially exposed environments.

Agricultural Operations: The rugged design of the TS-4845 series makes it an ideal computing solution for agricultural operations. With its waterproof touch screen and Windows 11 compatibility, it provides reliable performance in challenging outdoor conditions, supporting tasks such as data monitoring and management in agriculture.

Food Processing Facilities: In food processing facilities, where hygiene is paramount, the TS-4845 series excels with its 10″ waterproof touch screen and hygienic Touch On/Off button. Running on Windows 11 and equipped with a Celeron Quad-Core Processor, this device is well-suited for applications such as recipe management and quality control in food production.

See the data sheet Warranty Download Drivers

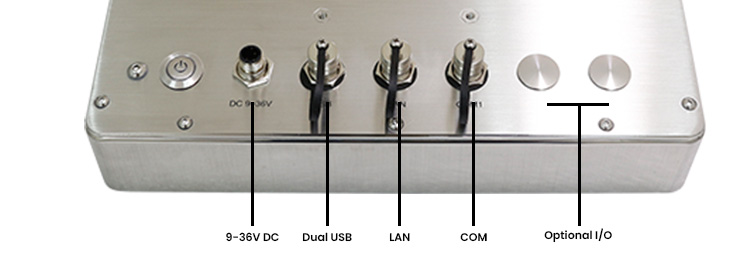

I/O Diagram Images

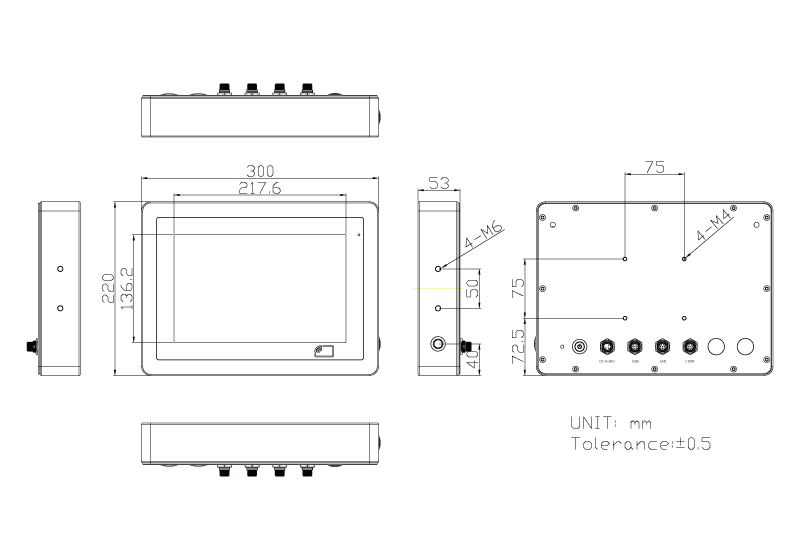

Tech Diagram Images
