TS-4810-19

19" Stainless Steel Panel PC

Available – Contact Us for Quick Quote

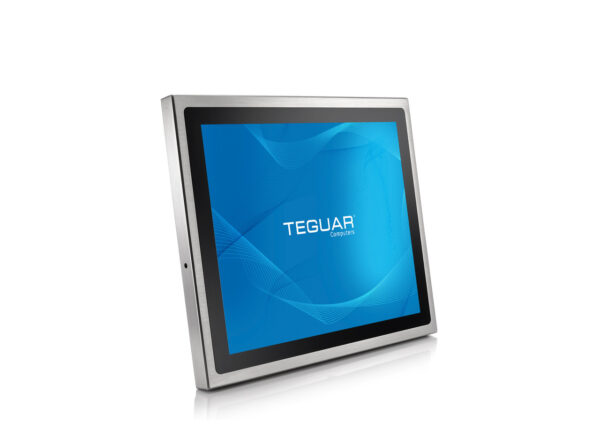

Stainless Steel Panel PC | TS-4810-19 Front Angled

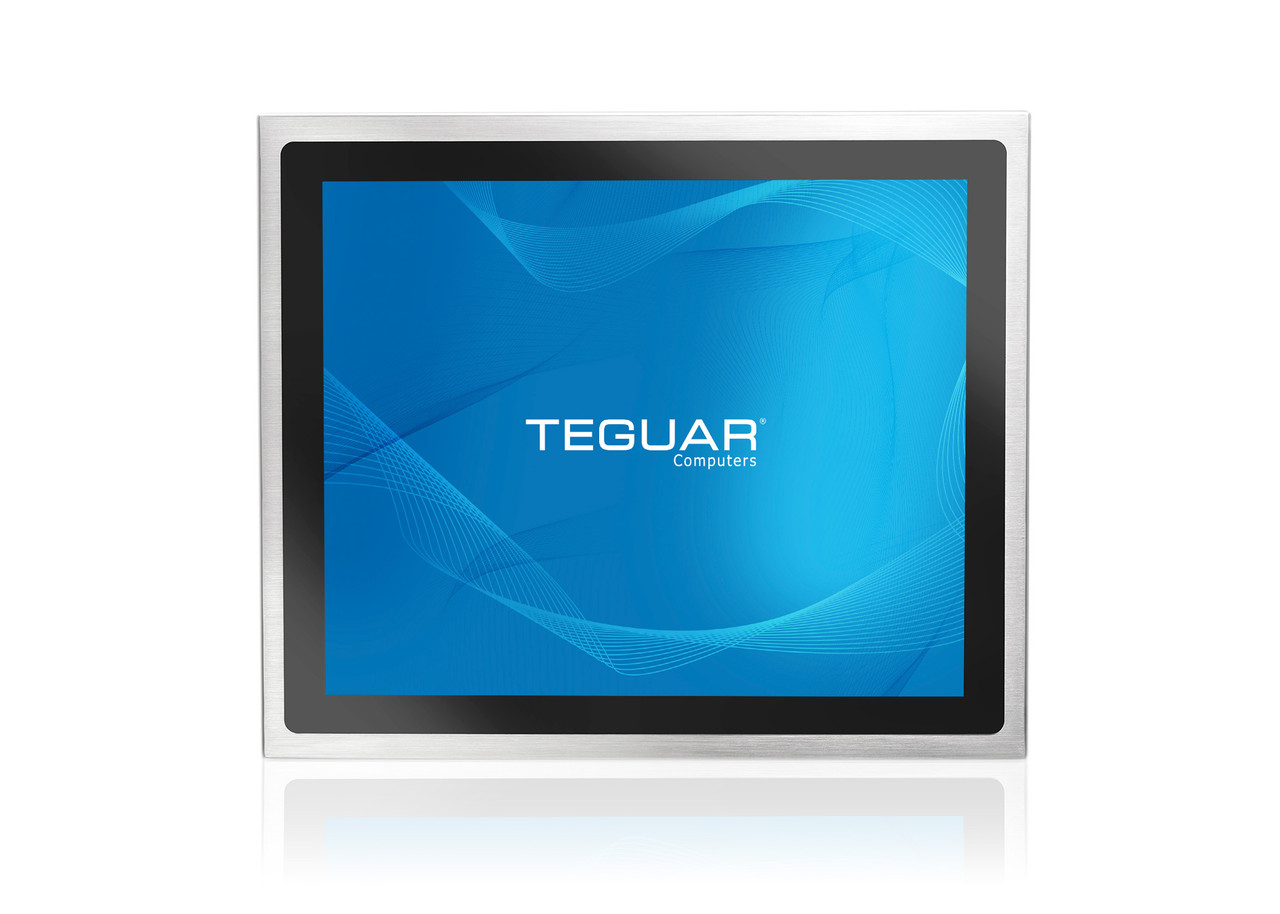

Stainless Steel Panel PC | TS-4810-19 Front

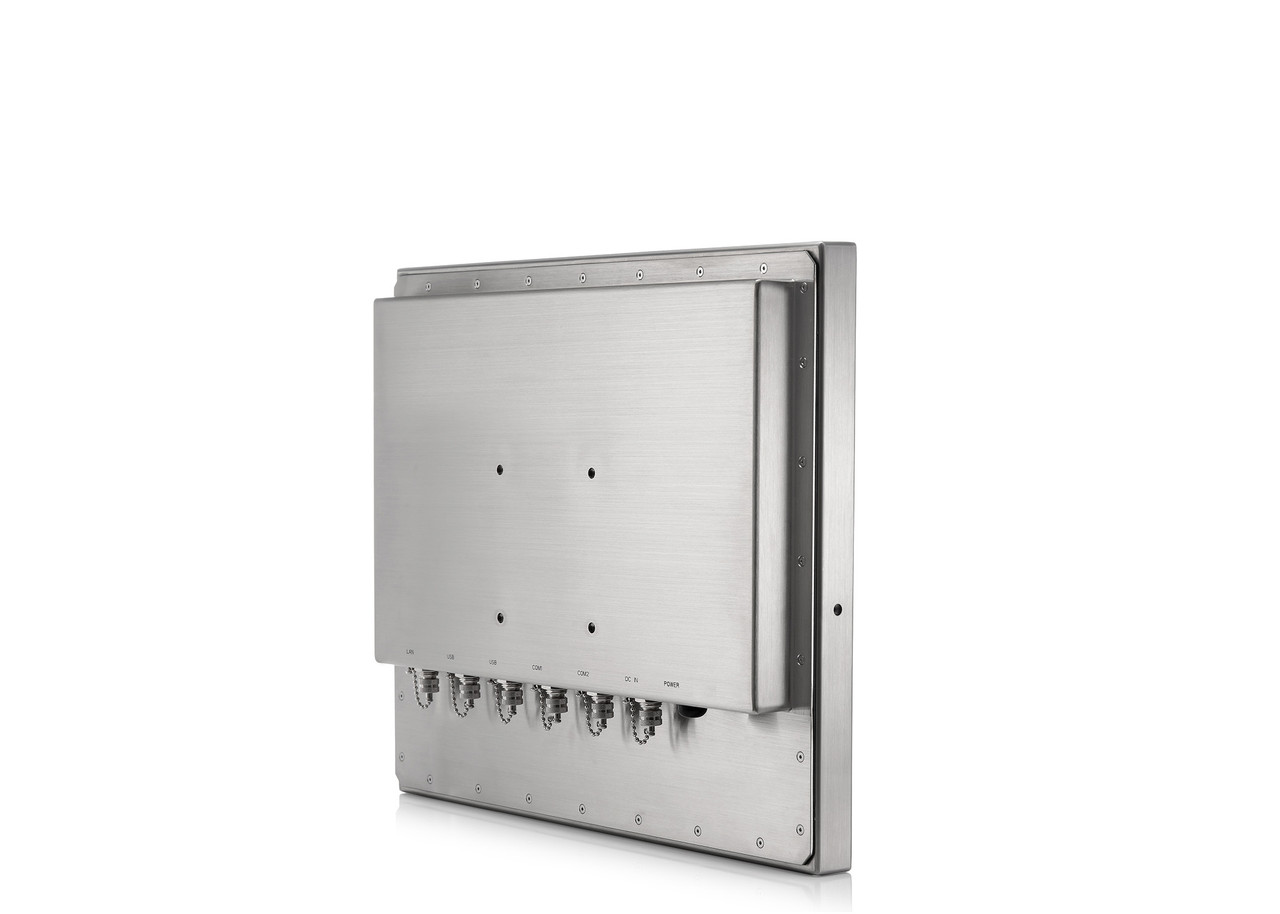

Stainless Steel Panel PC | TS-4810-19 Back Angled

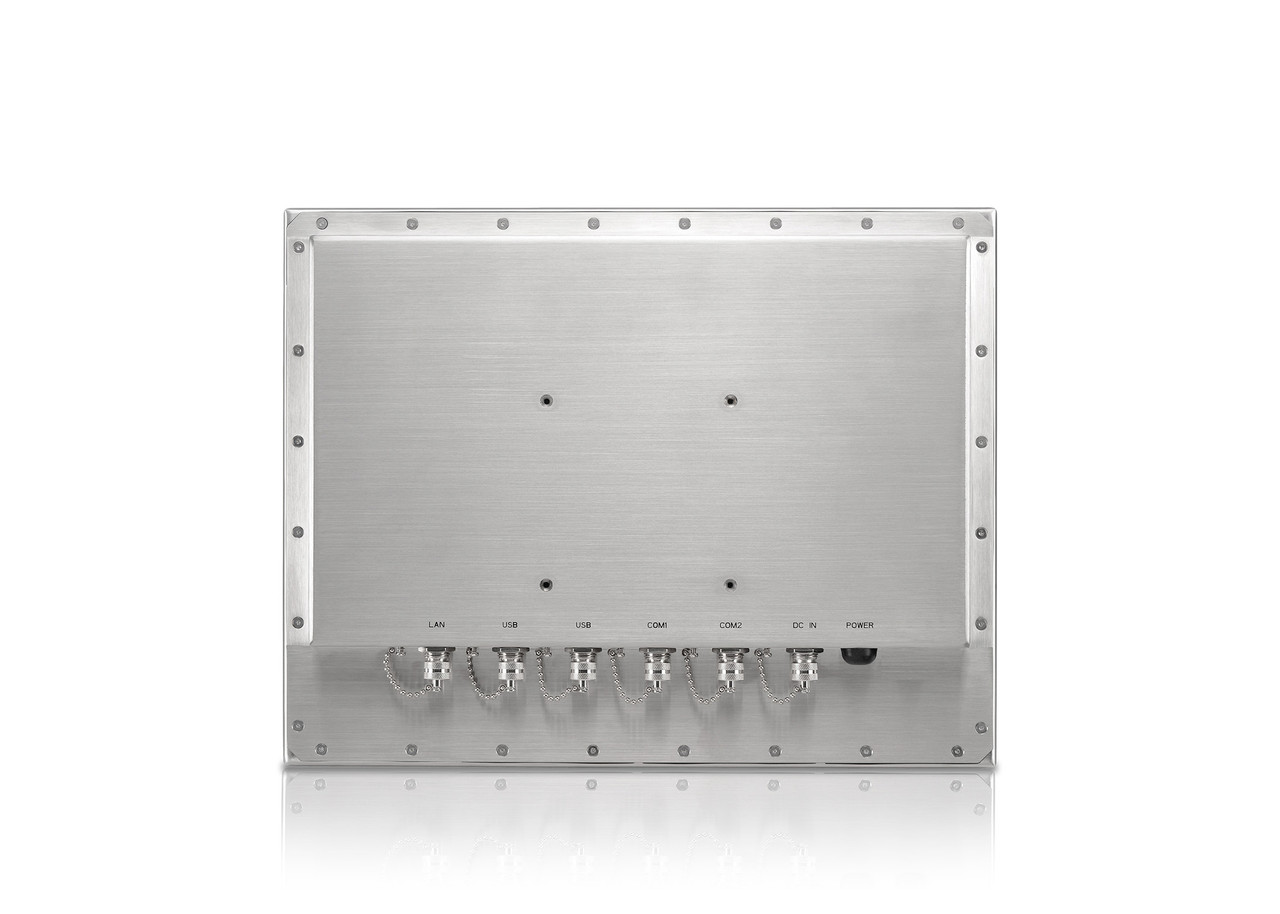

Stainless Steel Panel PC | TS-4810-19 Back

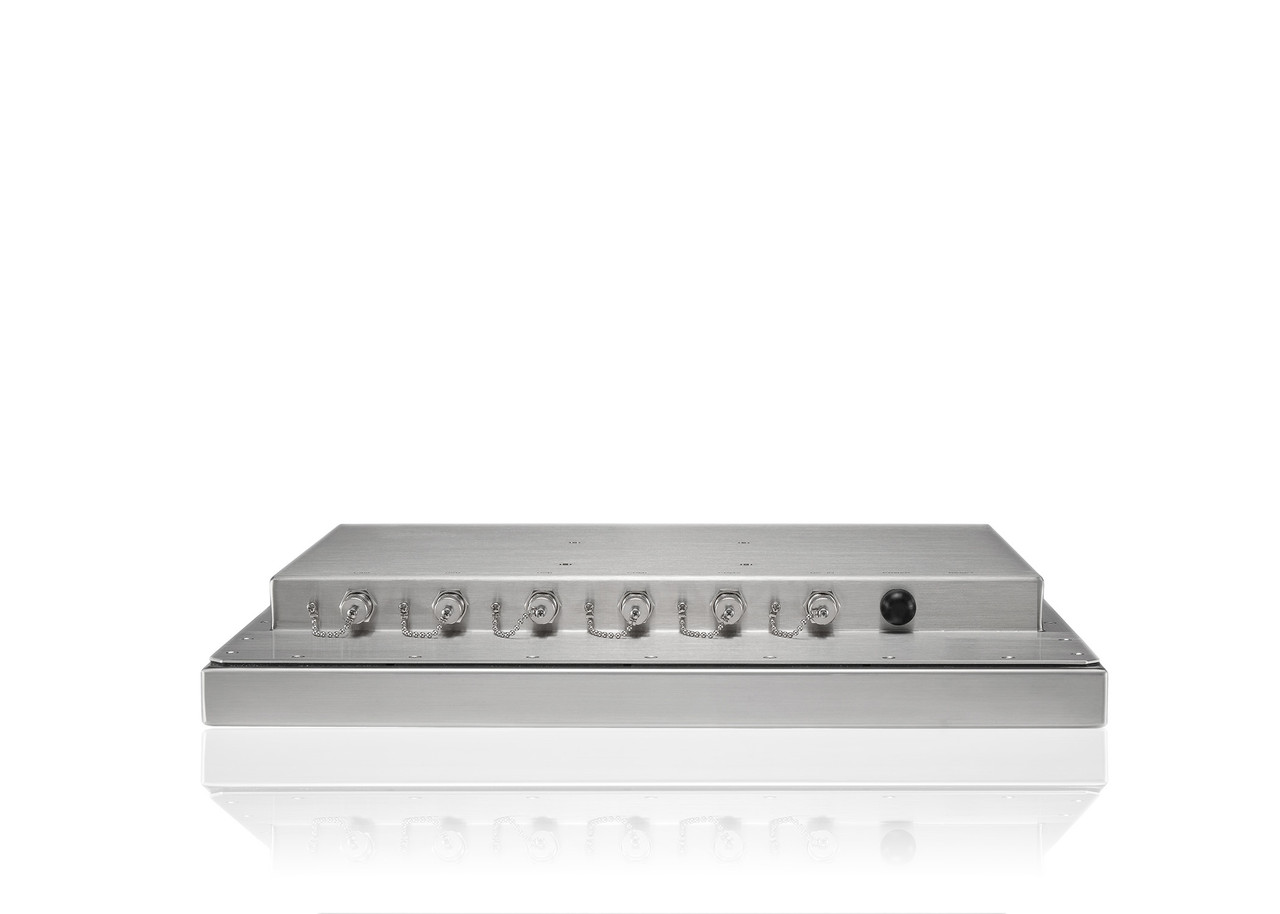

Stainless Steel Panel PC | TS-4810-19 I/Os

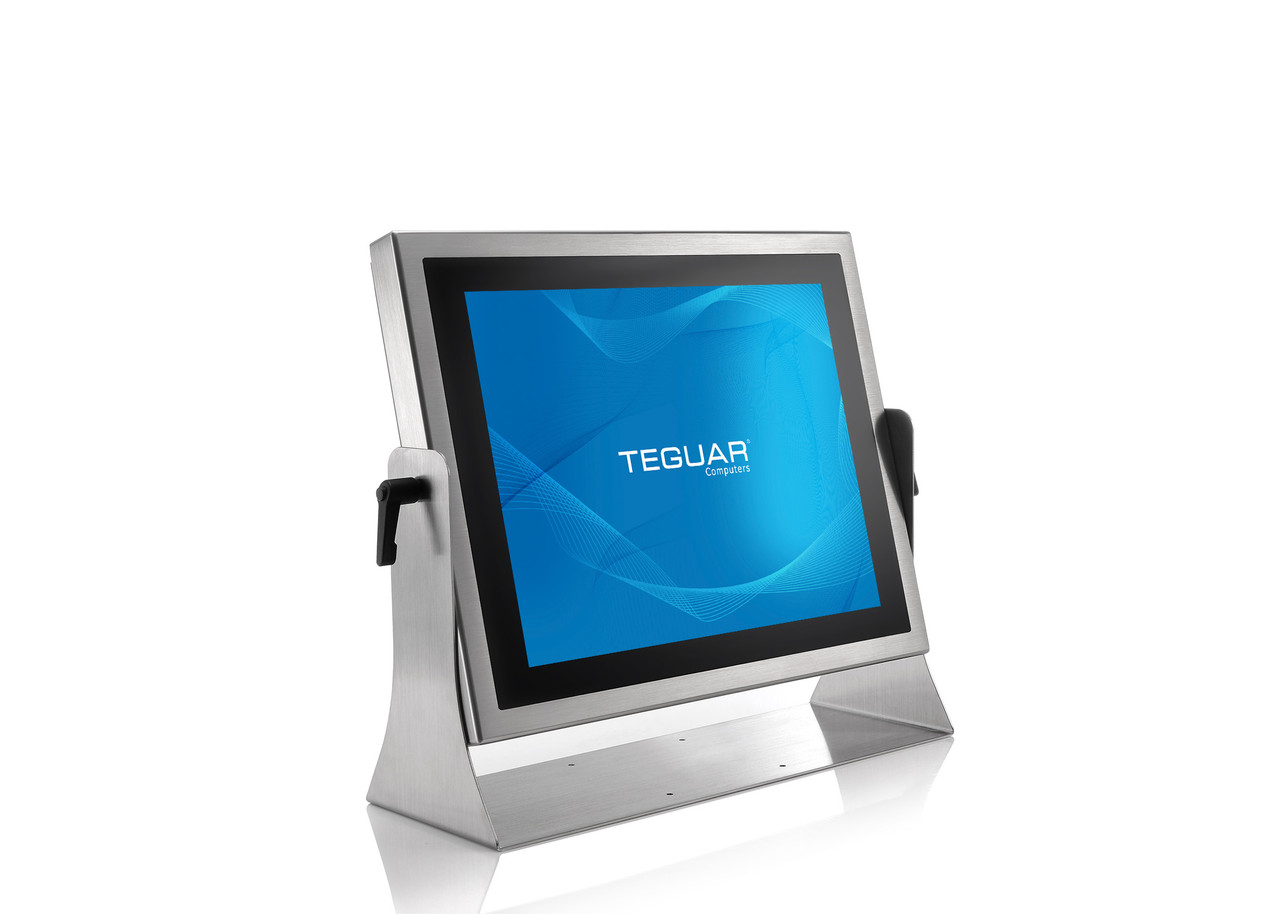

Stainless Steel Panel PC | TS-4810-19 Mounted

Beschreibung

The TS-4810-19 has a 19” resistive or Pcap touchscreen and a fully flush front bezel, meaning there are no crevices where debris and dirt can build up. This computer is IP66 / IP69K rated and is designed for food processing and repeated cleanings in washdown environments. Inside, the TS-4810-19 is made with industrial components and has an Intel Celeron J6412 CPU that is able to run Windows 11 Operating System. Multiple inputs and outputs are located on the back side of the unit and have M12 metal I/O connectors to ensure that no water gets in during powerful washdowns.

Key Highlights

19” Full-Flat Touchscreen
IP66 / IP69K Rated
Intel Celeron J6412 CPU with Windows 11 Capabilities
Waterproof Connectors and Power Supply
Fanless and Fully Sealed Design

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	Up to 2.6 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 SATA3 2280 Slot
Storage Support	64GB-2TB

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	5:4
Brightness	350 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), 5 Wire Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com	2x M12 8-pin for COM
Serial Protocol Detail	2x RS-232/422/485 (configured in BIOS)
Ethernet / LAN	1x M12 8 pin RJ45 2.5Gbit LAN
Other Ports	M12 Ports can be configured as needed. Example: 2nd LAN or 3rd COM port
Power Input Port	M12 type 5-PIN DC-in

Power

Input Voltage Range	12-28V DC
Standard Power Adapter	AC 100~240V / 47 ~ 63Hz, IP68, 60W

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K, NEMA 4X, Optional IP67
Color	Stainless Steel
Control Buttons	Power Button
Mounting Options	Table Mount, VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi + Bluetooth Flat Antenna Kit, Supports WIFI 6 (AX)
Bluetooth	Optional Bluetooth 5.2
Barcode Scanner	Optional 1D/2D Barcode Scanner

Weight / Dimensions

Weight	11.5
Dimensions	458x386x64

Certification

Certifications

CE, FCC, VCCI Class B

Warranty

Up to 5 Years

Food Processing: The Stainless Steel Panel PC Series, with its fully sealed stainless steel housing and compatibility with repeated cleanings in washdown environments, is well-suited for use in food processing facilities, ensuring hygienic and durable computing solutions.

Pharmaceutical Manufacturing: With their corrosion-proof stainless steel housing and robust design, the Stainless Steel Panel PCs are suitable for pharmaceutical manufacturing environments, where frequent cleanings and resistance to corrosive substances are necessary for maintaining a sterile production environment.

Industrial Automation: The Stainless Steel Panel PC Series, with its industrial-grade components and Intel Celeron J6412 CPU, provides reliable computing power for industrial automation applications, allowing for seamless control and monitoring of manufacturing processes and machinery on the production floor.

Cleanroom Environments: The fully sealed and corrosion-proof stainless steel housing of the TS-4810 Panel PC makes it well-suited for cleanroom environments, where maintaining a controlled and contaminant-free environment is crucial, such as in semiconductor manufacturing or precision engineering industries.

See the data sheet Warranty Download Drivers

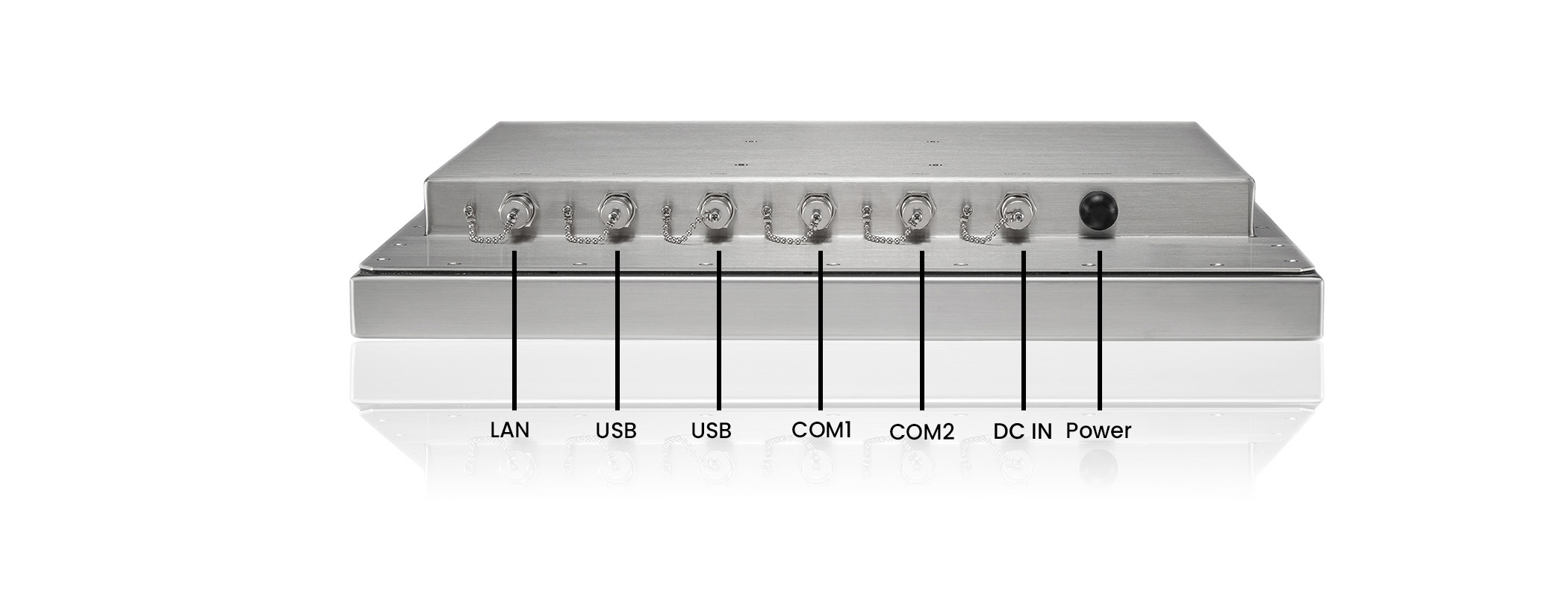

I/O Diagram Images

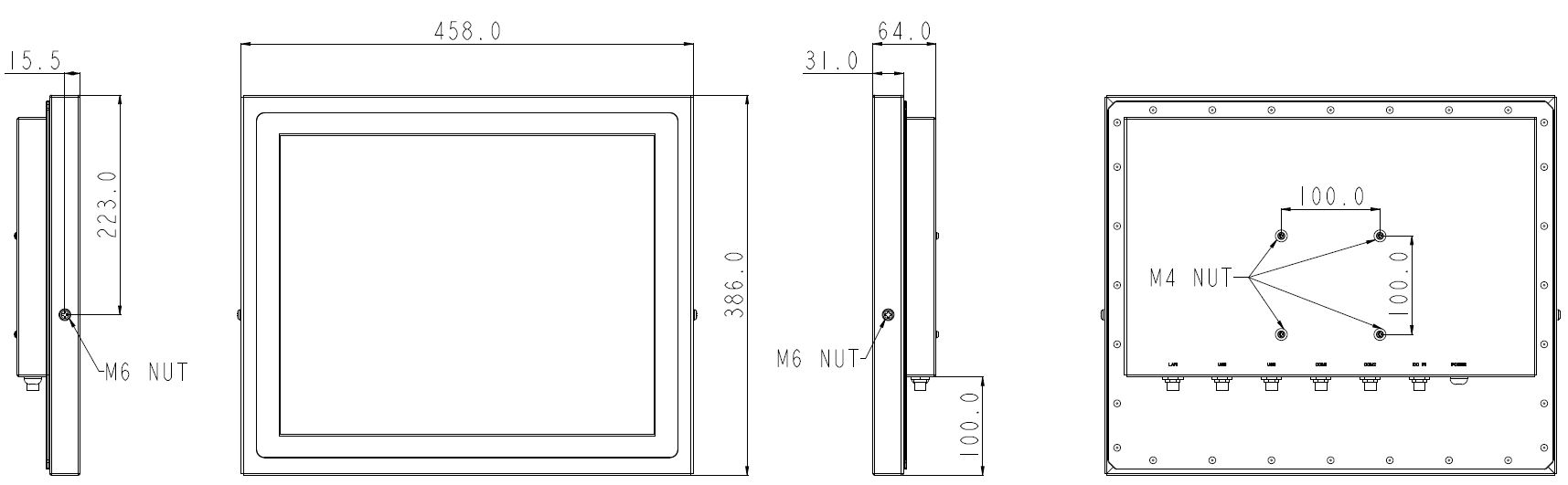

Tech Diagram Images

TS-4810-19

19"-Edelstahl-Panel-PC

Available – Contact Us for Quick Quote

Beschreibung

Der TS-4810-19 hat einen 19″ resistiven oder Pcap-Touchscreen und eine vollständig bündige Frontblende, d.h. es gibt keine Spalten, in denen sich Schmutz und Ablagerungen ansammeln können. Dieser Computer entspricht der Schutzklasse IP66 / IP69K und ist für die Verarbeitung von Lebensmitteln und die wiederholte Reinigung in Waschanlagen konzipiert. Das Innere des TS-4810-19 besteht aus industriellen Komponenten und verfügt über eine Intel Celeron J6412 CPU, auf der das Betriebssystem Windows 11 ausgeführt werden kann. Mehrere Ein- und Ausgänge befinden sich auf der Rückseite des Geräts und verfügen über M12-Metall-E/A-Anschlüsse, um sicherzustellen, dass bei starken Reinigungsvorgängen kein Wasser eindringt.
