TRT-5380-12

12" Heavy Duty Tablet

Available – Contact Us for Quick Quote

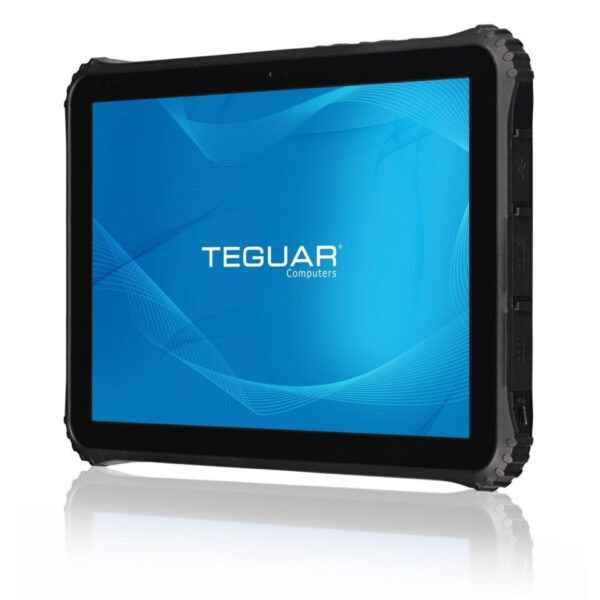

12" Heavy Duty Tablet Front | TRT-5380-12

12" Heavy Duty Tablet Rear | TRT-5380-12

12" Heavy Duty Tablet keyboard attachment | TRT-5380-12

Beschreibung

The TRT-5380-12 is a fanless rugged tablet with a 12″ full HD touchscreen. It features the Intel Celeron N5100 Processor and is IP65 waterproof rated, as well as complying with MIL-STD-810G to ensure it is protected from accidental drops, falls, and shocks. This tablet comes with built-in WiFi, Bluetooth, GPS, and NFC, and has the option for a 1D/2D barcode scanner. The projected capacitive touchscreen is made with anti-scratch Gorilla Glass, so you can rest easy knowing your TRT-5380-12 can be safely operated by different users without sustaining damage.

Key Highlights

12.2″ LCD Gorilla Glass Touchscreen
Intel Jasper Lake Quad-Core CPU
Wi-Fi, Bluetooth, GPS, and optional NFC
USB Type C, USB Type A, RS232 COM port
Pogo Pin Expansion for Docking stations
Direct VESA 100 Mountable

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Jasper Lake Quad-Core
Processor Model	N5100
Processor Speed	Up to 2.8 GHz, 1.1 GHz
Memory Type	Onboard DDR3L
Memory Support	8GB
Storage Type	Onboard eMMC Flash
Storage Support	128GB

Display

Screen Size	12.2"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	650 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch)
Hardness	> 7H
Glass Type	Gorilla Glass

External I/O Ports

USB	1x USB 2.0, 1x USB 3.0 type C, 2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232 (2wire), 1x RS-485 (2wire)
Ethernet / LAN	1x RJ45 GbE LAN
Video Outputs	1x Mini HDMI
Audio Ports	1x 3.5mm Headphone Jack
Power Input Port	3.5mm DC-in Jack

Power

Input Voltage Range	19V DC
Max Power Consumption	65W
Standard Power Adapter	19V DC 3.42A 4.0mm with US AC Power Cord

Battery

Battery Type	Hot Swappable 7.4V/6300mAh Battery, Internal 7.4V/1000mAh Battery
Battery Operating Time	6hrs

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Video Card Support	Intel® HD Graphics 515
SD card	1x Micro SD Slot
Other	Pogo Pin Expansion

Multimedia

Speakers	2x 1W Speakers
Camera	Front: 5MP, Rear: 8MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	95% Non-condensing

Enclosure

Material	Double Injection
IP Rating	IP65
Color	Black
Led Indicator Light	Charging Indicator, Power
Control Buttons	Audio Down, Audio Up, Power Button, Scanner
Programmable Function Buttons	2x Programmable Function Keys
Shock Rating	MIL-STD-810G
Drop Rating	4ft Drop Protection
Mounting Options	Forklift Mount, Vehicle Mount, VESA 100 Mount
Approved Cleaning Solutions	Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat

Peripherals & Wireless Connectivity

WiFi	802.11AC
Bluetooth	Bluetooth 5.1
GPS	yes
Mobile Network 4G LTE	Project Based
Mobile Network 5G	Project Based
Sim Card	1x Micro SIM Card Slot
Barcode Scanner	1D/2D Barcode Scanner
RFID	Optional RFID Scanner (NFC 13.56 Mhz ISO/IEC 14443A/14443B/15693/18092/MiFare)
Peripheral Other	Keyboard; Kickstand; Cigarette adapter; Digitizer Pen; Handstrap; Desktop Dock; Vehicle Dock; Forklift Dock; Shoulder Strap; Back Strap; Mounts
Sensors	Accelerometer, Light Sensor

Weight / Dimensions

Weight	1.5
Dimensions	319.6 x 216 x 23.4

Warranty

Up to 3 Years

Outdoor Asset Tracking: With their ruggedness and connectivity options, the TRT-5380 Series tablets are ideal for outdoor asset tracking, providing real-time location monitoring, data collection, and efficient management of assets in industries such as logistics, construction, and utilities.

Manufacturing Facility Operations: The TRT-5380 Series tablets, designed for use in humid or wet manufacturing facilities, offer a reliable tool for process monitoring, quality control, and inventory management, ensuring smooth operations and productivity.

Field Service Management: Equipped with a variety of I/Os and connectivity options, the TRT-5380 Series tablets are suitable for field service management, enabling technicians to access manuals, troubleshoot issues, and communicate with support teams while on the move.

See the data sheet Warranty Download Drivers

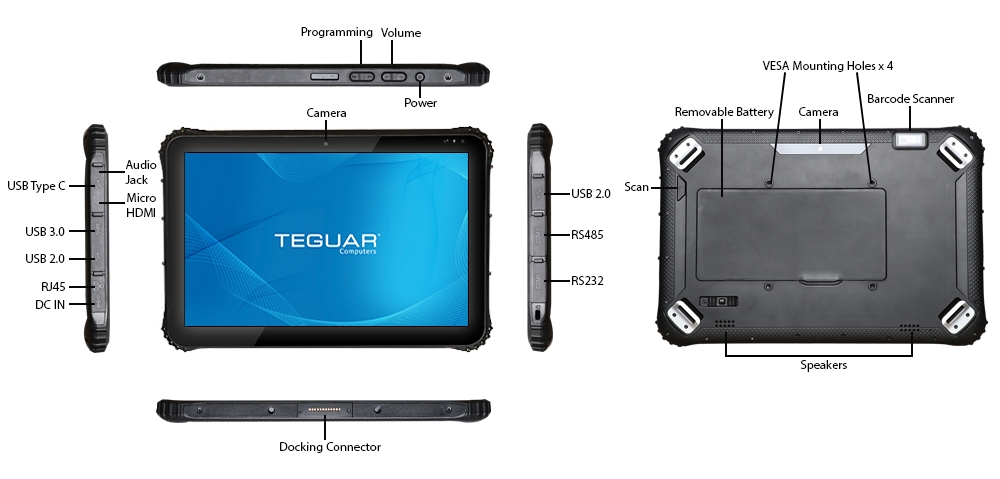

I/O Diagram Images

12" heavy duty tablet inputs and outputs

Tech Diagram Images

Rugged Tablet Forklift Dock with 12" Tablet

Universal Forklift Dock 12V for TRT-5180-10/12, TRT-5380-10/12

Forklift Dock 12V for Rugged Tablets

Compact Aluminum Chassis
MIL810G Certified
Locking Power & USB
VESA 75/100 & AMPS mountable
9-32VDC Input
