Halcyon TP-7310-22

21.5" High Performance GPU Panel PC
Available – Contact Us for Quick Quote

Beschreibung

The TP-7310-22 is a blazing fast performance panel PC with a bright HD display in PCAP or resistive touch options. What sets this series apart is its near-limitless PCIe expansion board, which offers robust support for the highest-end GPUs, NPUs, and added I/Os. The powerful 21.5” Halcyon panel computer is designed to be customized for any specified needs. Other standout features include the latest high-speed DDR5 RAM as well as an integrated power supply, eliminating the need for any bulky box adapters weighing down the power cable. The strong processing of the Intel® 14th Gen CPU coupled with its customizable versatility makes Halcyon a powerful all-in-one solution.

Key Highlights

  • Raptor Lake Processor
  • DDR5 High Speed Memory and Two Slots for Dual M.2 Storage
  • PCIe x16 Slot for wide I/O Expansion or Graphics Card
  • Built-in Power Supply
  • Windows 11 Ready
  • 2.5 Gbe LAN for High-Speed Edge Endpoint
  • Need a different screen size? Call for Halcyon’s display options.

Warum bei Teguar kaufen

  • Engagierte, schnell reagierende Kundensupport-Experten
  • 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
  • Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor FamilyIntel Core I series 14th Generation Raptor Lake
Processor ModelCore i5-14400
Processor Speed4x Efficient Cores up to 3.5GHz, up to 4.7 GHz, 6x Performance Cores @ 2.5 GHz, up to 4.7 GHz Turbo
Memory Type2x DDR5 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB, 96GB
Storage Type1x M.2 2242/2280 NVME SSD Slot, 1x M.2 2242 SATA/NVMe SSD Slot
Storage SupportM.2: 128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch), Resistive
HardnessResistive: 3H, P-cap: 7H

External I/O Ports

USB2x USB 2.0, 4x USB 3.2
Serial / Com3x COM
Serial Protocol DetailCOM1 & COM2 - RS-232/422/485, COM3 - RS-232
Ethernet / LAN1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN

For high-end computing power – Perfect for robotics and AI: For tasks requiring advanced processing power, users previously needed an efficient embedded computer with a separate display. This Raptor Lake panel PC combines ultra-advanced computing with an integrated rugged display, making it a single solution while meeting and exceeding your performance needs.

For NVIDIA Usage – Full High-Performance GPU Support: Other all-in-one devices support only some graphics cards. Halcyon’s PCIe x16 slot and 14th Gen CPU can support the strongest graphics and other expansion cards, for situations where complex data and precise imaging are key.

For network connectivity – An AI Edge Endpoint: Halcyon holds a strong network connection with reliable 2.5 Gbe Ethernet. Coupled with its blazing fast processing power, it serves as a perfect HMI for a local, centralized edge solution.

Dimensional Drawings & I/Os

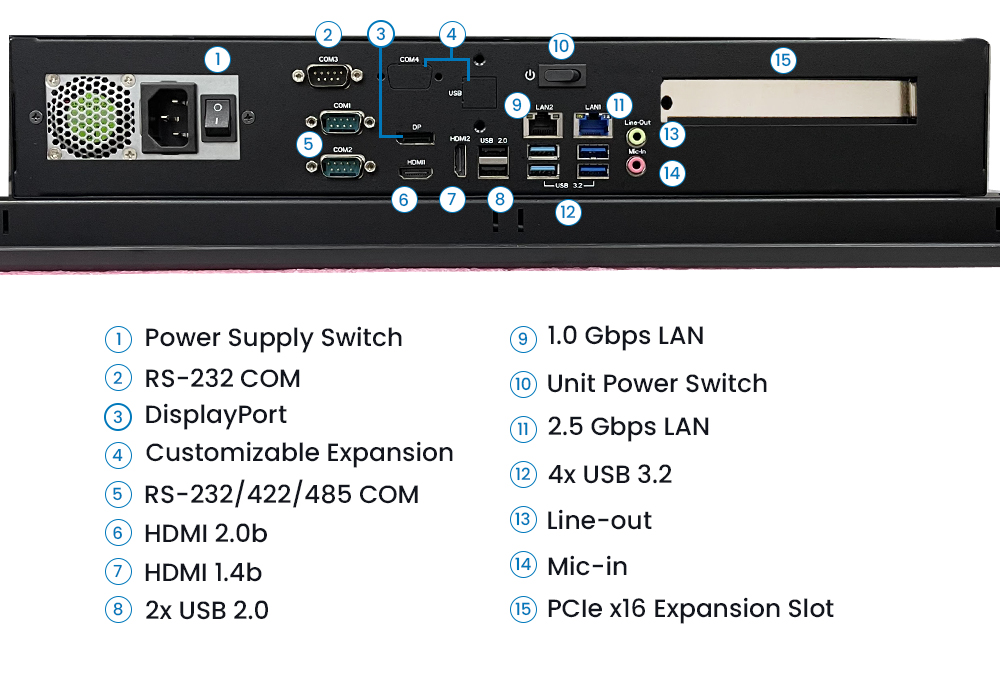

I/O Diagram

Halcyon TP-7310 IO Diagram

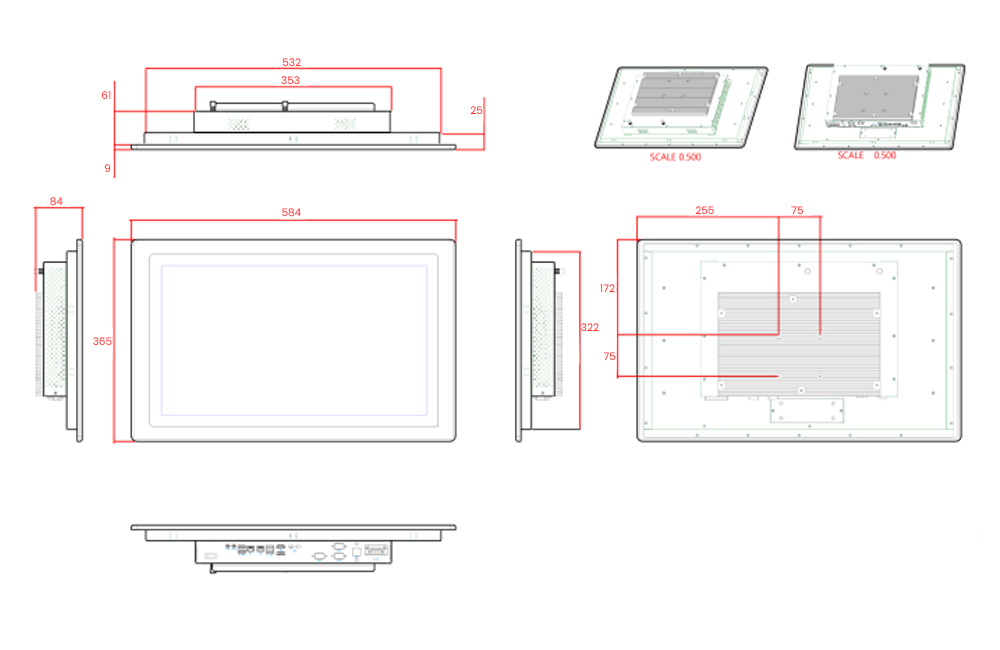

2D Drawing

Halcyon TP-7310-22 2D Drawing
