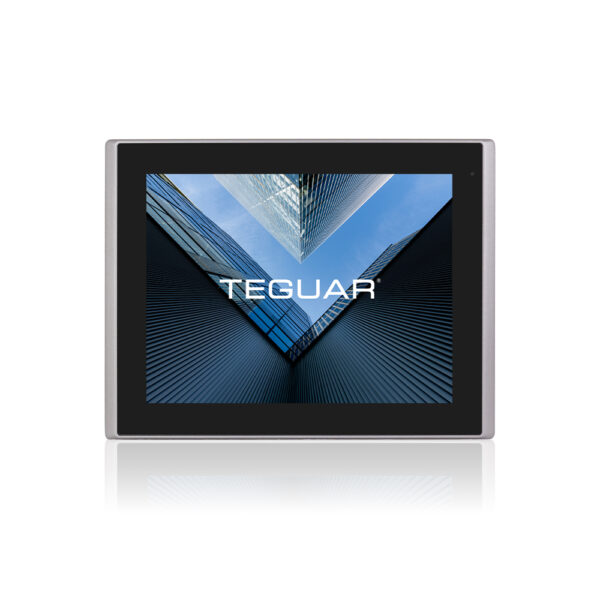

TP-7045-12

12" Industrial Panel PC

Available – Contact Us for Quick Quote

12 Industrial Panel PC Cornerstone TP-7045-12 Front Angle

12 Industrial Panel PC Cornerstone TP-7045-12 Back IO

Beschreibung

Meet Cornerstone, the TP-7045-12 12” Industrial Panel PC, designed to enhance efficiency and withstand demanding environments. This versatile all-in-one offers the option of a projected capacitive or resistive touch screen, so it can cater to diverse user needs. Powered by a robust Alder Lake Intel® processor and running Windows 11, Cornerstone delivers seamless performance in a fanless unit. The IP66-rated front bezel ensures protection against dust and liquid damage, while the wide operating temperature range guarantees reliability in a variety of conditions. Enjoy dual DDR4 RAM slots for optimal speed.

Lay the groundwork for your industrial application with Cornerstone.

Key Highlights

12th Generation Alder Lake CPU
Windows 11
Fanless with wide operating temperature range
Multitude of screen sizes (compare to TP-5645)
Two slots of DDR4 RAM

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i3-1215U
Processor Speed	Up to 4.4 GHz, 2x Performance Cores @ 4.4 GHz, 4x Efficient Cores @ 3.3 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 2280 NVME SSD slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	12.1"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 500 nits

Touch Screen

Projected Capacitive (Multi-touch), Resistive

External I/O Ports

USB	2x USB 2.0, 2x USB 3.0
Serial / Com	3x COM
Serial Protocol Detail	COM1 & COM2 RS-232/422/485 (BIOS select, RS-232 default), COM3 RS-232
Ethernet / LAN	2x RJ45 GbE LAN
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range

9-36V DC

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Aluminum front bezel, Aluminum Heatsink and SECC Steel Chassis
IP Rating	IP66 Front Bezel
Color	Gray
Led Indicator Light	Power
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 a/b/g/n/ac/ax Wi-Fi 6
Bluetooth	Optional Bluetooth 5.3

Weight / Dimensions

Weight	3.5
Dimensions	314 x 77 x 244.9

Warranty

Up to 5 Years

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

Retail and Point-of-Sale (POS):  Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Industrial Panel PC Cornerstone I/O Diagram

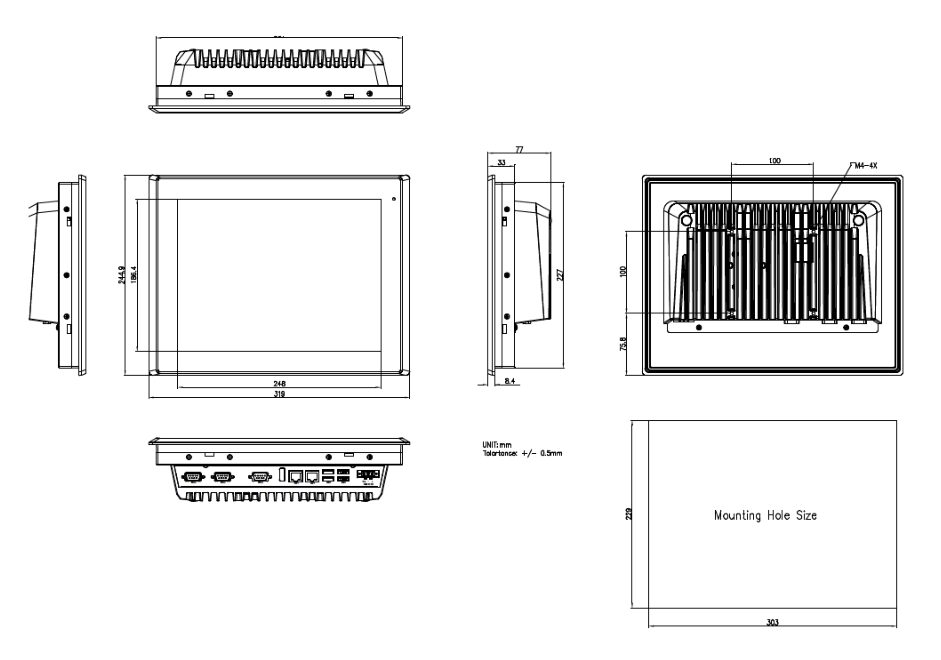

Tech Diagram Images

TP-7045-12

12" Industrie-Panel-PC

Available – Contact Us for Quick Quote

Beschreibung

Lernen Sie Cornerstone kennen, den TP-7045-12 12″ Industrie-Panel-PC, der entwickelt wurde, um die Effizienz zu steigern und anspruchsvollen Umgebungen standzuhalten. Dieses vielseitige All-in-One-Gerät bietet die Option eines projizierten kapazitiven oder resistiven Touchscreens, so dass es den unterschiedlichsten Benutzeranforderungen gerecht werden kann. Der Cornerstone wird von einem robusten Alder Lake Intel®Prozessor angetrieben und läuft mit Windows 11. Er bietet nahtlose Leistung in einem lüfterlosen Gerät. Die IP66-zertifizierte Frontblende bietet Schutz vor Staub und Flüssigkeiten, während der weite Betriebstemperaturbereich Zuverlässigkeit unter verschiedenen Bedingungen garantiert. Zwei DDR4-RAM-Steckplätze sorgen für optimale Geschwindigkeit.

Legen Sie mit Cornerstone den Grundstein für Ihre industrielle Anwendung.
