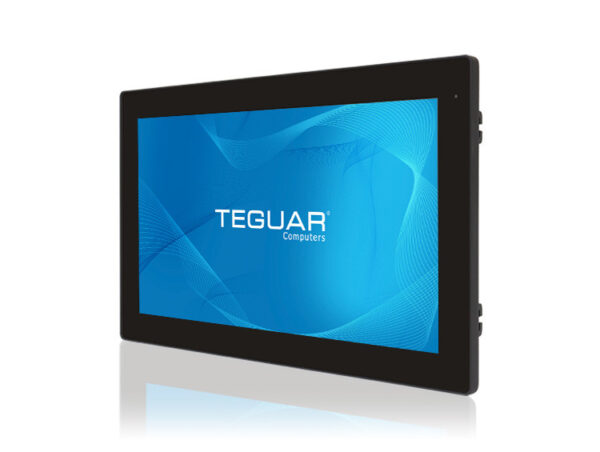

TP-5945-16

16" Touch Screen Panel PC

Available – Contact Us for Quick Quote

16" Touch Screen Panel PC TP-5945 Back IOs

16" Touch Screen Panel PC TP-5945 Back IOs Angle

Beschreibung

The 16” Touch Screen Panel PC has a sleek design, with no exposed metal on the front bezel, creating a seamless wall-mount appearance. Beyond aesthetics, the TP-5945-16 thrives on the power of the Intel 11th generation processor, ensuring smooth Windows 11 operation. PCAP technology ensures accurate and responsive touch functionality. Its innovative two-piece construction enables the box to be removed from the front panel, allowing for easy maintenance. The 16” Touch Screen Panel PC excels in industrial applications like production floors and workstations.

Key Highlights

15.6” PCAP Touchscreen Display
Windows 11 Capabilities
Intel 11th Generation Core Processor Passmark Rating 5820
VESA Mountable and updated Panel Mount design
Thin, sleek design

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 11th Generation Tiger Lake
Processor Model	Core i3-1115G4E, Core i5 1145G7E
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 2280 NVME SSD slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	15.6"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 500 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	4x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DP-1.4/HDMI combo Video Out
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	80W

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	5% – 95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Black
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 b/g/n/ac
Bluetooth	Optional Bluetooth 5.1

Weight / Dimensions

Weight	3.7
Dimensions	405x256x59

Warranty

Up to 5 Years

Product Floor Operations: The TP-5945 is an ideal computing solution for various operations on the product floor. The clean and modern look, coupled with PCAP technology for accurate and responsive touch functionality, enhances the precision and practicality of industrial operations. Running on Windows 11, these panel PCs offer an intuitive user experience, contributing to seamless processes on the product floor.

Manufacturing Environments: The TP-5945 Touch Panel PC series, powered by the latest Intel Core 11th Generation processor, excels in various manufacturing environments. PCAP technology ensures accurate and responsive touch functionality, enhancing precision in industrial processes. Running on Windows 11, these panel PCs offer an intuitive user experience, making them an excellent choice to elevate manufacturing operations.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Touch Screen Panel PC TP-5945 Series Labeled I/O Diagram

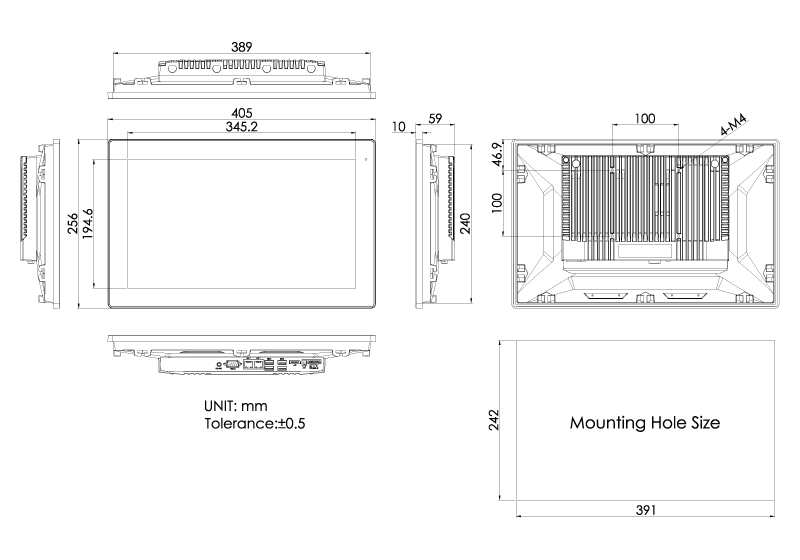

Tech Diagram Images
