TP-5645-15

15" Panel Mount Computer

Available – Contact Us for Quick Quote

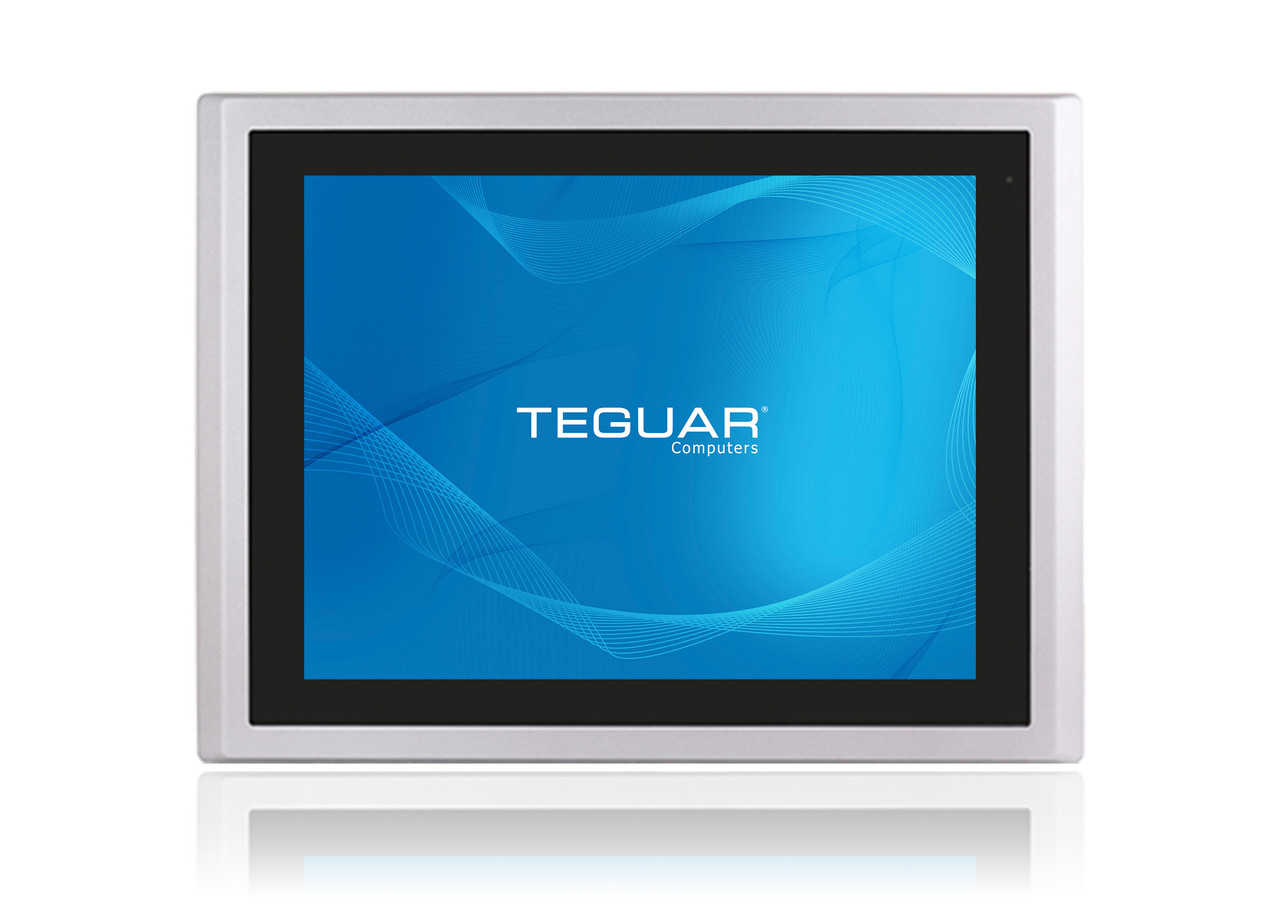

panel mount computer-tp-5645-15 front angled

Beschreibung

The TP-5645-15 Panel Mount Computer offers a rugged build with a die cast aluminum enclosure for fanless operation and durability in high shock and vibration settings. Advanced processing power from the latest Intel 8th generation core i3/i5 CPUs has long life cycle support. With up to 16GB of DDR4 memory, the TP-5645-15 Panel Mount Computer is a great solution for most Windows or Linux based applications. Easily accessible M.2 storage can be configured as high as 512GB. The front bezel of this panel PC is IP66 rated for protection from water and dust and uses a full flat design to prevent build-up of particulates on the front surface. A high-brightness touchscreen option can be chosen for environments with low screen visibility.

The TP-5645-15 can be configured for 802.3bt Type 3 PoE upon request (requires customer’s PSE to be capable of sending at least 45W per device)

Key Highlights

Intel 8th Gen. Core i3/i5 CPU
15″ P-Cap or Resistive Touchscreen
Fanless Cooling System
IP66 Protected Front with Aluminum Housing
Easily accessible M.2 storage, up to 1TB
Wide Range 9~36VDC Power Input

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model	Core i3 8145UE, Core i5-8365UE
Processor Speed	2.2 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage Support	M.2: 128GB-1TB

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 300 nits

Touch Screen

Projected Capacitive, Resistive

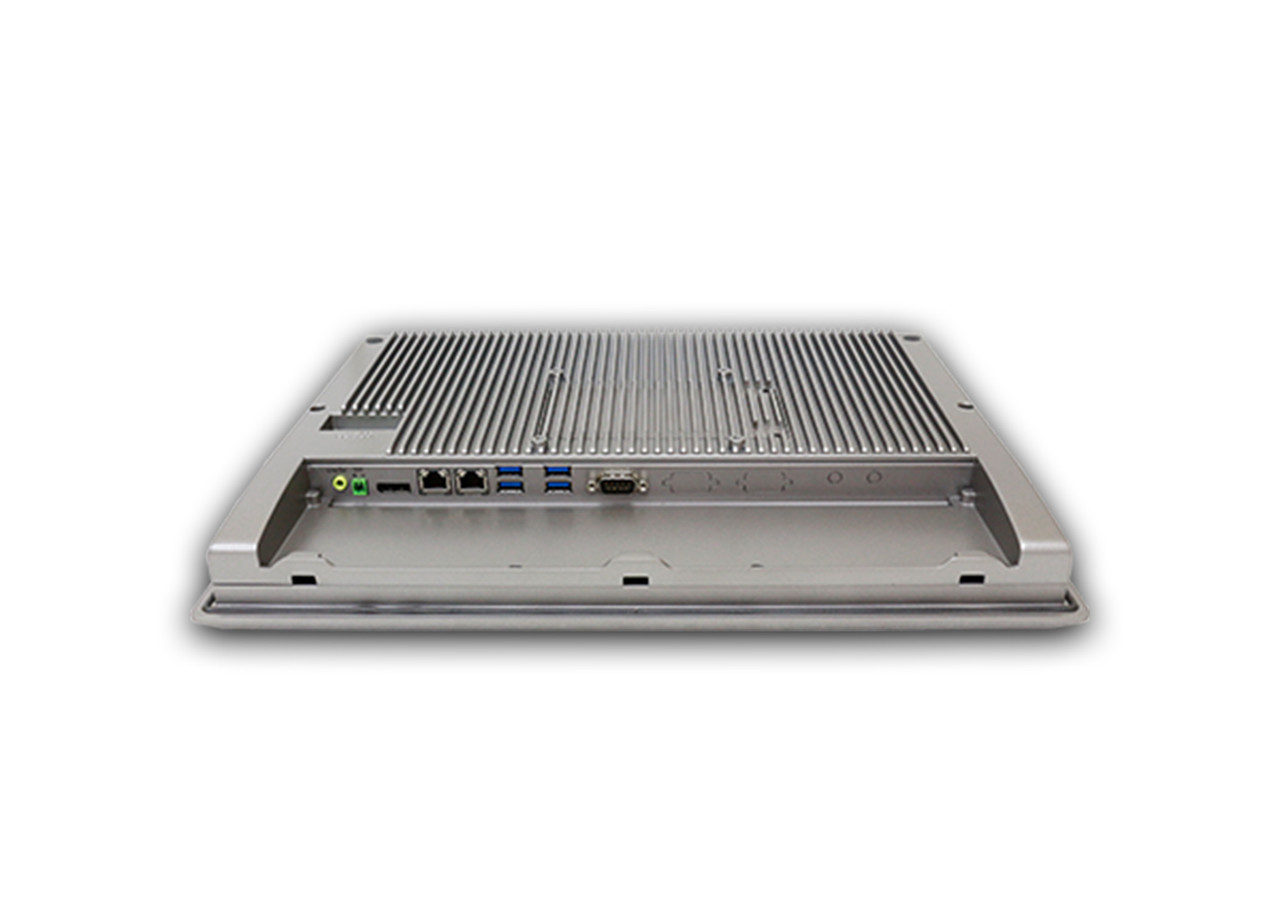

External I/O Ports

USB	4x USB 3.0
Serial / Com	1x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	Optional POE++, 45W with 2x USB 2.0, 2-Pin Power Switch, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	59W
Standard Power Adapter	Optional 12V 5A AC/DC Adapter

Battery

Battery Type	Optional Internal Battery
Battery Operating Time	20min

Operating Systems

Windows	Windows 10 IoT, Windows 11
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information), Yocto Linux

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 for NVME SSD Support

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Gray
Led Indicator Light	Power
Mounting Options	Panel Mount, VESA Mount

Peripherals & Wireless Connectivity

Sim Card

1x Nano SIM Card Slot

Weight / Dimensions

Weight	4.29
Dimensions	410x310x67

Certification

Certifications

CE, FCC Class A, UL 62368

Warranty

1 Year

Industrial Automation: Reliable and powerful computing for controlling and monitoring automated processes in manufacturing plants and industrial facilities.

Transportation and Logistics: Efficient management and tracking of inventory, logistics, and supply chain operations in transportation and logistics industries.

HMI (Human-Machine Interface) Systems: Intuitive and interactive interfaces for controlling and monitoring machines, equipment, and processes in various industries such as manufacturing, oil and gas, and utilities.

Retail and Point-of-Sale (POS): Versatile computing solutions for point-of-sale systems, inventory management, and customer engagement in retail environments.

Outdoor Environments: Durable and rugged computing for outdoor applications such as smart city infrastructure, outdoor kiosks, and public information displays.

See the data sheet Warranty Download Drivers

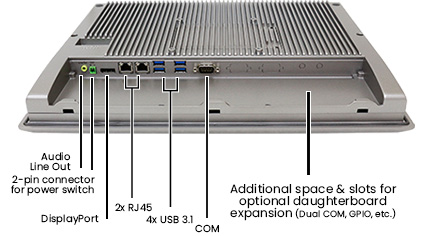

I/O Diagram Images

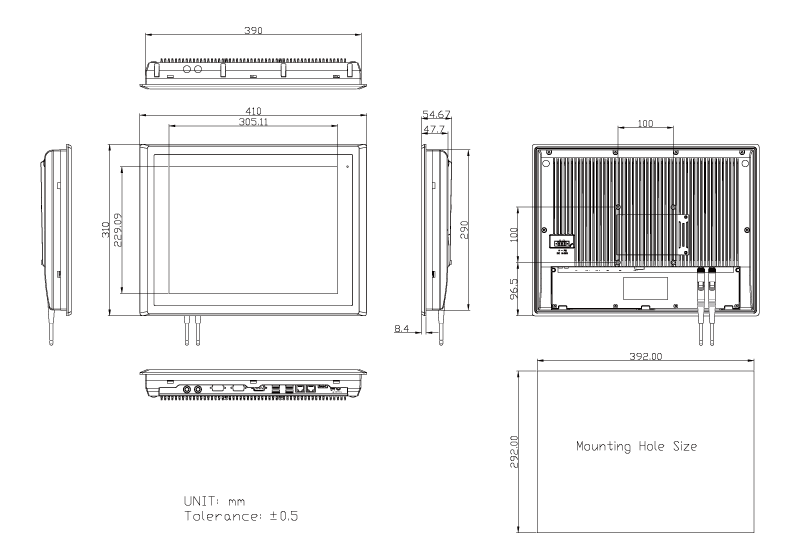

Tech Diagram Images
