Tech Specs
Primary Components
| Processor Family | Intel Core I series 7th Generation Kaby Lake |
| Processor Model | Core i3-7100U |
| Processor Speed | 2.4 GHz |
| Memory Type | 2x DDR4 SO-DIMM |
| Memory Support | 4GB, 8GB, 16GB, 32GB |
| Storage Type | 1x 2.5" SATA Drive Bay for SSD/HDD |
| Storage Support | 64GB-512GB |

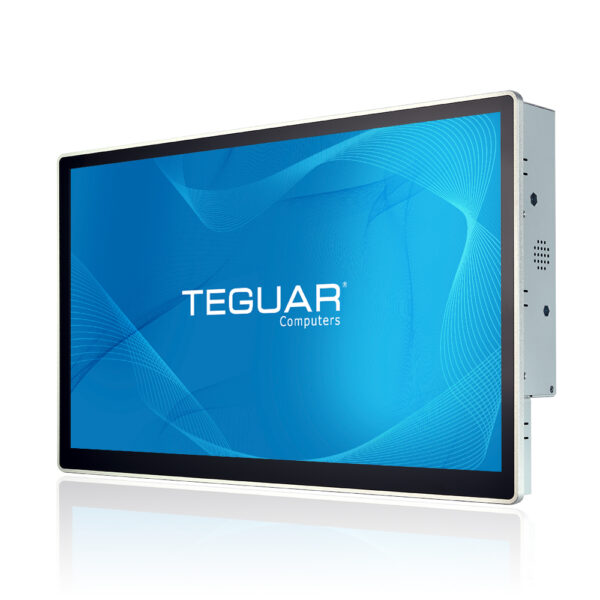

Display
| Screen Size | 21.5 |
| Resolution | 1920 x 1080 (Full HD) |
| Screen Ratio | 16:9 |
| Brightness | 250 nits |
Touch Screen
| Touch Screen | Projected Capacitive (Multi-touch) |
| Hardness | 7H |

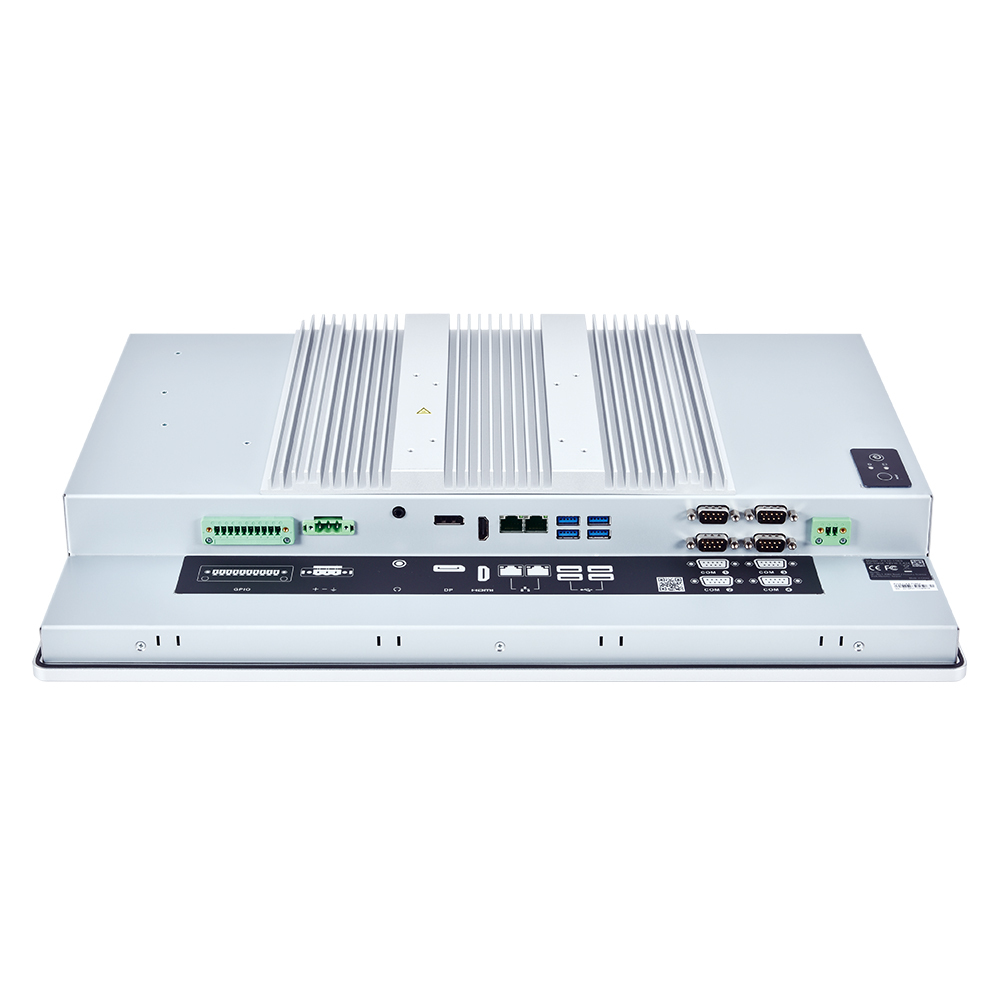

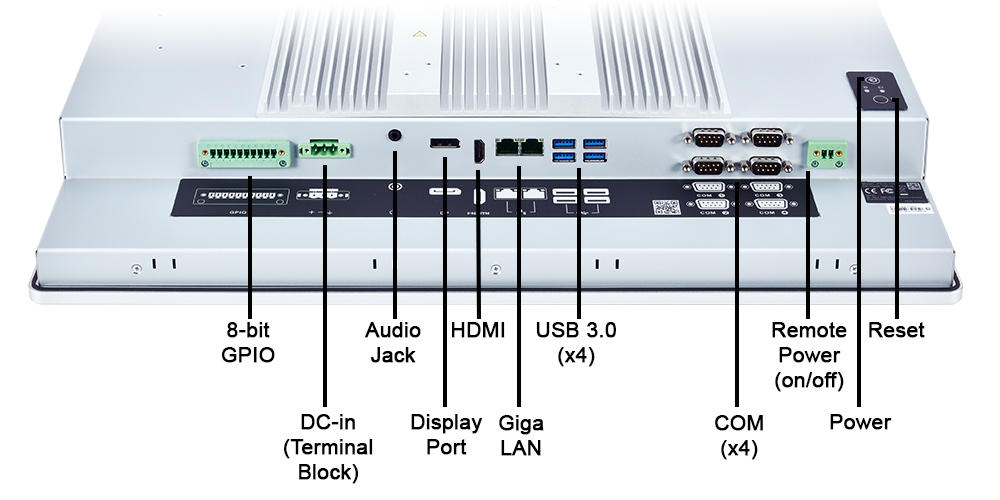

External I/O Ports
| USB | 4x USB 3.0 |
| Serial / Com | 4x COM |
| Serial Protocol Detail | 3x RS-232, 1x RS-232/422/485 (set in BIOS) |
| Ethernet / LAN | 2x RJ45 GbE LAN |
| Video Outputs | 1x DisplayPort, 1x HDMI |
| Other Ports | 1x 8-bit GPIO Terminal Block |
| Audio Ports | 1x Audio Line-Out, 1x Mic-In |
| Power Input Port | 3-Pin DC-In (Phoenix Type) |
Power
| Input Voltage Range | 8-24V DC |
Operating Systems
| Windows | Windows 10 IoT, Windows 10 Pro |
Expansion Slots
| Internal M.2 | 1x M.2 Type E |
Multimedia
| Speakers | 2x 2W Speakers |
Thermal & Environmental
| Operating Temperature | 0°C - 50°C (32°F – 122°F) |
| Storage Temperature | -20°C - 60°C (-4°F – 140°F) |
| Cooling Solution | Passive – Fanless |
| Humidity Range | 10% – 90% Non-condensing |
| Storage Humidity | 10% – 90% Non-condensing |
Enclosure
| Material | Aluminum |
| IP Rating | IP65 Front Bezel |
| Color | Silver |
| Control Buttons | Power Button, Power Reset |
| Shock Rating | 10g for 11ms |
| Mounting Options | Panel Mount, VESA 100 Mount, VESA 75 Mount |
Peripherals & Wireless Connectivity
| WiFi | Optional |
Weight / Dimensions
| Weight | 8 |

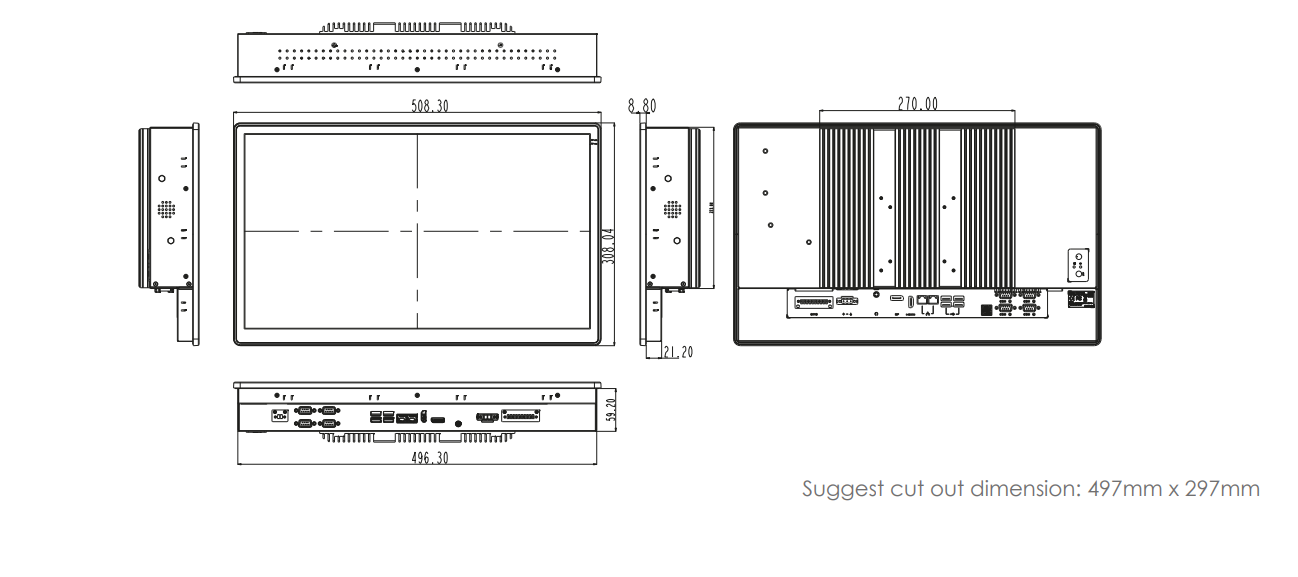

| Dimensions | 508 x 308 x 83 |
Certification
| Certifications | CE, FCC Class B, IEC 60068-2-27 for Vibration / Shock |
