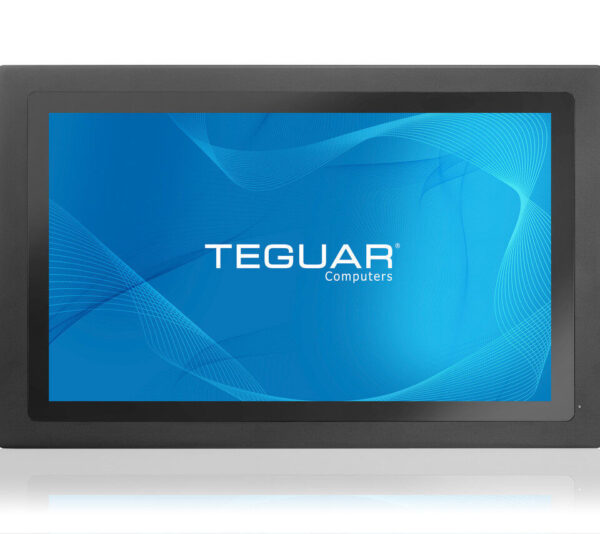

TP-4810-22

22" Fanless Panel PC

Available – Contact Us for Quick Quote

22" Fanless Panel PC | TP-4810-22 Rear Side

Beschreibung

The 22″ Fanless Panel PC is a large panel mount computer ideal for industrial settings. It runs on an Intel Celeron J6412 processor and has the capability to operate Windows 11. The front bezel is IP66 waterproof rated and can come in either a resistive or P-capacitive touchscreen. Even with its large size, it comes with panel mount hardware and can be easily installed for your application. This unit is packed with abundant inputs and outputs, including 3x COM, 2x USB 2.0, 2x USB 3.2, 1x Gigabit LAN, 1x 2.5 Gigabit LAN, and more.

Key Highlights

22” Resistive or P-Capacitive Touchscreen Display
Multiple Inputs and Outputs including 4x USB, 1 Gb LAN, 2.5 Gb LAN, 3x COM and more
Fanless Cooling System
Windows 11 Capabilities
Intel Celeron J6412 Processor

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	2.0 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	32GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (Internal, not with removable drive in use), 1x M.2 SATA3 2280 Slot
Storage Support	M.2: 128GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2
Serial / Com	3x COM
Serial Protocol Detail	1x RS-232, 2x RS-232/422/485
Ethernet / LAN	1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs	1x HDMI, 1x VGA
Audio Ports	2x 3.5mm Audio Line-Out/Mic-In
Power Input Port	4-Pole DIN (latching)

Power

Input Voltage Range	12-28V DC
Max Power Consumption	64.7W
Standard Power Adapter	60 watts, 100 ~240V AC in, 19V DC out

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11, Windows 11 Pro

Compatibility

Security Hardware

Optional TPM 2.0

Expansion Slots

Internal M.2	1x M.2 Type B, 1x M.2 Type E
Other	1x SIM socket connected to M.2 B-Key

Thermal & Environmental

Operating Temperature	0°C - 45°C (32°F – 113°F)
Storage Temperature	-20°C - 65°C (-4°F – 149°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum front bezel and SECC Steel Chassis
IP Rating	IP66 Front Bezel
Color	Black
Control Buttons	Power Reset
Mounting Options	VESA 75 Mount

Peripherals & Wireless Connectivity

Sim Card

1x SIM Card Slot

Weight / Dimensions

Weight	9.6
Dimensions	584.5x364.2x77.5

Certification

Certifications

CE, FCC

Warranty

1 Year

Industrial Automation Control Panel: The TP-4810 panel PC is perfect for industrial automation. Its fanless design and powerful Intel Celeron J6412 processor ensure reliable operation in harsh environments. With multiple connectivity options and an IP66 waterproof-rated front bezel, it’s ideal for controlling manufacturing equipment. The touchscreen interface and easy installation make it efficient for operators.

Retail Point-of-Sale (POS) System: The TP-4810 is an excellent choice for retail POS systems. Its compact design, powerful processor, and various connectivity options make it perfect for managing retail operations. The waterproof front bezel and touchscreen interface enhance durability and usability in busy retail environments.

Manufacturing Computer: The TP-4810 serves as a reliable computing solution for manufacturing environments. Its fanless design and Intel Celeron J6412 processor ensure stable performance on the manufacturing floor. With multiple connectivity options and an IP66 waterproof-rated front bezel, it seamlessly integrates into production processes. The touchscreen interface facilitates user interaction, while easy installation streamlines deployment in manufacturing facilities.

See the data sheet Warranty Download Drivers

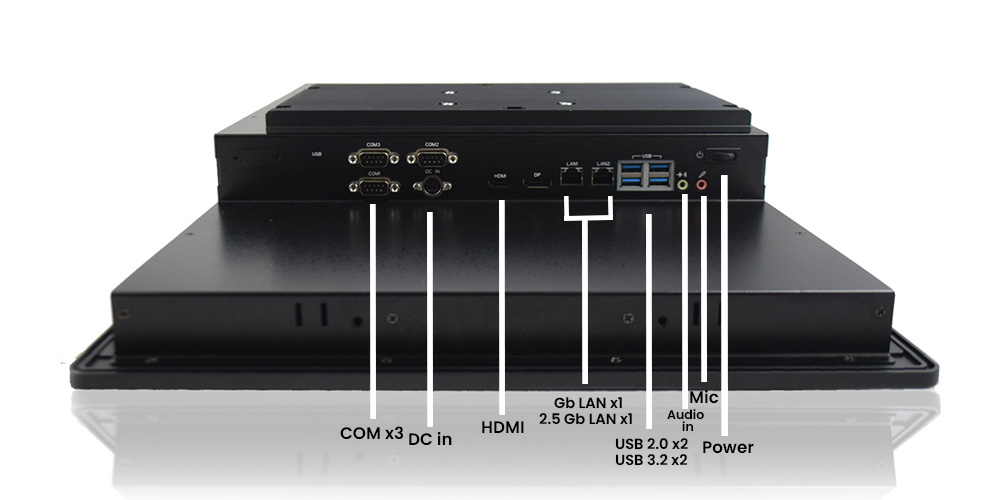

I/O Diagram Images

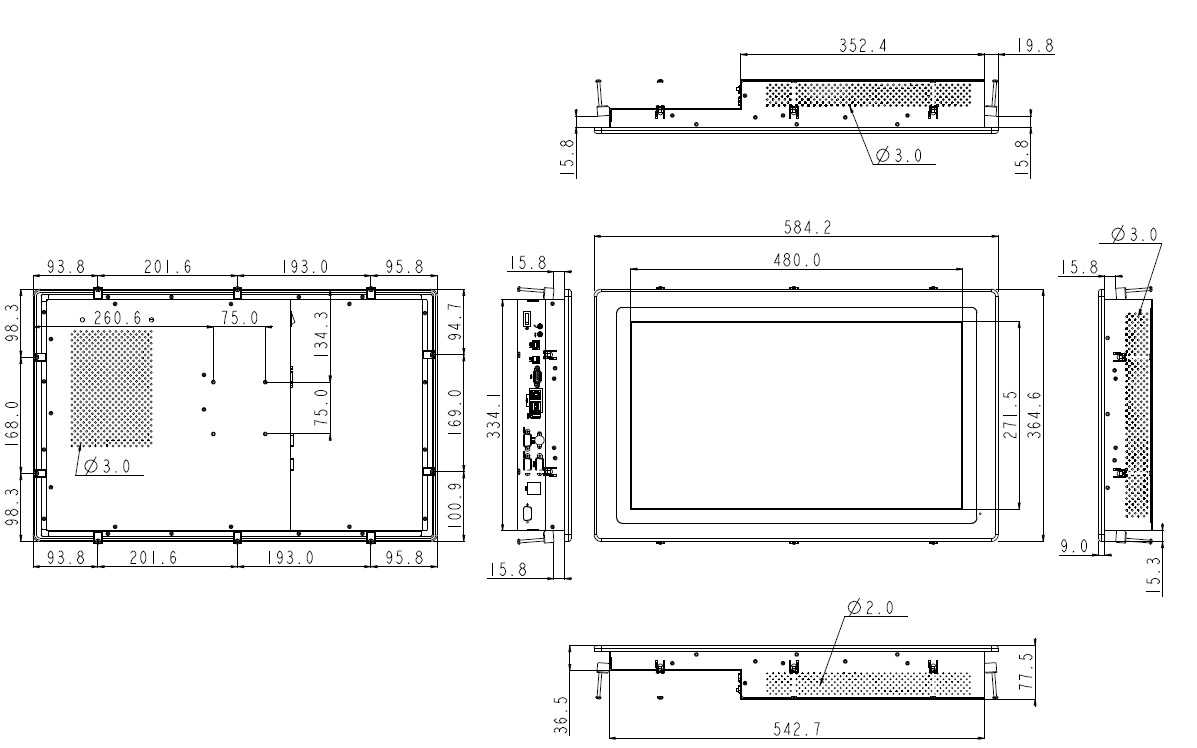

Tech Diagram Images
