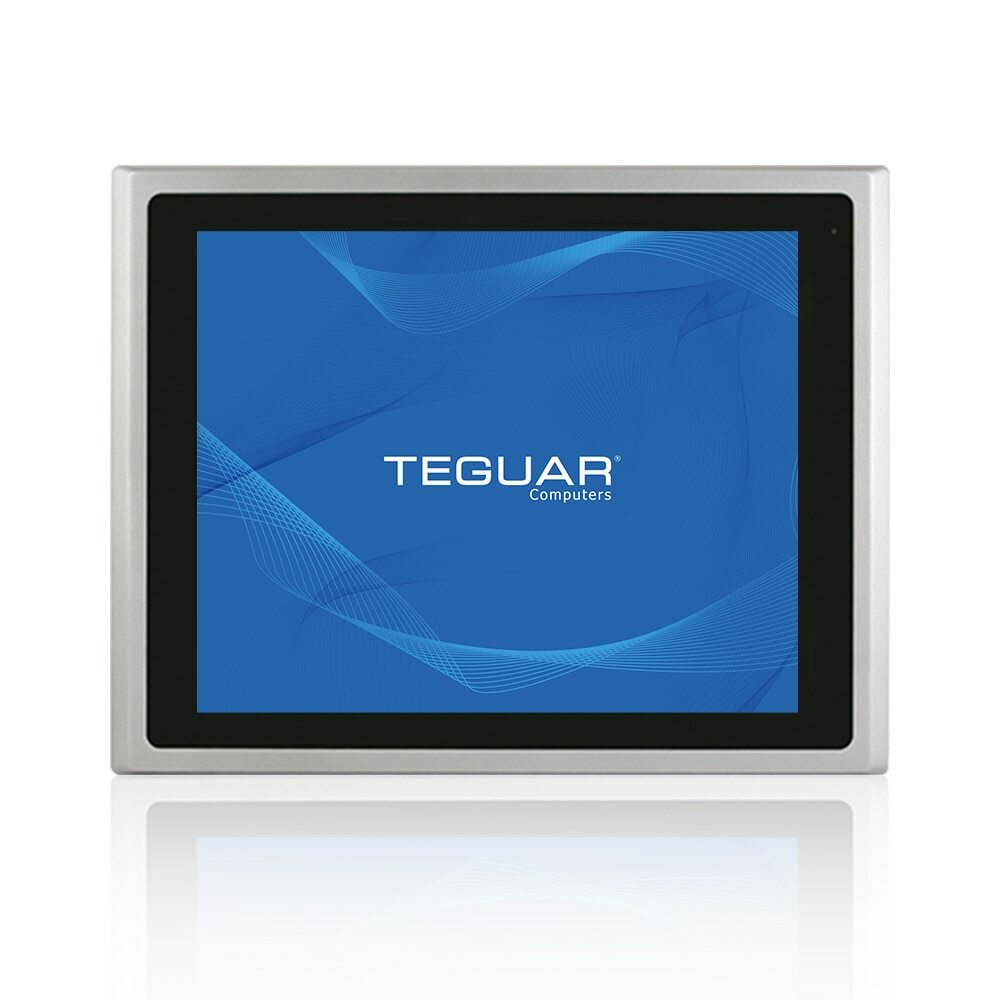

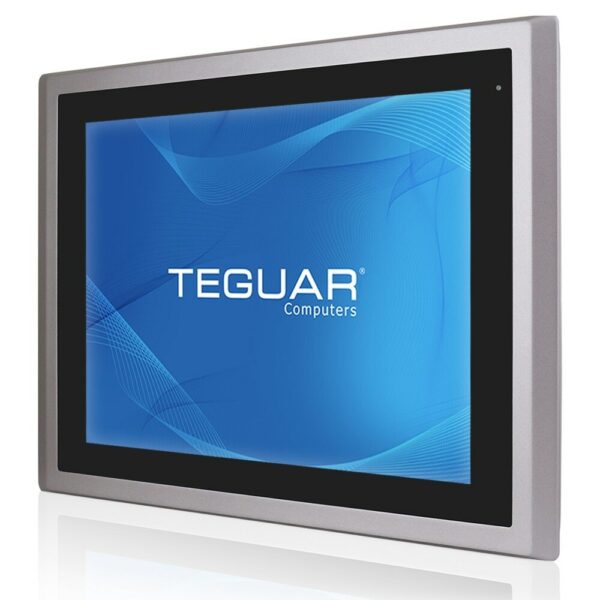

TP-3445-17

17” Panel Mount PC

Available – Contact Us for Quick Quote

Beschreibung

The TP-3445-17 is a Fanless Panel PC with a Quad Core Apollo Lake CPU. This computer is housed in die-cast aluminum and has an IP66 rated waterproof front bezel. There are several ways you can configure the TP-3445-17 to fit your application. This computer supports an optional internal backup battery, Pcap or resistive touch, and a high bright LCD. You can also choose an expansion board to add options such as Mini-PCIe, SIM, USB and COM. The TP-3445-17 is built to last, even in harsh manufacturing environments, and Teguar will support and sell this until at least 2030.

Key Highlights

17” TFT-LCD with 4:3 Screen Ratio
Intel Apollo Lake N4200 Quad Core CPU
IP66 Front Bezel & Aluminum Housing
Optional High Bright & Optical Bonding
Projected Capacitive or Resistive Touch

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Pentium Apollo Lake
Processor Model	N4200
Processor Speed	1.10 GHz
Memory Type	Onboard DDR3
Memory Support	4GB, 8GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	17"
Resolution	1280 x 1024 (SXGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	2x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1), 1x RS-232 DB-9(COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x HDMI
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	Optional POE++, 45W with 2x USB 2.0, 3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V AC/DC Adapter

Battery

Battery Type

Optional Internal Battery

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro
Linux	Linux (Contact your sales rep for more information)

Expansion Slots

SD card

1x Micro SD Slot

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi
Bluetooth	Optional Bluetooth 4.0
Mobile Network 4G LTE	Optional 4G

Weight / Dimensions

Weight	6.3
Dimensions	439 x 348 x 64.8

Certification

Certifications

CE, FCC Class A, UL 60950, UL 62368

Warranty

Up to 5 Years

Industrial Automation: The TP-3445 Series is well-suited for industrial automation applications such as machine control, data acquisition, and process monitoring. The durable construction and wide range of expansion options make it reliable and flexible in various industrial environments.

Outdoor Digital Signage: With its optional high-bright, sunlight-readable LCD, the TP-3445 Series is ideal for outdoor digital signage. It can withstand different weather conditions and deliver clear and visible content to engage customers or provide information in outdoor settings.

Transportation and Logistics: These panel PCs are suitable for transportation and logistics applications such as fleet management, vehicle tracking, and warehouse management. The wide range DC power input and optional internal backup battery ensure uninterrupted operation in mobile and remote environments.

See the data sheet Warranty Download Drivers

I/O Diagram Images

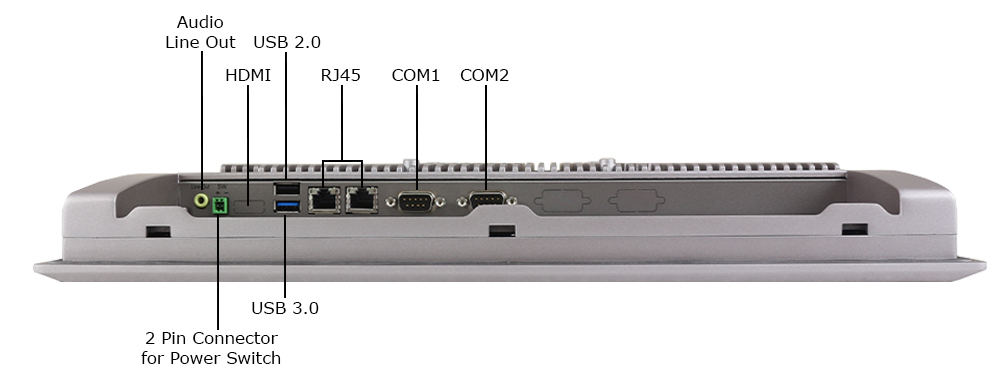

Industrial Computer Labeled Inputs and Outputs

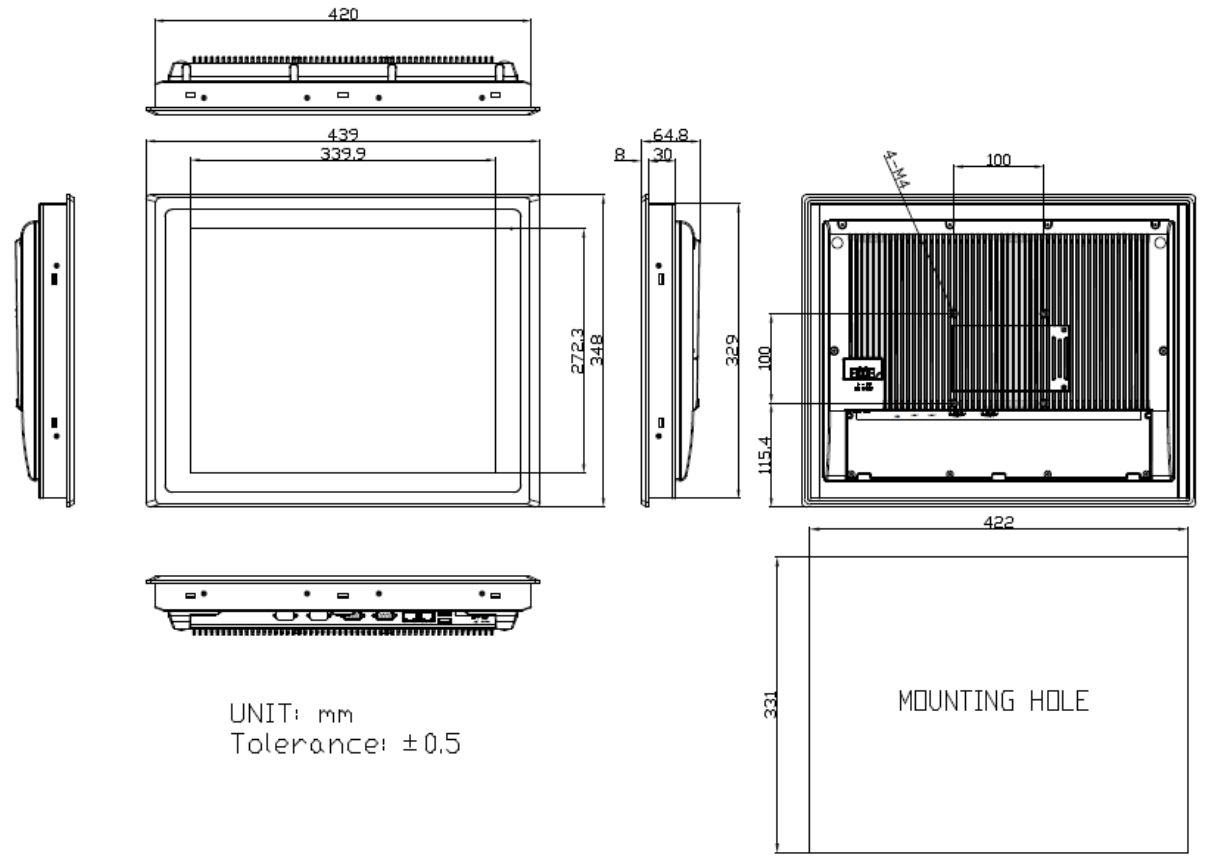

Tech Diagram Images

TP-3445-17

17" Einbau-PC

Available – Contact Us for Quick Quote

Beschreibung

Der TP-3445-17 ist ein lüfterloser Panel PC mit einer Quad Core Apollo Lake CPU. Dieser Computer ist in einem Aluminiumdruckgussgehäuse untergebracht und verfügt über eine wasserdichte Frontblende nach IP66. Es gibt mehrere Möglichkeiten, den TP-3445-17 für Ihre Anwendung zu konfigurieren. Dieser Computer unterstützt eine optionale interne Backup-Batterie, Pcap oder resistiven Touch und ein hochhelles LCD. Sie können auch eine Erweiterungskarte wählen, um Optionen wie Mini-PCIe, SIM, USB und COM hinzuzufügen. Der TP-3445-17 ist auf Langlebigkeit ausgelegt, selbst in rauen Produktionsumgebungen, und Teguar wird ihn bis mindestens 2030 unterstützen und verkaufen.
