TMT-A5580-08S

8” Android Medical Tablet

Available – Contact Us for Quick Quote

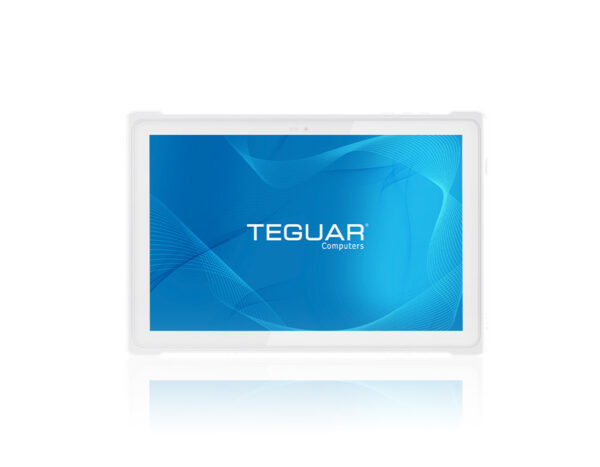

8" Android Medical Tablet- TMT-A5580-08S Front Angle

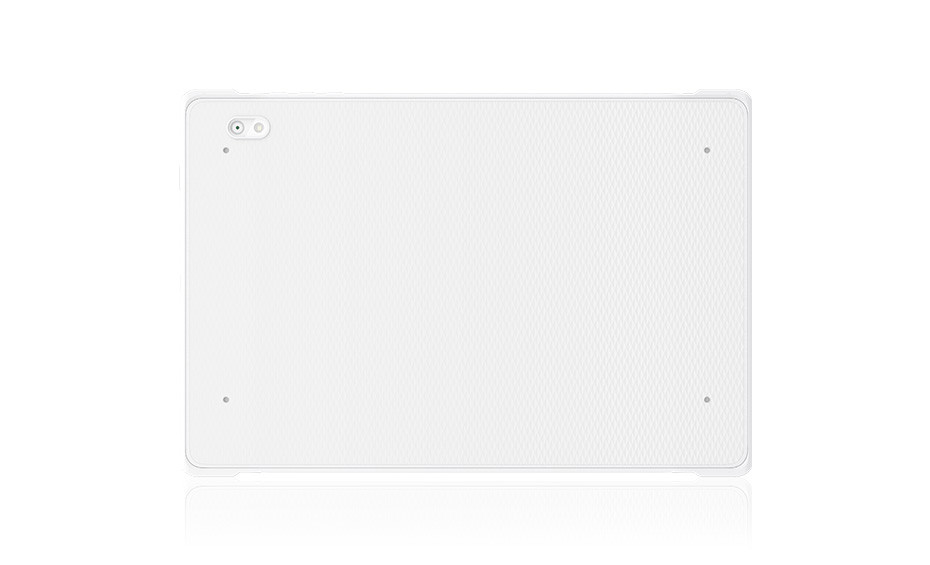

8" Android Medical Tablet- TMT-A5580-08S Back

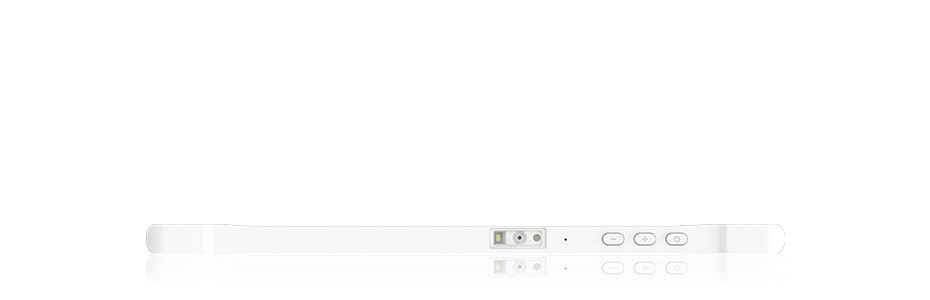

8" Android Medical Tablet- TMT-A5580-08S Top

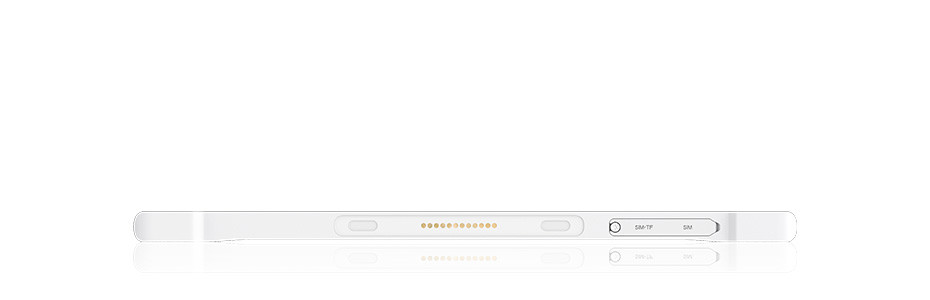

8" Android Medical Tablet- TMT-A5580-08S Bottom

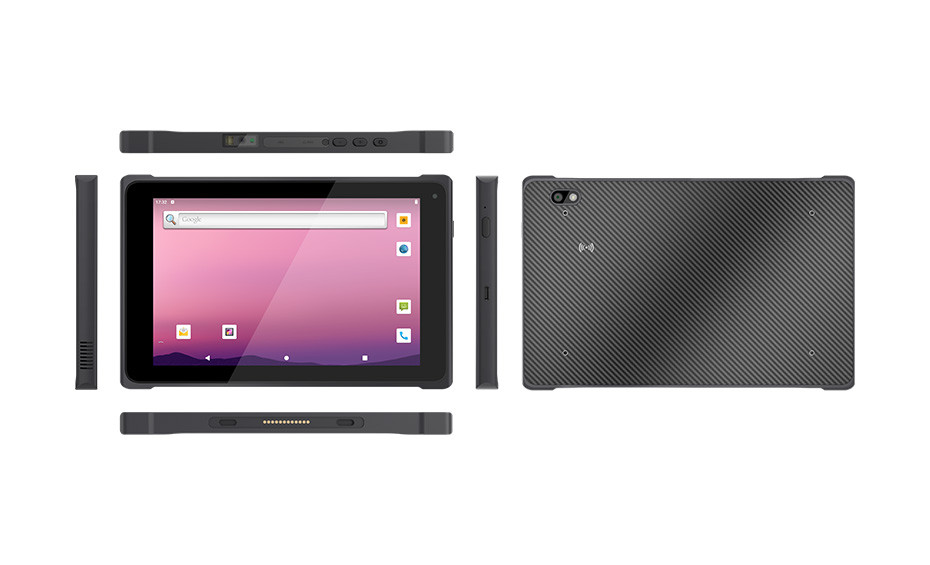

8" Android Medical Tablet- TMT-A5580-08S Black

Beschreibung

The TMT-A5580-08S presents a highly efficient and tailored solution for the medical industry. Running on the latest Android 11 OS with Google Mobile Services (GMS), it integrates with essential medical applications, streamlining workflows for healthcare professionals. Powered by an Octa-Core processor, this tablet ensures smooth performance, even when managing complex medical data. Despite its slim design, it is remarkably durable with a Mil-STD-810H rating, providing reliable operation in challenging medical environments. Its IP65 rating protects the tablet from water and dust.

Key Highlights

8” Full HD Display with Touch
Octa-Core Processor, 2.0/2.2 Ghz
Android 11 with Google Mobile Services
Slim, Lightweight Design with MIL-STD-810H Rating
Optional 2D scanner

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	MediaTek ARM Cortex-A55/A76
Processor Model	MT6833 OctaCore
Memory Type	Onboard DDR4L
Memory Support	8GB
Storage Type	Onboard eMMC Flash
Storage Support	128GB

Display

Screen Size	8"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	550 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 2.0 type C (PD)
Other Ports	12 Pin Pogo
Power Input Port	USB Type-C OTG

Power

Standard Power Adapter

USB Type C, 9V 2A

Battery

Battery Type	Internal 3.8V/9500mAh Battery
Battery Operating Time	13hrs

Operating Systems

Android

Android 11

Expansion Slots

SD card

1x Micro SD Slot

Multimedia

Speakers	1x 1W Speaker
Camera	Front: 5MP, Rear: 13MP

Thermal & Environmental

Operating Temperature	-10°C - 50°C (14°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	5% – 95% Non-condensing
Storage Humidity	5% – 95% Non-condensing

Enclosure

Material	PC+ABS
IP Rating	IP65
Color	Black (Standard), White (with MOQ)
Control Buttons	Audio Down, Audio Up, Power Button, Scanner
Shock Rating	MIL-STD-810H
Drop Rating	4ft Drop Protection

Peripherals & Wireless Connectivity

WiFi	802.11 a/b/g/n/ac (2.4Ghz + 5.0Ghz)
Bluetooth	Bluetooth 5.1
GPS	yes
Sim Card	1x SIM Card Slot
Barcode Scanner	Optional 1D/2D Barcode Scanner
Sensors	Accelerometer

Weight / Dimensions

Weight	524
Dimensions	219x12.5x139

Warranty

1 Year

EHR Management: The TMT-A5580 Android Medical Tablet, powered by Android 11 and an Octa-core processor, is designed for seamless Electronic Health Records (EHR) management. Its thin and durable design, with a Mil-STD-810H rating and IP65 resilience, ensures reliable operation in challenging healthcare environments.

Telemedicine Consultations: Tailored for telemedicine, the TMT-A5580 series Android Medical Tablet enables smooth video conferencing with Android 11 and an Octa-core processor. Its durable build, featuring a Mil-STD-810H rating and IP65 resilience, facilitates efficient consultations between doctors and patients in remote areas.

Medical Imaging: The TMT-A5580 Android Medical Tablet series excels in medical imaging tasks. Powered by Android 11 and an Octa-core processor, it ensures smooth performance for viewing X-rays and CT scans.

See the data sheet Warranty Download Drivers

I/O Diagram Images

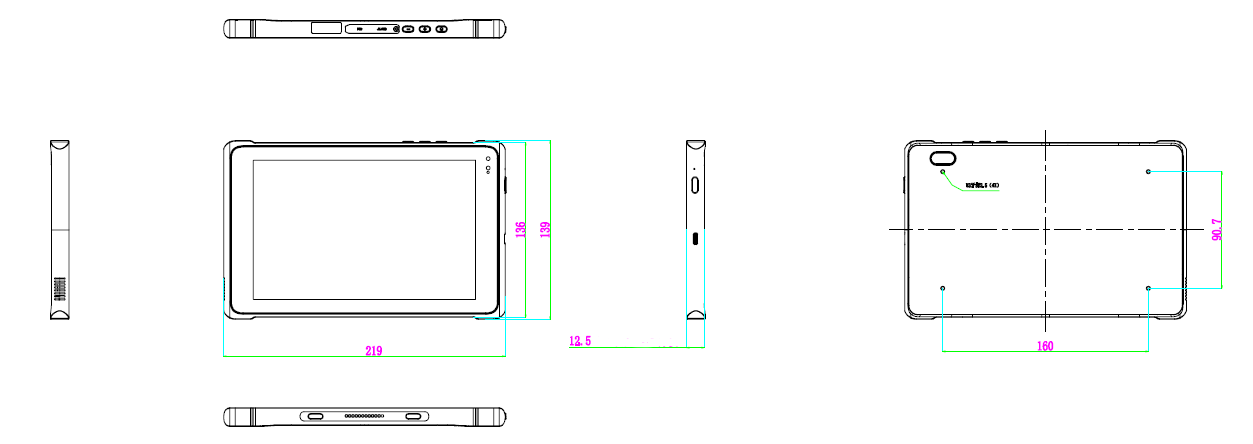

Tech Diagram Images

TMT-A5580-08S

8" Android Medizinisches Tablet

Available – Contact Us for Quick Quote

Beschreibung

Das TMT-A5580-08S ist eine hocheffiziente und maßgeschneiderte Lösung für die medizinische Industrie. Es läuft auf dem Android 11 OS mit Google Mobile Services (GMS) und unterstützt die wichtigen medizinischen Anwendungen, die die Arbeitsabläufe im Gesundheitswesen optimieren. Angetrieben von eine Octa-Core-Prozessor sorgt dieses Tablet für reibungslose Leistung, selbst bei der Verwaltung komplexer medizinischer Daten. Trotz seines schlanken Designs ist es mit einer Mil-STD-810H-Einstufung bemerkenswert robust für den zuverlässigen Betrieb in anspruchsvollen medizinischen Umgebungen. Durch seine IP65-Konformität bleibt das Tablet vor dem Eindringen von Wasser und Staub geschützt.
