TME-7115-24

24" Medical Touch Screen Computer

Available – Contact Us for Quick Quote

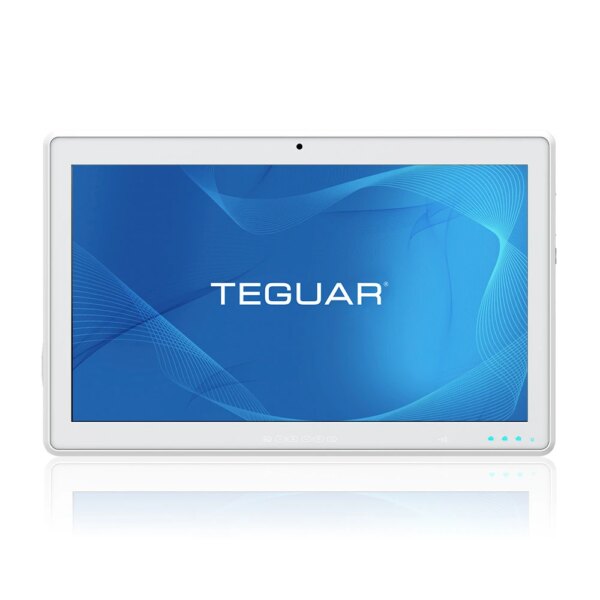

24 inch touch screen computer TME-7115-24 Front

24 inch touch screen computer TME-7115-24 Front Angle Right

24 inch touch screen computer TME-7115-24 Back

24 inch touch screen computer TME-7115-24 Back with Batteries

24 inch touch screen computer TME-7115-24 Back Angle Right

24 inch touch screen computer TME-7115-24 Front and Back

24 inch touch screen computer TME-7115-24 IO Flat

24 inch touch screen computer TME-7115-24 IO Angle

Beschreibung

TME-7115-24 is a high-powered touch screen computer designed for ease and excellence on medical carts and in other mobile medical applications. Hot-swappable batteries set this product apart from other medical-grade all-in-ones. With 3 battery bays, battery indicator LED lights, and a charging station accessory for up to 6 additional batteries, the TME-7115-24 can maintain 24/7 uptime anywhere. The 24″ PCAP touch screen is ultra-responsive even through five layers of gloves or with water on the IP65-rated front face, ensuring nothing gets between you and your work. Power the entire medical cart straight from this computer with its configurable DC output, USB 3.2 slots, and USB-C perfect for any cart attachments or accessory equipment.

Key Highlights

Intel® Core i5 and i7 options
Windows 11 or Linux
Three hot-swappable batteries
Configurable DC output and versatile USB-C port for high-power attachments
Accessible NVMe & 2.5” storage slot
DDR5 offering 36% increase in bandwidth

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 13th Generation Raptor Lake
Processor Model	Core i5-1340PE, Core i7-1370PE Optional
Processor Speed	4x Performance Cores up to 4.5 GHz, 8x Efficient Cores up to 3.3 GHz Turbo
Memory Type	2x DDR5 SO-DIMM
Memory Support	8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 2x NVME SSD M.2 2280 (easily accessible)
Storage Support	M.2 and 2.5": 256GB - 1TB

Display

Screen Size	23.8"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	350 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch)
Hardness	6H

External I/O Ports

USB	1x USB Type-C, 2x USB 2.0, 4x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	RS-232 Default/422/485- BIOS selectable
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x HDMI
Audio Ports	1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port	4-Pin DC-In Jack

Power

Input Voltage Range	19V DC
Standard Power Adapter	19Vdc, 150W Medical Power Supply with US power Cord

Battery

Battery Type

Hot Swappable 10.8V/9000mAh Battery

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
Linux	Linux (Contact your sales rep for more information)

Compatibility

Security Hardware

TPM 2.0

Multimedia

Speakers	2x 2W Speakers
Camera	Front: 8MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	PC+ABS
IP Rating	IP65 Front Bezel
Color	White
Led Indicator Light	Battery, Charging Indicator, Power
Control Buttons	Audio Down, Audio Up, Brightness Down, Brightness Up, LCD ON/OFF and Touch Lock for Cleaning, Power Button
Mounting Options	Desktop Stand, VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Included 802.11 a/b/g/n/ac/ax Wi-Fi 6E
Bluetooth	Bluetooth 5.2
RFID	Optional RFID module, 13.56MHz/125KHz

Weight / Dimensions

Weight	8.18 (without Batteries)
Dimensions	594.6 x 61 x 379.6

Warranty

Up to 5 Years

Medical Cart Computer: TME-7115-24’s hot-swappable batteries keep it mobile, perfect for an untethered medical cart. Power auxiliary accessories or attachments on your cart right from the computer using its DC output and array of USB ports. This computer replaces the need for a powered medical cart, by having the batteries directly in the computer. You can get 10-16 hours of run time from the 3 batteries, and then swap them out easily if you need more battery life.

Handle Complex Medical Software: Access EMR/EHR and run demanding imaging software with ease thanks to the highly efficient DDR5 and the Core i processor options of the TME-7115-24. Dual NVMe offers RAID support for extra security.

Point of Care Computer: High speed computing brings peace of mind to patients and professionals alike. This touch screen computer is perfect for accessing patient information at the point of care with a hygienic design that looks sharp in any patient-facing setting.

See the data sheet Warranty Download Drivers

I/O Diagram Images

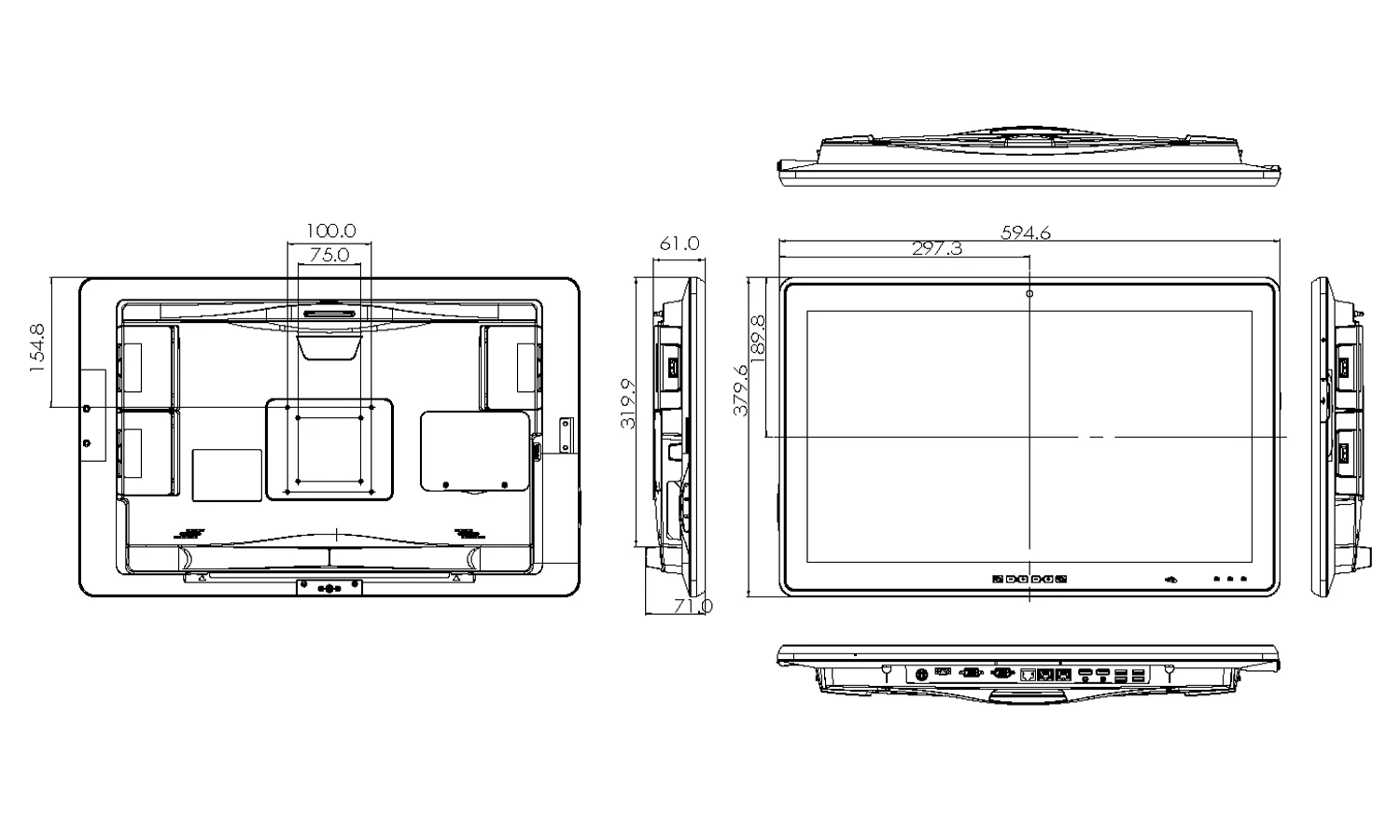

Tech Diagram Images

TME-7115 Battery Charger with all 6 bays holding batteries.

6-Bay Battery Charger for TME-7115 Series

Built in 300W Power Supply
Six 202 group, 7800 mah batteries
3~3.5 hrs from 0% to 100%
AT / Advanced Technology Power Switch
US AC Power Cord

TME-7115-24

24" Medizinischer Touchscreen-Computer

Available – Contact Us for Quick Quote

Beschreibung

Der TME-7115-24 ist ein leistungsstarker Touchscreen-Computer, der für einfache und hervorragende Leistung auf medizinischen Wagen und in anderen mobilen medizinischen Anwendungen entwickelt wurde. Die im laufenden Betrieb austauschbaren Akkus heben dieses Produkt von anderen medizinischen All-in-One-Geräten ab. Mit 3 Akkuschächten, LED-Batterieanzeigeleuchten und einer Ladestation für bis zu 6 zusätzliche Akkus kann der TME-7115-24 rund um die Uhr und überall einsatzbereit bleiben. Der 24-Zoll-PCAP-Touchscreen reagiert selbst mit fünf Schichten Handschuhen oder mit Wasser auf der IP65-zertifizierten Vorderseite, so dass nichts zwischen Ihnen und Ihrer Arbeit steht. Mit seinem konfigurierbaren Gleichstromausgang, den USB 3.2-Steckplätzen und dem USB-C-Anschluss kann der gesamte medizinische Wagen direkt von diesem Computer aus mit Strom versorgt werden – perfekt für alle Wagenanbauten oder Zusatzgeräte.
