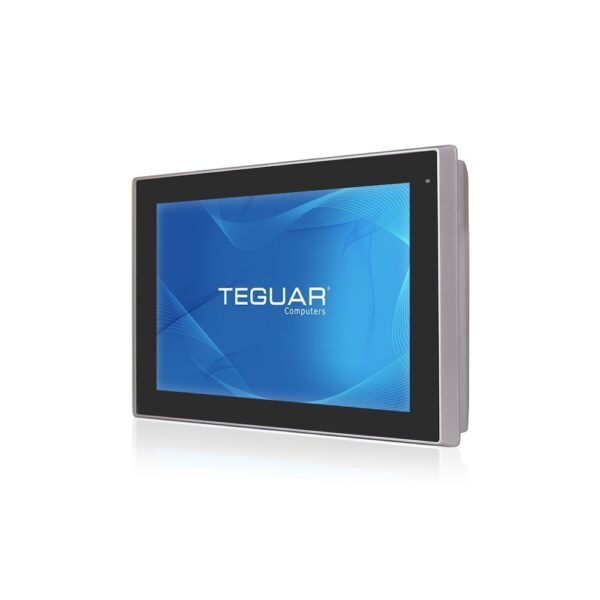

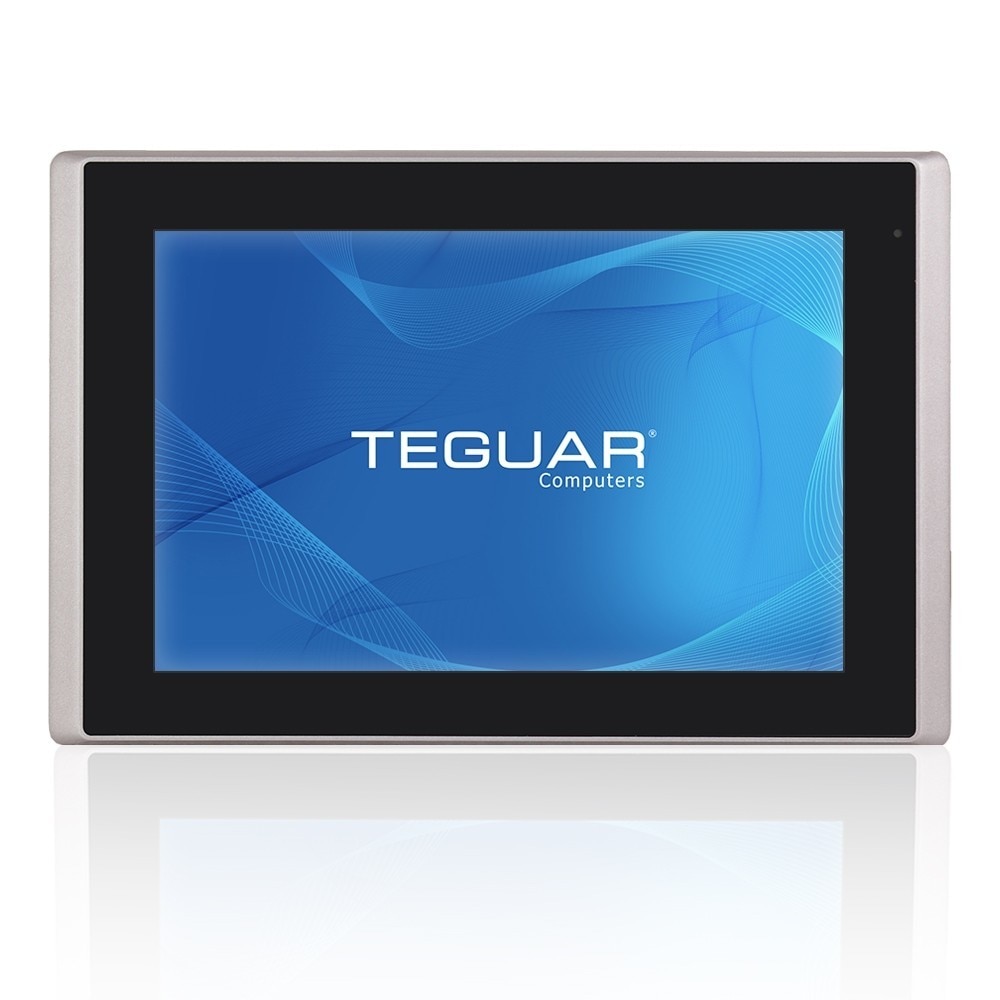

TD-45-10

10.1" Industrial Monitor

Available – Contact Us for Quick Quote

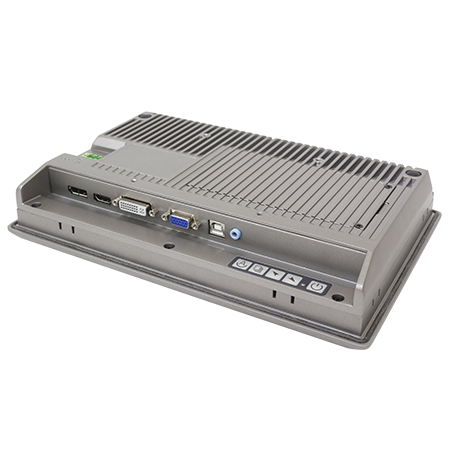

Back view of the Teguar TD-45-10 industrial monitor

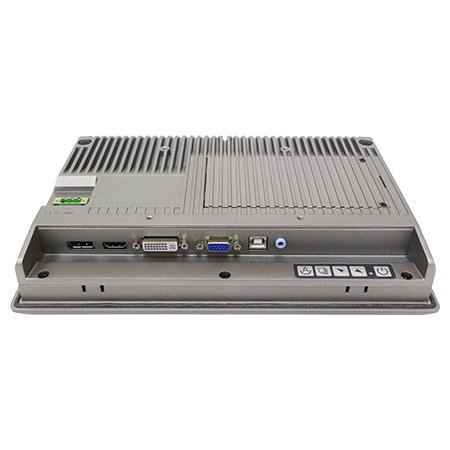

Back view of the Teguar TD-45-10 industrial display

Beschreibung

The TD-45-10 is an aluminum panel display made for industrial environments. This industrial touchscreen monitor can be connected to any computer, but most often times it is connected to a rugged fanless box PC. This offers a two piece rugged long life cycle solution. It can also be connected to another touchscreen panel PC, where it can operate as a cloned display or an extended desktop. The same model is available in screen sizes from 7″ to 21.5″ and with either a resistive touchscreen or a projective capacitive touchscreen. This monitor has several different mounting options. When panel mounted, the front bezel is IP66 rated and protected from liquids and dust.

Key Highlights

10.1″ LCD with 1280 x 800 Resolution
Rugged Die Cast Aluminum Chassis
Optional Sunlight Readable 1000 Nit LCD
Optional Optical Bonding
IP66 Compliant Front Panel
Resistive or Projected Capacitive Touchscreen

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	16:10
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Max Power Consumption	6.2W
Standard Power Adapter	Optional 12V AC/DC Adapter

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Acetone, Alcohol, Club Soda, Hydrochloric Acid, Methyl Alcohol, Mineral Spirits, Nitric Acid, Sulfuric Acid (low concentration), Vinegar, Warm Water

Weight / Dimensions

Weight	2.1
Dimensions	285 x 189 x 48.9

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

See the data sheet Warranty Download Drivers

I/O Diagram Images

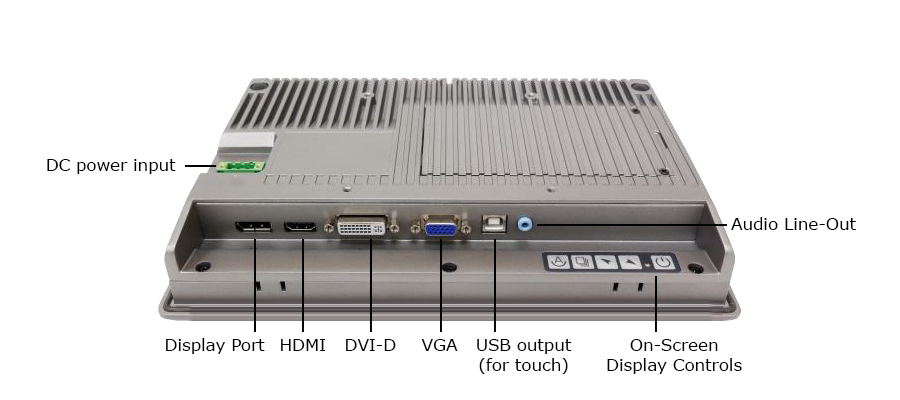

Back panel of TD-45-10 including inputs and outputs

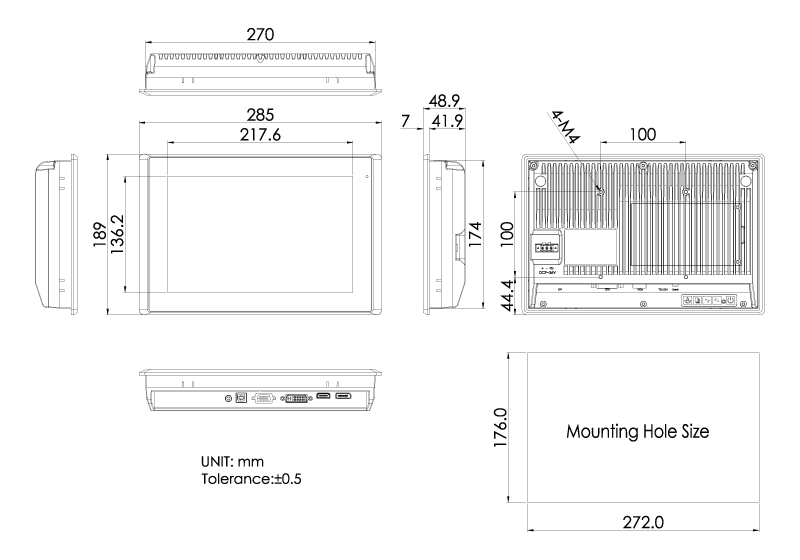

Tech Diagram Images
