TB-7145-MVS

Rugged AI Platform PC

Available – Contact Us for Quick Quote

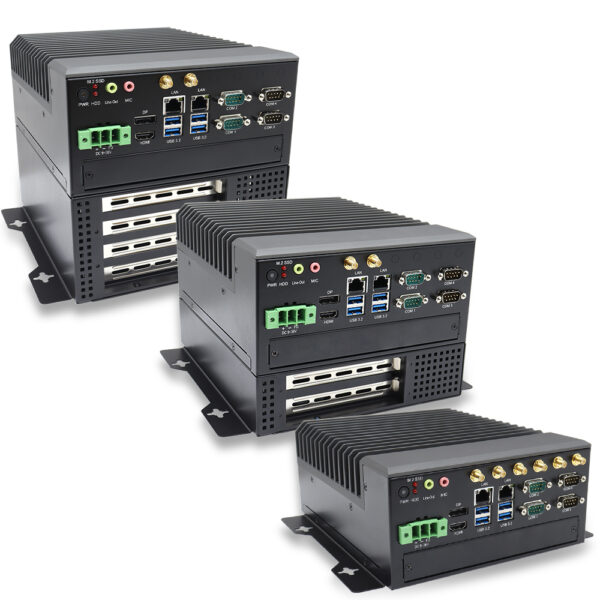

Rugged AI Platform PC 4X Expansion Angled Right

Beschreibung

Host your next computing project on the rugged AI platform PC: a processor that handles tough tasks, in a box that handles tough environments.

This PC’s three different forms offer different amounts of PCIe slots to suit your needs. Utilize the PCIex4 slots for Ethernet network adapters, 4K video capture cards for medical monitoring or data streaming, and raid controllers. Save the PCIex16 slot for the big jobs — a powerful Nvidia graphics card will fit right in using the 4X expansion’s extra height.

With these opportunities for expansion, IO additions, the processing power to support the most complex of machine inferencing, and a fanless, durable build, the rugged AI platform PC is built to hold down the fort where other PCs can’t hold up.

Slot	Connect	Function
2X Expansion
1	164 pin	PCIex16 signal
2	64 pin	PCIex4 signal
4X Expansion
Slot	Connect	Function
1	164 pin	PCIex16 signal
2	–	–
3	64 pin	PCIex4 signal
4	64 pin	PCIex4 signal

Key Highlights

Raptor Lake processor from Intel’s 13th Generation
Windows 11 capability
Optional input/output additions
PCIe slot expansions (2X or 4X) for use of up to three PCIe cards
Includes wall mounting, or a DIN rail-compatible variant
Fanless, rugged build

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 13th Generation Raptor Lake
Processor Model	Core i3-13100TE Optional, Core i5-13500TE Optional, Core i7-13700TE Optional
Processor Speed	Up to 4.8 Ghz
Memory Type	2x DDR5 SO-DIMM
Memory Support	8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 NVME SSD Slot (2242/2280), 2x 2.5" SATA Drive Bay for SSD/HDD (easily accessible)
Storage Support	Accessible Bays Support RAID 0/1, M.2 and 2.5": 256GB - 1TB

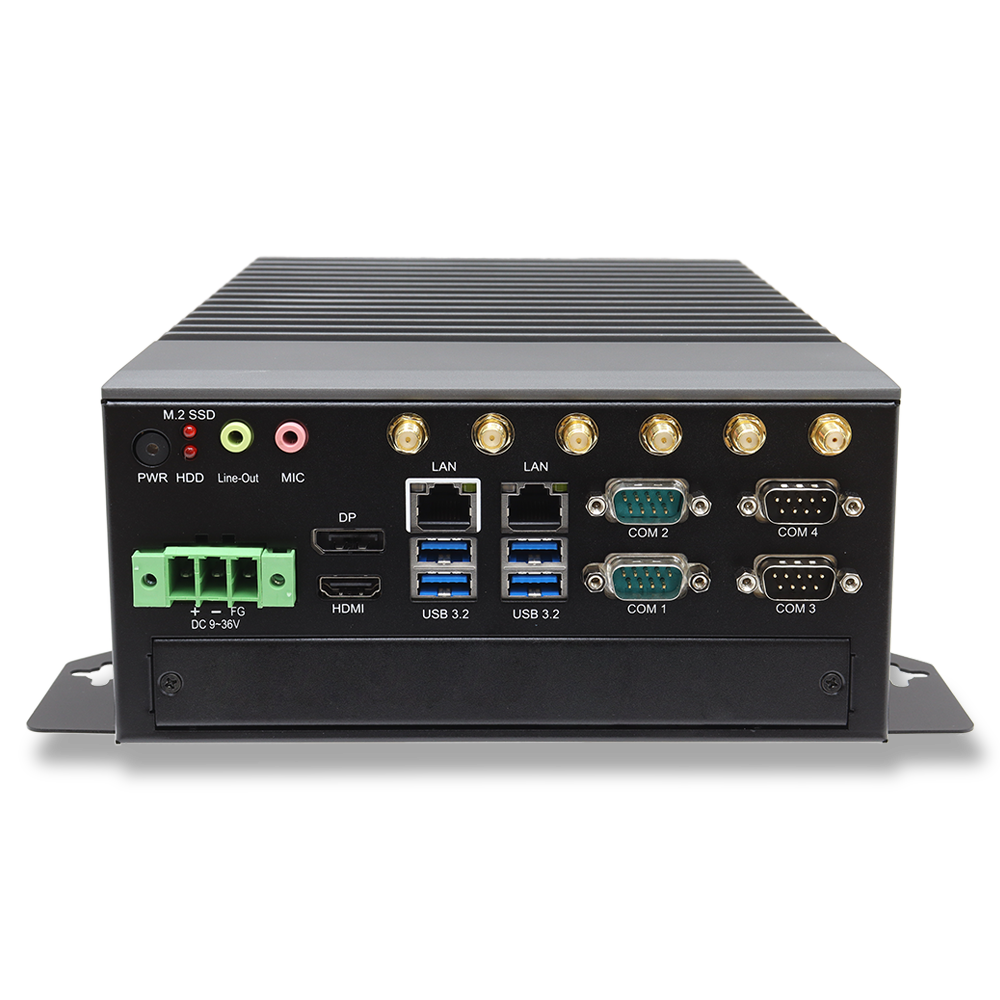

External I/O Ports

USB	4x USB 3.2
Serial / Com	4x COM
Serial Protocol Detail	RS-232 Defualt/RS-422/RS-485
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x DisplayPort, supports DP++, 1x HDMI
Other Ports	Optional 2x additional 2.5Gbe LAN, 2 additional USB 3.2, 8-bit GPIO
Audio Ports	1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Standard Power Adapter	300W No Expansion slot-NO PCIe, Expansion slot 2x PCIe and 4x PCIe use 450W

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
Linux	Linux Ubuntu 22.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

Supports Intel Vpro i5/i7, TPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option)
Video Card Support	125W PCIe x16

Thermal & Environmental

Operating Temperature	-20°C - 60°C - -20°C - 50°C (-4°F – 140°F (i3/i5 CPU), -4°F – 122°F (i7 CPU))
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless with Heatsink
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum, SECC Steel Chassis
Color	Black
Led Indicator Light	Power
Control Buttons	Power Button
Mounting Options	DIN Rail Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi A/B/G/N/AC/AX -6 via M.2 E-Key slot
Bluetooth	Optional Bluetooth 5.3
Sim Card	1x Nano SIM Card Slot

Weight / Dimensions

Weight	3.9
Dimensions	222x190x93

Certification

Certifications

FCC and CE Compliant

Warranty

Up to 5 Years

Machine vision: The quick and powerful processor of the rugged AI platform PC can efficiently process and analyze visual data for safety checks and other machine vision applications.

Edge computing: With PCIe expansion to support network adapters and additional RAM, the TB-7145-MVS can serve as a compact yet effective edge computer to process local data in a factory or other industrial setting.

AI implementation: Utilize the vPro remote device management capability or Windows 11 for an infinite number of artificial intelligence applications, such as running custom predictive algorithms or automated device control.

See the data sheet Warranty Download Drivers

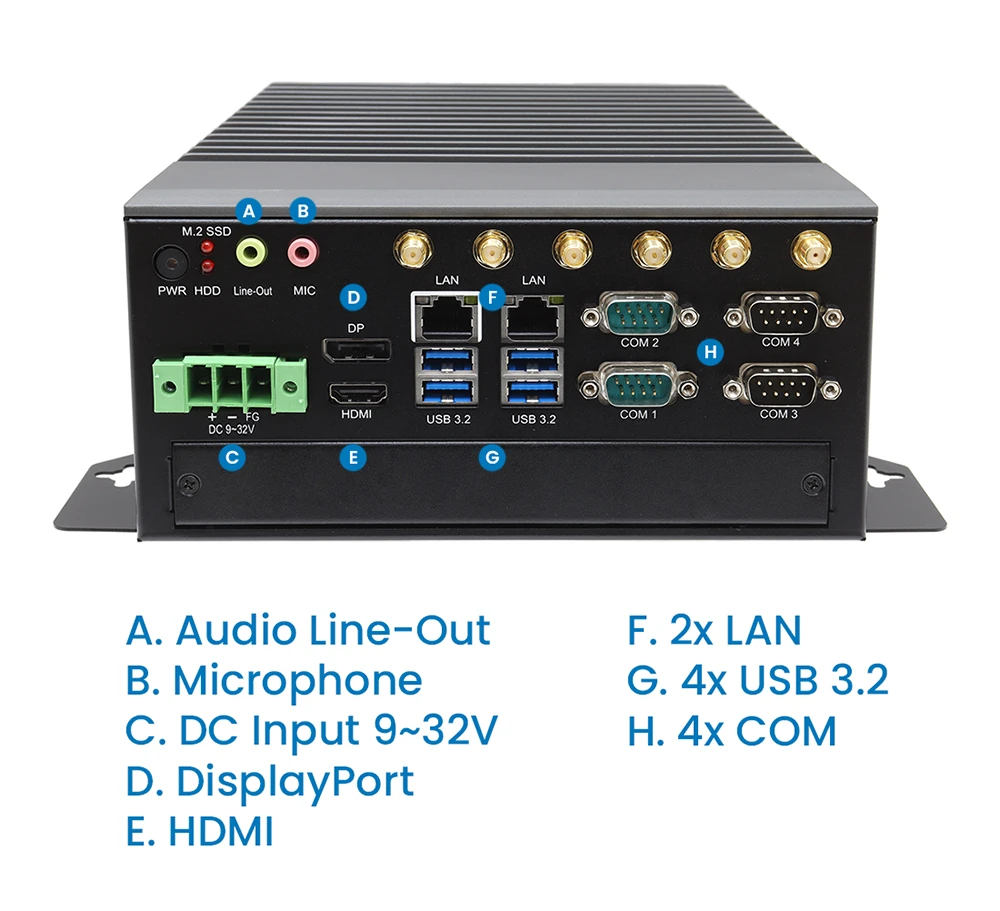

I/O Diagram Images

Tech Diagram Images

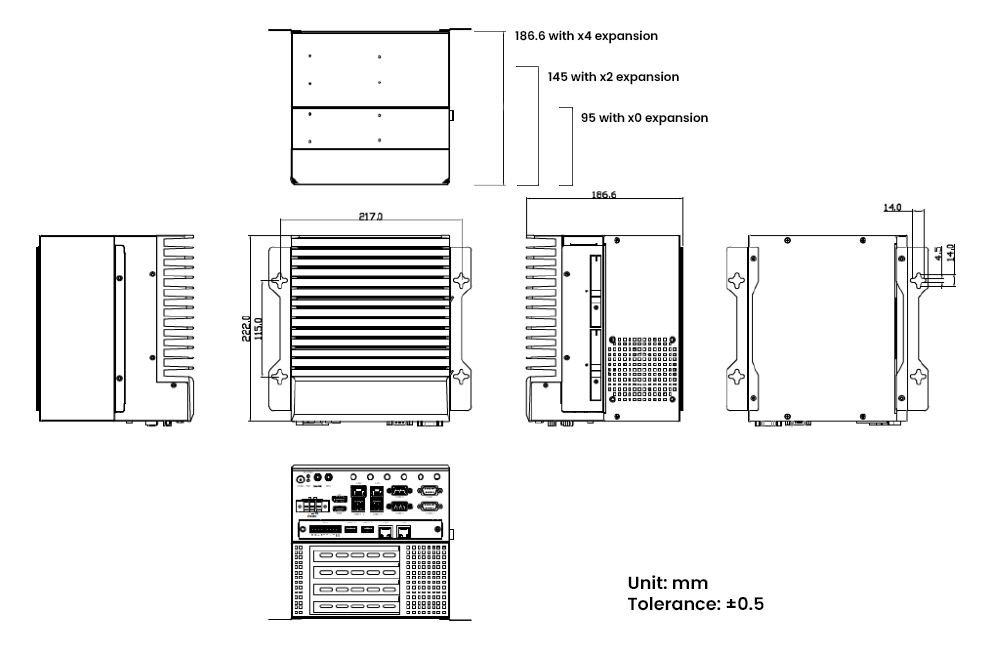

A black and white 2D drawing detailing the dimensions of the Rugged AI Platform PC. The PC is presented in its 4X extension, with additional labels indicating the reduced measurements of the smaller expansions.
