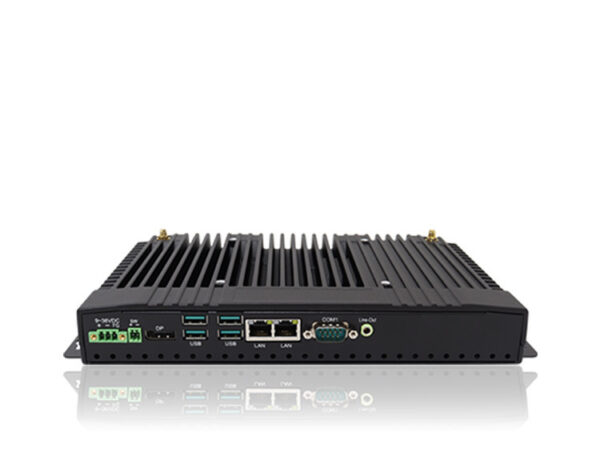

TB-5945

Industrial PC

Available – Contact Us for Quick Quote

Beschreibung

The Industrial PC is a pivotal asset in modern manufacturing environments, combining robust hardware and top-of-the-line features to streamline operations. Powered by an 11th Gen Core i processor, it ensures swift and efficient performance for demanding tasks. With multiple I/O expansion options, including TPM 2.0 security, it provides flexibility to adapt to diverse manufacturing needs, facilitating seamless integration with machinery, sensors, and other peripherals. This comprehensive solution empowers manufacturing processes with reliability, security, and efficiency, driving productivity to new heights.

Key Highlights

11th Generation Core i Processor
Windows 11
Fanless Operation
TPM 2.0 Security and Encryption
Optional I/O Expansions

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 11th Generation Tiger Lake
Processor Model	Core i3-1115G4E
Processor Speed	Up to 3.9 GHz, 2.2 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 SATA3 2280 Slot
Storage Support	M.2: 256GB-1TB

External I/O Ports

USB	4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	COM1 RS-232, COM2 RS-232/422/485 via Y-CABLE Included
Ethernet / LAN	1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs	1x DP-1.4/HDMI combo Video Out
Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	28W
Standard Power Adapter	19Vdc, 6.3A, 120W

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option)
Other	Optional Daughter Boards for various I/Os

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
Color	Black
Mounting Options	VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Wi-Fi 6 optional
Bluetooth	Optional Bluetooth 5.1
Sim Card	1x Nano SIM Card Slot

Weight / Dimensions

Weight	1.05
Dimensions	252.7x158.7x36

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Manufacturing: With its fanless design and optional TPM 2.0 security, the TB-5945 ensures uninterrupted operation and protects sensitive data, critical for maintaining production efficiency and compliance. Its multiple I/O expansion options facilitate seamless integration with manufacturing equipment and control systems, enabling real-time monitoring and control.

Industrial Automation: The TB-5945’s compatibility with Windows 11 and powerful 11th Gen Core i processor make it an ideal platform for running sophisticated automation software and managing complex processes. Its reliable performance, coupled with various I/O expansion options, allows seamless connectivity with sensors, actuators, and PLCs, facilitating efficient automation workflows.

Warehouse Management: The TB-5945’s rugged construction and fanless design ensure durability and reliability in harsh environments. Its extensive I/O expansion options enable integration with barcode scanners, RFID readers, and inventory management systems, enhancing operational efficiency and accuracy.

See the data sheet Warranty Download Drivers

I/O Diagram Images

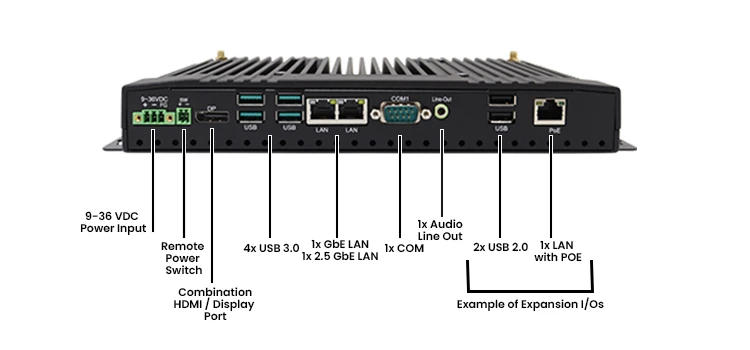

Industrial PC TB-5945 Labeled I/O Diagram

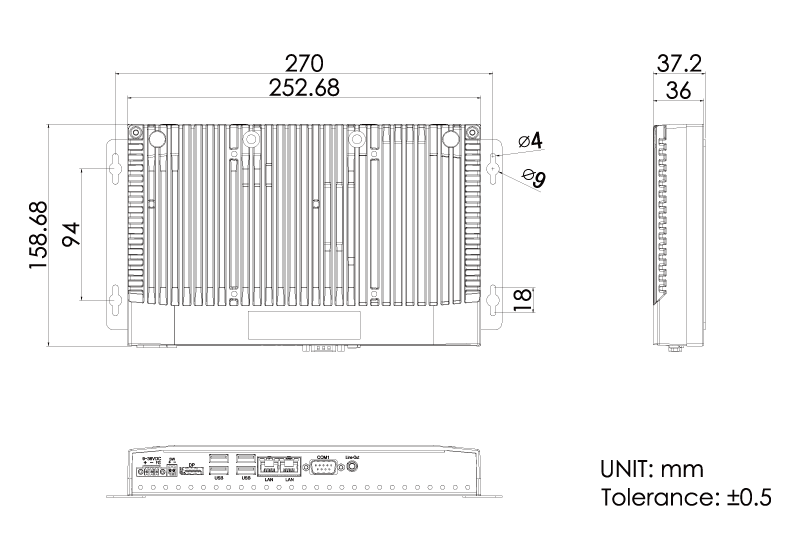

Tech Diagram Images
