TB-4840

Industrial NUC

Available – Contact Us for Quick Quote

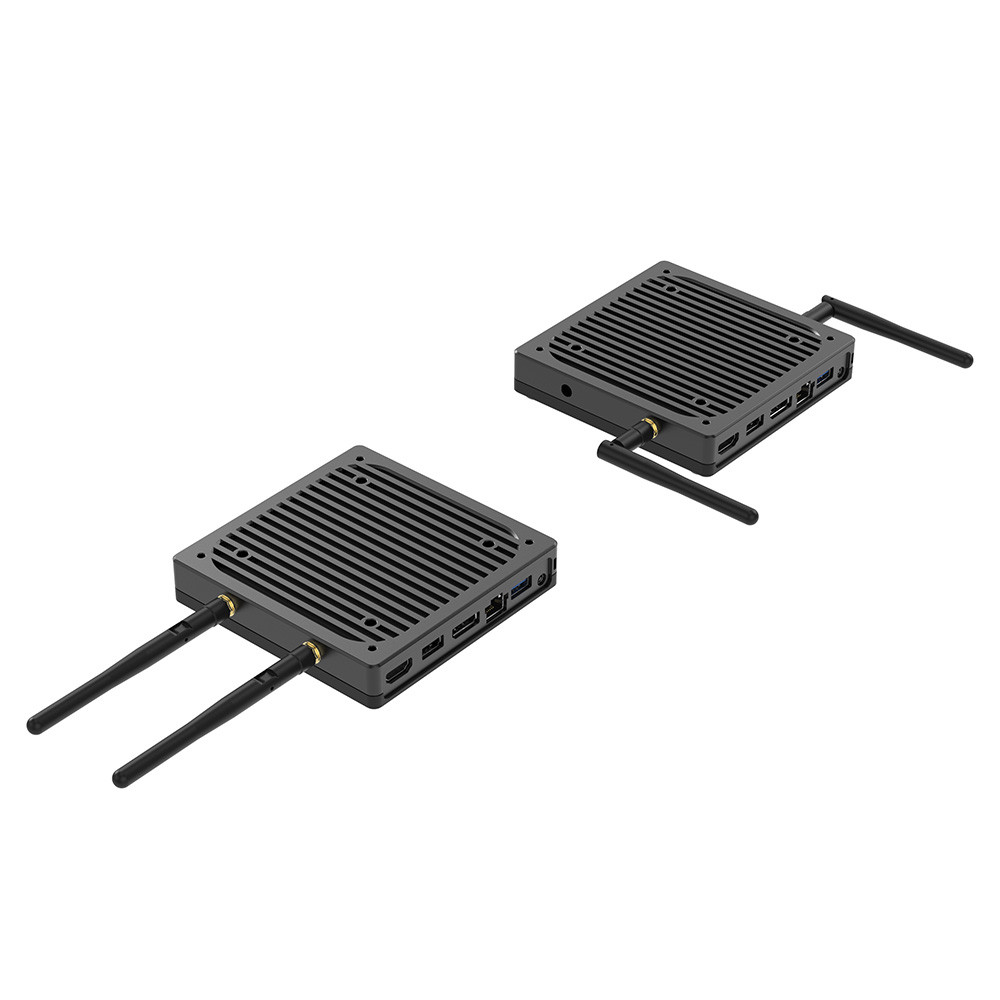

Industrial NUC TB-4840 Optional WiFi Antennae

Beschreibung

The Industrial NUC is a versatile computing solution tailored for confined spaces and industrial/commercial kiosks. Its compact design, around the size of a slice of toast, optimizes space while delivering robust performance powered by an efficient Celeron processor. Supporting both Chrome and Windows operating systems, including the latest Windows 11, this compact box PC ensures adaptability to diverse computing needs. Ideal for multitasking in small spaces, the Industrial NUC combines size and power, offering a dynamic solution for industrial environments and interactive kiosks, seamlessly bridging efficiency with space optimization in a technologically advanced package.

Key Highlights

Intel Celeron J6412 Processor Passmark Rating 3846
Supports Chrome, Windows 10, and Windows 11
Fanless Cooling System

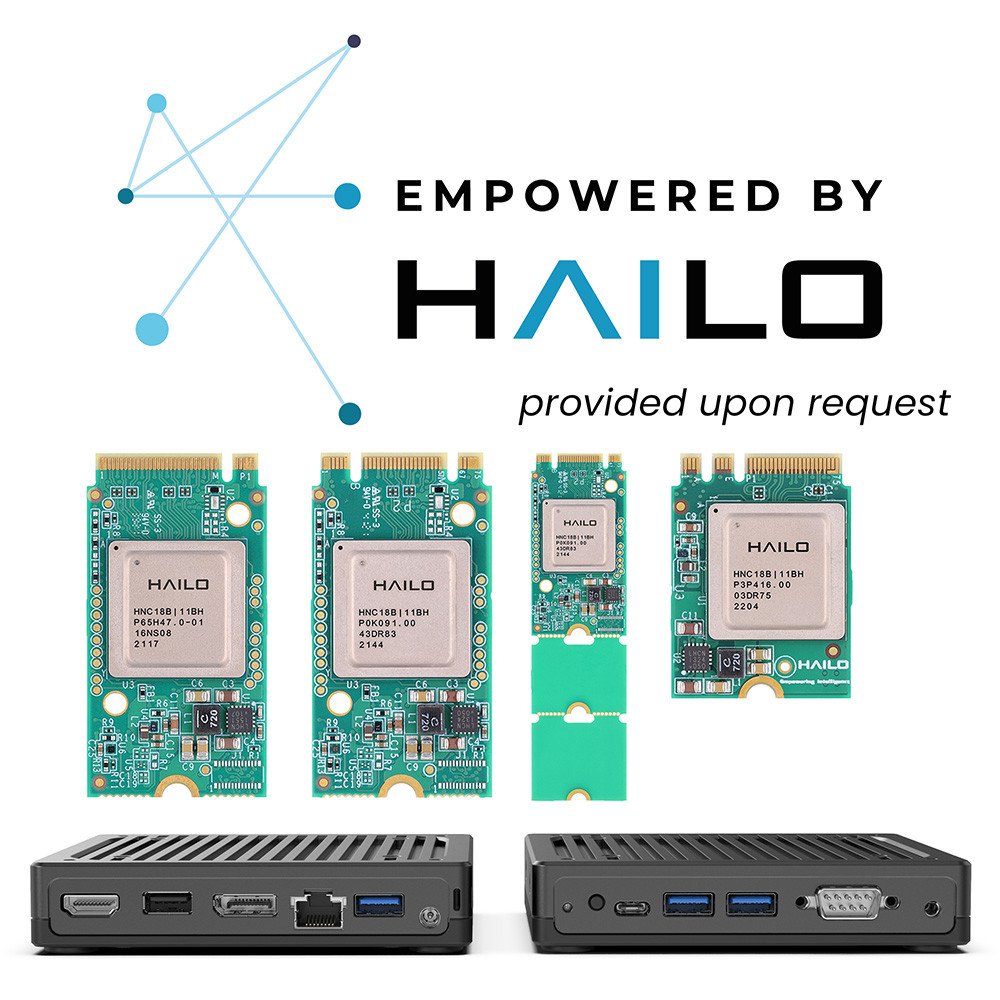

Empowered by Hailo-8 M.2 AI module up to 26 TOPS (available upon request)
Supports Dual Display
Unique VESA Mounting Options

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Processor Speed	Up to 2.6 GHz
Memory Type	Onboard DDR4
Memory Support	4GB
Storage Type	Onboard eMMC Flash, 1x M.2 2242 Slot, SATA3 or NVMe
Storage Support	M.2: 128GB-1TB, 128GB (On board)

External I/O Ports

USB	1x USB 2.0, 3x USB 3.0
Serial / Com	1x COM
Serial Protocol Detail	DB9
Ethernet / LAN	1x RJ45 GbE LAN
Video Outputs	1x DisplayPort, 1x DisplayPort via USB-C Alt Mode, 1x HDMI
Audio Ports	1x 3.5mm Audio Line-Out/Mic-In

Power

Input Voltage Range	12V DC
Standard Power Adapter	12V/3.0A US AC Power Supply 36W

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Android	Android 13
Linux	Linux

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME SSD Support
SD card	1x Micro SD Slot

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive
Humidity Range	20% – 85% Non-condensing

Enclosure

Material	Aluminum, Plastic
Color	Black
Led Indicator Light	Power
Control Buttons	Power Button
Mounting Options	VESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	WiFi 6 (optional)
Bluetooth	Optional Bluetooth 5.2

Weight / Dimensions

Weight	0.36
Dimensions	120x120x23

Certification

Certifications

CE, FCC, FCC ID, RoHS, UKCA

Warranty

Up to 5 Years

Industrial Automation: The TB-4840 Industrial NUC, designed for confined spaces, is an optimal choice for embedded systems in industrial automation. Its compact form and efficient Celeron processor deliver reliable performance, making it ideal for integration into machinery and automation setups.

Manufacturing: Tailored for design, programming, and data analysis tasks in industrial environments, the Industrial NUC’s compact yet powerful design is well-suited for efficient multitasking on the manufacturing floor.

Interactive Kiosks: With adaptability and efficiency, the TB-4840 Industrial NUC is a preferred solution for interactive kiosks in the retail sector. Enhancing user interaction and delivering reliable performance, it seamlessly integrates into commercial environments.

Point-of-Sale Systems: Supporting Chrome and Windows operating systems, the Industrial NUC is compact and powerful, making it an excellent choice for point-of-sale terminals in the hospitality industry. Ensuring smooth transactions, it’s an essential component for retail and hospitality settings.

See the data sheet Warranty Download Drivers

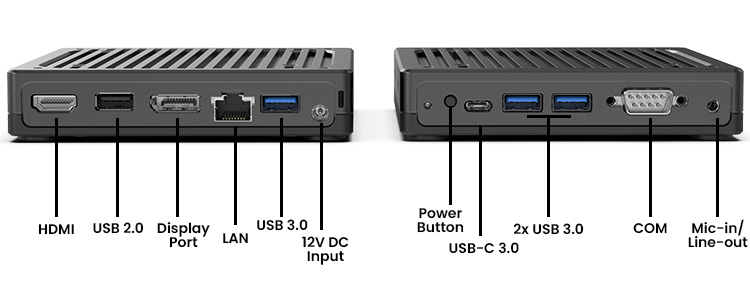

I/O Diagram Images

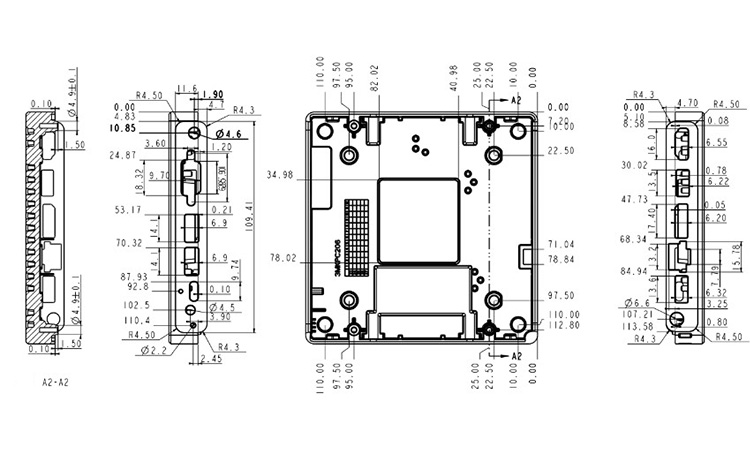

Tech Diagram Images

TB-4840

Industrieller NUC

Available – Contact Us for Quick Quote

Beschreibung

Der Industrial NUC ist eine vielseitige Computerlösung, die für enge Räume und industrielle/gewerbliche Kioske zugeschnitten ist. Sein kompaktes Design, etwa so groß wie eine Scheibe Toastbrot, optimiert den Platzbedarf und bietet gleichzeitig eine robuste Leistung, die von einem effizienten Celeron-Prozessor unterstützt wird. Dieser kompakte Box-PC unterstützt sowohl Chrome- als auch Windows-Betriebssysteme, einschließlich des neuesten Windows 11, und gewährleistet so die Anpassungsfähigkeit an unterschiedliche Computeranforderungen. Der Industrial NUC ist ideal für Multitasking auf kleinem Raum. Er kombiniert Größe und Leistung und bietet eine dynamische Lösung für industrielle Umgebungen und interaktive Kioske, die nahtlos Effizienz mit Platzoptimierung in einem technologisch fortschrittlichen Paket verbindet.
