TB-3445

Rugged Mini PC

Available – Contact Us for Quick Quote

Beschreibung

The TB-3445 is a rugged mini box PC designed to work in dirty, hot environments for years and years. This computer is low cost and compact, while still being rugged and industrial. Compared to similar low-cost computer solutions, the TB-3445 is much more reliable. This computer is built to run 24/7 in your manufacturing facility or warehouse. It is ideal for connecting your PLCs to the cloud, monitoring the production floor from an office, and taking actions such as controlling machinery, turning on/off pumps, or stopping production. This PC can be DIN rail mounted or wall mounted with built-in expansion tabs, and fits lots of I/Os in a small package.

Read a 3rd party review of the TB-3445 from ruggedpcreview.com >

Key Highlights

Intel N3350/4200 CPU
Slim & Rugged Chassis
Abundant Inputs/Outputs
DIN Rail Mountable
Wide Range DC 9~36V Power Input

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Apollo Lake
Processor Model	N3350 Dual Core
Processor Speed	Up to 2.4 GHz
Memory Type	1x DDR3L SO-DIMM
Memory Support	4GB, 8GB
Storage Type	mSATA
Storage Support	64GB (Standard), up to 256GB (Optional)

External I/O Ports

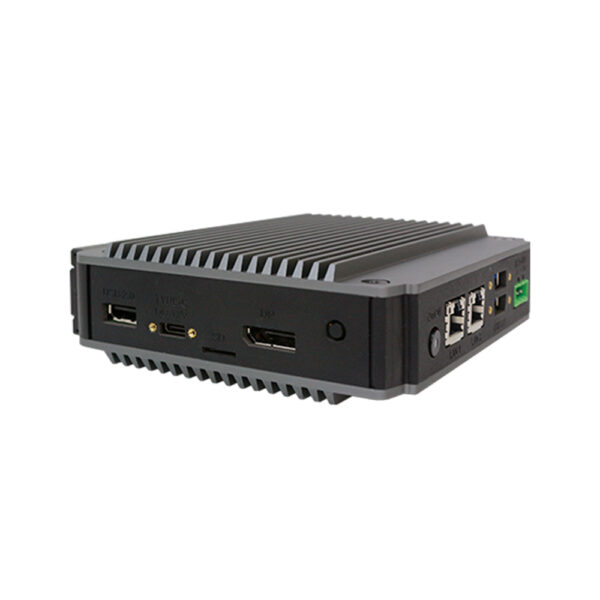

USB	1x USB 2.0, 1x USB 3.0 type C, 2x USB 3.0 (with lock)

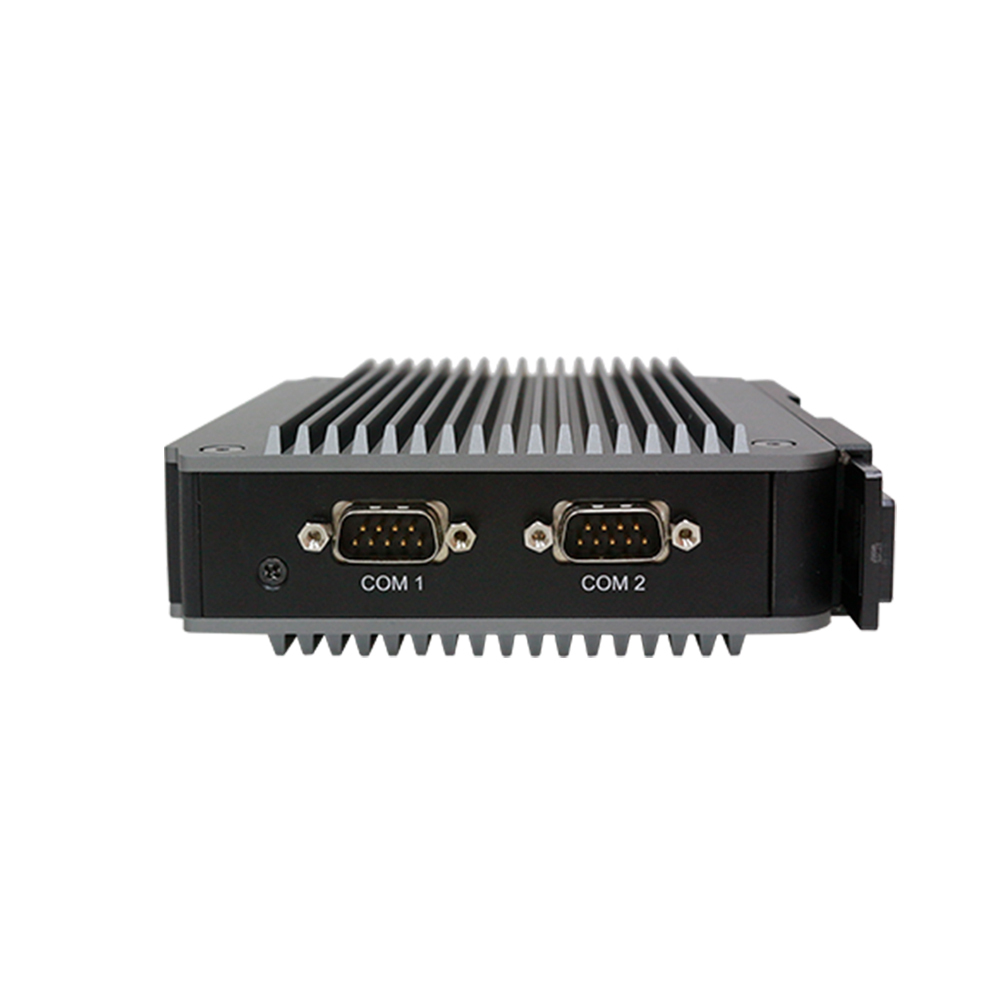

Serial / Com	2x COM
Serial Protocol Detail	2x RS-232/422/485

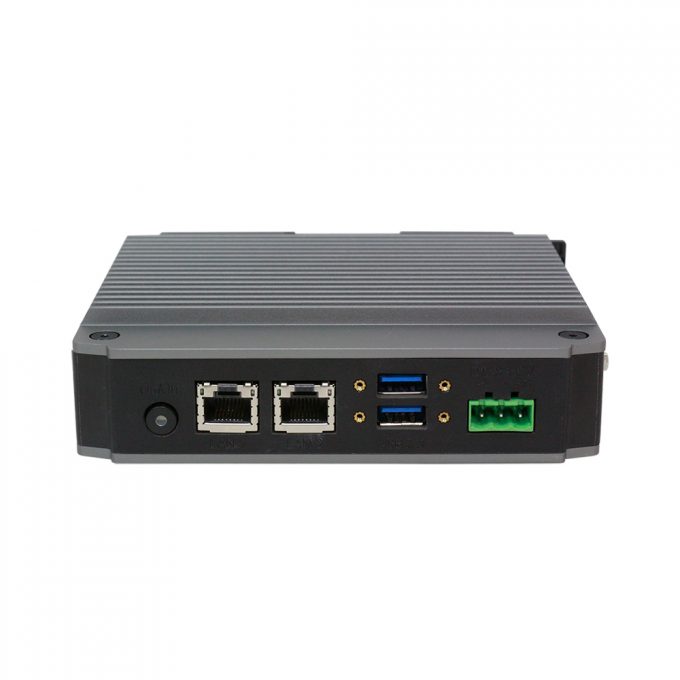

Ethernet / LAN	2x RJ45 GbE LAN

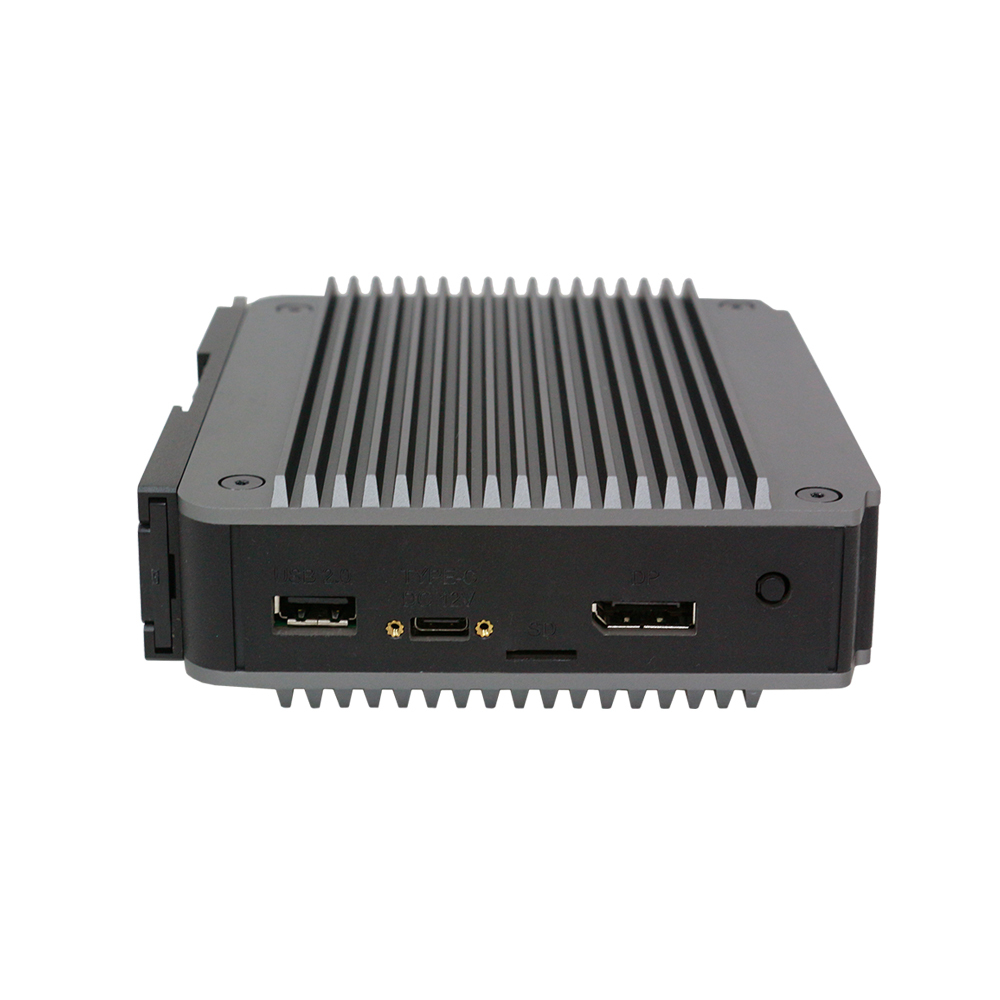

Video Outputs	1x DisplayPort
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	33W
Standard Power Adapter	Optional 12V AC/DC Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro

Expansion Slots

Expansion Module support	Default expansion: 2 x COM (DB9); Optional expansion requires MOQ - 3 x COM (Terminal Block); 2 x USB 2.0; 16 channel GPIO
SD card	1x Micro SD Slot

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-40°C - 85°C (-40°F – 185°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
Color	Black, Gray
Led Indicator Light	Power
Control Buttons	Power Button

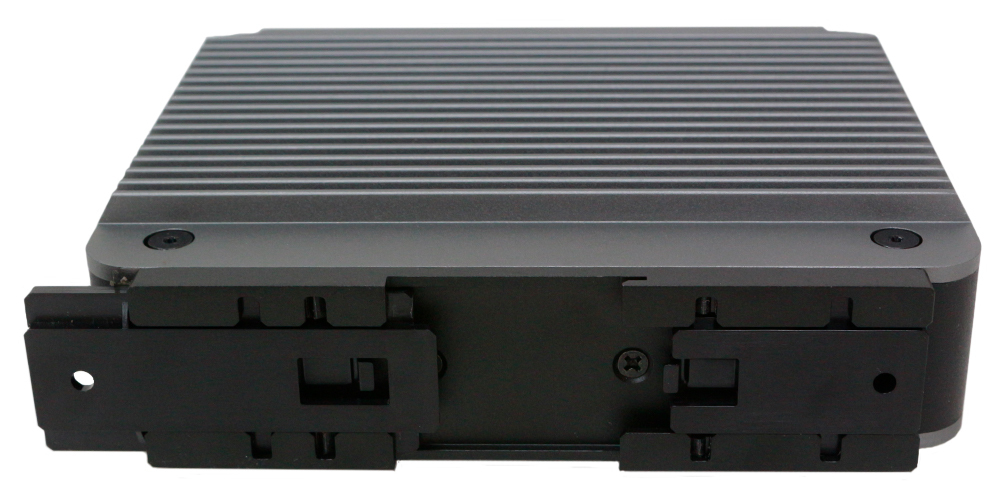

Mounting Options	DIN Rail Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi

Optional

Weight / Dimensions

Weight	.78
Dimensions	140x120x42

Warranty

Up to 5 Years

Warehouse Management Systems: With its small footprint and rugged design, the TB-3445 Box PC is well-suited for warehouse management applications, fitting into tight spaces and providing reliable computing power for inventory tracking and logistics management.

IoT Gateway: Equipped with numerous I/Os and a compact size, the TB-3445 is an ideal choice for IoT gateway applications, enabling seamless connectivity and data aggregation in industrial environments with limited space.

Embedded Industrial Computing: Measuring only 2 inches thick and designed for continuous operation, this unit is suitable for embedded computing applications in various industrial sectors, offering durability and reliability in challenging environments.

See the data sheet Warranty Download Drivers

I/O Diagram Images

labeled inputs and outputs of the Teguar TB-3445 box computer
