TSP-5645-12

12" Panel PC

Available – Contact Us for Quick Quote

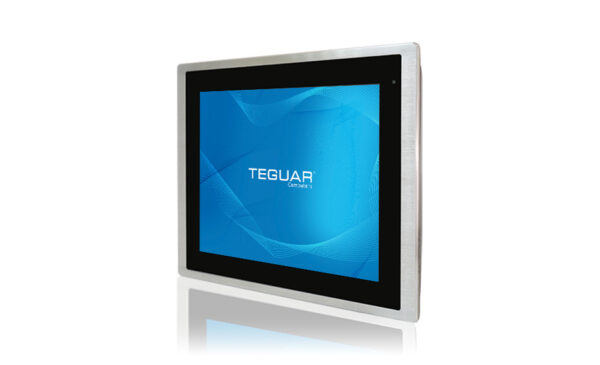

12" Waterproof Touchscreen Computer TSP-5645-12 Front Angle

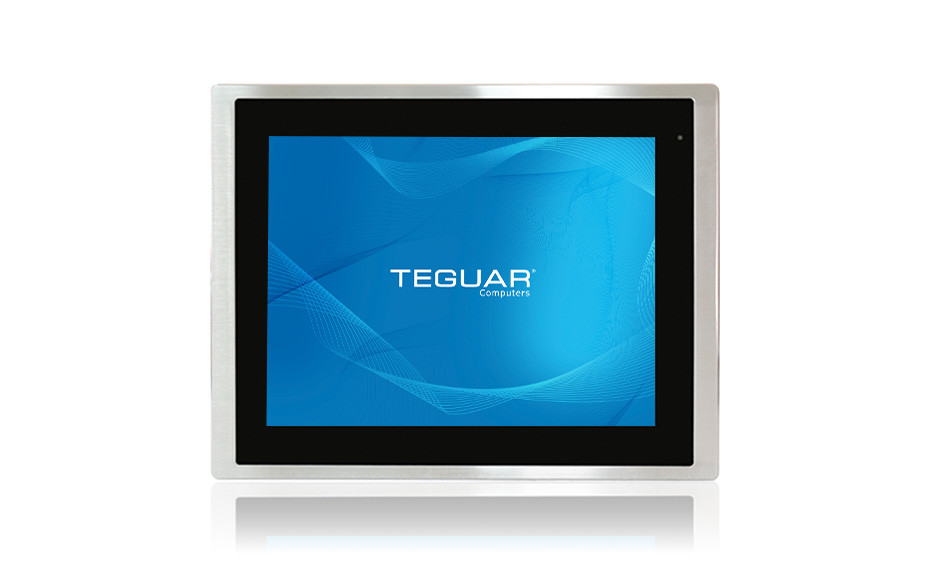

12" Waterproof Touchscreen Computer TSP-5645-12 Front

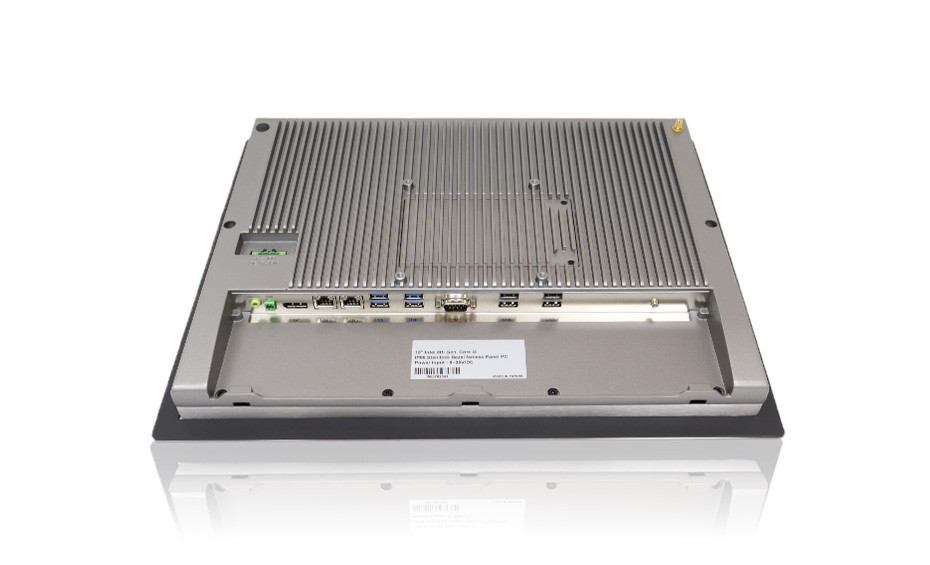

12" Waterproof Touchscreen Computer TSP-5645-12 Back Angle

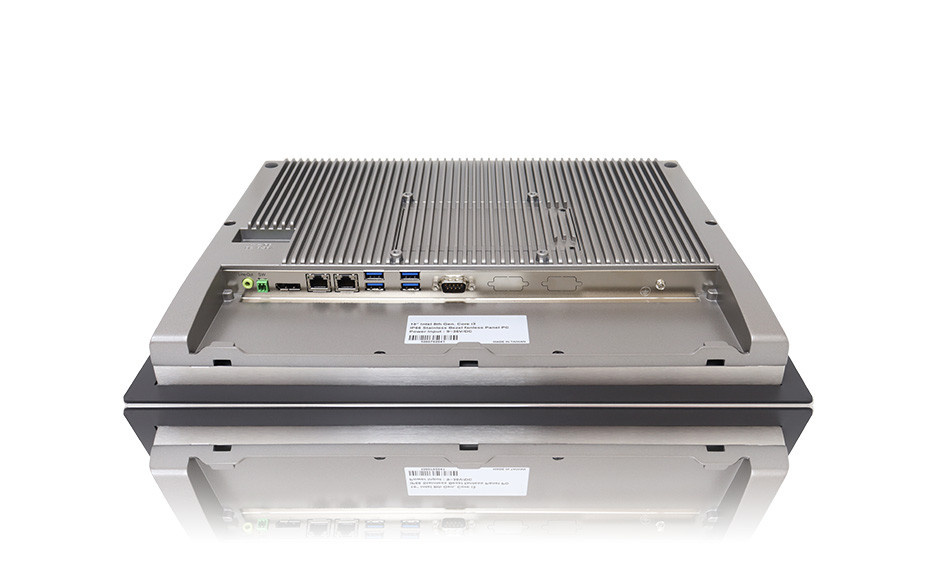

12" Waterproof Touchscreen Computer TSP-5645-12 Back

Description

The 12” Waterproof Touchscreen Computer, featuring a stainless steel front panel and aluminum back cover, is the perfect solution for demanding environments where exposure to liquids, sprays, or humidity is common. This computer can be easily panel mounted, creating a waterproof solution that can withstand harsh conditions. Powered by an Intel 8th Gen Core i3/i5 CPU and supporting Windows 11, it offers exceptional performance and seamless software integration. This 12” panel PC provides a compact yet powerful computing solution for those seeking ruggedness and reliability in a smaller form factor.

Key Highlights

12.1” LCD Touchscreen
Intel 8th Gen Core i3/i5 Processor
Slim and Fanless Design
IP66/IP69K Stainless Steel Front Bezel
Windows 11 Capabilites

Get a Demo Get a Quick Quote

Primary Components

Processor Family	Intel Core I series 8th Generation Whiskey Lake-U
Processor Model	Core i3 8145UE, Core i5-8365UE
Processor Speed	Up to 4.1 GHz, 2.3 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support	128GB-1TB

Display

Screen Size	12.1"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 450 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort
Audio Ports	1x Audio Line-Out
Power Input Port	DC-in Jack (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	56W
Standard Power Adapter	Optional 12V 5A AC/DC Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.2

1x M.2 for NVME SSD Support

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F (i3/i5)), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 95% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66 Front Bezel, IP69K Front Bezel
Color	Silver, Stainless Steel
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid (low concentration), Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 ac + Bluetooth with External Antennas
Bluetooth	Optional Bluetooth 4.0
Sim Card	1x Nano SIM Card Slot

Weight / Dimensions

Weight	2.5 kg (5.5 lbs)
Dimensions	331 x 257 x 52 mm mm (13.0 x 10.1 x 2.0 in)

Certification

Certifications

CE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A

Warranty

Up to 5 Years

Food and Beverage: The TSP-5645 Waterproof Touchscreen Computer, with an Intel 8th Gen Core i3/i5 CPU and Windows 11 support, excels in food and beverage. IP66-IP69K compliance ensures protection against liquids for inventory management, recipe formulation, and quality control.

Pharmaceutical: Tailored for pharmaceuticals, the TSP-5645 Waterproof Touchscreen Computer offers reliable power with an Intel 8th Gen Core i3/i5 CPU and Windows 11. IP66-IP69K compliance safeguards against liquids for tracking production, batch records, and regulatory compliance.

Outdoor Applications: The TSP-5645 series, a Waterproof Touchscreen Computer, suits outdoor tasks. Powered by an Intel 8th Gen Core i3/i5 CPU with Windows 11 support, it withstands liquids with IP66-IP69K compliance. Ideal for data collection, inventory tracking, and remote monitoring.

Maritime Environments: Crafted for maritime use, the TSP-5645 Waterproof Touchscreen Computer excels in marine navigation. With an Intel 8th Gen Core i3/i5 CPU and Windows 11, it ensures reliable computing, and IP66-IP69K compliance protects against liquids.

See the data sheet Warranty Download Drivers

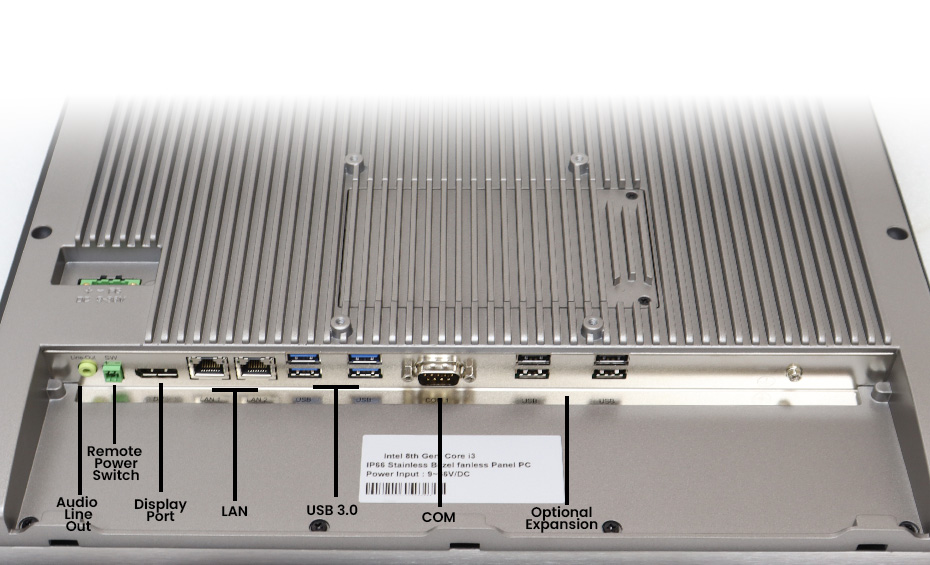

I/O Diagram Images

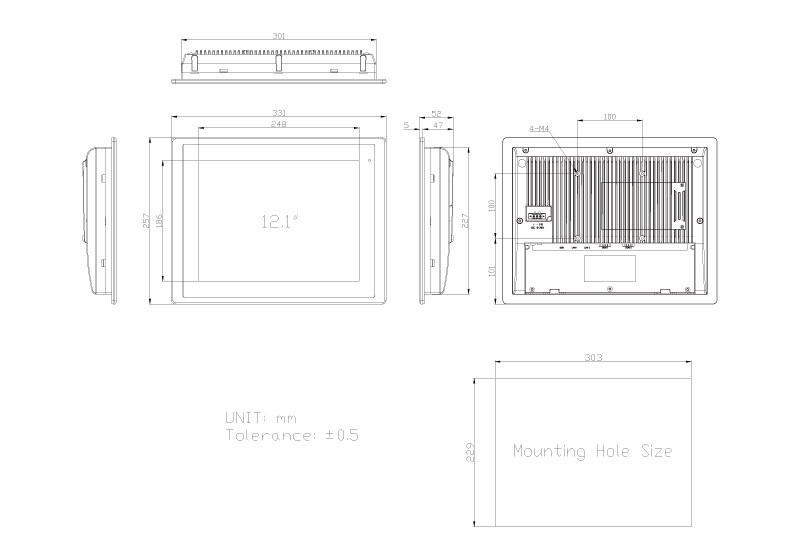

Tech Diagram Images
