TA-4840-16

16" Fanless All in One PC

Available – Contact Us for Quick Quote

Description

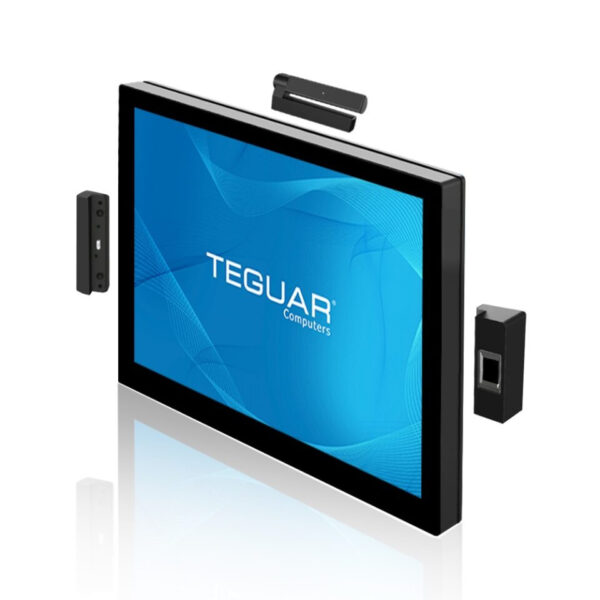

The TA-4840-16 is a modular computer system powered by an Intel Celeron J6412 Quad-Core CPU and compatible with Windows 11. Ideal for customer-facing and light-industrial applications, it has a modular design with a 15.6” full HD touchscreen and a removable box PC for easy service or upgrades. With VESA mounting and the ability to add up to four optional peripherals on all four sides, including a 3-track MSR Fingerprint Reader, RFID Reader, 2D Barcode Scanner, 5MP Camera with microphone, and Verifone VX820 or Ingenico payment terminals, this computer is highly adaptable and can be mounted on various stands, arms, and carts.

Key Highlights

15.6” HD Display with PCAP Touchscreen
Intel Celeron J6412 Quad Core CPU

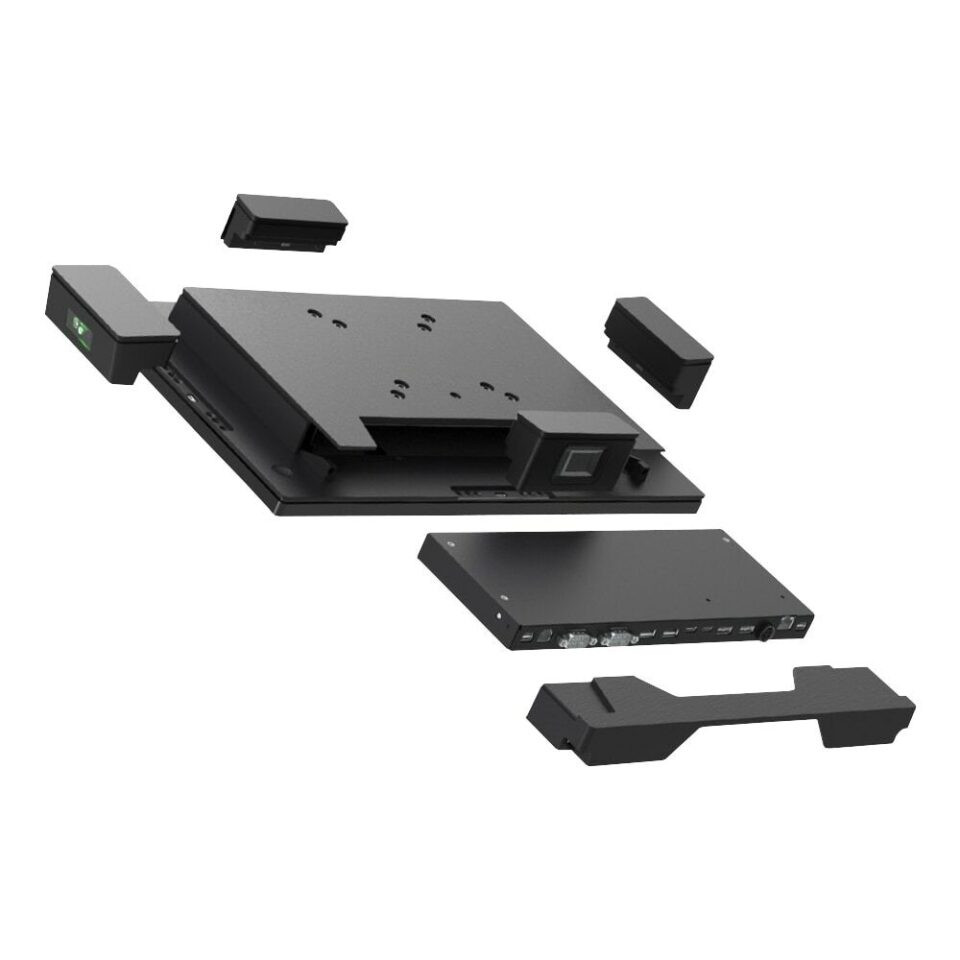

Modular Design with Removable Box PC
Slim and Durable Housing
Multiple Mounting Options

Get a Demo Get a Quick Quote

Primäre Komponenten

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB
Storage Type	1x M.2 slot for SSD
Storage Support	M.2: 128GB-1TB

Display

Screen Size	15.6"
Screen Ratio	16:9
Brightness	300 nits

Touchscreen

Touch Screen

Projected Capacitive (Multi-touch)

Externe E/A-Ports

USB	2x USB 2.0, 2x USB 3.0, 2x USB Type C (Data only)
Serial / Com	2x COM
Serial Protocol Detail	x2 RS-232 DB-9
Ethernet / LAN	1x RJ45 GbE LAN
Other Ports	Custom connector for External Monitor
Power Input Port	4-Pole DIN (latching)

Leistung

Input Voltage Range	19V DC
Standard Power Adapter	65W AC/DC Adapter

Betriebssysteme

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro
Linux	Linux (Contact your sales rep for more information)

Kompatibilität

Security Hardware

fTPM 2.0

Erweiterungssteckplätze

Internal M.2	1x M.2 2230 Key E (for WiFi expansion option)
Expansion Module support	4 USB based expansion areas on Bezel

Multimedia

Speakers	1x 3W Speaker
Camera	Optional Webcam

Thermisch & Umwelt

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	20% – 85% Non-condensing

Gehäuse

Material	Plastic
IP Rating	IP54 Front Bezel
Color	Black
Mounting Options	VESA 100 Mount, VESA 75 Mount

Peripheriegeräte und drahtlose Konnektivität

WiFi	Optional through M.2 interface
Bluetooth	Optional Bluetooth 5.1
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional 13.56 NFC External Module
Peripheral Other	Contact Teguar is you have a customized external Module request

Gewicht / Abmessungen

Weight	3.0 kg (6.6 lbs)
Dimensions	370 x 235 x 42 mm (14.6 x 9.3 x 1.7 in)

Zertifizierung

Certifications

CE, FCC

Garantie

Warranty

Up to 5 Years

Hospitality Self-Service Check-in Kiosks: Integrated RFID Readers and 5MP Cameras are ideal for hotels and airports, providing easy self-check-in and verification.

Retail POS Kiosks: The Fanless All in One PC Series, equipped with 2D Barcode Scanners and Verifone® VX820 payment terminals, streamlines transactions in retail stores.

Interactive Information Kiosks: With full HD displays and touchscreens, these all-in-one computers offer easy access to maps and event schedules in public spaces, museums, and educational institutions.

Secure Access Control Kiosks: Fingerprint Readers and RFID Readers enhance security in corporate offices, government buildings, and healthcare facilities.

See the data sheet Warranty Download Drivers
