TSP-4845-22

22” Stainless Panel PC

Available – Contact Us for Quick Quote

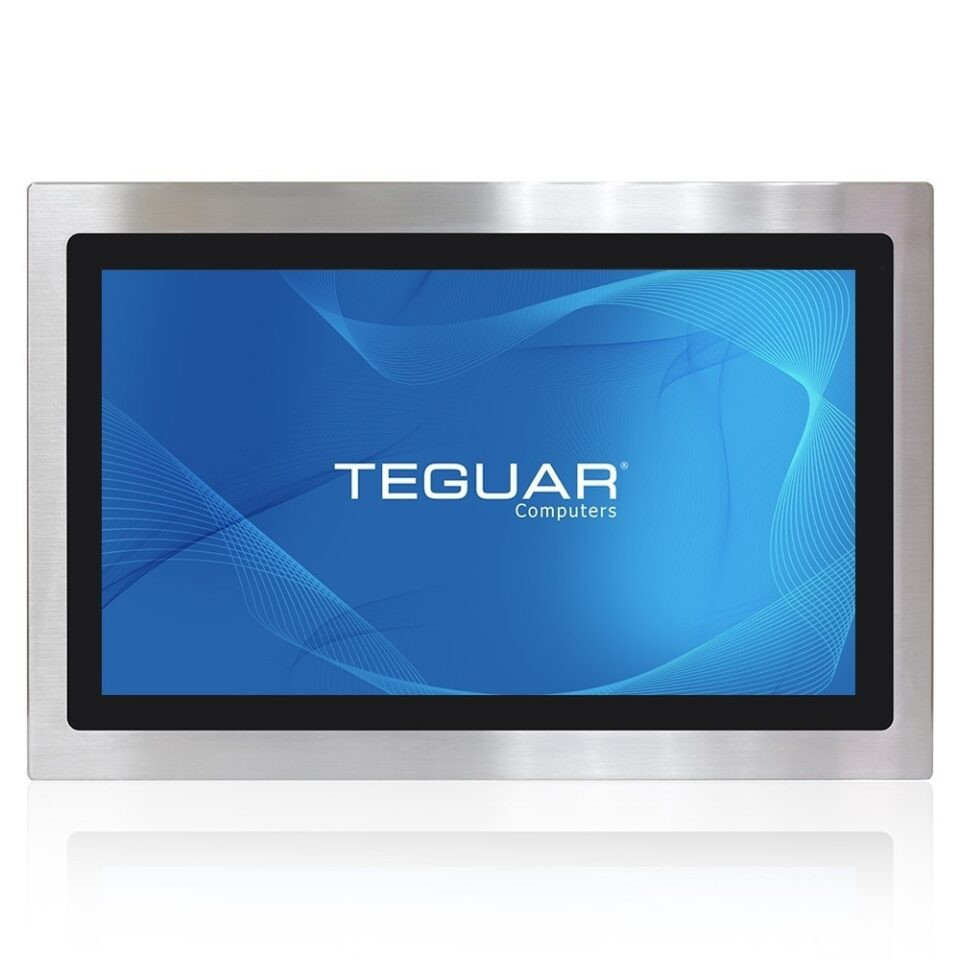

22" Stainless Panel PC TSP-4845-22 Front

Beschreibung

The 22” Stainless Panel PC offers a large and immersive display for industrial applications that demand extensive visual interactions. With Windows 11 compatibility and a Celeron J6412 processor, this unit ensures seamless performance. As an upgrade from the TSP-2945-22, this panel PC delivers enhanced features and capabilities for diverse industrial needs. Optionally, you can add a smart battery to further enhance reliability and efficiency. The iP66/IP69K compliant stainless steel front bezel guarantees protection against water and harsh chemicals, making it ideal for food and beverage application. Its aluminum back enclosure keeps the unit lightweight and allows access to inputs and outputs, making this panel PC an excellent addition to your industrial setup.

Key Highlights

21.5” Resistive or PCAP Touchscreen
Intel Celeron J6412 Processor
Windows 11 Operating System
IP66/IP69K Stainless Steel Front Bezel
Aluminum back enclosure

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron J6412 Quad
Processor Speed	2.0 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 default or 2280
Storage Support	128GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 250 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232(COM1)
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	1x DisplayPort
Audio Ports	1x Audio Line-Out
Power Input Port	DC-in Jack (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V 5A AC/DC Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 95% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum, Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66 Front Bezel, IP69K Front Bezel
Color	Silver, Stainless Steel
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 ac + Bluetooth with External Antennas
Bluetooth	Optional Bluetooth 4.0

Weight / Dimensions

Weight	8
Dimensions	574 x 379 x 60

Certification

Certifications

CE, EN 1672-2 Complaint (PCAP Touchscreen Only), FCC Class A

Warranty

Up to 5 Years

Food Processing: The TSP-4845 series, with its IP66/IP69K compliant stainless steel front bezel, is an ideal computing solution for the food processing industry. This Stainless Panel PC provides a reliable and hygienic platform for critical applications in food processing. Its design ensures protection against water, dust, and high-pressure wash downs, meeting the stringent requirements of the industry for maintaining cleanliness and hygiene.

Manufacturing Operations: The TSP-4845 series serves as a rugged computing solution for manufacturing operations. This Stainless Panel PC, featuring an Intel Celeron J6412 processor, ensures efficient performance and multitasking in diverse manufacturing environments.

Clean Room Environments: Specifically designed for sterile environments, the TSP-4845 series is well-suited for use in clean room applications. This panel PC provides a reliable and hygienic computing solution for critical operations in clean room environments. The IP66/IP69K compliant stainless steel front bezel ensures protection against water, dust, and high-pressure wash downs, meeting the strict requirements of clean room standards.

See the data sheet Warranty Download Drivers

I/O Diagram Images

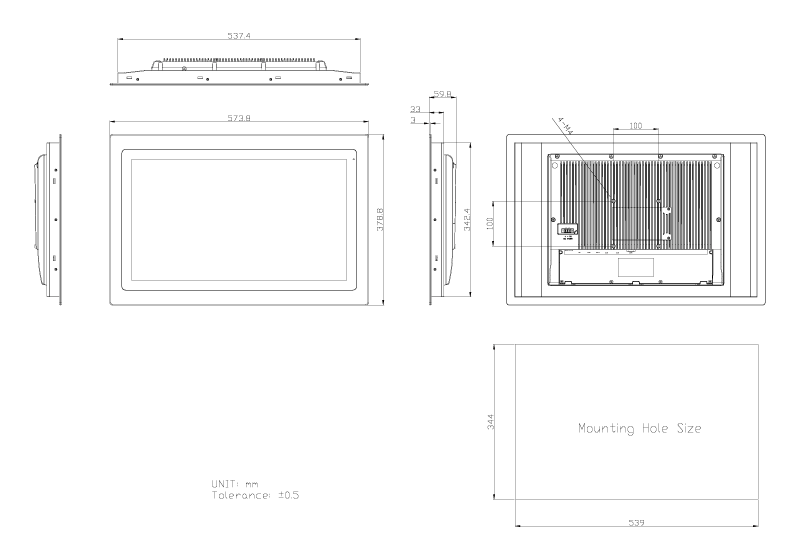

Tech Diagram Images
