TSI-5945-22

22" Operator Interface Terminal

Available – Contact Us for Quick Quote

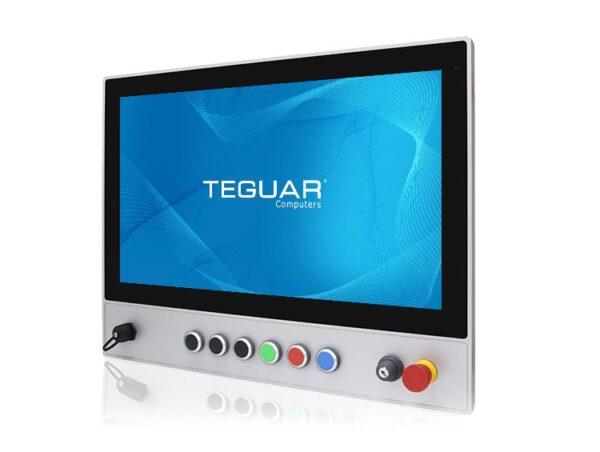

22" Operator Interface Terminal TSI-5945-22 Front

22" Operator Interface Terminal TSI-5945-22 Back

Beschreibung

The 22″ Operator Interface Terminal is a robust solution for general manufacturing, featuring IP65 waterproofing and five front buttons for intuitive control in demanding environments. Designed for swing arm or pole mounting and compatible with Rittal mounts, it offers versatile installation options. The11th Generation CPU ensures high-performance computing to manage quick stop equipment effectively. Ideal for factories requiring reliable operation and durability, this terminal enhances productivity and safety with its rugged design and seamless integration capabilities.

Key Highlights

22” Full HD Touch Screen
11th Generation Core i3/i5 Processor
5x Buttons by Default, 3x More Optional
2.5 GbE LAN
Able to Swing Arm or Pole Mount
Need customization? Click here for OEM services.

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 11th Generation Tiger Lake
Processor Model	Core i3-1115G4E
Processor Speed	Up to 3.9 GHz, 2.2 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 2280 NVME SSD slot
Storage Support	M.2: 128GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.2 Type-C, 4x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	RS-232(Default)/RS-422/RS-485
Ethernet / LAN	1x RJ45 2.5 GbE LAN, 1x RJ45 GbE LAN
Video Outputs	1x DisplayPort, 1x HDMI
Other Ports	2x Button PINs, 40x PINs to Operator Buttons
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range

9-36V DC

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Other

Default 5x Buttons- 1x Emergency-Stop, 1x Blue Button, 1x Red Button, 1x Green Button, and 1x USB 2.0, Optional 1x Key Switch, Optional 3x Black Push Buttons

Thermal & Environmental

Operating Temperature	0°C - 55°C (32°F – 131°F)
Cooling Solution	Passive – Fanless
Humidity Range	0% – 90% Non-condensing

Enclosure

Material	Aluminum front bezel and Stainless Steel Swing Arm
IP Rating	IP65
Color	Silver
Mounting Options	Swing Arm, Rittal CP-40

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Manufacturing Computer: The TSI-5945 accelerates production lines with its 11th Generation CPU and IP65-rated chassis, tailored for precise control and monitoring in factory environments.

General Industrial: The TSI-5945 thrives in tough conditions with swing arm or pole mounting options and Rittal compatibility, ensuring dependable performance across various industrial applications.

Automation System Integrators: The TSI-5945 streamlines integration with its robust computing power and customizable features, empowering automation experts to design efficient and scalable solutions for complex industrial processes.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Tech Diagram Images

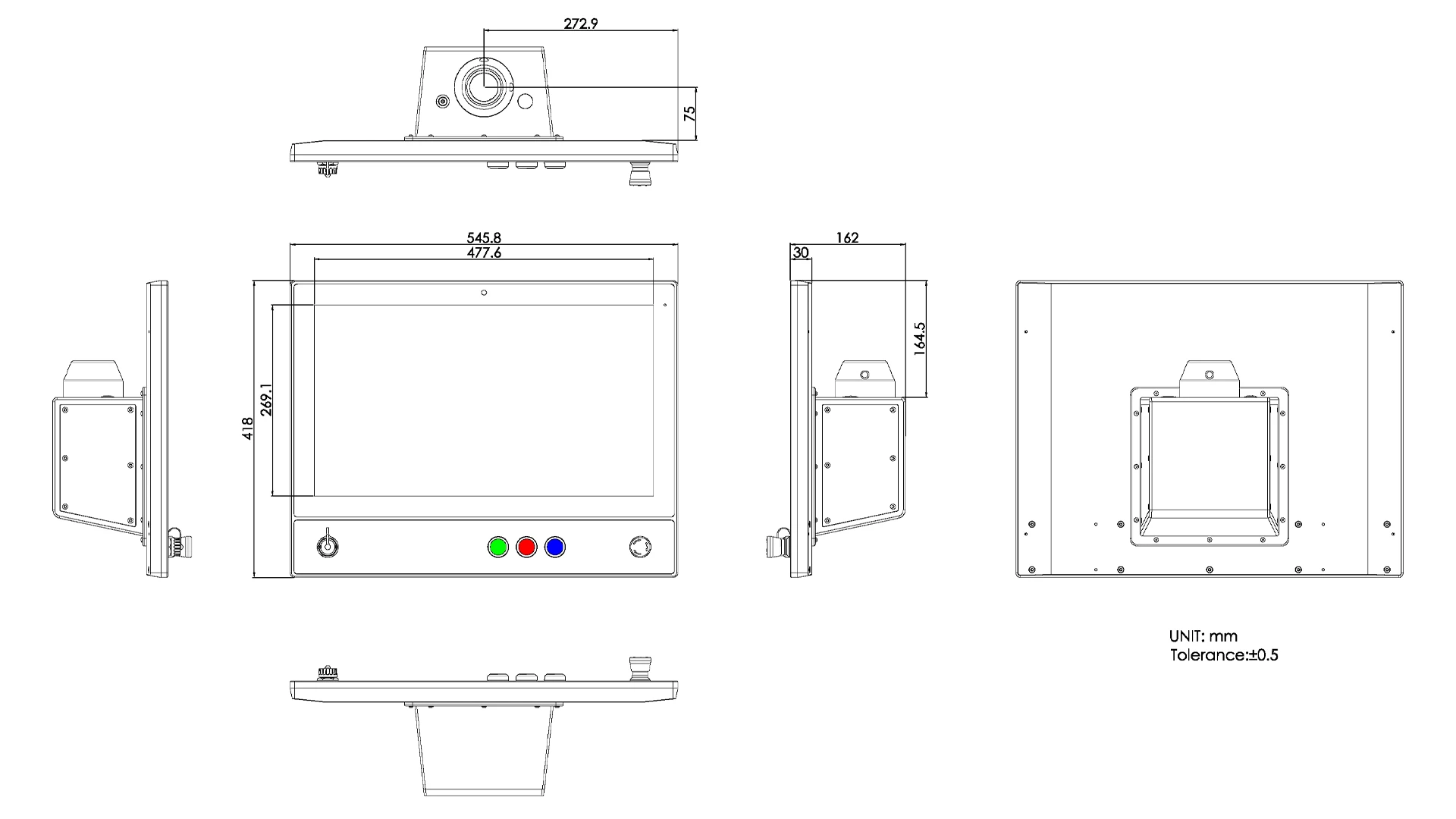

22 inch Operator Interface Terminal 2D Drawing
