TSC-7010-22

22" IP69K Computer | Trident

Available – Contact Us for Quick Quote

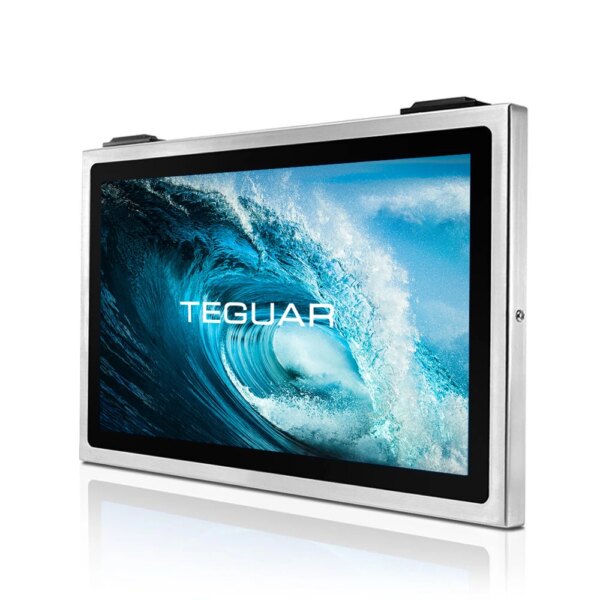

IP69K Computer Trident TSC-7010-22 front angled view

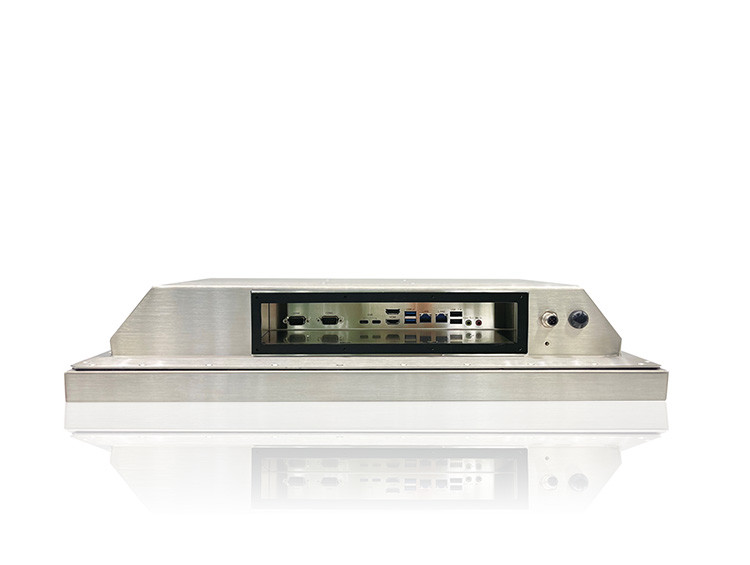

IP69K Computer TSC-7010-22 bottom view of IOs

Beschreibung

The 22″ IP69K Computer represents the epitome of technological advancement for critical industries like food and beverage manufacturing, pharmaceutical production, and cleanroom applications. Powered by a robust 12th Gen Intel Core i5 10-Core CPU and running on Windows 11, it ensures seamless performance and user-friendly interface. With IP66 and IP69K ratings, it guarantees protection against dust, water, and high-pressure cleaning, maintaining operational integrity in harsh environments. Its sealed IO design for standard cables enhances durability and reliability. Equipped with dual HDMI ports, it offers versatile connectivity options for various display configurations.

Key Highlights

22” Touch Screens
12th Gen Intel Core i5 10-Core CPU

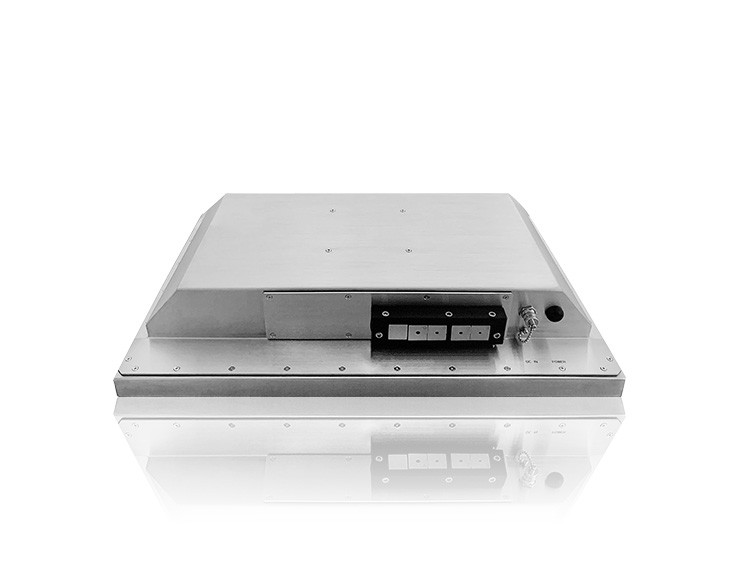

Cable Gland for Sealed I/O Connections
IP66, IP69K Waterproof Rating
Windows 11 Compatible
Dual 2.5 GbE LAN

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i5-1245UE
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD, 1x M.2 NVME SSD Slot (2242/2262/2280)
Storage Support	32GB-1TB

Display

Screen Size	21.5
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 250 nits

Touch Screen

Touch Screen	Projected Capacitive, Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2, 2x USB 3.2 Type C
Serial / Com	2x COM
Serial Protocol Detail	2x RS-232/422/485
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	2x Display Port 1.4a via USB-C, 2x HDMI 2.0b
Audio Ports	2x 3.5mm Audio Line-Out/Mic-In

Power

Input Voltage Range	12-28V DC
Standard Power Adapter	AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 for NVME SSD Support, 1x M.2 Type E

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 40°C - 0°C - 50°C (32°F – 104°F (With HDD), 32°F – 122°F (With SSD))
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Stainless Steel
IP Rating	IP66, IP69K
Color	Stainless Steel
Control Buttons	Brightness Down, Brightness Up, Power Button
Mounting Options	Swing Arm, Table Mount, VESA 100 Mount, Wall Mount

Weight / Dimensions

Weight	12
Dimensions	557 x 349 x 105

Certification

Certifications

CE, FCC, VCCI Class B

Warranty

Up to 5 Years

Food and Beverage Manufacturing: The TSC-7010 Series, with its fully waterproof design and stainless steel construction, is ideal for food and beverage manufacturing environments that require frequent washdowns. It can be used for tasks such as recipe management, batch tracking, and quality control.

Pharmaceutical Production: With its waterproof and cleanroom-compatible design, the TSC-7010 Series is well-suited for pharmaceutical production environments. It provides reliable and durable computers for tasks such as process monitoring, documentation management, and regulatory compliance.

Cleanroom Applications: The TSC-7010 Series‘ waterproof and cable gland design make it suitable for cleanroom applications that require protection against water and dust. It can be used in industries such as semiconductor manufacturing, medical device production, and research laboratories.

See the data sheet Warranty Download Drivers

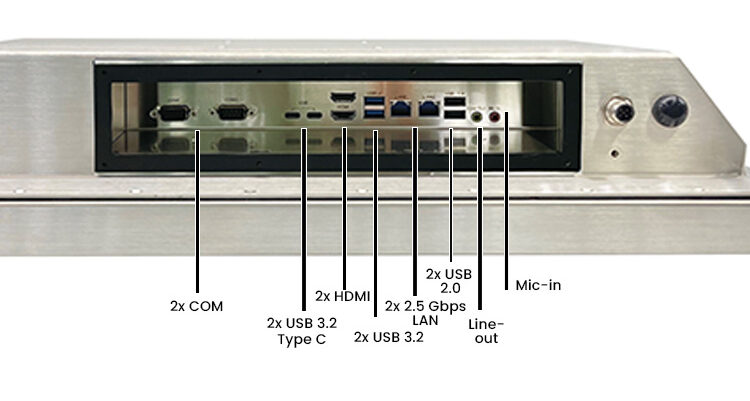

I/O Diagram Images

Tech Diagram Images

TSC-7010-22

22" IP69K Computer | Trident

Available – Contact Us for Quick Quote

Beschreibung

Der 22″ IP69K Computer ist der Inbegriff des technologischen Fortschritts für kritische Branchen wie die Lebensmittel- und Getränkeherstellung, die pharmazeutische Produktion und Reinraumanwendungen. Angetrieben von einer robusten Intel Core i5 10-Core-CPU der 12. Generation und unter Windows 11 laufend, gewährleistet er nahtlose Leistung und eine benutzerfreundliche Oberfläche. Mit den Schutzklassen IP66 und IP69K garantiert er Schutz vor Staub, Wasser und Hochdruckreinigung und gewährleistet so die Betriebsintegrität in rauen Umgebungen. Sein versiegeltes IO-Design für Standardkabel erhöht die Haltbarkeit und Zuverlässigkeit. Ausgestattet mit zwei HDMI-Anschlüssen bietet er vielseitige Anschlussmöglichkeiten für verschiedene Bildschirmkonfigurationen.
