TSC-7010-15

15" IP69K Computer | Trident

Available – Contact Us for Quick Quote

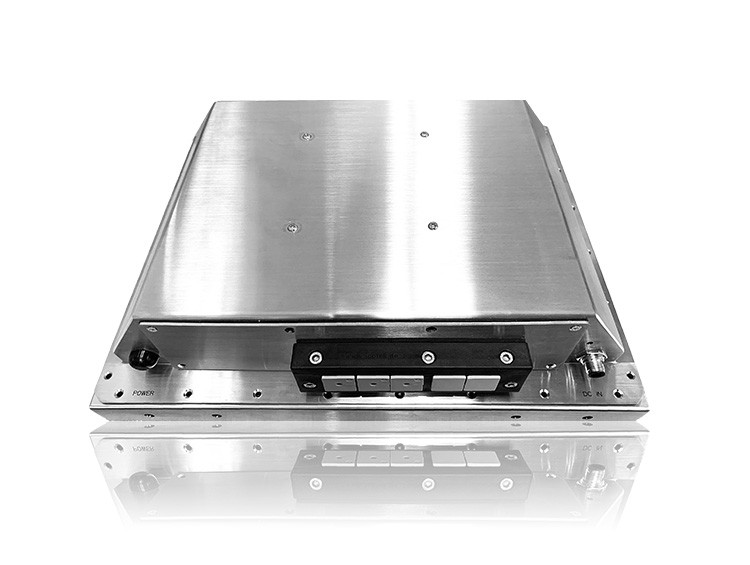

15" IP69K Computer TSC-7010-15 Back Angle

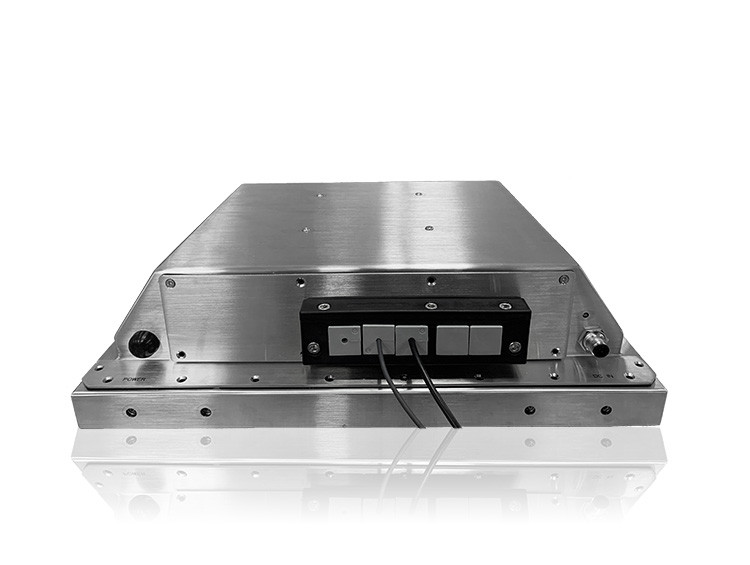

15" IP69K Computer TSC-7010-15 Back Cable Glands

Beschreibung

The 15″ IP69K Computer is efficient and reliable in demanding environments like food and beverage manufacturing, pharmaceutical production, and cleanroom applications. Powered by a 12th Gen Intel Core i5 10-Core CPU and equipped with Windows 11, it ensures robust performance and seamless operation. The sealed IO design allows for the use of standard cables, simplifying installation and maintenance processes. With IP66 and IP69K ratings, the TSC-7010-15 offers superior protection against dust, water, and high-pressure cleaning. Additionally, the inclusion of dual 2.5 GbE LAN ports enhances connectivity and facilitates fast data transfer, further optimizing workflow efficiency.

Key Highlights

15” Touch Screens
12th Gen Intel Core i5 10-Core CPU
Cable Gland for Sealed I/O Connections
IP66, IP69K Waterproof Rating
Windows 11 Compatible
Dual 2.5 GbE LAN

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i5-1245UE
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 6GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Touch Screen	Projected Capacitive, Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x USB 2.0, 2x USB 3.2, 2x USB 3.2 Type C
Serial / Com	2x COM
Serial Protocol Detail	2x RS-232/422/485
Ethernet / LAN	2x RJ45 2.5 GbE LAN
Video Outputs	2x Display Port 1.4a via USB-C, 2x HDMI 2.0b
Audio Ports	1x Audio Line-Out, 1x Mic-In

Power

Input Voltage Range	12-28V DC
Standard Power Adapter	AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro, Windows 11 Pro
Linux	Linux

Compatibility

Security Hardware

TPM 2.0

Expansion Slots

Internal M.2

1x M.2 3042/3052 Key B (For 4G/5G Cellular expansion option), 1x M.2 for NVME SSD Support, 1x M.2 Type E

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K
Color	Stainless Steel
Control Buttons	Brightness Down, Brightness Up, Power Button
Mounting Options	Swing Arm, Table Mount, VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi + Bluetooth Flat Antenna Kit
Sim Card	1x Nano SIM Card Slot
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional RFID (Cannot coexist with barcode scanner)

Weight / Dimensions

Weight	8.4
Dimensions	395 x 310 x 105

Certification

Certifications

CE, FCC, VCCI Class B

Warranty

Up to 5 Years

Food and Beverage Manufacturing: The TSC-7010 Series, with its fully waterproof design and stainless steel construction, is ideal for food and beverage manufacturing environments that require frequent washdowns. It can be used for tasks such as recipe management, batch tracking, and quality control.

Pharmaceutical Production: With its waterproof and cleanroom-compatible design, the TSC-7010 Series is well-suited for pharmaceutical production environments. It provides reliable and durable computers for tasks such as process monitoring, documentation management, and regulatory compliance.

Cleanroom Applications: The TSC-7010 Series‘ waterproof and cable gland design make it suitable for cleanroom applications that require protection against water and dust. It can be used in industries such as semiconductor manufacturing, medical device production, and research laboratories.

See the data sheet Warranty Download Drivers

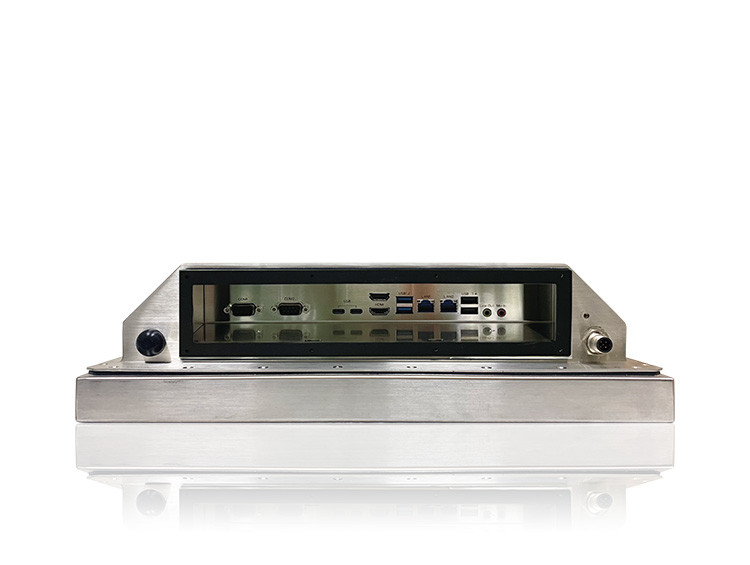

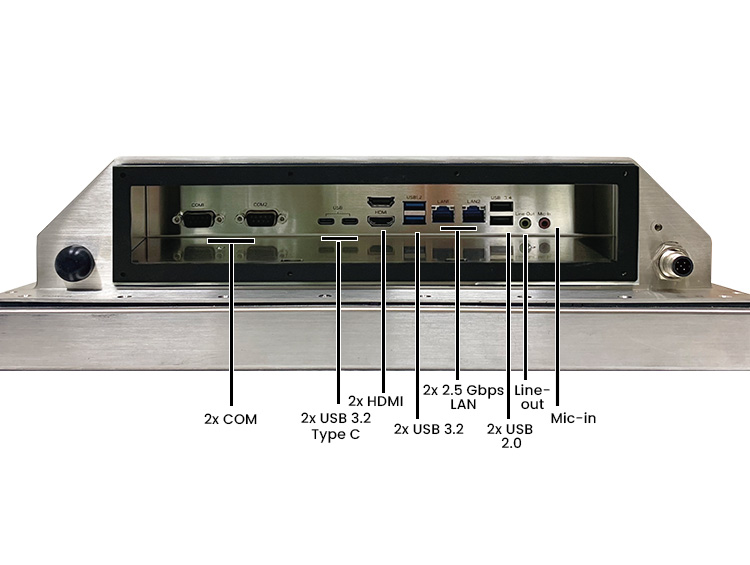

I/O Diagram Images

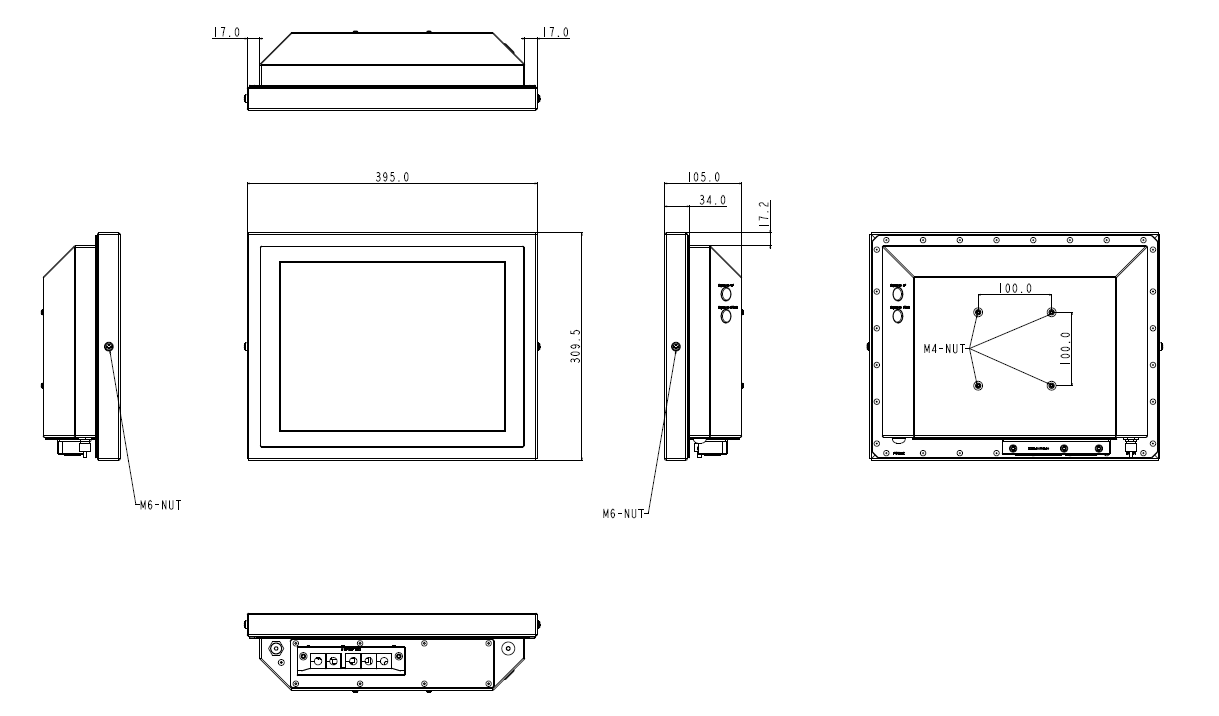

Tech Diagram Images

TSC-7010-15

15" IP69K Computer | Trident

Available – Contact Us for Quick Quote

Beschreibung

Der 15″ IP69K Computer ist effizient und zuverlässig in anspruchsvollen Umgebungen wie der Lebensmittel- und Getränkeherstellung, der pharmazeutischen Produktion und bei Reinraumanwendungen. Angetrieben von einer Intel Core i5 10-Core-CPU der 12. Generation und ausgestattet mit Windows 11 sorgt er für robuste Leistung und reibungslosen Betrieb. Das versiegelte IO-Design ermöglicht die Verwendung von Standardkabeln und vereinfacht so die Installation und die Wartungsprozesse. Mit den Schutzklassen IP66 und IP69K bietet der TSC-7010-15 hervorragenden Schutz vor Staub, Wasser und Hochdruckreinigung. Darüber hinaus verbessert die Ausstattung mit zwei 2,5 GbE-LAN-Ports die Konnektivität und ermöglicht eine schnelle Datenübertragung, was die Effizienz des Arbeitsablaufs weiter optimiert.
