TS-7010-24

24" Stainless Steel Computer | Trident

Available – Contact Us for Quick Quote

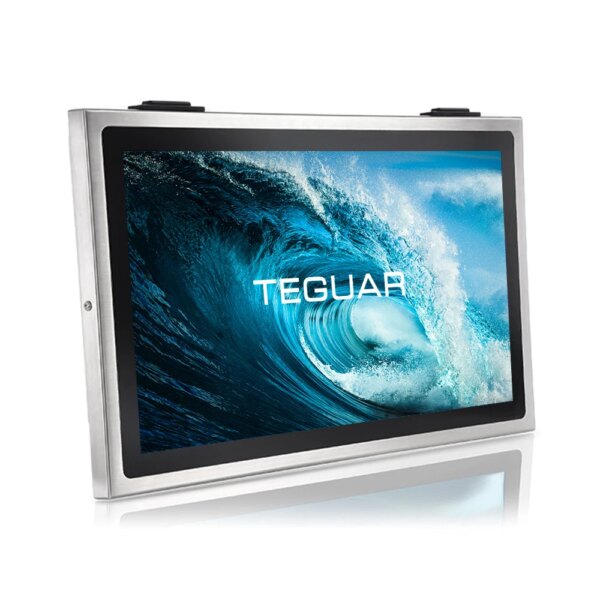

24" Stainless Steel Computer TS-7010-24 Back

Beschreibung

Introducing the 24″ Stainless Steel Computer, a pinnacle of industrial computing. Fueled by an Intel 12th Generation CPU and Windows 11, it combines cutting-edge performance with a sleek interface. Notably, its IP69K Waterproof M12 connectors make it impervious to challenging environments, solidifying its role in food processing and pharmaceutical clean rooms. Crafted from stainless steel and featuring a robust flat WiFi antenna, this computer guarantees durability and uninterrupted connectivity, setting a new standard for reliability in demanding workplaces. For those seeking a powerful, resilient, and technologically advanced computing solution, the 24″ Stainless Steel Computer stands as the epitome of industrial excellence.

Key Highlights

24” LCD Touchscreen Display
Intel 12th Generation i5 Processor 9300 Passmark score
Windows 11
i7 CPU Upgrade Option
IP69K Waterproof M12 Connectors

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i5-1245UE
Processor Speed	Up to 4.4 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 2280 NVME SSD slot
Storage Support	128GB-2TB

Display

Screen Size	23.8"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	250 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch), 5 Wire Resistive
Hardness	Resistive: 3H, P-cap: 7H

External I/O Ports

USB	2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com	2x M12 8-pin for COM
Serial Protocol Detail	RS-232/422/485
Ethernet / LAN	1x M12 8pin RJ45 Gbe LAN
Video Outputs	Optional Display Port 1.4 through USB-C
Other Ports	Optional 1X USB-C 3.2 through M20 connector on bottom Bezel
Power Input Port	M12 type 5-PIN DC-in

Power

Input Voltage Range	12-28V DC
Standard Power Adapter	AC 100 ~ 277V / DC output 24V, 5A, 120W, IP68

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option), 1x M.2 for NVME SSD Support

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K, NEMA 4X
Color	Stainless Steel
Control Buttons	Brightness Down, Brightness Up, Power Button
Mounting Options	Floor Stand, Swing Arm, Table Mount, VESA 100 Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional Wi-Fi 6 802.11 AX Dual Band, with Robust Flat Antennas
Bluetooth	Optional Bluetooth 5.3
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional RFID Reader

Weight / Dimensions

Weight	14.8
Dimensions	627x396x64

Certification

Certifications

CE, FCC

Warranty

Up to 5 Years

Food Processing: The TS-7010 series excels in food processing environments where durability and resistance to harsh conditions are paramount. Constructed from stainless steel and equipped with an Intel 12th Generation CPU running on Windows 11, it ensures reliable and efficient computing in demanding food production settings.

Pharmaceutical Clean Rooms: Tailored for pharmaceutical industries, the TS-7010 series maintains cleanliness standards in sterile environments, offering precision and reliability. The stainless steel construction, combined with the powerful processing, makes it an ideal computing solution for pharmaceutical clean rooms where hygiene is critical.

Chemical Processing Plants: The robust stainless steel design of the TS-7010 series makes it well-suited for chemical processing environments. With resistance to corrosive substances, this series ensures long-term functionality in challenging chemical processing plants.

See the data sheet Warranty Download Drivers

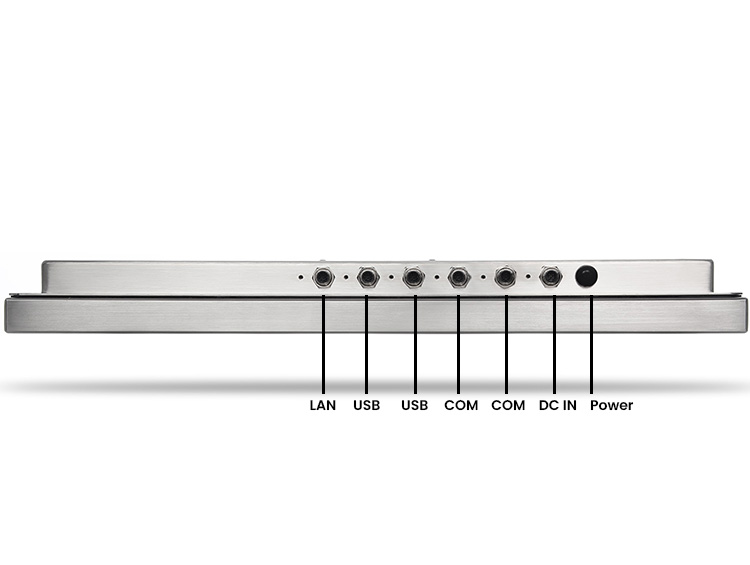

I/O Diagram Images

Tech Diagram Images
