TS-5945-22

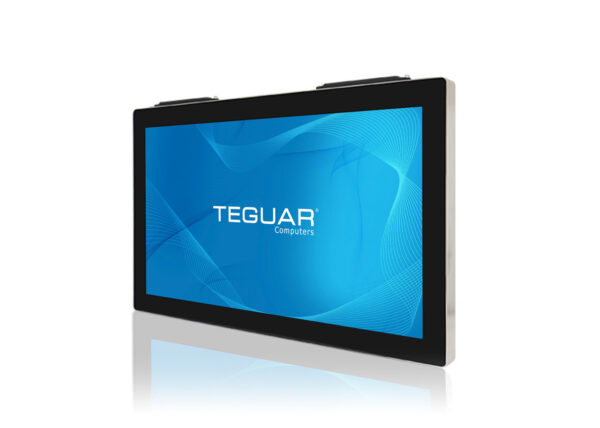

22″ Stainless Steel Computer
Available – Contact Us for Quick Quote

Beschreibung

The TS-5945-22 Stainless Steel Computer is ideal for industrial environments where water, dust, or harsh chemicals are present. The unit is made with SUS304 stainless steel, complete with hygienic bolts sealed with rubber NBR rings to keep moisture out. Equipped with multiple I/Os, M12 waterproof connectors allow for the use of inputs and outputs while in these wet environments. This 22” Stainless Steel Computer even comes with two optional blank M12 connectors for additional I/Os of your choice. Located inside the units is a powerful Intel® 11th Generation Tiger Lake CPU that allows the computer to be able to run Windows 11 operating system smoothly.

Key Highlights

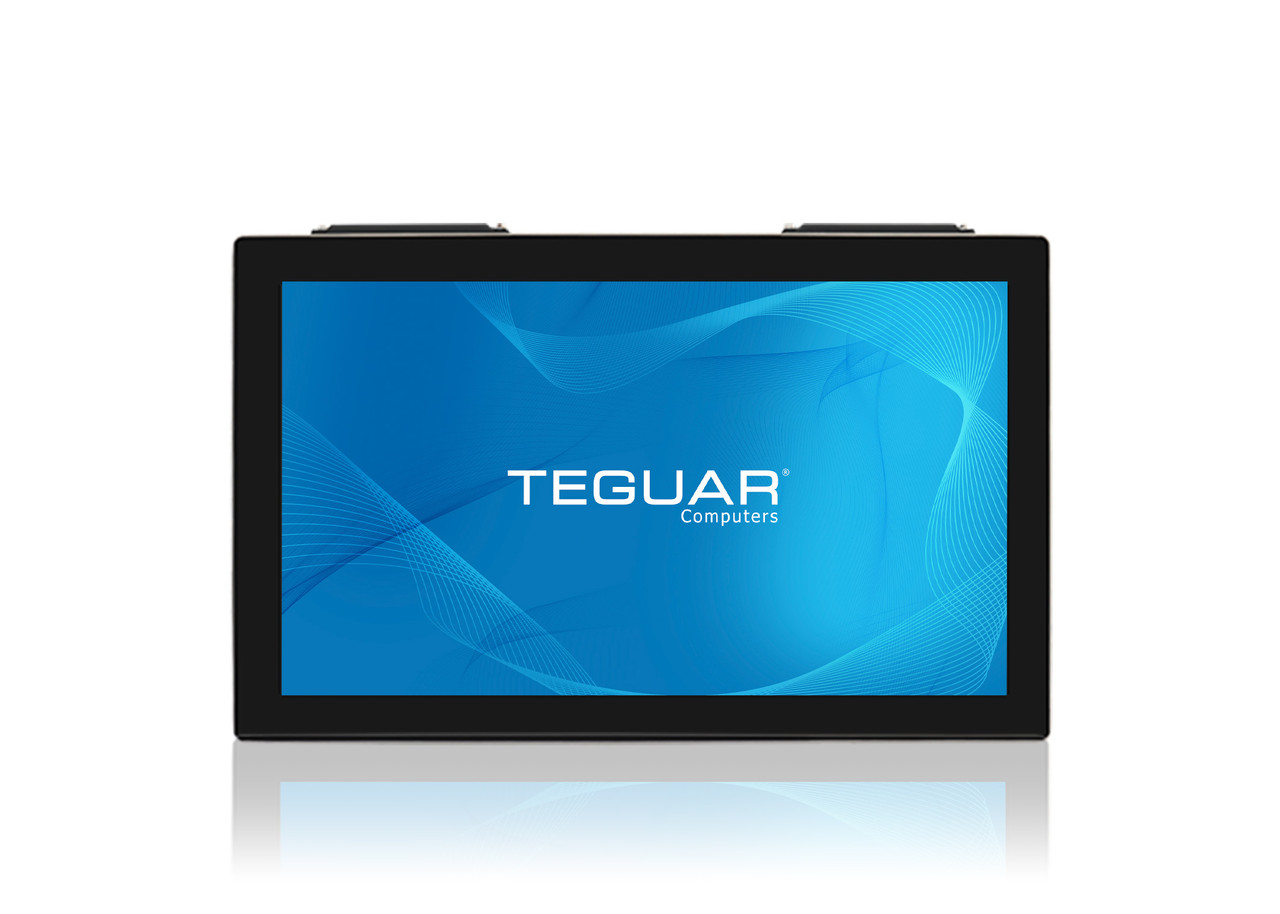

  • 21.5” Touchscreen Display
  • Intel 11th Generation Tiger Lake Core i3/i5 CPU
  • Fanless Cooling System
  • Windows 11 Compatible

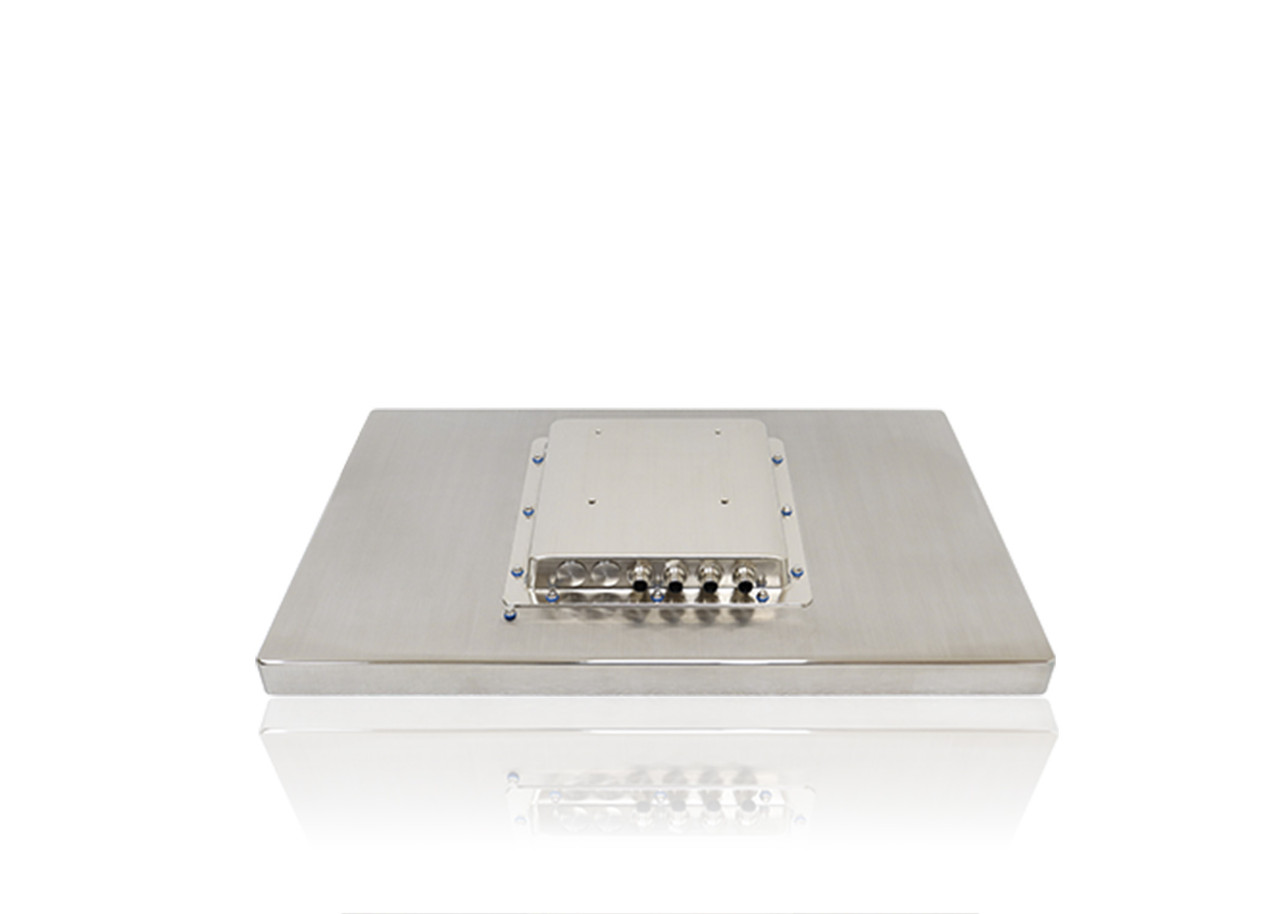

  • Multiple I/Os including 2x USB 2.0, 1x LAN, and 1x COM
  • IP66/IP69K Waterproof Rated

Warum bei Teguar kaufen

  • Engagierte, schnell reagierende Kundensupport-Experten
  • 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
  • Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelStandard Core i3-1115G4E, optional upgrade to i5-1145G7E
Processor SpeedUp to 4.1 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type1x M.2 2280 SSD slot, SATA3 or NVME
Storage Support128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit High Brightness, 250 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB1x M12 8Pin for USB 1/2
Serial / Com1x M12 8-pin for COM
Serial Protocol Detail1x RS-232/422/485 (configured in BIOS), RS-232 default
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN
Other Ports2x blank M12s are reserved for optional IO expansion
Power Input PortM12 type 3-PIN DC-in

Power

Input Voltage Range9-36V DC
Max Power Consumption36W
Standard Power AdapterOptional IP67, AC 90-305V Input, 96W OR Non-IP65, AC 90-305V Input, 90W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F – 122°F (i3/i5))
Storage Temperature-30°C - 70°C (-22°F – 158°F)
Cooling SolutionPassive – Fanless
Humidity Range10% – 90% Non-condensing
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialSUS304 Stainless Steel
IP RatingIP66, IP69K
ColorStainless Steel
Control ButtonsPower Switch
Mounting OptionsFloor Stand, Swing Arm, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFiOptional WiFi + Bluetooth, Flat Antenna, Supports WIFI 6 (AX)
BluetoothBluetooth 5.2
Sim Card1x Nano SIM Card Slot
RFIDOptional RFID module on front side, project only

Weight / Dimensions

Weight7.9
Dimensions540.4x332.4x61.9

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

Chemical Processing: The TS-5945 Stainless Steel Series is well-suited for industrial environments where harsh chemicals are present, providing a durable and corrosion-resistant computing solution that can withstand the demands of chemical processing operations.

Food and Beverage Manufacturing: With its stainless steel chassis and metal M12 I/O connectors, the TS-5945 Series is designed to thrive in food and beverage manufacturing environments where water, dust, and cleaning agents are prevalent, ensuring reliable operation and protection against contamination.

Pharmaceutical Manufacturing: The TS-5945 Stainless Steel Series, with its moisture-free design and industrial-grade components, is ideal for pharmaceutical manufacturing facilities that require robust and hygienic computing solutions capable of withstanding challenging environmental conditions.

Petrochemical Plants: The TS-5945 Series, built to withstand harsh industrial environments, including those found in petrochemical plants, offers reliable computing performance and protection against water, dust, and chemical exposure, making it suitable for critical control and monitoring applications.

Dimensional Drawings & I/Os

I/O Diagram Images

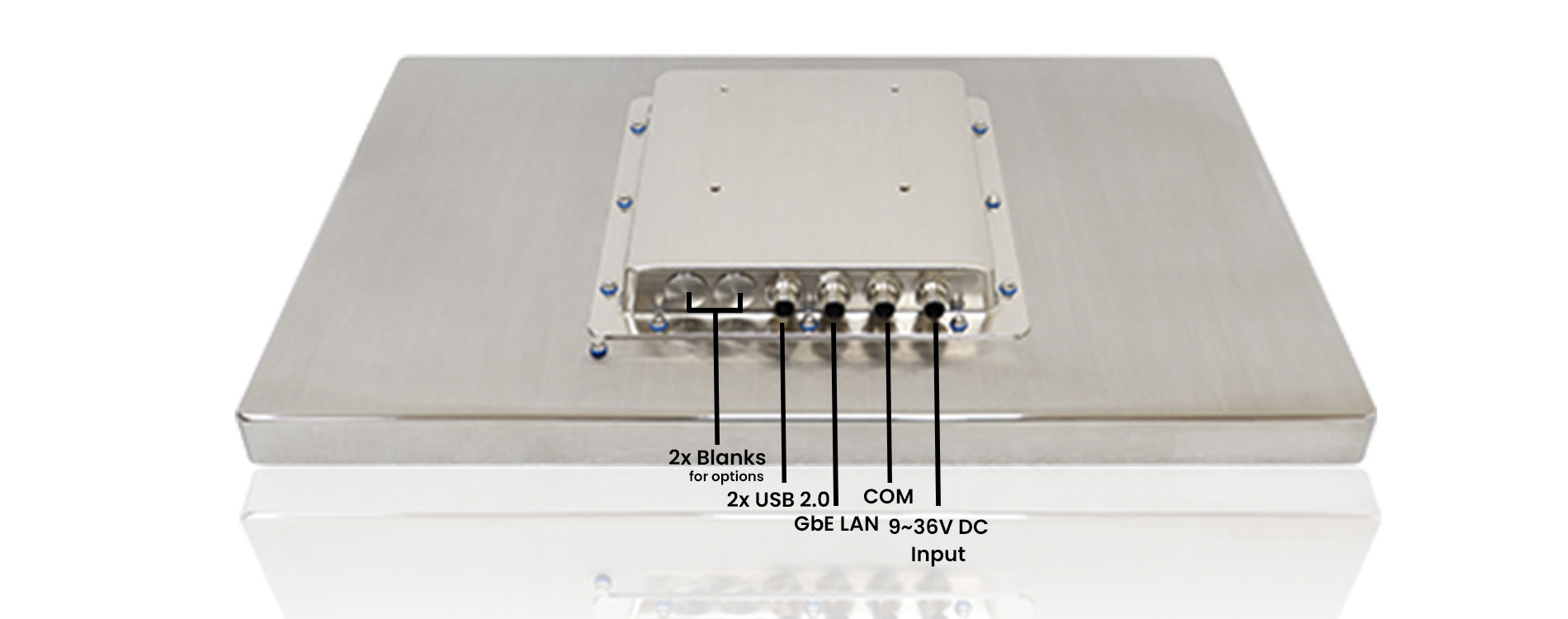

TS-5945-22 IOs Labled

Tech Diagram Images

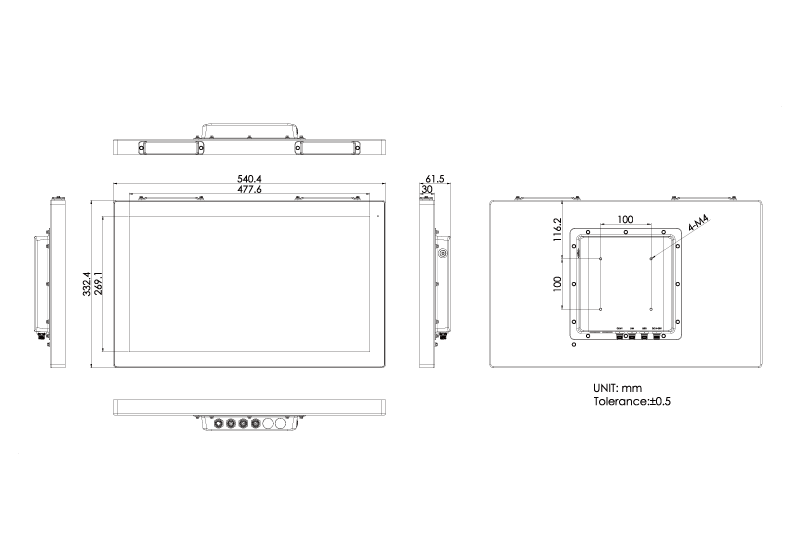

TS-5945-22 Technical Drawing

TS-5945-22

22″ Computer aus Edelstahl
Available – Contact Us for Quick Quote

Beschreibung

Der TS-5945-22 Edelstahl-Computer ist ideal für industrielle Umgebungen, in denen Wasser, Staub oder aggressive Chemikalien vorkommen. Das Gerät besteht aus SUS304-Edelstahl und ist mit hygienischen Schrauben ausgestattet, die mit NBR-Gummiringen abgedichtet sind, um Feuchtigkeit fernzuhalten. Ausgestattet mit mehreren E/As, ermöglichen wasserdichte M12-Anschlüsse die Nutzung von Ein- und Ausgängen in diesen feuchten Umgebungen. Dieser 22-Zoll-Edelstahlcomputer wird sogar mit zwei optionalen leeren M12-Anschlüssen für zusätzliche E/As Ihrer Wahl geliefert. Im Inneren der Geräte befindet sich ein leistungsstarker Intel® Tiger Lake CPUder 11. Generation, die es dem Computer ermöglicht, das Betriebssystem Windows 11 reibungslos auszuführen.

Key Highlights

  • 21,5″ Touchscreen-Display
  • Intel 11. Generation Tiger Lake Core i3/i5 CPU
  • Lüfterloses Kühlsystem
  • Kompatibel mit Windows 11
  • Mehrere E/As, darunter 2x USB 2.0, 1x LAN und 1x COM
  • Wasserdicht nach IP66/IP69K

Warum bei Teguar kaufen

  • Engagierte, schnell reagierende Kundensupport-Experten
  • 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
  • Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelStandard Core i3-1115G4E, optionales Upgrade auf i5-1145G7E
Processor SpeedBis zu 4,1 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32 GB, 64 GB
Storage Type1x M.2 2280 SSD-Steckplatz, SATA3 oder NVME
Storage Support128GB-1TB

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
BrightnessOptional 1000 nit hohe Helligkeit, 250 nits

Touch Screen

Touch ScreenProjiziert kapazitiv (Multi-Touch)

External I/O Ports

USB1x M12 8Pin für USB 1/2
Serial / Com1x M12 8-polig für COM
Serial Protocol Detail1x RS-232/422/485 (im BIOS konfiguriert), RS-232 Standard
Ethernet / LAN1x M12 8pin RJ45 Gbe LAN
Other Ports2x leere M12s sind für optionale IO-Erweiterungen reserviert
Power Input PortM12 Typ 3-PIN DC-Eingang

Power

Input Voltage Range9-36V DC
Max Power Consumption36W
Standard Power AdapterOptional IP67, AC 90-305V Eingang, 96W ODER Nicht-IP65, AC 90-305V Eingang, 90W

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro, Windows 11 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2 2230 Key E (für WiFi-Erweiterungsoption)

Thermal & Environmental

Operating Temperature0°C - 50°C (32°F - 122°F (i3/i5))
Storage Temperature-30°C - 70°C (-22°F - 158°F)
Cooling SolutionPassiv - Lüfterlos
Humidity Range10 % – 90 % nicht kondensierend
Storage Humidity10% – 90% Non-condensing

Enclosure

MaterialSUS304 Edelstahl
IP RatingIP66, IP69K
ColorRostfreier Stahl
Control ButtonsPower Switch
Mounting OptionsBodenständer, Schwenkarm, VESA 100 Halterung

Peripherals & Wireless Connectivity

WiFiOptional WiFi + Bluetooth, Flachantenne, unterstützt WIFI 6 (AX)
BluetoothBluetooth 5.2
Sim Card1x Nano-SIM-Kartensteckplatz
RFIDOptionales RFID-Modul auf der Vorderseite, nur Projekt

Weight / Dimensions

Weight7.9
Dimensions540.4x332.4x61.9

Certification

CertificationsCE, FCC

Warranty

WarrantyUp to 5 Years

Chemische Verarbeitung: Die Edelstahlserie TS-5945 eignet sich gut für industrielle Umgebungen, in denen raue Chemikalien vorhanden sind. Sie bietet eine langlebige und korrosionsbeständige Computerlösung, die den Anforderungen der chemischen Verarbeitung standhält.

Lebensmittel- und Getränkeherstellung: Mit ihrem Edelstahlgehäuse und den M12-E/A-Steckern aus Metall ist die TS-5945 Serie für den Einsatz in der Lebensmittel- und Getränkeindustrie konzipiert, wo Wasser, Staub und Reinigungsmittel weit verbreitet sind, und gewährleistet einen zuverlässigen Betrieb und Schutz vor Verunreinigungen.

Pharmazeutische Herstellung: Die Edelstahlserie TS-5945 ist mit ihrem feuchtigkeitsfreien Design und den industrietauglichen Komponenten ideal für pharmazeutische Produktionsstätten, die robuste und hygienische Computerlösungen benötigen, die auch schwierigen Umgebungsbedingungen standhalten.

Petrochemische Anlagen: Die Serie TS-5945 ist für den Einsatz in rauen Industrieumgebungen, wie z.B. in petrochemischen Anlagen, konzipiert. Sie bietet zuverlässige Rechenleistung und Schutz vor Wasser, Staub und Chemikalien und eignet sich daher für kritische Kontroll- und Überwachungsanwendungen.
