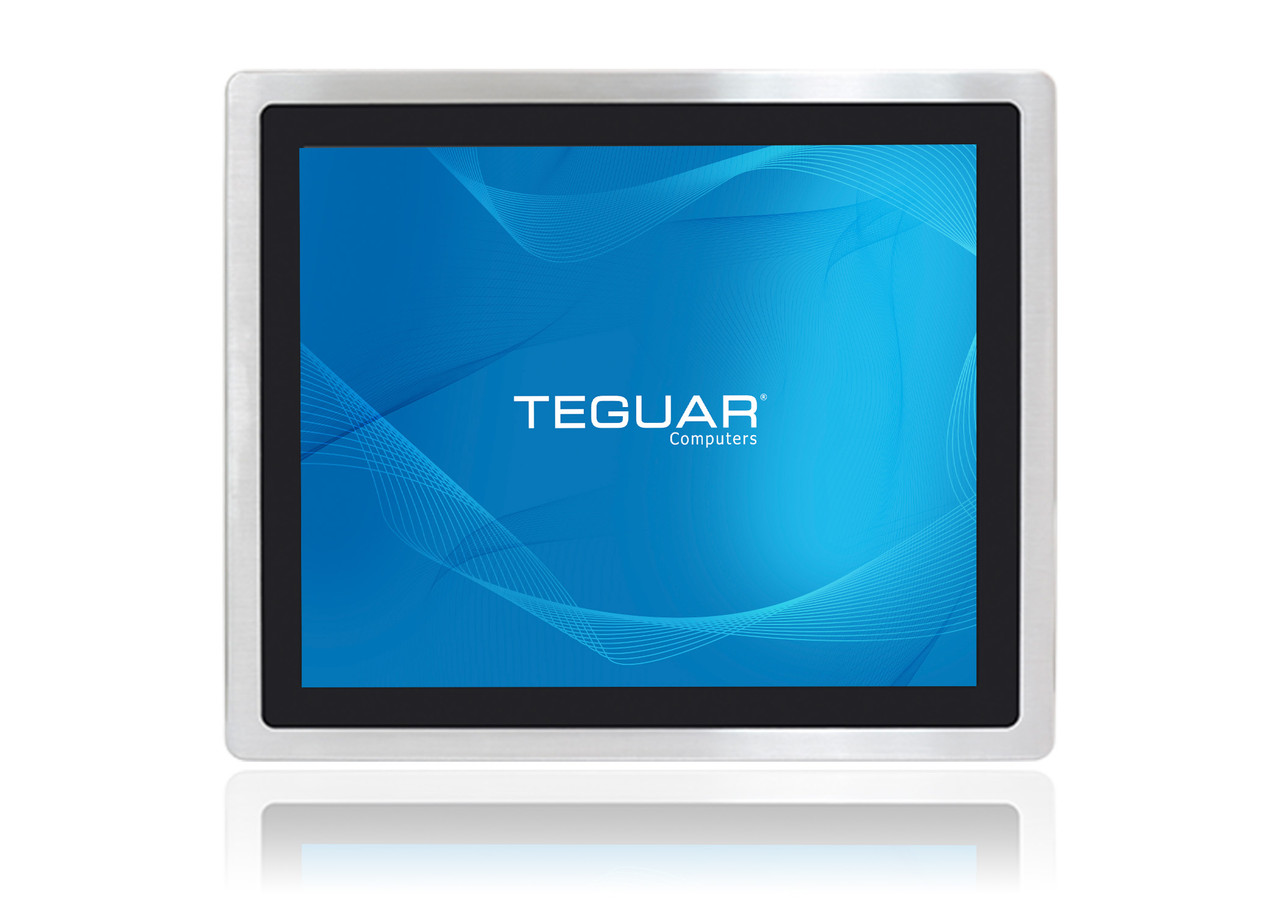

TS-5645-19

19" Stainless Steel HMI

Available – Contact Us for Quick Quote

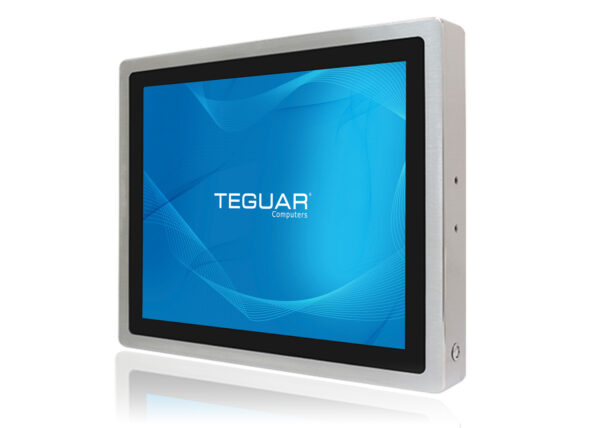

Stainless Steel HMI TS-5645-19 Front Angle

Stainless Steel HMI TS-5645-19 Rear Angle

Beschreibung

The TS-5645-19 Stainless Steel HMI runs on a powerful Intel 8^th generation Core i3 processor and has the capability to operate with Windows 11. The computer is encased in a fully sealed stainless-steel housing, making it ideal for wet environments. The fanless cooling system and IP66 rating ensure no dust, debris, water or harsh chemicals get into the unit. M12 waterproof I/O connectors also protect the inputs and outputs from potential moisture. The TS-5645-19 is built with industrial-grade components and supports a wide temperature range to allow for placement in a variety of environments.

Key Highlights

19” LCD TFT touchscreen display
Fanless cooling system
Multiple I/Os including 2x USB 2.0, 1x LAN, and 1x COM
IP66 waterproof rated
Intel 8th Generation Core i3 CPU
VESA 75 mounting

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 8th Generation Whiskey Lake-U
Processor Model	Core i3 8145UE, Core i5-8365UE
Processor Speed	2.4 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage Support	M.2: 128GB-1TB

Display

Screen Size	19
Resolution	1280 x 1024 (SXGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	1x M12 8Pin for USB 1/2
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232
Ethernet / LAN	1x M12 8pin RJ45 Gbe LAN
Video Outputs	1x Optional DisplayPort, 1x Optional HDMI
Other Ports	1x M12 type 3-PIN DC-in

Power

Input Voltage Range

9-36V DC

Operating Systems

Windows

Windows 10 IoT, Windows 11, Windows 11 Pro

Compatibility

Security Hardware

fTPM 2.0

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	SUS304 Stainless Steel
IP Rating	IP66 Front Bezel
Color	Silver
Control Buttons	Power Button, Touchscreen Lock for Cleaning
Mounting Options	VESA Mount

Weight / Dimensions

Weight	9.5
Dimensions	432x358x55

Certification

Certifications

CE, FCC Class A

Warranty

1 Year

Food Processing: The TS-5645 Stainless Steel HMI Computer Series is designed to withstand the challenges of food processing environments, with its fully sealed stainless steel housing and IP66 rating, ensuring protection against water, dust, and harsh cleaning chemicals.

Chemical Manufacturing: With its resistance to harsh chemicals and its ability to operate in a wide temperature range, the TS-5645 Series is well-suited for industrial environments in the chemical manufacturing industry, providing reliable computing solutions for process control and monitoring applications.

Pharmaceutical Production: The TS-5645 Stainless Steel HMI Computer Series, with its rugged and sealed stainless steel housing, is ideal for pharmaceutical production environments that require high levels of cleanliness and protection against contamination, making it suitable for critical data monitoring and analysis tasks.

See the data sheet Warranty Download Drivers

I/O Diagram Images

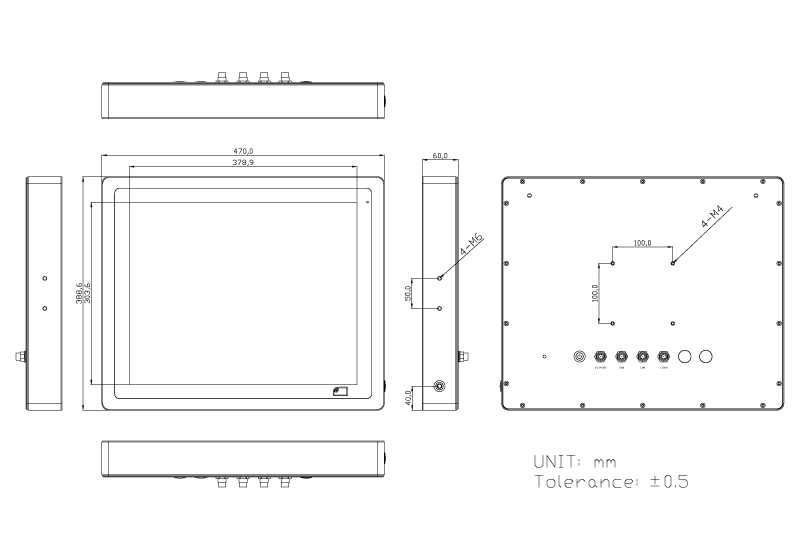

Tech Diagram Images

TS-5645-19

19" Edelstahl HMI

Available – Contact Us for Quick Quote

Beschreibung

Das TS-5645-19 Edelstahl-Bediengerät läuft auf einem leistungsstarken Intel Core i3 Prozessor der^8. Generation und kann mit Windows 11 betrieben werden. Der Computer ist in einem vollständig versiegelten Edelstahlgehäuse untergebracht und damit ideal für feuchte Umgebungen geeignet. Das lüfterlose Kühlsystem und die IP66-Einstufung sorgen dafür, dass kein Staub, kein Schmutz, kein Wasser und keine aggressiven Chemikalien in das Gerät eindringen können. Die wasserdichten M12-E/A-Anschlüsse schützen die Ein- und Ausgänge ebenfalls vor möglicher Feuchtigkeit. Der TS-5645-19 besteht aus industrietauglichen Komponenten und unterstützt einen breiten Temperaturbereich, so dass er in einer Vielzahl von Umgebungen eingesetzt werden kann.
