TS-5645-16

16" Stainless Steel HMI

Available – Contact Us for Quick Quote

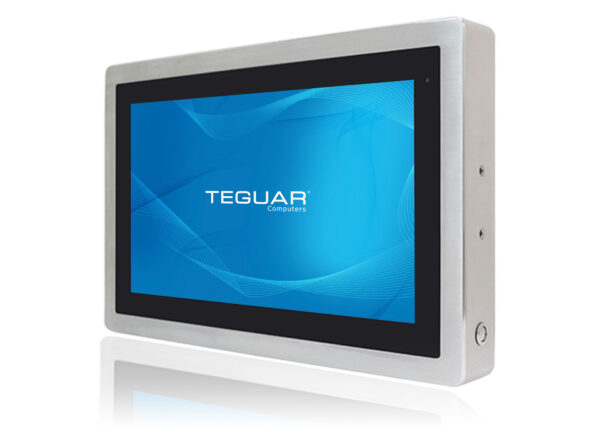

Stainless Steel HMI TS-5645-16 Front Angle

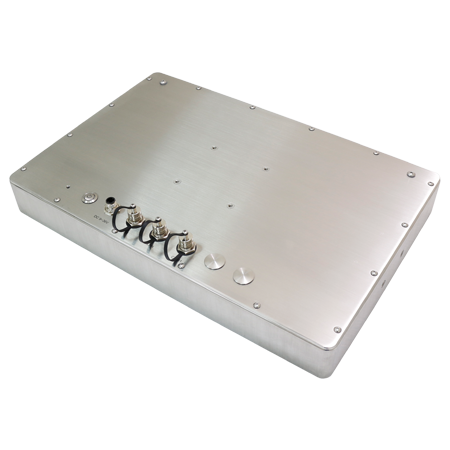

Stainless Steel HMI TS-5645-16 Rear Angle

Beschreibung

The TS-5645-16 Stainless Steel HM is an IP66 waterproof rated computer encased in fully sealed stainless-steel housing. This enclosure makes the unit ideal for wet environments where dust, debris, water, and harsh chemicals are prevalent. M12 waterproof I/O connectors allow the use of inputs and outputs while in these wet environments. The fully fanless design and ability to operate in temperatures ranging from -20°c to 60°c ensure that you can confidently place this computer in the most demanding workplaces. This product runs on an Intel 8^th generation Core i3 processor and has the capability of operating with Windows 11.

Key Highlights

15.6” LCD TFT touchscreen display
Intel 8th Generation Core i3 CPU
Fanless cooling system
Multiple I/Os including 2x USB 2.0, 1x LAN, and 1x COM
IP66 waterproof rated

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron or Core i 8th Generation Whiskey Lake
Processor Model	Core i3 8145UE, Core i5-8365UE
Processor Speed	2.2 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB, 64GB
Storage Type	1x M.2 M Key, PCIe or SATA, 2242 NVME support
Storage Support	M.2: 128GB-1TB

Display

Screen Size	15.6"
Resolution	1920 x 1080 (Full HD)
Screen Ratio	16:9
Brightness	Optional 1000 nit High Brightness, 300 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	1x M12 8Pin for USB 1/2, 2x USB 2.0
Serial / Com	1x M12 8-pin for COM
Serial Protocol Detail	1x RS-232/422/485 DB-9, default RS-232
Ethernet / LAN	1x M12 8pin RJ45 Gbe LAN
Video Outputs	1x DisplayPort, 1x HDMI
Other Ports	1x M12 type 3-PIN DC-in

Power

Input Voltage Range	9-36V DC
Max Power Consumption	59W
Standard Power Adapter	Optional IP65 24 V 2.5A AC/DC Adapter

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11

Expansion Slots

Internal M.2

1x M.2 for NVME SSD Support

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Optional Stainless Steel 316L, SUS304 Stainless Steel
IP Rating	IP66 Front Bezel
Color	Silver
Led Indicator Light	Power
Mounting Options	Panel Mount, VESA Mount

Weight / Dimensions

Weight	7.1
Dimensions	432x358x55

Certification

Certifications

CE, FCC Class A

Warranty

1 Year

Food Processing: The TS-5645 Stainless Steel HMI Computer Series is designed to withstand the challenges of food processing environments, with its fully sealed stainless steel housing and IP66 rating, ensuring protection against water, dust, and harsh cleaning chemicals.

Chemical Manufacturing: With its resistance to harsh chemicals and its ability to operate in a wide temperature range, the TS-5645 Series is well-suited for industrial environments in the chemical manufacturing industry, providing reliable computing solutions for process control and monitoring applications.

Pharmaceutical Production: The TS-5645 Stainless Steel HMI Computer Series, with its rugged and sealed stainless steel housing, is ideal for pharmaceutical production environments that require high levels of cleanliness and protection against contamination, making it suitable for critical data monitoring and analysis tasks.

See the data sheet Warranty Download Drivers

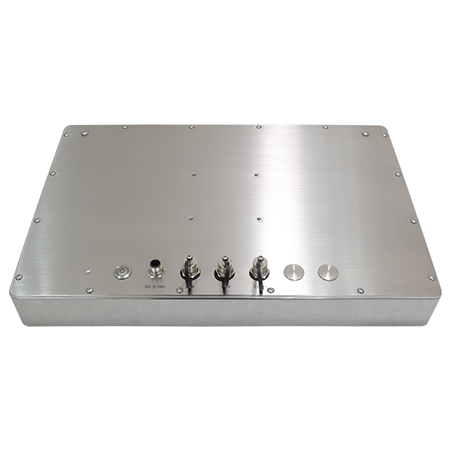

I/O Diagram Images

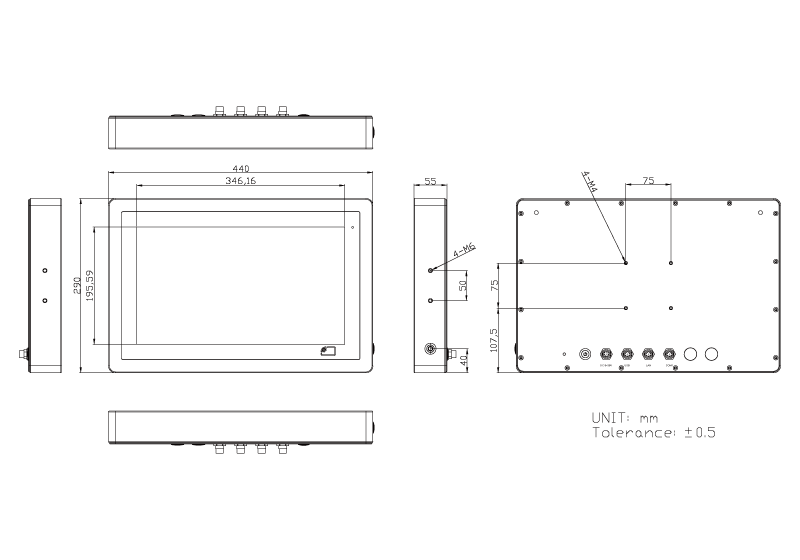

Tech Diagram Images
