TS-4510-19

19” Sealed Computer

Available – Contact Us for Quick Quote

Beschreibung

The TS-4510-19 has a 19” resistive or Pcap touchscreen and a full flat front bezel, meaning there are no crevices where debris and dirt can build up. The housing of this computer is fully sealed and made with corrosion-proof stainless steel. The TS-4510-19 is designed for food processing and repeated cleanings in washdown environments. It carries an IP66 / IP69K rating and has the option to be configured for IP67. This PC has 6x M12 I/O ports that seal out water and it comes with an IP68 rated power supply.

Key Highlights

19” Full-Flat Touchscreen
Intel Apollo Lake J3455 Celeron CPU
IP66 / IP69K and Optional IP67
Fanless and Fully Sealed
M12 Metal Waterproof Connectors

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Apollo Lake
Processor Model	J3455 Quad Core
Processor Speed	1.5 GHz
Memory Type	1x DDR3L SO-DIMM
Memory Support	4GB, 8GB
Storage Type	M.2, 1x 2.5" SATA Drive Bay for SSD/HDD
Storage Support	32GB-1TB

Display

Screen Size	19
Resolution	1280 x 800 (WXGA)
Screen Ratio	5:4
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Touch Screen	Projected Capacitive, 5 Wire Resistive
Hardness	Resistive: 4H, P-cap: 7H

External I/O Ports

USB	2x M12 8Pin for USB 1/2 and USB 3/4
Serial / Com	2x M12 8-pin for COM
Serial Protocol Detail	1x RS-232, 1x RS-232/422/485
Ethernet / LAN	1x M12 8pin RJ45 Gbe LAN
Power Input Port	M12 type 5-PIN DC-in

Power

Input Voltage Range	9-32V DC
Max Power Consumption	43W
Standard Power Adapter	AC 100~240V / 47 ~ 63Hz, IP68, 60W

Operating Systems

Windows	Windows 10 IoT, Windows 10 Pro
Linux	Linux (Contact your sales rep for more information)

Compatibility

Security Hardware

Optional TPM 2.0

Expansion Slots

Internal M.2

1x M.2 Type E

Multimedia

Speakers

Optional Speakers

Thermal & Environmental

Operating Temperature	0°C - 45°C (32°F – 113°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Optional SUS316 Stainless Steel, SUS304 Stainless Steel
IP Rating	IP66, IP69K, NEMA 4X, Optional IP67
Color	Stainless Steel
Control Buttons	Power Button

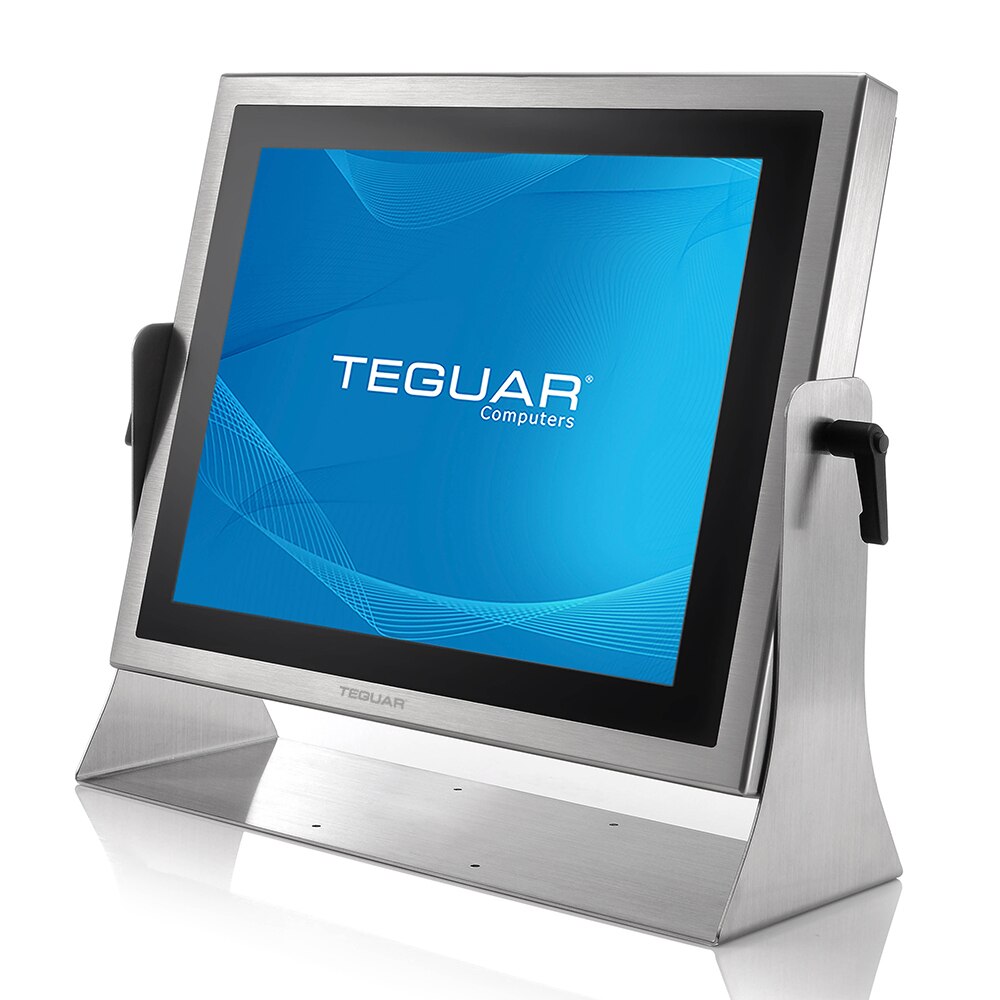

Mounting Options	Table Mount, VESA 100 Mount, Wall Mount
Approved Cleaning Solutions	Acetic Acid (low concentration), Ammonium Nitrate (low concentration), Benzine, Citric Acid (low concentration), Ethanol, Ethylene Glycol Solution (1:1 with water), Hexane, Hydrochloric Acid (low concentration), Iron Chloride Solution, Isooctane, Isopropyl Alcohol, Nitric Acid, Paraffin, Perhydrol (30% in water), Phosphoric Acid (low concentration), Propane, Silicone Oil, Sodium Carbonate (low concentration), Sodium Chloride Solution, Sodium Nitrate (low concentration), Sulfuric Acid (low concentration), Triethylene Glycol

Peripherals & Wireless Connectivity

WiFi	Optional WiFi + Bluetooth Flat Antenna Kit
Bluetooth	Optional Bluetooth 4.0
Barcode Scanner	Optional 1D/2D Barcode Scanner

Weight / Dimensions

Weight	11

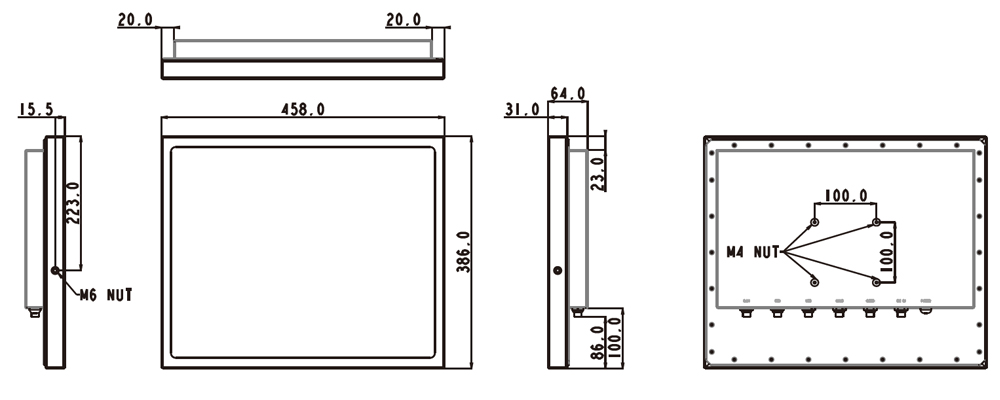

Dimensions	458 x 64 x 386

Certification

Certifications

CE, FCC, VCCI Class B

Warranty

Up to 5 Years

Food Processing: The TS-4510 Series, specifically designed for food processing environments, ensures hygienic computing with its full flush front and stainless steel bezel, making it resistant to debris buildup and impact. It provides reliable computing solutions for tasks such as recipe management, inventory tracking, and production control.

Clean-in-Place (CIP) Systems: With its waterproof and durable design, the TS-4510 Series is well-suited for integration into Clean-in-Place (CIP) systems, which require computers capable of withstanding repeated cleanings with water, chemicals, and sanitizing agents. It provides reliable computing for monitoring and controlling CIP processes in industries like dairy processing and beverage production.

Industrial Manufacturing: The slim design and rugged construction of the TS-4510 Series make it an excellent choice for industrial manufacturing environments, where space efficiency and durability are crucial. It can be used for tasks such as equipment monitoring, quality control, and data analysis, providing reliable computing in demanding industrial settings.

See the data sheet Warranty Download Drivers

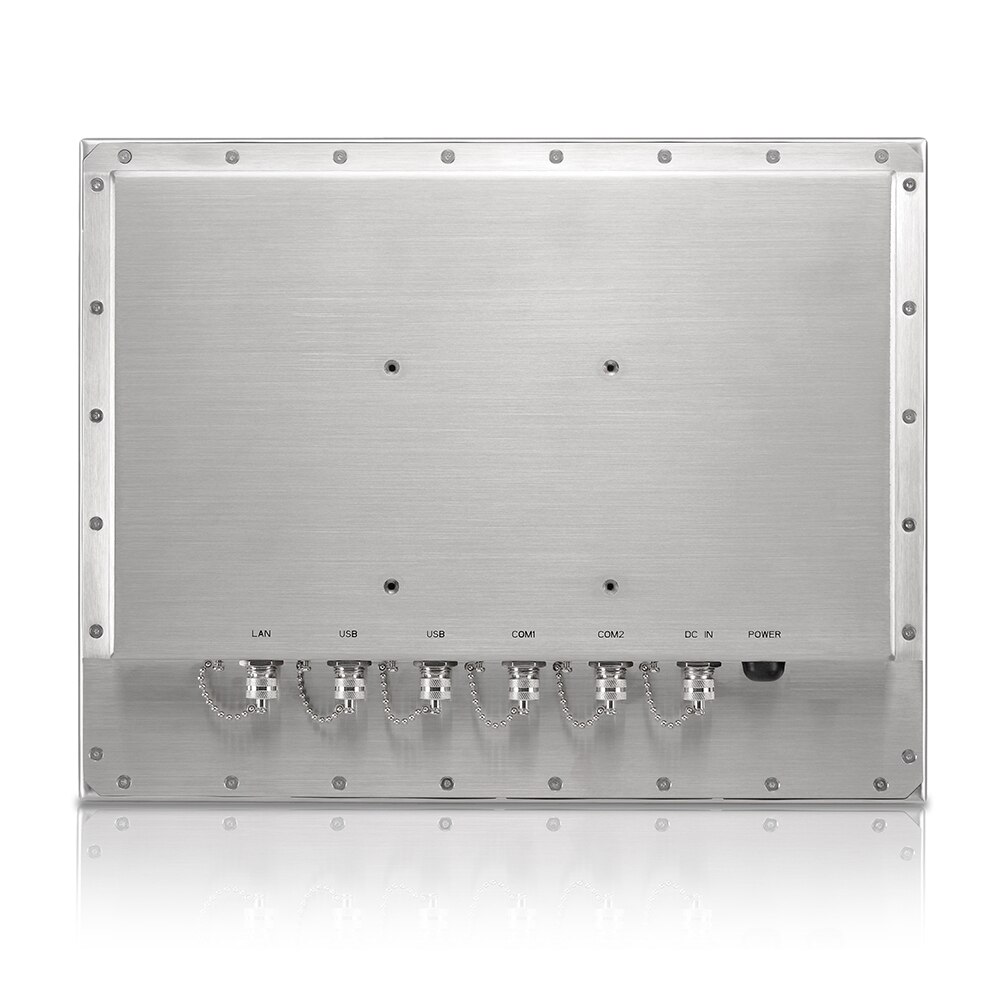

I/O Diagram Images

Waterproof Computer with Labeled Inputs and Outputs

Tech Diagram Images

TS-4510-19

19" Versiegelter Computer

Available – Contact Us for Quick Quote

Beschreibung

Der TS-4510-19 verfügt über einen 19″ resistiven oder Pcap-Touchscreen und eine vollständig flache Frontblende, d.h. es gibt keine Spalten, in denen sich Schmutz und Ablagerungen ansammeln können. Das Gehäuse dieses Computers ist vollständig versiegelt und aus korrosionsbeständigem Edelstahl gefertigt. Der TS-4510-19 ist für die Lebensmittelverarbeitung und wiederholte Reinigungen in Waschanlagen geeignet. Er verfügt über eine IP66 / IP69K-Einstufung und kann optional für IP67 konfiguriert werden. Dieser PC verfügt über 6x wasserdichte M12-E/A-Anschlüsse und wird mit einem Netzteil der Schutzklasse IP68 geliefert.
