TRT-7080-12

12" Rugged Tablet with Docking Station

Available – Contact Us for Quick Quote

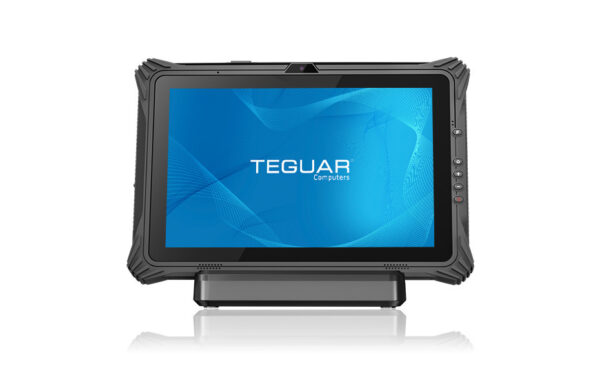

12 Inch Rugged Tablet Docking Station-TRT-7080-12 Front With Dock

12 Inch Rugged Tablet Docking Station-TRT-7080-12 Front

12 Inch Rugged Tablet Docking Station-TRT-7080-12 Back With Dock

12 Inch Rugged Tablet Docking Station-TRT-7080-12 Front Angle

12 Inch Rugged Tablet Docking Station-TRT-7080-12 Back

Beschreibung

The TRT-7080-12 features a 12” touchscreen display that delivers stunning visuals with a full HD resolution of 1920 x 1200 pixels. This tablet operates on a 12th generation Intel Alder Lake CPU and can effortlessly run Windows 11. With WiFi 6 technology, internet browsing and streaming are seamless. Adding convenience, it can be paired with a docking station to transform it into a desktop-like workstation. With the ability to merge the performance of a desktop with the portability requires for field or industrial settings, the TRT-7080-12 provides unmatched convenience while on the move.

Key Highlights

12.2” Full HD Touchscreen Display
12th Generation Intel Core i5/i7 Processor
Windows 11 Capability
Hot Swappable Battery
M.2 SSD Accessible Storage

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i5-1235U, Core i7-1255U optional
Processor Speed	Up to 4.4 GHz, Up to 4.7 GHz optional
Memory Type	Onboard DDR4L
Memory Support	16GB
Storage Type	M.2 2280 SATA
Storage Support	M.2: 128GB-512GB

Display

Screen Size	12.2"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	650 nits

Touch Screen

Touch Screen	Projected Capacitive (Multi-touch)
Hardness	7H
Glass Type	Gorilla Glass

External I/O Ports

Power Input Port

4.0mm DC-in Jack

Power

Input Voltage Range	19V DC
Standard Power Adapter	19Vdc, 3.42A, 65W US AC

Battery

Battery Type	Hot Swappable 7.4V/6300mAh Battery
Battery Operating Time	4hrs

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Multimedia

Speakers	1x 1W Speaker
Camera	Front: 2MP, Rear: 8MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-20°C - 70°C (-4°F – 158°F)
Cooling Solution	Active – with Fan
Humidity Range	95% Non-condensing

Enclosure

IP Rating	IP65
Color	Black
Led Indicator Light	Charging Indicator, Power
Control Buttons	Audio Down, Audio Up, Home, Power Button, Scanner
Shock Rating	MIL-STD-810G
Drop Rating	4ft Drop Protection

Peripherals & Wireless Connectivity

WiFi	WIFI 802.11(a/b/g/n/ac/ax)
Bluetooth	Bluetooth 5.1
GPS	yes
Sim Card	1x Micro SIM Card Slot, 1x SIM Card Slot
Barcode Scanner	Optional 1D/2D Barcode Scanner
Sensors	Gyroscope

Weight / Dimensions

Weight	1.5
Dimensions	339x230x26

Industrial Manufacturing: The TRT-7080 rugged tablet, built to withstand harsh conditions and with an IP65 rating, is well-suited for use in demanding industrial manufacturing environments, providing a reliable device for production control, quality assurance, and inventory management.

Field Inspections and Surveys: Paired with a docking station for drop and go charging, the TRT-7080 rugged tablet can be used for field inspections and surveys, allowing professionals to capture and analyze data, conduct inspections, and generate reports in various industries, such as engineering and environmental services.

Utilities and Infrastructure Maintenance: With its ruggedness and protection against dust, water, and impact, the TRT-7080 tablet is suitable for utilities and infrastructure maintenance tasks, providing field technicians with a reliable device for asset management, maintenance scheduling, and remote communication in challenging outdoor environments.

See the data sheet Warranty Download Drivers

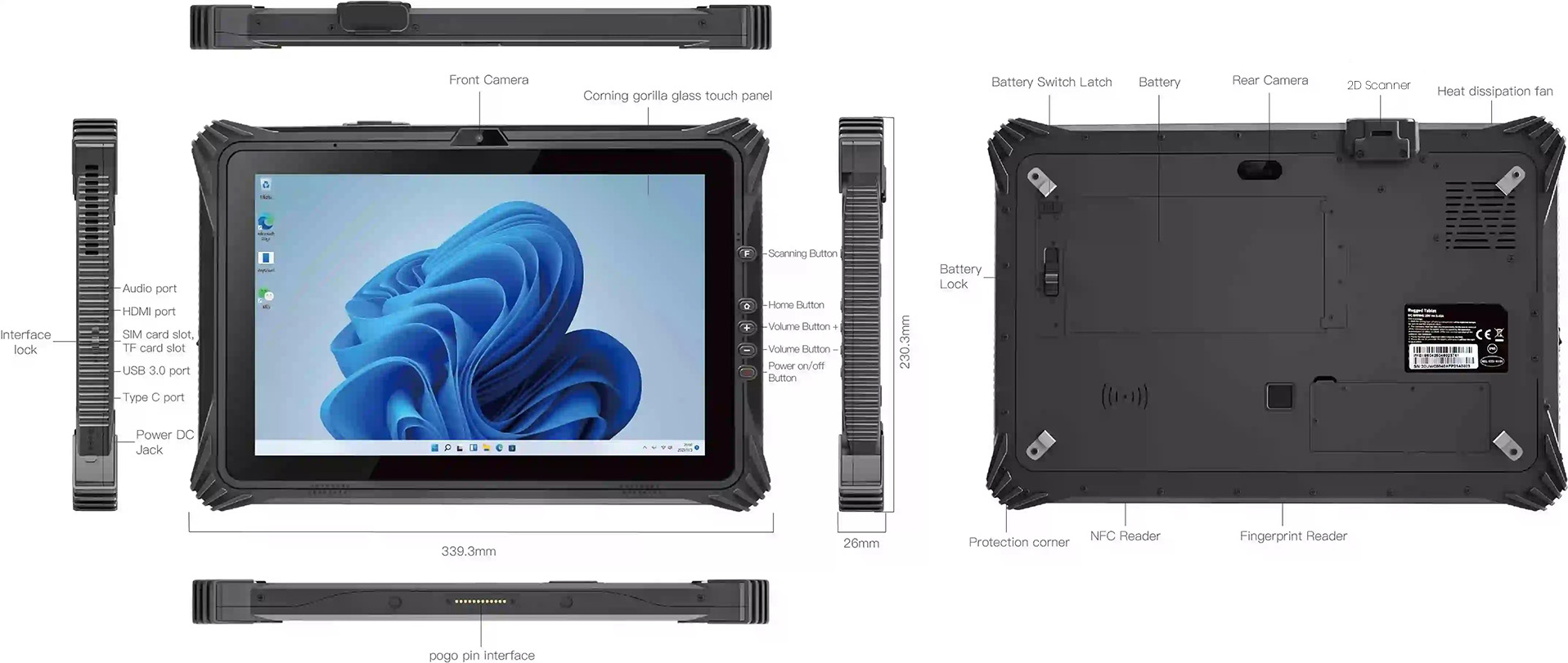

I/O Diagram Images

TRT-7080-12

12" Robustes Tablet mit Dockingstation

Available – Contact Us for Quick Quote

Beschreibung

Das TRT-7080-12 verfügt über ein 12-Zoll-Touchscreen-Display, das mit einer Full-HD-Auflösung von 1920 x 1200 Pixeln atemberaubende Bilder liefert. Dieses Tablet arbeitet mit einer Intel Alder Lake CPU der 12. Generation und kann mühelos Windows 11 ausführen. Dank der WiFi 6 Technologie können Sie problemlos im Internet surfen und streamen. Für zusätzlichen Komfort kann es mit einer Dockingstation gekoppelt werden, um es in eine desktopähnliche Workstation zu verwandeln. Der TRT-7080-12 vereint die Leistung eines Desktops mit der Mobilität, die für den Einsatz im Feld oder in der Industrie erforderlich ist, und bietet damit unübertroffenen Komfort für unterwegs.
