TRT-7080-10

10" Rugged Tablet with Docking Station

Available – Contact Us for Quick Quote

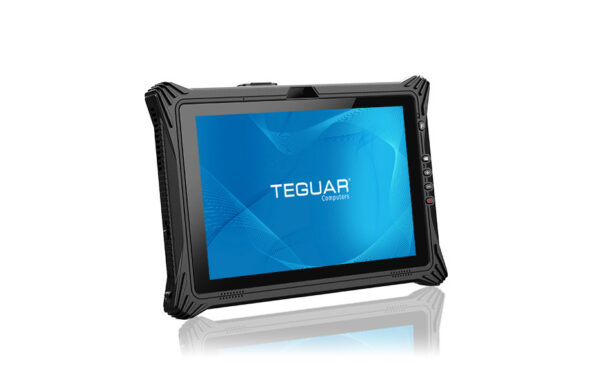

10 inch Rugged Tablet Docking Station- TRT-7080-10 Front Angle

10 inch Rugged Tablet Docking Station- TRT-7080-10 Front

10 inch Rugged Tablet Docking Station- TRT-7080-10 Back

Beschreibung

The TRT-7080-10 tablet operates seamlessly with its powerful 12th Generation Intel Alder Lake core i5/i7 processor, effortlessly running Windows 11. Its 10” touchscreen boasts a stunning full HD 1920 x 1200-pixel display. Enhancing convenience, this tablet can be effortlessly paired with a docking station, transforming it into a desktop-like workstation. Constructed with durable materials and an IP65 waterproof rating, this rugged tablet withstands even the harshest industrial conditions. Internet browsing and streaming are seamless with WiFi 6 technology. The TRT-7080-10 combines the power of a desktop with the mobility needed for field or industrial settings, offering unparalleled convenience on the go.

Key Highlights

10” Full HD Touchscreen Display
12th Generation Intel Core i5/i7 Processor
M.2 SSD Accessible Storage
Hot Swappable Battery
Windows 11 Capability

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 12th Generation Alder Lake
Processor Model	Core i5-1235U, Core i7-1255U optional
Processor Speed	Up to 4.4 GHz, Up to 4.7 GHz optional
Memory Type	Onboard DDR4L
Memory Support	16GB
Storage Type	M.2 2280 SATA
Storage Support	M.2: 128GB-512GB

Display

Screen Size	10.1"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	700 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.0, 1x USB 3.0 type C
Video Outputs	1x Mini HDMI
Other Ports	12 Pin Pogo
Audio Ports	1x 3.5mm Audio Line-Out
Power Input Port	4.0mm DC-in Jack

Power

Input Voltage Range	19V DC
Standard Power Adapter	19Vdc, 3.42A, 65W US AC

Battery

Battery Type	Hot Swappable 7.4V/5000mAh Battery
Battery Operating Time	4.5hrs

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Expansion Slots

SD card

1x Micro SD Slot

Multimedia

Speakers	1x 1W Speaker
Camera	Front: 2MP, Rear: 8MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-20°C - 70°C (-4°F – 158°F)
Cooling Solution	Active – with Fan
Humidity Range	95% Non-condensing

Enclosure

IP Rating	IP65
Color	Black
Led Indicator Light	Charging Indicator, Power
Control Buttons	Audio Down, Audio Up, Home, Power Button, Scanner
Shock Rating	MIL-STD-810G
Drop Rating	4ft Drop Protection

Peripherals & Wireless Connectivity

WiFi	WIFI 802.11(a/b/g/n/ac/ax)
Bluetooth	Bluetooth 5.1
GPS	yes
Sim Card	1x Micro SIM Card Slot, 1x SIM Card Slot
Barcode Scanner	Optional 1D/2D Barcode Scanner
Sensors	Gyroscope

Weight / Dimensions

Weight	1.14
Dimensions	289.9x196.7x27.4

Warranty

1 Year

Industrial Manufacturing: The TRT-7080 rugged tablet, built to withstand harsh conditions and with an IP65 rating, is well-suited for use in demanding industrial manufacturing environments, providing a reliable device for production control, quality assurance, and inventory management.

Field Inspections and Surveys: Paired with a docking station for drop and go charging, the TRT-7080 rugged tablet can be used for field inspections and surveys, allowing professionals to capture and analyze data, conduct inspections, and generate reports in various industries, such as engineering and environmental services.

Utilities and Infrastructure Maintenance: With its ruggedness and protection against dust, water, and impact, the TRT-7080 tablet is suitable for utilities and infrastructure maintenance tasks, providing field technicians with a reliable device for asset management, maintenance scheduling, and remote communication in challenging outdoor environments.

See the data sheet Warranty Download Drivers

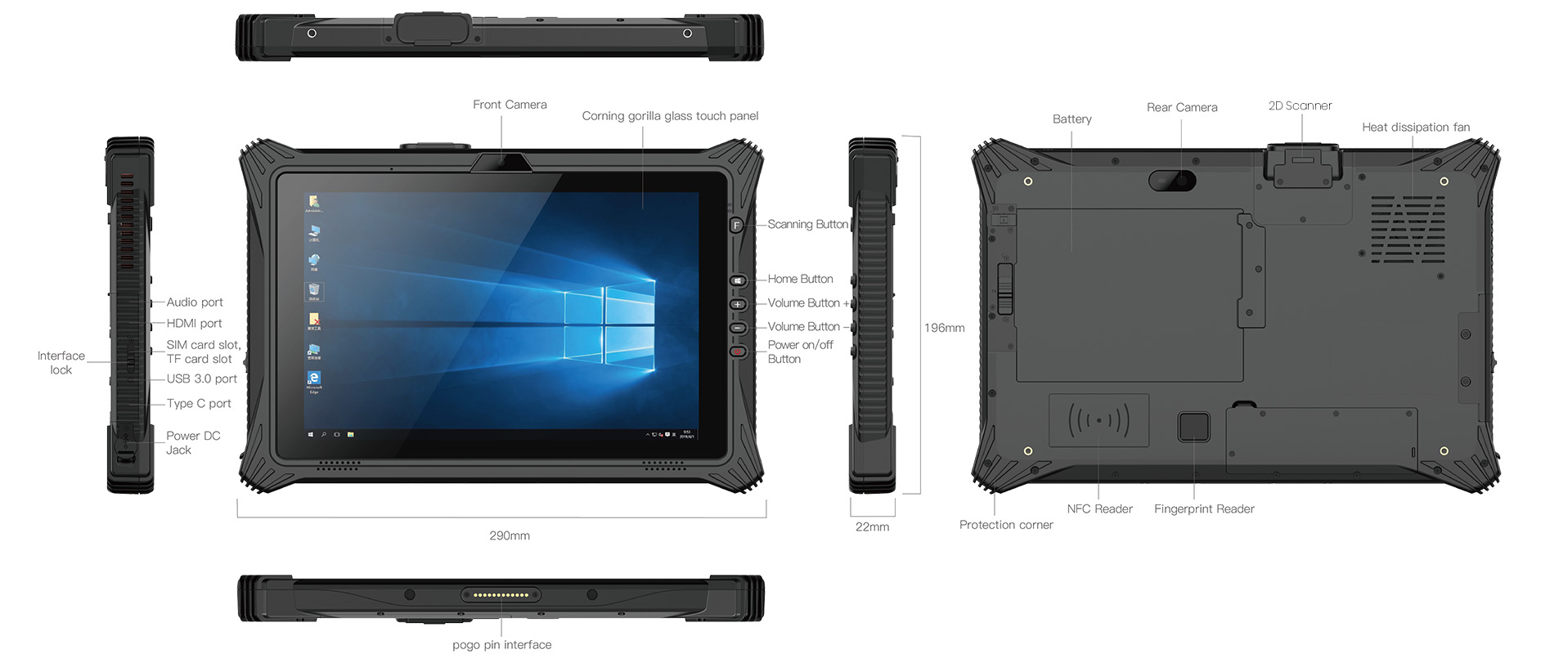

I/O Diagram Images

TRT-7080-10

10" Robustes Tablet mit Dockingstation

Available – Contact Us for Quick Quote

Beschreibung

Das TRT-7080-10 Tablet arbeitet nahtlos mit seinem leistungsstarken Intel Alder Lake Core i5/i7 Prozessor der 12. Generation und führt mühelos Windows 11 aus. Sein 10-Zoll-Touchscreen bietet eine beeindruckende Full HD-Anzeige mit 1920 x 1200 Pixeln. Für noch mehr Komfort lässt sich dieses Tablet mühelos mit einer Dockingstation verbinden, die es in eine Desktop-ähnliche Workstation verwandelt. Dieses robuste Tablet ist aus widerstandsfähigen Materialien gefertigt und nach IP65 wasserdicht, so dass es selbst den härtesten industriellen Bedingungen standhält. Dank der WiFi 6 Technologie können Sie problemlos im Internet surfen und streamen. Der TRT-7080-10 kombiniert die Leistung eines Desktops mit der Mobilität, die für den Einsatz im Feld oder in der Industrie erforderlich ist, und bietet damit unvergleichlichen Komfort für unterwegs.
