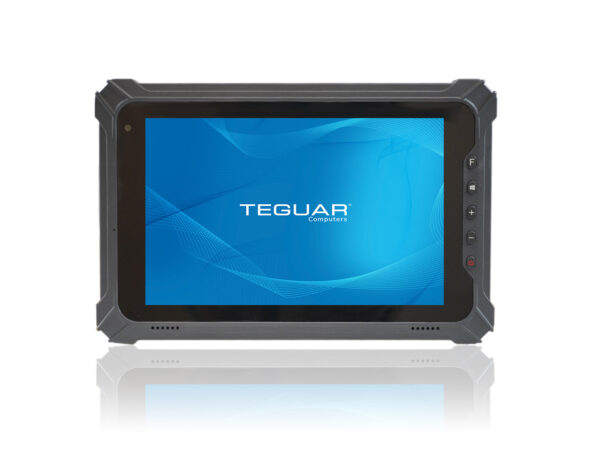

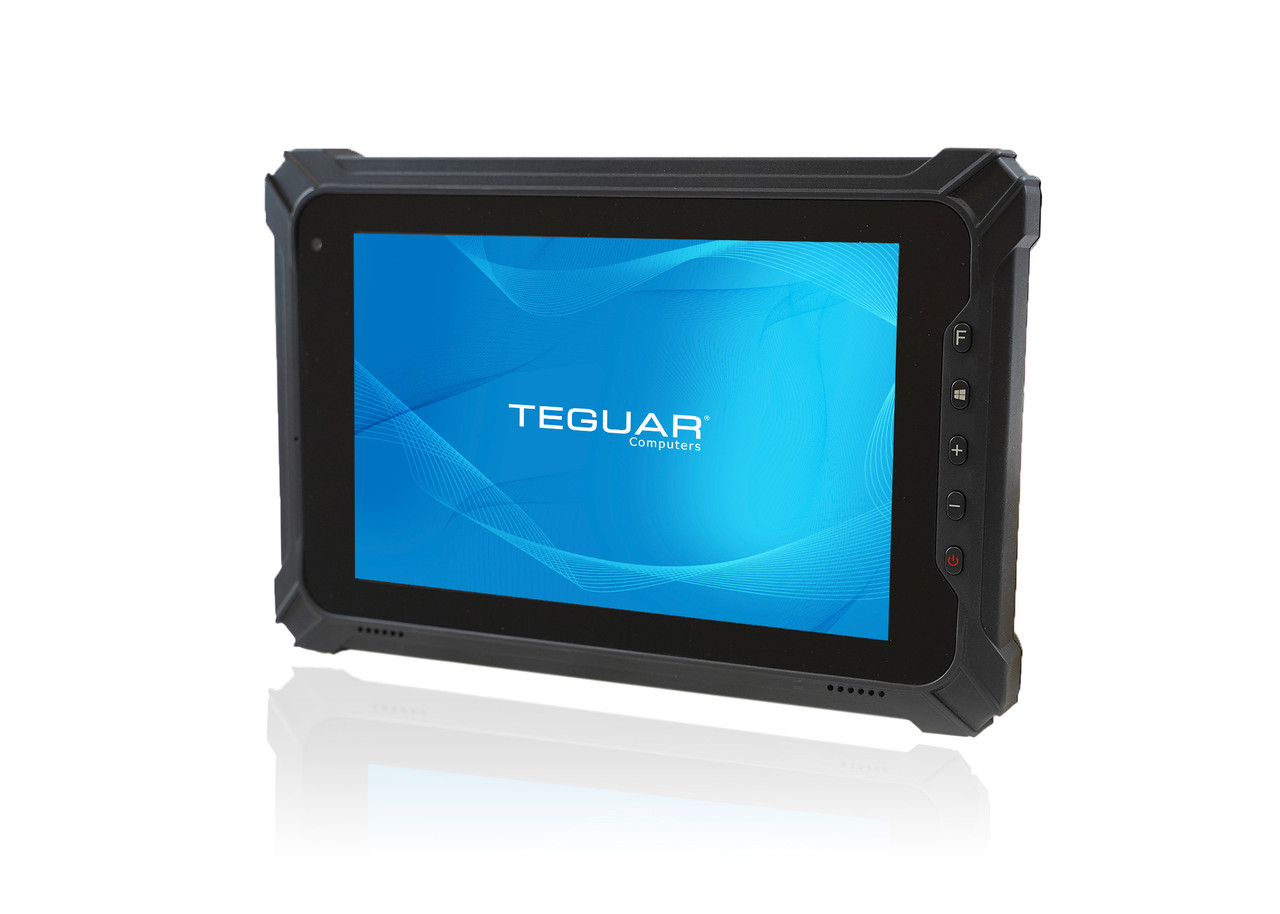

TRT-4680-08

8" Durable Tablet

Available – Contact Us for Quick Quote

Beschreibung

The TRT-4680-08 is a fanless rugged tablet with an Intel Jasper Lake Quad-core processor. This industrial tablet is IP65 rated, making it completely dustproof and protected from water sprays and splashes. It is also MIL-STD-810G certified, meaning it can survive drops and hard vibrations. The touchscreen is a 5-point multi-touch projected capacitive and is made with 7H rated anti-scratch glass for high crack protection. The TRT-4680-08 is ideal to use in any area of your facility and can even be used outdoors due to the wide range of temperature it can sustain. At 8”, this device is easy to carry. It also has built in WIFI and Bluetooth, allowing it to be carried around the shop floor or out in the field without fear of losing connection or work. The TRT-4680-08 will make your operations convenient to oversee no matter where you place it.

Key Highlights

Intel Jasper Lake Quad-Core processor
7H rated anti-scratch glass
Multiple I/Os including 1x USB 3.0, 1x Type-C USB, 1x Mini HDMI
Fanless operation
Full IP65 rated protection

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Jasper Lake Quad-Core
Processor Model	N5100
Processor Speed	Up to 2.8 GHz
Memory Type	Onboard DDR4
Memory Support	4GB
Storage Support	32GB (Standard), up to 128GB (Optional)

Display

Screen Size	8"
Resolution	1920 x 1200 (WUXGA)
Screen Ratio	16:10
Brightness	550 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	1x USB 3.0, 1x USB 3.0 type C
Video Outputs	1x Micro HDMI
Audio Ports	1x 3.5mm Headphone Jack
Power Input Port	3.5mm DC-in Jack

Power

Standard Power Adapter

AC100V~240V, 50Hz/60Hz output 19V/3.42A

Battery

Battery Type	Removable 7.4V/5000mAh Battery
Battery Operating Time	9hrs

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 Pro

Expansion Slots

Video Card Support	Intel HD Graphics
SD card	1x Micro SD Slot
Other	Pogo Pin Expansion

Multimedia

Speakers	2x 0.8W Speakers
Camera	Front: 5MP, Rear: 8MP
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	95% Non-condensing

Enclosure

Material	Double Injection
IP Rating	IP65
Color	Black
Shock Rating	MIL-STD-810G
Mounting Options	Desktop Stand, Vehicle Mount
Approved Cleaning Solutions	Acetone, Actichlor, Alcohol, Ammonium Nitrate (low concentration), Antigone, Betasept, Bleach, Caviwipes, Chloride, CIDEX, Control III Disinfectant Germicide, Dispatch Disinfectant Cleaner CLH69101, Incidin, Isopropyl Alcohol, LpH se, MikroBac, Mikrozid, Peridox, Puregreen 24 Disinfectant, SDW 70C, Sodium Hypochlorite, SporeClear, Trigene, Viraguard, Virkon, Windex, 3M HB Quat

Peripherals & Wireless Connectivity

WiFi	Wi-Fi a/b/g/n/ac
Bluetooth	Bluetooth 4.2
Mobile Network 4G LTE	Optional Onboard Quectel 4G LTE, North America, South America, EMEA, Australia/NZ
Barcode Scanner	Optional 1D/2D Barcode Scanner
RFID	Optional RFID Scanner
Peripheral Other	Cigarette adapter, Digitizer pen, handstrap, desktop dock, vehicle dock, shoulder strap, back strap, mounts
Sensors	Accelerometer, Light Sensor

Weight / Dimensions

Weight	0.91
Dimensions	236 x 155 x 20

Warranty

Up to 3 Years

Manufacturing Floor Operations: The TRT-4680-08 rugged tablet, with its MIL-STD-810 rating, powerful processor, and rugged design, is well-suited for use on the manufacturing floor, providing workers with reliable access to real-time data, instructions, and process management tools.

Construction Site Management: With its durability, IP65 enclosure, and anti-scratch glass, the TRT-4680-08 tablet is an excellent choice for construction site management, allowing supervisors to access blueprints, schedules, and communicate with teams in challenging environments.

Vehicle and Forklift Applications: The TRT-4680-08 tablet’s ruggedness and connectivity options make it suitable for use in vehicles and forklifts, enabling drivers and operators to access GPS navigation, inventory management systems, and communicate while on the move. (Industry: Transportation, Logistics)

See the data sheet Warranty Download Drivers

I/O Diagram Images

TRT-4680-08

8" Langlebiges Tablet

Available – Contact Us for Quick Quote

Beschreibung

Das TRT-4680-08 ist ein lüfterloses, robustes Tablet mit einem Intel Jasper Lake Quad-Core-Prozessor. Dieses Industrie-Tablet entspricht der Schutzklasse IP65 und ist damit vollständig staubdicht und vor Spritzwasser geschützt. Es ist außerdem MIL-STD-810G-zertifiziert, was bedeutet, dass es Stürze und starke Erschütterungen übersteht. Der Touchscreen ist ein kapazitiver 5-Punkt-Multi-Touch-Bildschirm und besteht aus kratzfestem 7H-Glas für hohen Schutz vor Rissen. Der TRT-4680-08 ist ideal für den Einsatz in jedem Bereich Ihrer Einrichtung und kann aufgrund der großen Temperaturspanne, die er aushält, sogar im Freien verwendet werden. Mit seinen 8 Zoll ist dieses Gerät leicht zu tragen. Es verfügt außerdem über integriertes WIFI und Bluetooth, so dass Sie es in der Werkstatt oder im Außendienst mit sich führen können, ohne befürchten zu müssen, die Verbindung oder die Arbeit zu verlieren. Mit dem TRT-4680-08 können Sie Ihren Betrieb bequem überwachen, egal wo Sie ihn aufstellen.
