TP-A945-07

7" Android Panel PC

Available – Contact Us for Quick Quote

Beschreibung

The TP-A945-07 Android touchscreen computer is a cost effective alternative to traditional Windows based panel PCs. The proven Android platform is perfect for web based applications and is easily integrated into industrial manufacturing applications. Unlike typical Android tablets and computers, the TP-A945-07 Android touchscreen includes a rugged enclosure and IP65 front bezel, which allows for durability and reliability in any environment. This low-cost solution is perfect for applications such as factory automation, building automation, security, and IoT cloud based solutions. The TP-A945 series include the Android 6.0 Marshmallow OS, which releases the full capabilities of the platform to developers.

Key Highlights

7″ True Flat Panel Touch Screen Panel
ARM Cortex A9 CPU
Wide Range Power Input
Onboard DDR3 1GB Memory
IP65 Protected Front Bezel
Onboard 4GB eMMC Flash

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	ARM Cortex A9
Processor Speed	1.0 GHz
Memory Type	Onboard DDR3
Memory Support	1GB
Storage Support	4GB

Display

Screen Size	7"
Resolution	800 x 480 (WVGA)
Screen Ratio	5:3
Brightness	350 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

USB	1x Micro USB Port, 2x USB 2.0
Serial / Com	1x COM
Serial Protocol Detail	1x RS-232/422/485 DB-9
Ethernet / LAN	1x RJ45 GbE LAN
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Standard Power Adapter	Optional 12V AC/DC Adapter

Operating Systems

Android	Android 6.0.1
Linux	Linux 4.1.15

Expansion Slots

SD card

1x Micro SD Slot

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless with Heatsink
Humidity Range	10% – 90% Non-condensing

Enclosure

Material	Plastic
IP Rating	IP65 Front Bezel
Mounting Options	Panel Mount, VESA Mount, Wall Mount

Peripherals & Wireless Connectivity

WiFi	Optional WiFi/3G Module (via mini-PCIe)
Sim Card	1x SIM Card Slot

Weight / Dimensions

Weight	0.9
Dimensions	204 x 42.5 x 150

Certification

Certifications

CE, FCC Class A

Warranty

Up to 5 Years

Industrial Manufacturing: The TP-A945 Series can be used in industrial manufacturing environments for process control, monitoring production lines, and managing equipment and machinery.

Building Management: These panel PCs are suitable for building management applications, allowing facility managers to monitor and control various systems such as HVAC, lighting, security, and access control.

Logistics and Warehouse Management: These panel PCs can be integrated into logistics and warehouse management systems, providing real-time tracking, inventory management, and order fulfillment functionalities.

See the data sheet Warranty Download Drivers

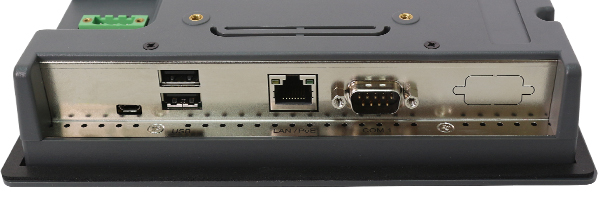

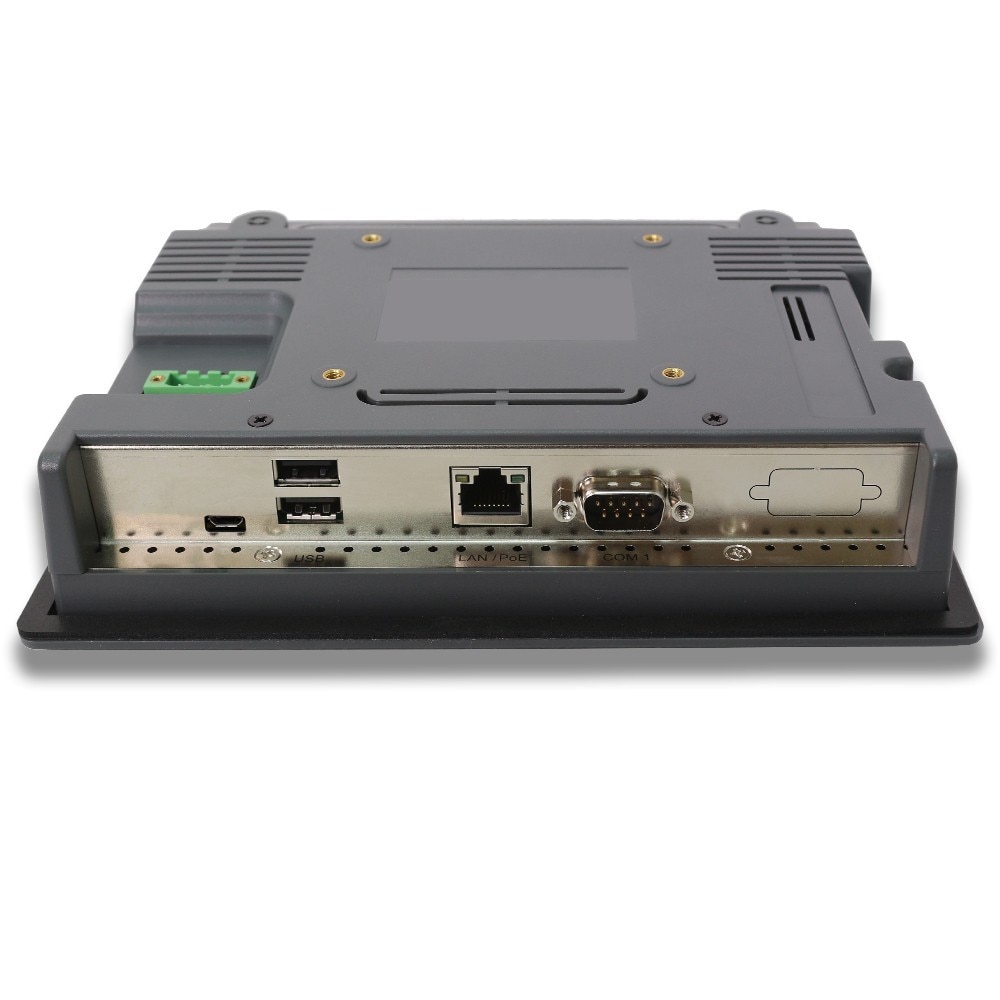

I/O Diagram Images

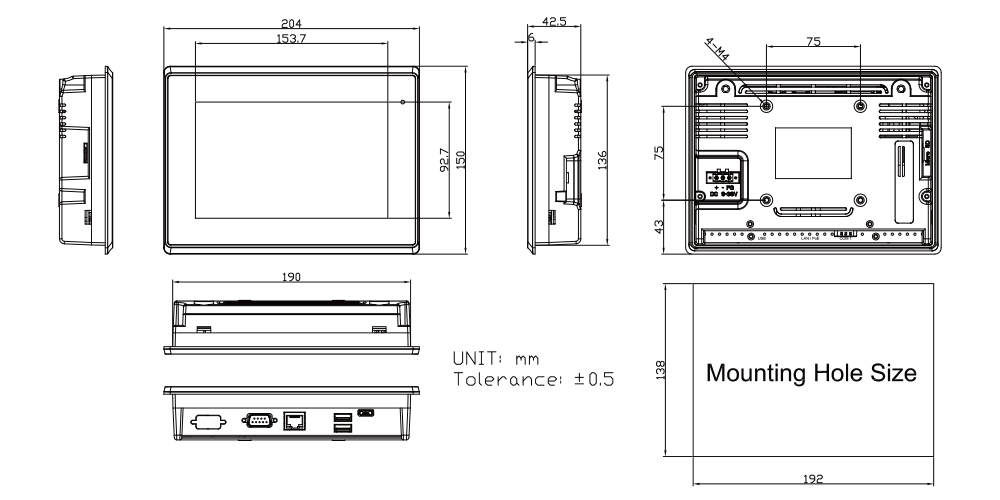

Tech Diagram Images
