TP-5945-10

10” Touch Screen Panel PC

Available – Contact Us for Quick Quote

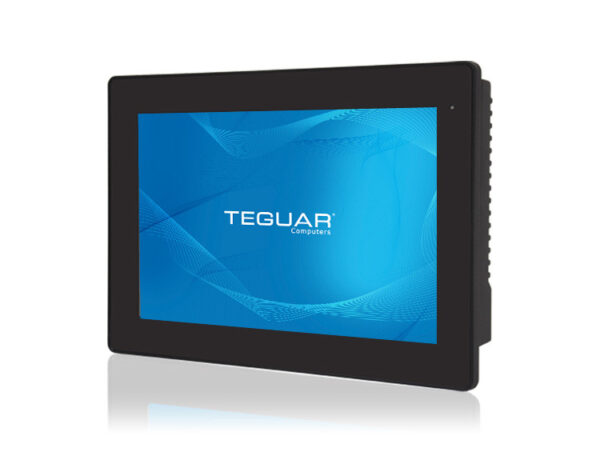

10" Touch Screen Panel PC TP-5945-10 Front

10" Touch Screen Panel PC TP-5945-10 Back IOs

10" Touch Screen Panel PC TP-5945-10 Back IOs Angle

Beschreibung

The 10” Touch Screen Panel PC is the smallest size in the series. Despite its size, it still runs on the powerful Intel 11th Generation processor, allowing for Windows 11 operating system to run smoothly. This unit is ideal for mounting flush to the wall, with a thin design and no exposed metal on the front bezel. PCAP technology ensures accurate and responsive touch functionality. It has a unique two-piece solution that enables the box to be removed from the front panel, allowing for easy maintenance. The TP-5945-10 is ideal for industrial applications such as production floors, workstations, and other manufacturing applications.

Key Highlights

10.1” PCAP Touchscreen Display
Intel 11th Generation Core Processor Passmark Rating 5820
Windows 11 Capabilities
Thin, sleek design
VESA Mountable and updated Panel Mount design

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core I series 11th Generation Tiger Lake
Processor Model	Core i3-1115G4E, Core i5 1145G7E
Memory Type	2x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 2280 NVME SSD slot
Storage Support	M.2: 256GB-1TB

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	16:10
Brightness	Optional 1000 nit High Brightness, 350 nits

Touch Screen

Projected Capacitive (Multi-touch)

External I/O Ports

USB	4x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	Included Y-Cable provides two DB-9 Com ports: 1x 5-pin RS-232 (COM1) and 1x Configurable 3-Pin RS-232/422/485 (COM2)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DP-1.4/HDMI combo Video Out
Other Ports	1x 2-Pin DC Power Switch Connector
Audio Ports	1x Audio Line-Out
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-36V DC
Max Power Consumption	56W

Operating Systems

Windows	Windows 10 IoT, Windows 11 IoT, Windows 11 Pro
Linux	Linux Ubuntu 20.04 or above (Contact your sales rep for more information)

Compatibility

Security Hardware

fTPM 2.0

Expansion Slots

Internal M.2

1x M.2 2230 Key E (for WiFi expansion option)

Thermal & Environmental

Operating Temperature	0°C - 50°C (32°F – 122°F), -20°C - 60°C (Optional -4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Humidity Range	5% – 95% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Black
Mounting Options	Panel Mount, VESA 100 Mount

Peripherals & Wireless Connectivity

WiFi	Optional 802.11 b/g/n/ac
Bluetooth	Optional Bluetooth 5.1

Weight / Dimensions

Weight	2.8
Dimensions	269x189x51

Warranty

Up to 5 Years

Product Floor Operations: The TP-5945 is an ideal computing solution for various operations on the product floor. The clean and modern look, coupled with PCAP technology for accurate and responsive touch functionality, enhances the precision and practicality of industrial operations. Running on Windows 11, these panel PCs offer an intuitive user experience, contributing to seamless processes on the product floor.

Manufacturing Environments: The TP-5945 Touch Panel PC series, powered by the latest Intel Core 11th Generation processor, excels in various manufacturing environments. PCAP technology ensures accurate and responsive touch functionality, enhancing precision in industrial processes. Running on Windows 11, these panel PCs offer an intuitive user experience, making them an excellent choice to elevate manufacturing operations.

See the data sheet Warranty Download Drivers

I/O Diagram Images

Touch Screen Panel PC TP-5945 Series Labeled I/O Diagram

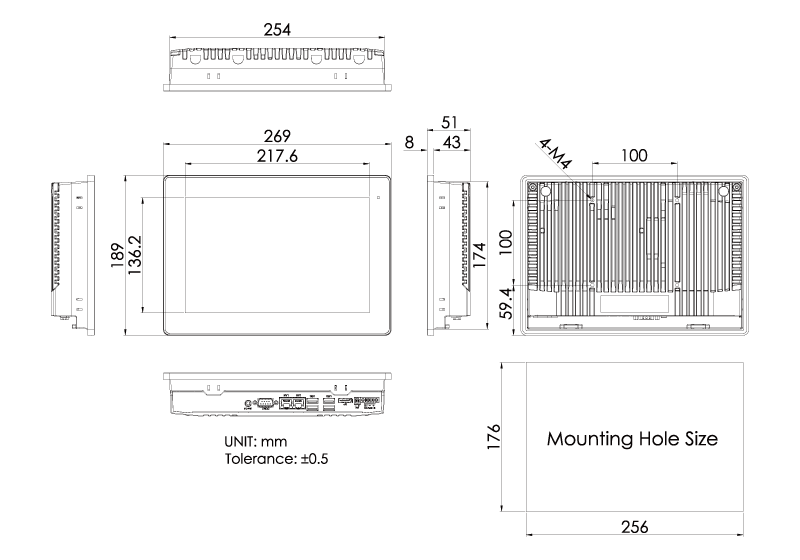

Tech Diagram Images
