TMB-5710

Medical Edge AI Box PC

Available – Contact Us for Quick Quote

Beschreibung

The TMB-5710 Medical Edge AI Box PC is medically certified hardware designed for AI, edge computing, or other processor-intensive tasks. This medical box pc features two expansion slots for things like AI Cores or graphic cards, as well as a customized PCIe x16 expansion module featuring additional COM and LAN inputs. The Medical Edge AI Box PC has an Intel 9th Gen. Coffee Lake-S CPU and an easily removable HDD to assist with HIPAA patient data storage protocols.

Key Highlights

Ready for AI / Medical edge computing
Intel 9th Gen. Coffee Lake-S CPU
PCIe 16x extension includes extra LAN and COM ports
Easily removable HDD
Medically certified anti-microbial surface
Flat surfaces make sanitation easy

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Core-I Series 9th Generation Coffee Lake
Processor Model	Core i5-9500TE, Core i7-9700TE
Processor Speed	1.8 GHz, 2.2 GHz
Memory Type	2x DDR4 SO-DIMM
Memory Support	32GB
Storage Type	1x 2.5" SATA Drive Bay for SSD/HDD (easily accessible), 1x M.2 SATA3 2280 Slot

External I/O Ports

USB	2x USB 2.0, 4x USB 3.0
Serial / Com	2x COM
Serial Protocol Detail	2 x RS232/RS422/RS485 (RI/5V/12V)
Ethernet / LAN	2x RJ45 GbE LAN
Video Outputs	1x DisplayPort 1.2, 1x DVI-D, 1x VGA
Audio Ports	1x 3.5mm Audio Line-In, 1x 3.5mm Audio Line-Out, 1x 3.5mm Microphone Jack
Power Input Port	4-Pin DC-In Jack

Power

Input Voltage Range

12-24V DC

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11

Compatibility

Security Hardware

Optional TPM 2.0

Expansion Slots

Internal M.2

1x M.2 for NVME SSD Support (Not at same time with Removable 2.5" HDD)

Thermal & Environmental

Operating Temperature	0°C - 35°C (32°F – 95°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Humidity Range	10% – 90% Non-condensing
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
Color	White
Led Indicator Light	HDD Access, Power
Control Buttons	Power Switch

Peripherals & Wireless Connectivity

WiFi	802.11 ac/a/b/g/n WLAN + BT module

Weight / Dimensions

Dimensions

301 x 295.2 x 130

Warranty

Up to 5 Years

Telemedicine: The TMB-5710 Series can be used in telemedicine applications, enabling remote consultations, patient monitoring, and virtual healthcare services.

Surgical Imaging: With its powerful CPU and PCIe 16x extension, the TMB-5710 is well-suited for surgical imaging applications, providing real-time visualization and analysis of medical images during surgical procedures.

Medical Research: The TMB-5710’s capabilities make it suitable for medical research, including data analysis, simulation, and modeling, supporting advancements in healthcare and medical discoveries.

See the data sheet Warranty Download Drivers

I/O Diagram Images

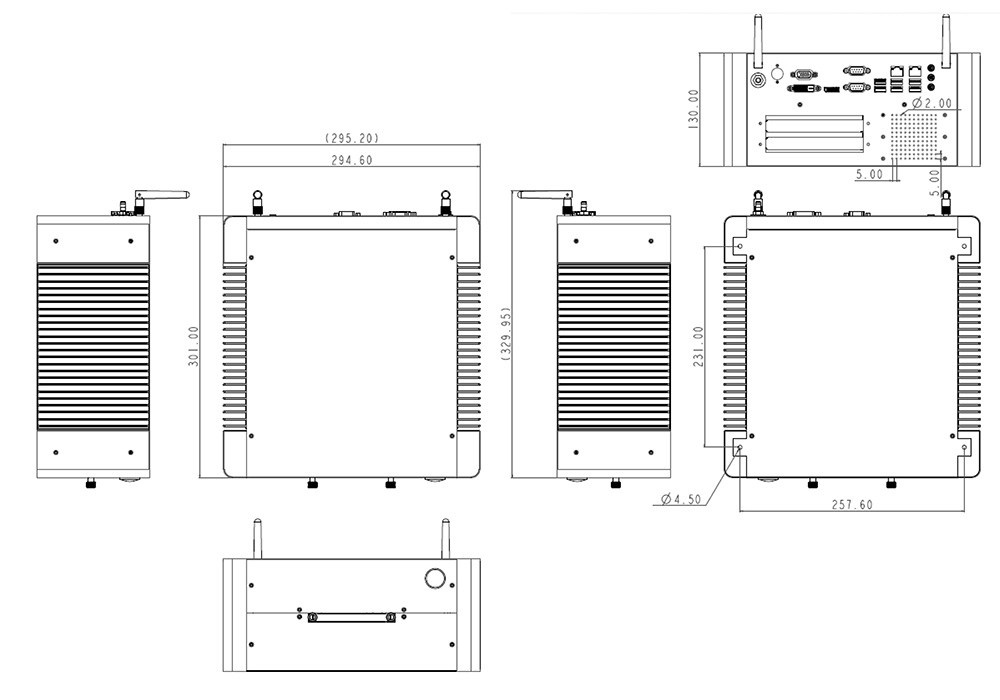

Tech Diagram Images
