TM-5957-22

22" Medical Computer
Available – Contact Us for Quick Quote

Beschreibung

The TM-5957-22 features a powerful 11th generation Intel Core Tiger Lake i5/i7 processor capable of running Windows 11. Measuring at 44 mm in width and weighing only 11 pounds, this medical computer is the lightest medical computer in its class. The lightweight design makes it best-in-class for medical carts and bedside terminals that have been overweight and difficult to maneuver for too long. The front is IP65 rated with medical grade anti-bacterial coated plastic, so this PC can withstand spills, sprays and repeated wipe downs with cleaning chemicals. Because of the fanless cooling system, this PC has quiet operation and prevents the spread of dust and germs. For easy integration with other medical devices, the TM-5957-22 comes standard fully packed with WiFi 6, BT 5.2, a front camera, and even isolated I/Os. Healthcare personnel can switch rooms without having to power down the computer, or use a heavy battery powered cart, because this medical panel computer has an optional battery pack that provides about two hours of power.

Key Highlights

  • Intel 11th Gen Tiger Lake Core i5/i7 CPU
  • Windows 11 Operating System
  • Latest 4th Edition 60601 Medical Certifications

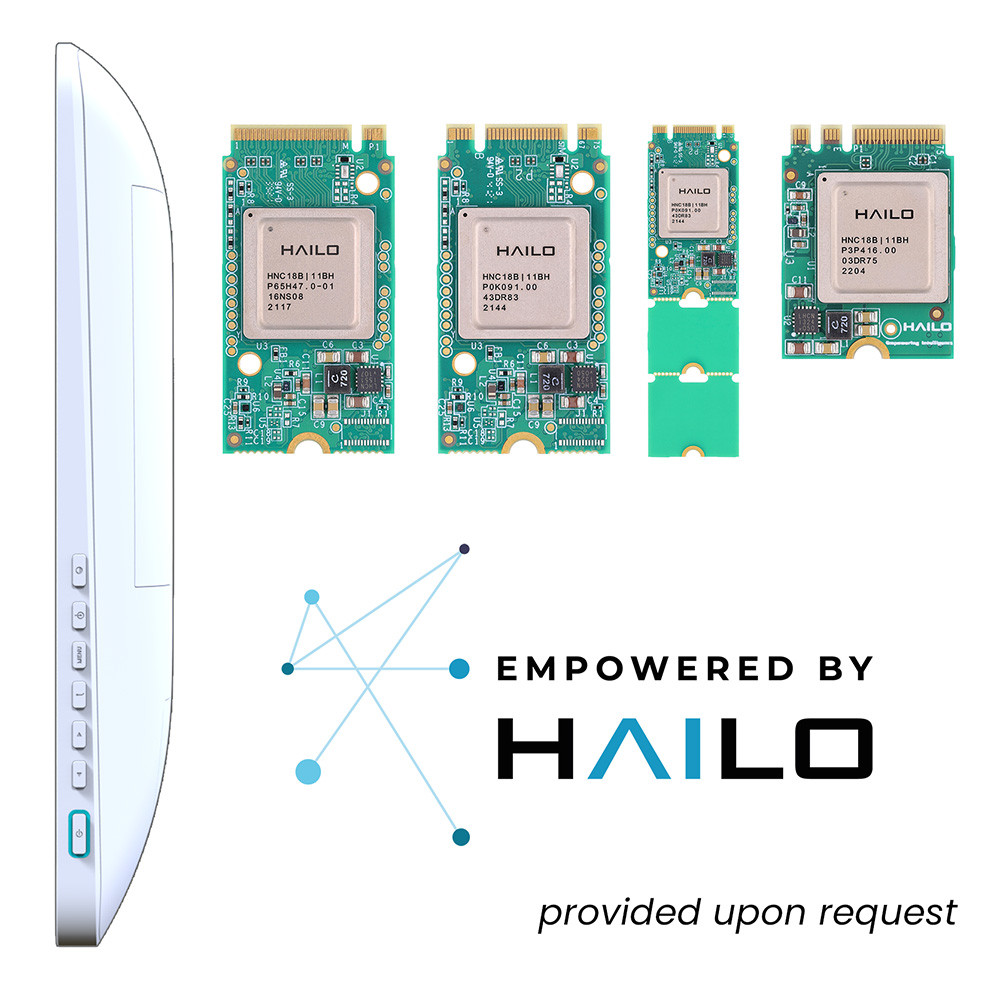

  • Empowered by Hailo-8 M.2 AI module up to 26 TOPS (available upon request)
  • Lightweight, Ultra-thin Design w/ Antimicrobial Housing
  • High-Speed NVMe SSD Storage
  • Need customization? Click here for OEM services.

Warum bei Teguar kaufen

  • Engagierte, schnell reagierende Kundensupport-Experten
  • 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
  • Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i5 1145G7E, Core i7-1185G7E
Processor SpeedUp to 2.8 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32GB, 64GB
Storage Type2x NVME SSD M.2 2280
Storage Support256GB (Standard), up to 1TB (Optional)

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness500 nits

Touch Screen

Touch ScreenProjected Capacitive (Multi-touch)

External I/O Ports

USB4x USB 3.2, 5x USB 2.0
Serial / Com4x COM
Serial Protocol Detail4x RS232 (RJ48)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x HDMI
Audio Ports1x 3.5mm Headphone Jack

Power

Input Voltage Range19V DC
Standard Power Adapter4.74 Amp AC/DC Adapter

Battery

Battery TypeOptional Internal Battery
Battery Operating Time2hrs

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2
OtherDual RFID & Dual SmartCard

Multimedia

Speakers2x 3W Speakers
CameraStandard
Microphone2x Built-in Microphones

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F – 104°F)
Storage Temperature-10°C - 55°C (14°F – 131°F)
Cooling SolutionPassive – Fanless

Enclosure

MaterialPlastic
IP RatingIP65 Front Bezel
ColorWhite
Control ButtonsDisplay on/off, On-Screen Display (OSD), Power Button
Mounting OptionsVESA 100 Mount, VESA 75 Mount

Peripherals & Wireless Connectivity

WiFiWifi 802.11 a/b/g/n/ac/ax Wifi 6
BluetoothBluetooth 5.2
RFIDOptional Dual RFID (LF/HF)
Peripheral OtherReading Lights, Camera Privacy Latch

Weight / Dimensions

Weight5.8
Dimensions529.8 x 346.7 x 45

Certification

CertificationsEN 55011:2016+A2:2021 (RF), FCC Class B, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), ITE 62368, 60601-1 4th Edition

Warranty

WarrantyUp to 5 Years

Hospital Point-of-Care Computing: The TM-5957-22 is designed for seamless integration with other medical devices, making it suitable for point-of-care computing in hospitals and healthcare facilities.

Telemedicine and Video Conferencing: Equipped with WiFi 6, BT 5.2, and a 5MP front camera, the TM-5957-22 supports telemedicine and video conferencing applications, enabling remote consultations and collaboration.

Portable and Mobile Computing: The optional battery pack of the TM-5957-22 allows healthcare personnel to move between rooms without powering down the computer or relying on heavy battery-powered carts, enhancing mobility and efficiency.

Dimensional Drawings & I/Os

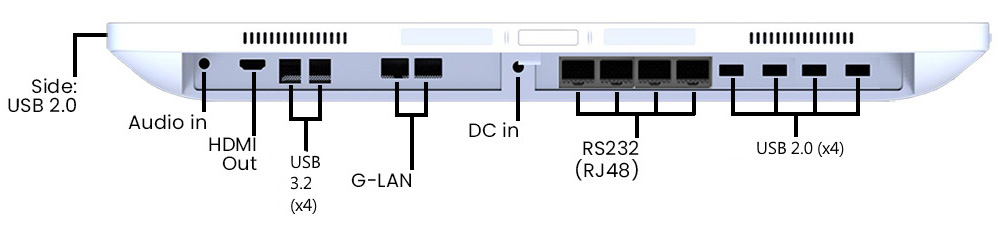

I/O Diagram Images

labeled inputs and outputs on the TM-5957-22 medical computer

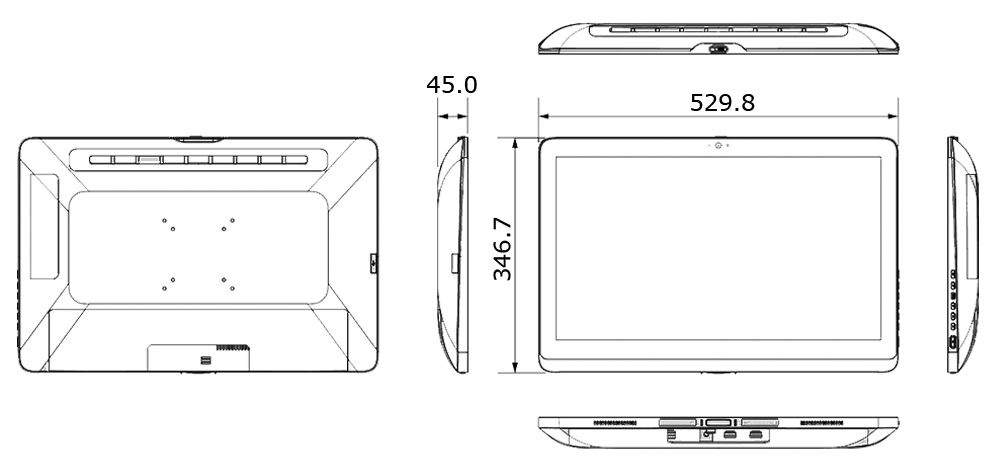

Tech Diagram Images

medical computers dimensional diagram tm-5957-22

TM-5957-22

22" Medizinischer Computer
Available – Contact Us for Quick Quote

Beschreibung

Der TM-5957-22 ist mit einem leistungsstarken Intel Core Tiger Lake i5/i7 Prozessor der 11. Generation ausgestattet, auf dem Windows 11 läuft. Mit einer Breite von 44 mm und einem Gewicht von nur 11 Pfund ist dieser medizinische Computer der leichteste in seiner Klasse. Durch sein geringes Gewicht ist er der beste seiner Klasse für medizinische Wagen und bettseitige Terminals, die schon zu lange übergewichtig und schwer zu manövrieren sind. Die Vorderseite ist nach IP65 mit antibakteriell beschichtetem Kunststoff in medizinischer Qualität ausgestattet, so dass dieser PC Spritzwasser und wiederholtes Abwischen mit Reinigungschemikalien überstehen kann. Dank des lüfterlosen Kühlsystems arbeitet dieser PC leise und verhindert die Verbreitung von Staub und Keimen. Zur einfachen Integration mit anderen medizinischen Geräten ist der TM-5957-22 standardmäßig mit WiFi 6, BT 5.2, einer Frontkamera und sogar isolierten E/As ausgestattet. Das Gesundheitspersonal kann den Raum wechseln, ohne den Computer ausschalten oder einen schweren batteriebetriebenen Wagen verwenden zu müssen, denn dieser medizinische Panel-Computer verfügt über ein optionales Akkupack, das etwa zwei Stunden Strom liefert.

Key Highlights


Warum bei Teguar kaufen

  • Engagierte, schnell reagierende Kundensupport-Experten
  • 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
  • Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor FamilyIntel Core I series 11th Generation Tiger Lake
Processor ModelCore i5 1145G7E, Core i7-1185G7E
Processor SpeedBis zu 2,8 GHz
Memory Type2x DDR4 SO-DIMM
Memory Support4GB, 8GB, 16GB, 32 GB, 64 GB
Storage Type2x NVME SSD M.2 2280
Storage Support256GB (Standard), bis zu 1TB (Optional)

Display

Screen Size21.5
Resolution1920 x 1080 (Full HD)
Screen Ratio16:9
Brightness500 nits

Touch Screen

Touch ScreenProjiziert kapazitiv (Multi-Touch)

External I/O Ports

USB4x USB 3.2 Anschlüsse, 5x USB 2.0
Serial / Com4x COM
Serial Protocol Detail4x RS232 (RJ48)
Ethernet / LAN2x RJ45 GbE LAN
Video Outputs1x HDMI
Audio Ports1x 3.5mm Kopfhöreranschluss

Power

Input Voltage Range19V DC
Standard Power Adapter4,74 Ampere AC/DC-Adapter

Battery

Battery TypeOptionale interne Batterie
Battery Operating Time2Stunden

Operating Systems

WindowsWindows 10 IoT, Windows 10 Pro

Compatibility

Security HardwareTPM 2.0

Expansion Slots

Internal M.21x M.2
OtherDoppeltes RFID & Doppelte SmartCard

Multimedia

Speakers2x 3W-Lautsprecher
CameraStandard
Microphone2x Eingebaute Mikrofone

Thermal & Environmental

Operating Temperature0°C - 40°C (32°F - 104°F)
Storage Temperature-10°C - 55°C (14°F - 131°F)
Cooling SolutionPassiv - Lüfterlos

Enclosure

MaterialPlastik
IP RatingIP65 Frontblende
ColorWeiß
Control ButtonsBildschirmanzeige (OSD), Display ein/aus, Ein-/Aus-Taste
Mounting OptionsVESA 100 Halterung, VESA 75 Halterung

Peripherals & Wireless Connectivity

WiFiWifi 802.11 a/b/g/n/ac/ax Wifi 6
BluetoothBluetooth 5.2
RFIDOptional Dual RFID (LF/HF)
Peripheral OtherLeselicht, Kamera-Sichtschutzverriegelung

Weight / Dimensions

Weight5.8
Dimensions529.8 x 346.7 x 45

Certification

CertificationsEN 55011:2016+A2:2021 (RF), FCC Klasse B, IEC 61000-3-2 (EMC), IEC 61000-3-3 (EMC), ITE 62368, 60601-1 4. Auflage

Warranty

WarrantyUp to 5 Years

Krankenhaus-Point-of-Care-Computing: Der TM-5957-22 wurde für die nahtlose Integration mit anderen medizinischen Geräten entwickelt und eignet sich daher für Point-of-Care-Computing in Krankenhäusern und Gesundheitseinrichtungen.

Telemedizin und Videokonferenzen: Ausgestattet mit WiFi 6, BT 5.2 und einer 5MP-Frontkamera unterstützt der TM-5957-22 Telemedizin- und Videokonferenzanwendungen und ermöglicht so Konsultationen und Zusammenarbeit aus der Ferne.

Tragbares und mobiles Computing: Das optionale Akkupaket des TM-5957-22 ermöglicht es dem medizinischen Personal, sich zwischen Räumen zu bewegen, ohne den Computer auszuschalten oder auf schwere, batteriebetriebene Wagen angewiesen zu sein, was die Mobilität und Effizienz erhöht.
