TM-4815

10" Medical Panel PC

Available – Contact Us for Quick Quote

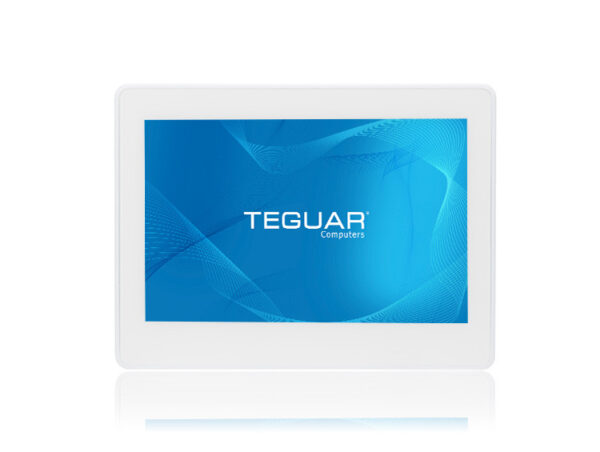

10" Medical Panel PC With Touch TM-4815-10 Front Angle

10" Medical Panel PC With Touch TM-4815-10 Back

10" Medical Panel PC With Touch TM-4815-10 Back I/Os

10" Medical Panel PC With Touch TM-4815-10 Side

Beschreibung

The 10” Medical Panel PC with Touch is a compact and versatile solution tailored to meet the specific needs of healthcare professionals. Its 10-inch optical bonding touchscreen offers intuitive and responsive interaction, enhancing workflow efficiency. With optional features like an RFID reader capable of reading various credentials, Power over Ethernet (PoE) for simplified installation, and programmable LED light bars for clear visual indicators, it adapts seamlessly to diverse medical environments. Its flush wall-mount design saves space while ensuring easy access to critical data. Whether used for patient records, patient vitals, or part of a medical system, this panel PC delivers reliability and performance crucial for modern healthcare.

Key Highlights

10” Projected Capacitive Touchscreen with Optical Bonding
Intel Celeron N6210 Elkhart Lake CPU
Programmable LED light bars on both sides
Multiple I/Os such as 1x HDMI, 1x RS-232, 1x GbE, 2x USB 3.2
IP65 Rated

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Primary Components

Processor Family	Intel Celeron Elkhart Lake
Processor Model	Celeron N6210
Processor Speed	Up to 2.6 GHz, 1.2 GHz
Memory Type	1x DDR4 SO-DIMM
Memory Support	4GB, 8GB, 16GB, 32GB
Storage Type	1x M.2 2242 Slot, SATA3 or NVMe
Storage Support	M.2: 128GB-512GB

Display

Screen Size	10.1"
Resolution	1280 x 800 (WXGA)
Screen Ratio	5:4
Brightness	400 nits

Touch Screen

Touch Screen	Optically Bonded Projected Capacitive
Hardness	6H

External I/O Ports

USB	2x USB 3.2
Serial / Com	1x COM
Serial Protocol Detail	RS-232
Ethernet / LAN	1x Optional Gbe LAN PD POE Class 4 802.3at/Class 5 802.3.bt, 1x RJ45 GbE LAN
Video Outputs	1x HDMI
Audio Ports	1x 3.5mm Audio Line-Out/Mic-In
Power Input Port	DC-in via adapter cable

Power

Input Voltage Range	Optional POE with PD, 12V DC
Standard Power Adapter	External Medical Grade, 65W, 12Vdc, 5.42A, with US Power Cord

Operating Systems

Windows

Windows 10 IoT, Windows 10 Pro, Windows 11 IoT, Windows 11 Pro

Multimedia

Speakers	2x 1W Speakers
Microphone	Built-in Microphone

Thermal & Environmental

Operating Temperature	0°C - 40°C (32°F – 104°F)
Storage Temperature	-20°C - 60°C (-4°F – 140°F)
Cooling Solution	Passive – Fanless
Humidity Range	10% – 95% Non-condensing

Enclosure

Material	PC+ABS
IP Rating	IP65 Front Bezel
Color	White
Control Buttons	AT/ATX, Clear CMOS, Power Button, Reset Button
Mounting Options	VESA 75 Mount

Peripherals & Wireless Connectivity

WiFi	Intel® Wi-Fi 6E AX210
Bluetooth	Bluetooth 5.0

Weight / Dimensions

Weight	2.8
Dimensions	261x40x196.4

Certification

Certifications

CE, UL 62368

Warranty

Up to 2 Years

Clinical Communication: The TM-4815 series excels as a clinical communication hub across various healthcare settings. Powered by the Intel Elkhart Lake processor, this panel PC ensures robust performance for demanding applications. With programmable light bars and a space-saving in-wall mount design, it becomes a versatile tool for communication in areas such as point of care, surgery rooms, and telemedicine, facilitating efficient interactions among healthcare professionals.

Patient Care Optimization: The TM-4815 series, designed to enhance patient care, is a valuable addition to healthcare facilities. With features like a responsive surgical glove interface and optical bonding for clear displays, this Medical Panel PC, powered by the Intel Elkhart Lake processor, supports patient care optimization across various medical imaging and surgical environments. Its programmable light bars and customizable alerts contribute to workflow efficiency in point-of-care applications.

See the data sheet Warranty Download Drivers

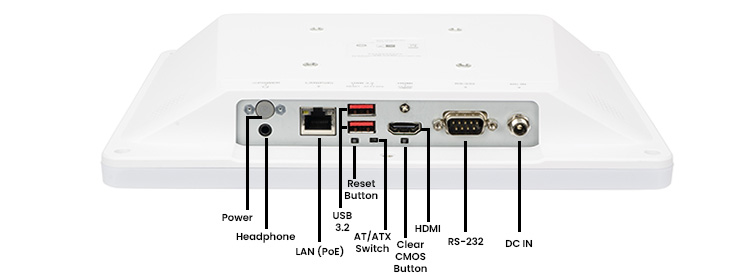

I/O Diagram Images

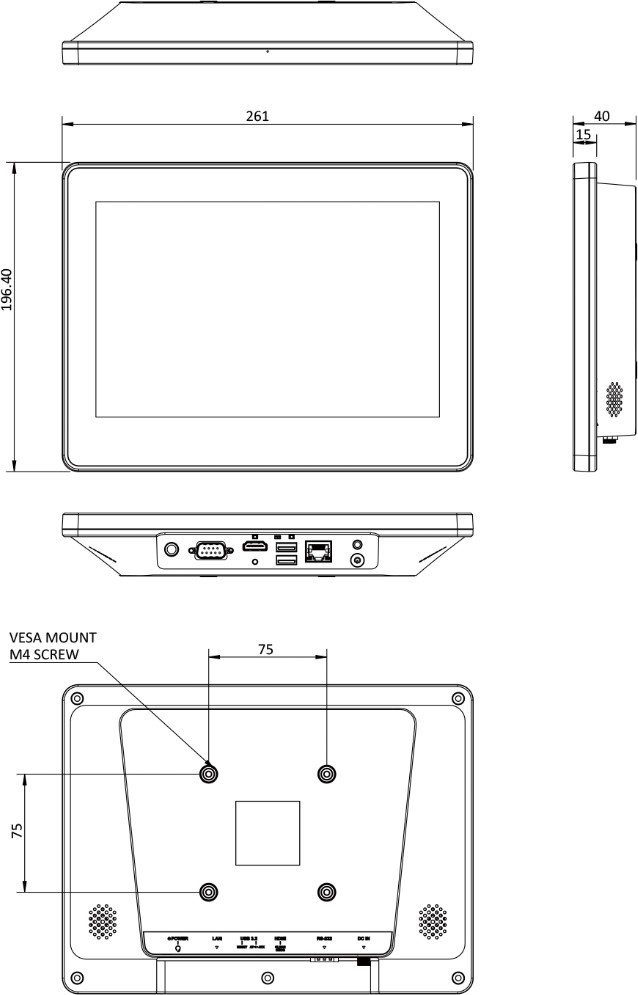

Tech Diagram Images
