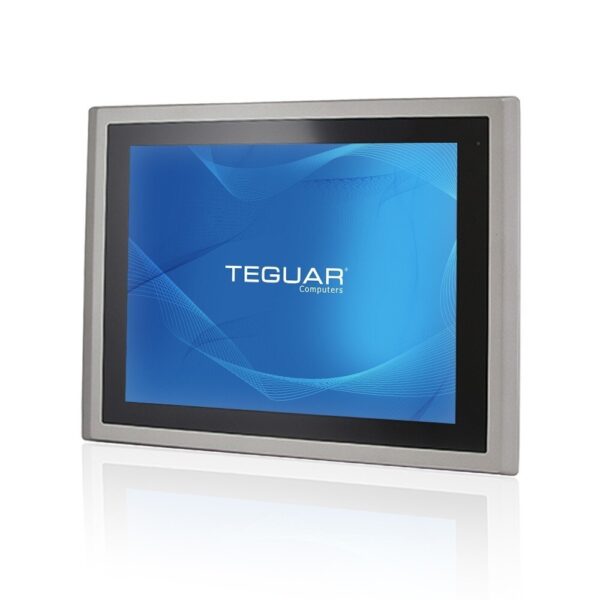

15" Industrial Touchscreen Monitor | TD-45-15

Beschreibung

The TD-45-15 is an aluminum panel display made for industrial environments. This versatile industrial touch display can be panel mounted into a cutout in an enclosure or it can be mounted to an arm, stand, or hung on a surface. When panel mounted, the front bezel is IP66 rated and protected from liquids and dust. The same model is available in screen sizes from 7″ to 21.5″ to meet the needs of most applications. The TD-45-15 can be connected to a box PC, offering a rugged, long-life solution, or connected to other touchscreen PCs, where it can operate as a cloned display or as an extended desktop. This display includes VGA, DVI, HDMI, and DisplayPort video inputs.

Key Highlights

15″ Touchscreen with Optional Sunlight Readable LCD
Aluminum Chassis for Industrial Strength
IP66 Compliant Front Panel
Resistive or Projected Capacitive Touchscreen
Wide Range DC 9~36V Power Input
Full Flat Front Panel

Get a Demo Get a Quick Quote

Warum bei Teguar kaufen

✆ Engagierte, schnell reagierende Kundensupport-Experten
✓ 30 Tage sorgenfreie Rückgabe, plus bis zu 5 Jahre Garantie
★ Von unseren Kunden auf Google und Trustpilot mit Bestnoten bewertet

Display

Screen Size	15"
Resolution	1024 x 768 (XGA)
Screen Ratio	4:3
Brightness	Optional 1000 nit High Brightness, 420 nits

Touch Screen

Projected Capacitive, Resistive

External I/O Ports

Audio Ports	1x Optional Speaker with 1x Audio Input
Power Input Port	3-Pin DC-In (Phoenix Type)

Power

Input Voltage Range	9-32V DC
Max Power Consumption	12.5W (Resistive), 17.6W (P-Cap)
Standard Power Adapter	Optional 12V AC/DC Adapter

Multimedia

Speakers

Optional Speaker

Thermal & Environmental

Operating Temperature	-20°C - 60°C (-4°F – 140°F)
Storage Temperature	-30°C - 70°C (-22°F – 158°F)
Cooling Solution	Passive – Fanless
Storage Humidity	10% – 90% Non-condensing

Enclosure

Material	Aluminum
IP Rating	IP66 Front Bezel
Color	Silver
Mounting Options	Panel Mount, VESA 100 Mount
Approved Cleaning Solutions	Alcohol, Chlorine and Compounds, Glutaraldehyde, Hydrogen Peroxide, Ortho-phthalaldehyde (OPA), Quaternary Ammonium Compounds

Weight / Dimensions

Weight	4.3
Dimensions	410 x 310 x 54.6

Certification

Certifications

CE, FCC Class A, UL 62368

Warranty

Up to 5 Years

Outdoor Digital Signage: With options for a 1000 nit high brightness LCD and optical bonding, the displays are ideal for outdoor digital signage, providing excellent visibility in various lighting conditions.

Industrial Control Rooms: With their wide range of screen sizes, resolutions, and durable construction, the TD-45 series is suitable for industrial control room applications, delivering reliable performance and protection against liquids and dust.

Transportation and Logistics: The TD-45 Series, featuring fanless cooling systems and a wide range 9~36VDC power input, is suitable for transportation and logistics applications, providing robust and reliable displays for vehicle-mounted or outdoor environments.

See the data sheet Warranty Download Drivers

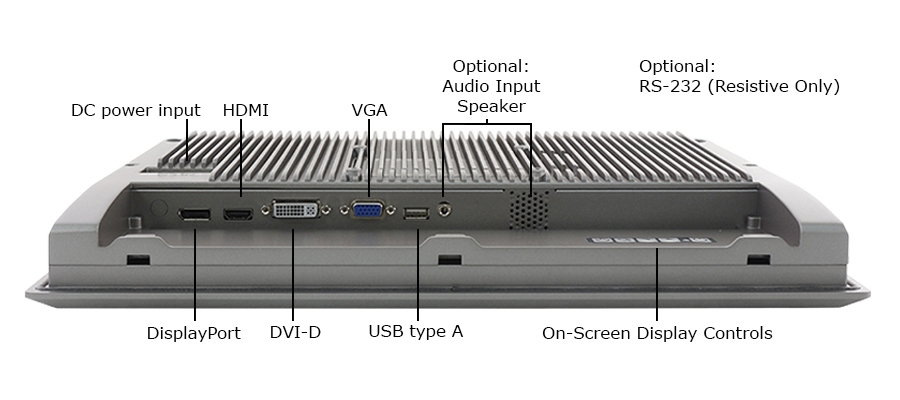

I/O Diagram Images

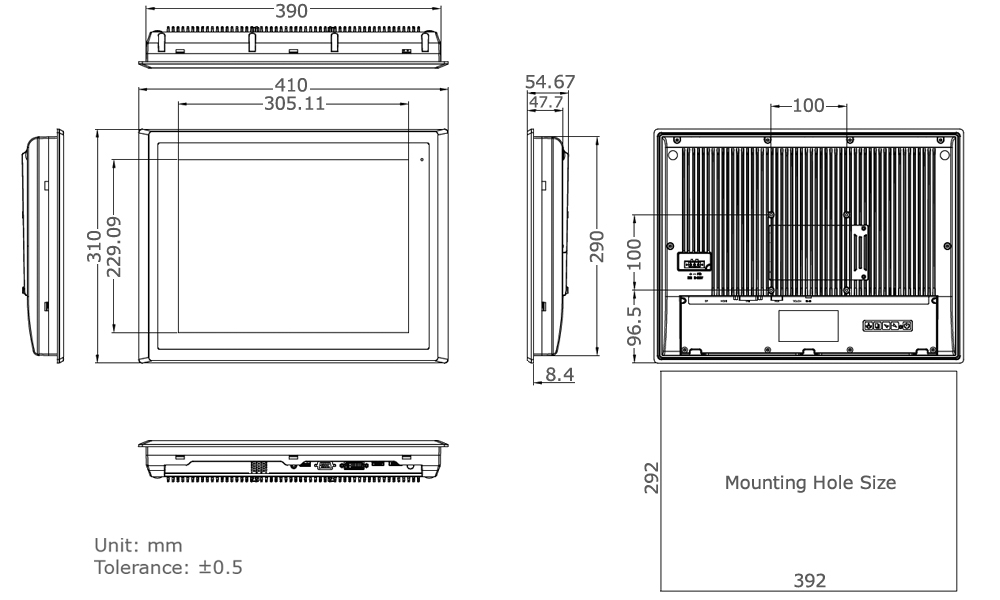

Tech Diagram Images

TD-45-15

15" Industrie-Display

Available – Contact Us for Quick Quote

Beschreibung

Das TD-45-15 ist ein Aluminium-Panel-Display für industrielle Umgebungen. Dieses vielseitige Industrie-Touchdisplay kann in einen Gehäuseausschnitt eingebaut oder an einem Arm, einem Ständer oder an einer Oberfläche aufgehängt werden. Bei der Panelmontage ist die Frontblende nach IP66 zertifiziert und vor Flüssigkeiten und Staub geschützt. Das gleiche Modell ist in Bildschirmgrößen von 7″ bis 21,5″ erhältlich, um die Anforderungen der meisten Anwendungen zu erfüllen. Der TD-45-15 kann an einen Box-PC angeschlossen werden und bietet so eine robuste, langlebige Lösung. Er kann aber auch an andere Touchscreen-PCs angeschlossen werden, wo er als geklontes Display oder als erweiterter Desktop fungieren kann. Dieses Display verfügt über VGA-, DVI-, HDMI- und DisplayPort-Videoeingänge.
